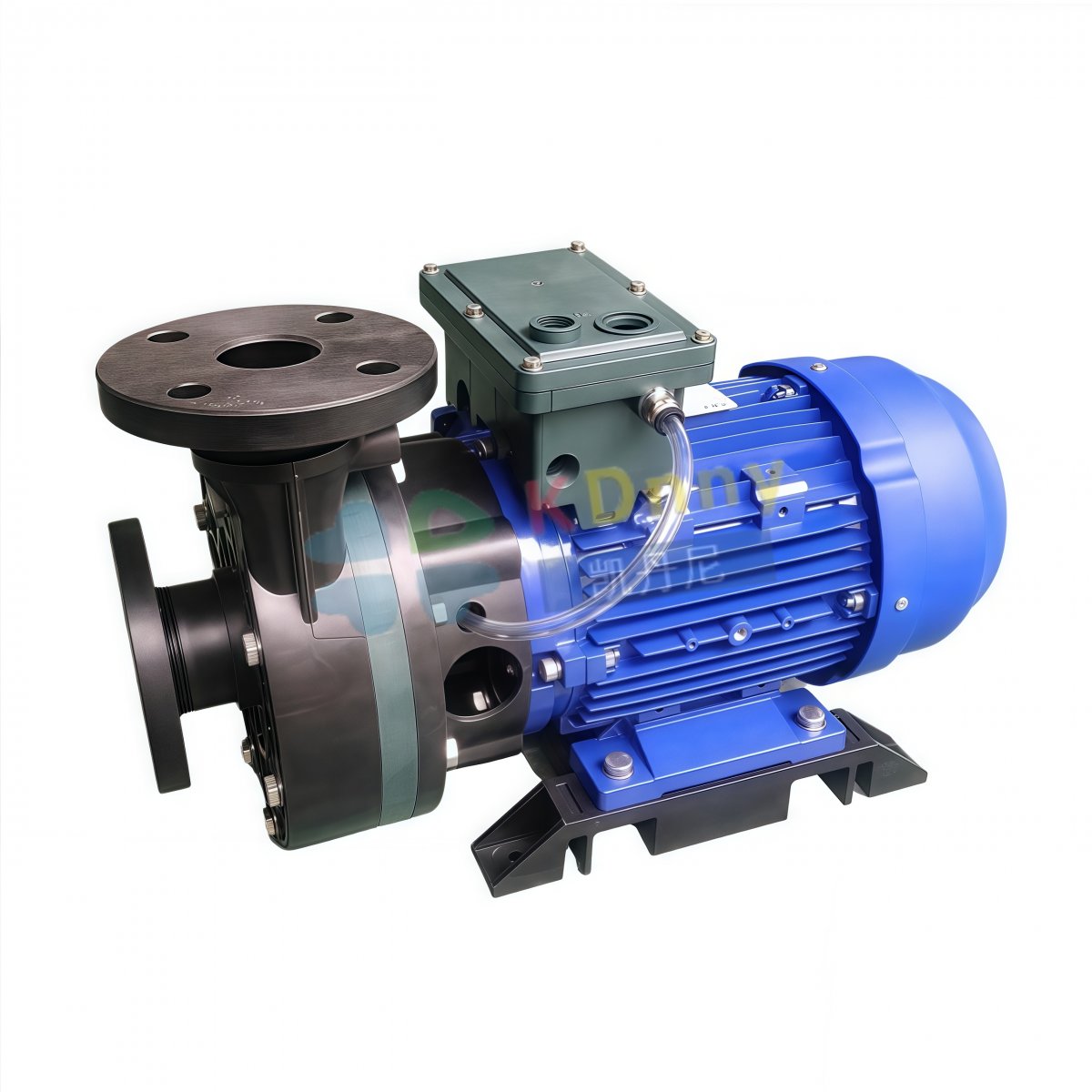

DMB Series - Mechanical Pump

TIME：2025-02-06 Author：admin Views：

PARAMETERS

● Max. Capacity: 50Hz-250~2100 L/min 60Hz-240~2000 L/min
● Max. Head: 50Hz-15~30 m 60Hz-15~41 m
● Power: 0.75~11kW
● Caliber: Inlet-40mm, 50mm, 75mm, 100mm, 125mm
Outlet-40mm, 50mm, 75mm, 100mm, 125mm

PRODUCT FEATURES

● Automatic casting equipment, self-casting precision shell, new and beautiful appearance of the international unified IEC size.Universal, 100% interchangeable, easy maintenance, miniaturized design, reduced frame size, small size and light weight.

Good economy, transportation, easy installation, shaft end tapping, the use of more selective and convenient.

● Computerized design, precision machining by the latest automatic machinery, electronic instrument inspection.

● Consistent production using patented winding method and special bearings, high precision features in line with China Quality Certification (CQC) and the International Electrical Association (IEA) and IEC standards, high reliability.

● Sealed structure, dustproof, water droplets and oil droplets efficient cooling structure.Reduces wind loss and saves energy. High polymer resin insulation for superior durability.

● Competent in harsh environments. The design of the windshield complies with the European Union's EN294 regulations, making it durable and more secure.

● Adopt special groove die-casting aluminum rotor, large starting torque, small inertia, saving the starting and stopping time with low vibration and low noise.

TYPICAL APPLICATIONS

● City environmental protection
● Chemical industry
● Pharmacy
● Dyeing
● Printing and dyeing
● Brewing
● Electronic components
● Semiconductor
● Cleaning equipment
● Electrophoretic coating
● Seawater breeding
● Anodizing
● Electroplating
● paper making
● PCB making equipment

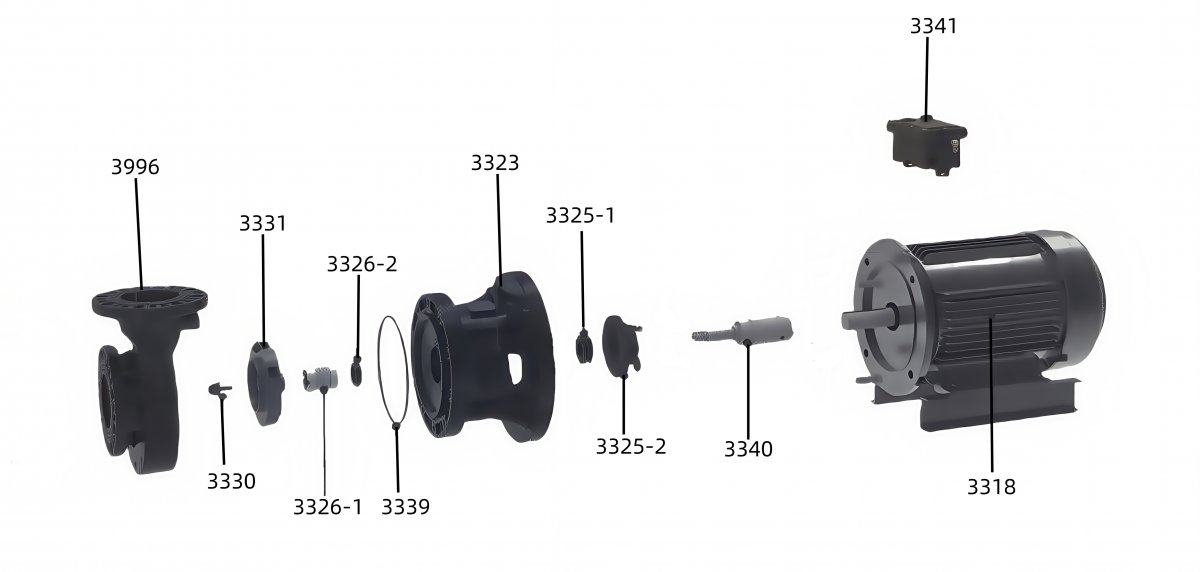

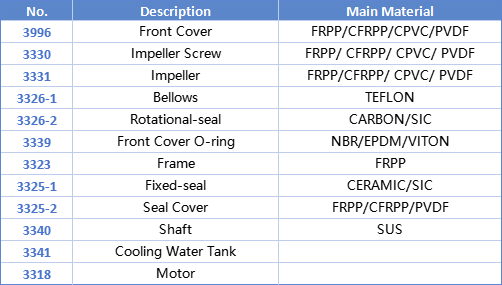

PARTS LIST

MODEL EXPLANATION

1、 Model: DMB

2、 Pump Material: 1-FRPP 2-CFRPP 3-PVDF

3、 In-Outlet: A-40*40 B-50*50 C-75*75

F-100*100 G-125*125

4、 Power: 10-0.75kW 16-1.5kW 18-2.2kW

20-3.75kW 25-5.5kW 30-7.5kW 35-11kW

5、 Motor Pole:2-2P 4-4P

6、 Rubber: N-NBR E-EPDM V-VITON

7、 Head: H-High Head L-Low Head

8、 S-Seal Group

Fixed-seal: SIC

Rotational-seal:SIC

Spring: HASTELLOY-C

9、 Frequency: 5-50Hz 6-60Hz

10、 K-Idling Resistance Type

11、 Motor Type: N-Standard Type B-Explosion Type

These are Mechanical Pump of DMB Series, we have the models number as below:

DMB-A10

DMB-A16

DMB-A18

DMB-B18

DMB-B20

DMB-C20

DMB-C25

DMB-C30

DMB-F30

DMB-F35

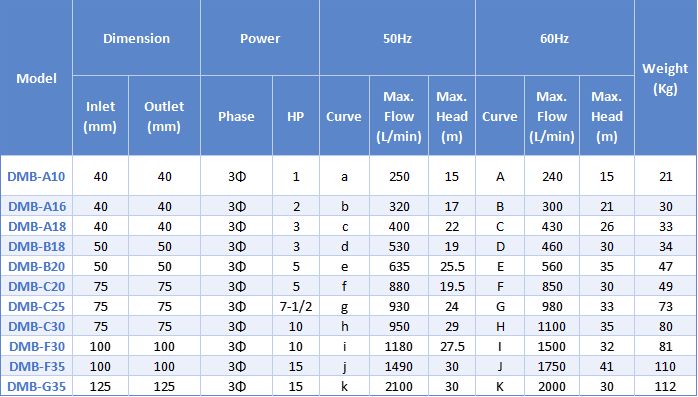

SPECIFICATION

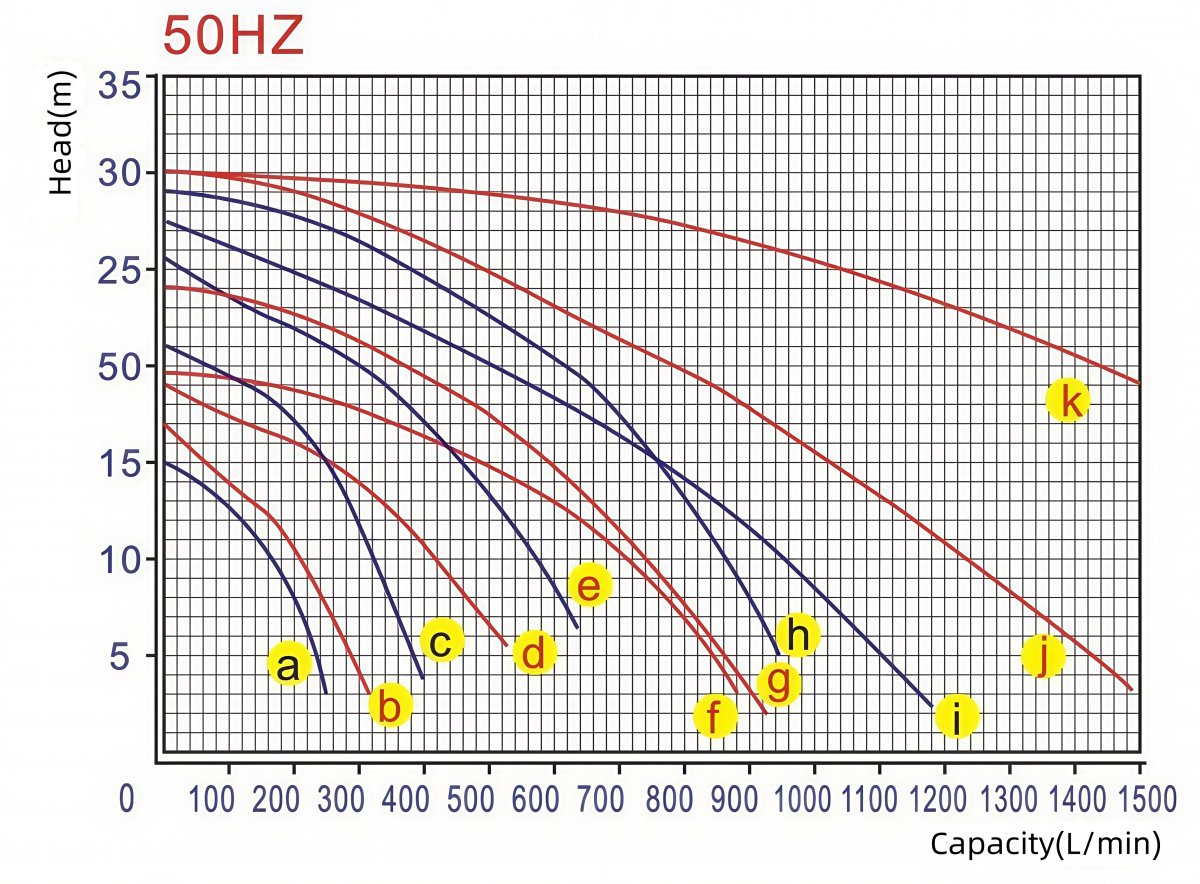

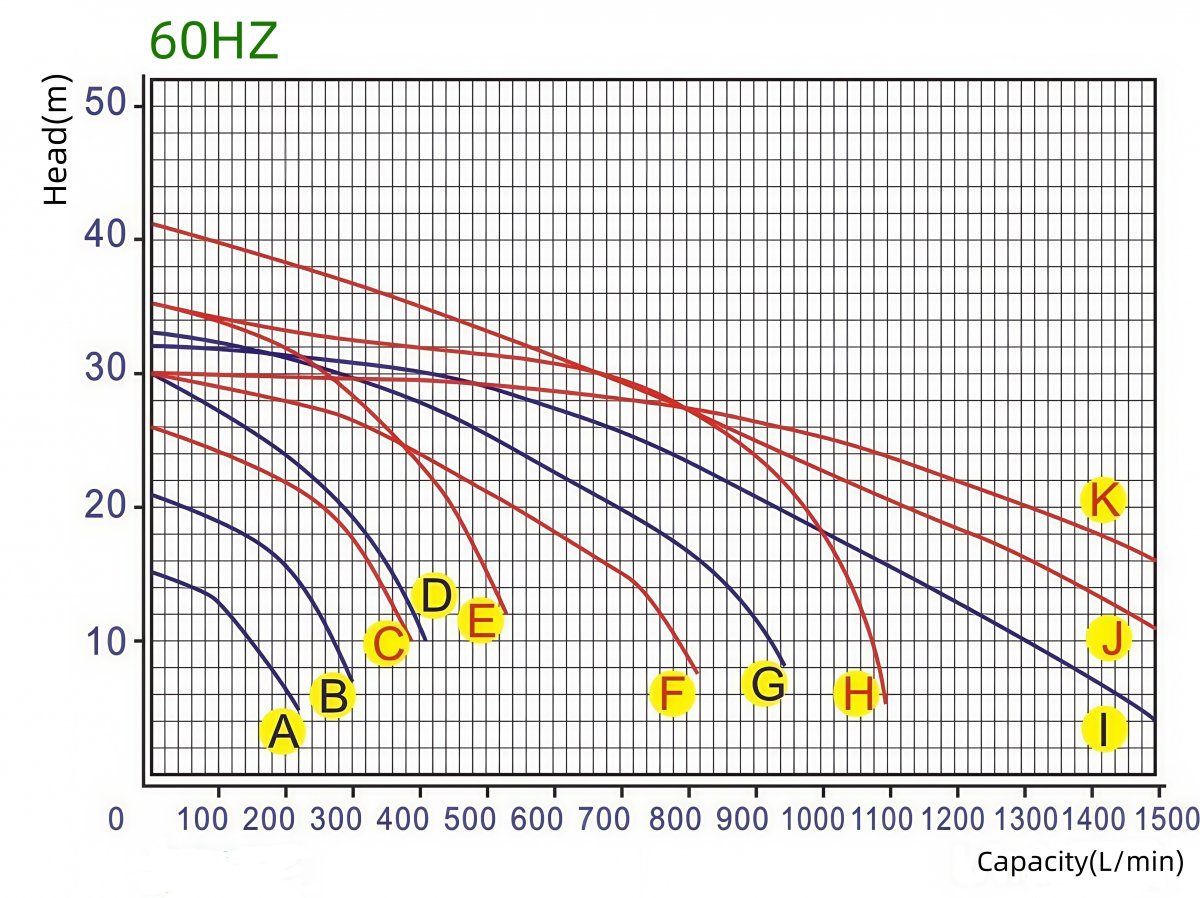

PERFORMANCE CURVE

While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
