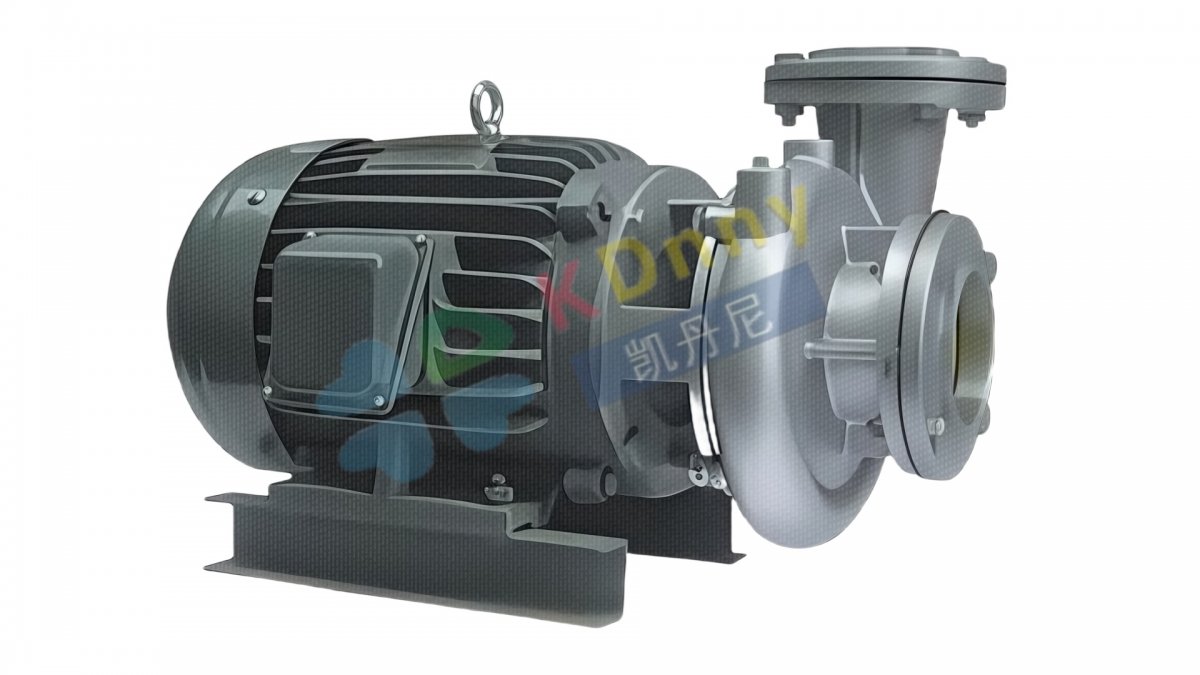

Stainless Steel Horizontal Pump - DMD Series
TIME：2024-12-23 Author：admin Views：
PARAMETERS
● Max. Capacity: 40~1360 L/min● Max. Head: 10~55 m
● Power: 0.37~7.5kW
● Caliber: Inlet-1'', 1-1/2'', 2'', 2-1/2'', 3'', 4'' Outlet-1'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
● Casing Material: SUS304, SUS316
PRODUCT FEATURES
● The special design of the impeller, high efficiency, long life, low noise and small body.●The pumping performance characteristics, adopt the stainless steel shaft, durable, power 1/2HP~40HP.
● The pump body and shaft seal material, must according the chemical physic liquid to choose, so as not to damage the pump.
● The pump body can be chosen SUS304 and SUS316 material.
TYPICAL APPLICATIONS
● Pure water industry● Chemical industry
● Surface treatment industry
● Other industries
MODEL EXPLANATION
1、 Model: DMD
2、 In-Outlet Internal Screw Type
A-40*40 B-50*50 C-75*75
D-25*25 E-65*65 F-100*100
3、 Power: 8-0.37kW 10-0.75kW 16-1.5kW
18-2.2kW 20-3.75kW
25-5.5kW 30-7.5kW
4、 Seal Material: C-Ceramic S-SIC
5、 Casing Material: 4-SUS304 6-SUS316
6、 Head: H-High Head L-Low Head
7、 Rubber: N-NBR V-VITON
8、 Frequency:5-50Hz 6-60Hz
9、 Motor Pole:2-2P 4-4P
These are Stainless Steel Horizontal Pump of DMD Series, we have the models number as below:
These are Stainless Steel Horizontal Pump of DMD Series, we have the models number as below:
DMD-D8
DMD-A10
DMD-A10H
DMD-A16
DMD-B16
DMD-B18
DMD-B18H
DMD-E18
DMD-B20
DMD-E20
DMD-C20
DMD-B25
DMD-C25
DMD-C30
DMD-F30

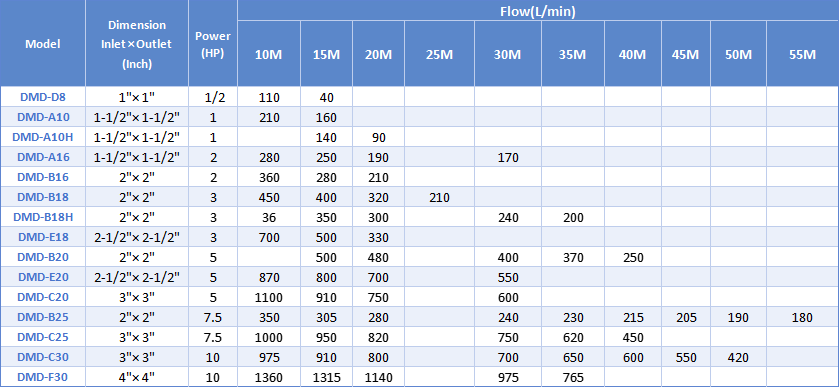

SPECIFICATION
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
