Chemical Filters- GKD double tower
TIME：2024-01-17 Author：admin Views：
TYPICAL APPLICATIONS
● Building life water transport, high-rise pressurized water transport,
● Garden sprinkler irrigation, long-distance transport,
● Heating refrigeration cycle
● Bathroom and other warm water cycle pressurization and equipment supporting
PRODUCT FEATURES
● The paper in first chamber functions as filtering out the bigger particles and organic matter by the paper and activated carbon powder.
● The cartridge in second chamber functions as filtering out the smaller particles and few activated carbon powder running through the paper. lt assures the chemical clean perfectly.
● Both filtration methods of cartridge plate fixture and cartridge nut are available for second chamber.
● Filtration method of paper will loads 5~6 times of activated carbon powder compared with filtration methods of cartridge. It enables the filtration much more better.
● High temperature resistance,the filters are made of PP material, integrated molding design, can withstand 70°C high temperature.
● Acid and alkali resistance, the filters can make of FRPP/PVDF material, strong corrosion resistance , can withstand strong acid and alkali resistance.
● The filter made from single-pieces injected barrel, it is for hardware plating solution.
CONSTRUCTION
(1)Model：GKD
(2)Cartridge：2008-20''×8 pcs 2012-20''×12 pcs 2018-20''×18 pcs
(3)Power: 2 - 2HP 3 - 3HP

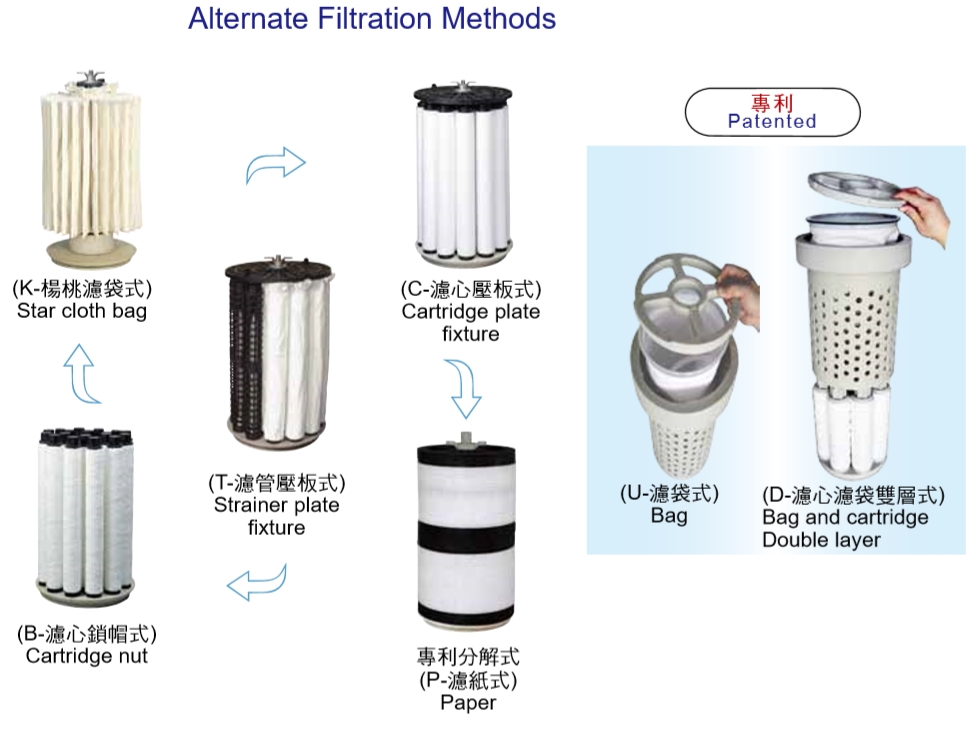

(4)First chamber: C-Carttidhe plate fixture P-Paper K-Star cloth bag B-Cartridge nut
(5)Second chamber: C-Cartridge plate fixture B-Cartridge nut
(6)Elastomer: N -NBR E - EPDM V - VITON
(7)Fitting: J-JIS D-DIN A-ANSI
(8)Pump inside: D- SD pump H - HD pump C - SDC pump P - SDP pump
(9) With self-cleaning system: X- with O- Without
(10)First tower: A - Formed filter core H- L- Cleaning P- Washable Filter Paper J - U-
(11)Second tower: A - H- L- J- P-Filter Paper
(12)A- Use 4 bleeder valve
(13)L-
● Building life water transport, high-rise pressurized water transport,
● Garden sprinkler irrigation, long-distance transport,
● Heating refrigeration cycle
● Bathroom and other warm water cycle pressurization and equipment supporting
PRODUCT FEATURES
● The paper in first chamber functions as filtering out the bigger particles and organic matter by the paper and activated carbon powder.
● The cartridge in second chamber functions as filtering out the smaller particles and few activated carbon powder running through the paper. lt assures the chemical clean perfectly.
● Both filtration methods of cartridge plate fixture and cartridge nut are available for second chamber.
● Filtration method of paper will loads 5~6 times of activated carbon powder compared with filtration methods of cartridge. It enables the filtration much more better.
● High temperature resistance,the filters are made of PP material, integrated molding design, can withstand 70°C high temperature.
● Acid and alkali resistance, the filters can make of FRPP/PVDF material, strong corrosion resistance , can withstand strong acid and alkali resistance.
● The filter made from single-pieces injected barrel, it is for hardware plating solution.
CONSTRUCTION
(1)Model：GKD
(2)Cartridge：2008-20''×8 pcs 2012-20''×12 pcs 2018-20''×18 pcs
(3)Power: 2 - 2HP 3 - 3HP
(4)First chamber: C-Carttidhe plate fixture P-Paper K-Star cloth bag B-Cartridge nut
(5)Second chamber: C-Cartridge plate fixture B-Cartridge nut
(6)Elastomer: N -NBR E - EPDM V - VITON
(7)Fitting: J-JIS D-DIN A-ANSI
(8)Pump inside: D- SD pump H - HD pump C - SDC pump P - SDP pump
(9) With self-cleaning system: X- with O- Without
(10)First tower: A - Formed filter core H- L- Cleaning P- Washable Filter Paper J - U-
(11)Second tower: A - H- L- J- P-Filter Paper
(12)A- Use 4 bleeder valve
(13)L-
Movable upper cover clasp
N-normal cover specification
(14)A-normal protection switch E - Intelligent security protection controller
SPECIFICATION
DIMENSION
SPECIFICATION
| Model | 2008-2 | 2012-2 | 2018-3 | |
|
Capacity (L/min) |
180 | 220 | 330 | |
|
Tank Volume (ton)适合电镀槽 |
2~2.5 | 2.5~4 | 4~6.5 | |
|
First chamber |
B or C Type 滤心压板式 |
2''×8 pcs | 20''×12 pcs | 20''×18 pcs |
|
P Type 滤纸式 |
234Φx40 | 302Φx40 | 370Φ×38 | |
|
K Type 杨桃滤袋式 |
1Set (36pcs) | 1Set (48pcs) | 1Set (56pcs) | |
|
Max. Temperature 温度范围 |
65 | 65 | 65 | |
| Motor Power（HP） | 2 | 2 | 3 | |
| Second chamber |
B or C Type 滤心锁帽式 |
20''×8 | 20''×8 | 20''×8 |
| First chamber fitting | 1-1/2''~2'' | 1-1/2''~2'' | 2'' | |
| Second chamber fitting | 1-1/2'' | 1-1/2''~2'' | 2'' | |
| Weight(kg) | 110 | 145 | 160 | |

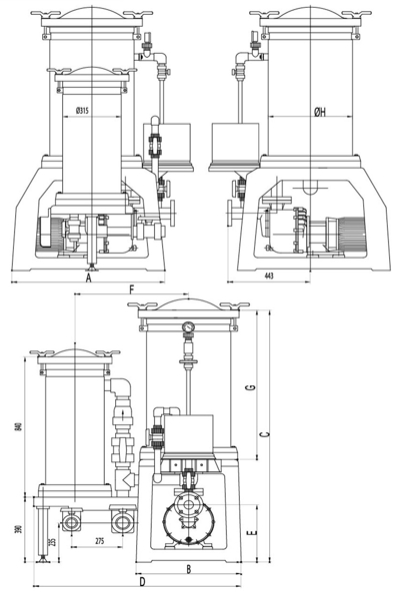

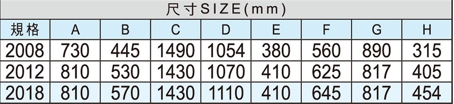

DIMENSION
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
