Chemical Filter- KSA Series
TIME：2024-07-02 Author：admin Views：

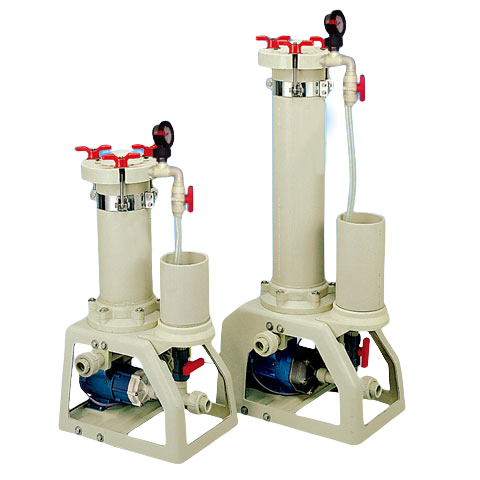

These are KSA Series of CHEMICAL FILTER ,the model numbers are as below:
KSA-1001 , KSA-2001 , KSA-1002 , KSA-2002.
KSA series filter-pump systems are made of polypropylene:PP/PVDF/CFRPP. These space-saving systems are availble with flow rates of up to 15,000 GPH. Viton of EPDM gaskets are available. The filter housings feature a thick, reinforced ribbing in all molded parts. Simplicity of design makes these filters easy to service and operate. A sample of the solution being filtered can be obtained while the pump is running via a sample port with collection cup. A valve on the bottom of the cup will return the solution to the filter. This sample port can also be used to help prime the pump during start up.
TYPICAL APPLICATIONS
● Chemical or water recirculation
● PCB Plating solutions
● Waste treatment,Wet processing
● Various plating solutions recirculation
● Deliver acids
PRODUCT FEATURES
● Most filter parts are molded by polypropylene. Easy to assemble and maintain.
● Seal-less magnetic pump eliminates leakage of pump.
● Various filtration methods of cartridge nut, paper and cartridge plate fixture are available.
● Power on-off switch.

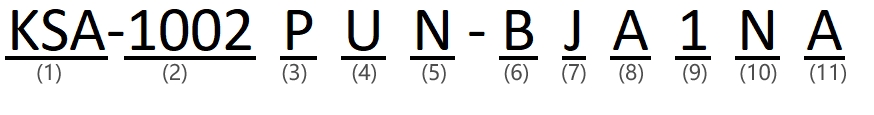

CONSTRUCTION
(1)Model：KSA
(2)1001 - 10''×1pcs 1002 - 10''×2pcs
2001 - 20''×1pcs 2002 - 20''×2pcs
(3)Filter cartridge and Pump material : P - PP for Barrel and pump head
K - PP for barrel, PVDF for pump head
C - PP for barrel, CFRPP for pump head
(4)In-outlet type：U - Union
(5)Rubber: V - VITON E - EPDM N - NBR
(6)Filter option: B-Cartridge nut C - Cartridge plate fixture P- paper
(7)Fitting: J-JIS D-DIN A-ANSI
(8)SM pump model: A - 20100(3/4'') B - 20180(3/4'') C - 25180(1''）
(9)Phase: 1 - single phase 3 - three phase
(10)S - Special model N - Normal model
(11)Alternate Filtation Methods: A - Formed filter core L- Cleanable cartridge S - special filter material
SPECIFICATION
| Model | KSA-1001 | KSA-2001 | KSA-1002 | KSA-2002 | |
|
Capacity (L/min) (L/min) |
15 | 30 | 30 | 60 | |
|
Tank Volume (Liter) |
200 | 400 | 400 | 600 | |
|
Filtration method |
Cartridge No.(pcs) | 10''×1 | 20''×1 | 10''×2 | 20''×2 |
| Filtration area(m3) | 0.125 | 0.25 | 0.25 | 0.5 | |
|
Max. Temperature |
PP chamber | 65 | 65 | 65 | 65 |
| SM pump mode | A | B | B | B.C | |
| Fitting(inch) | 3/4'' | 3/4'' | 3/4'' | 3/4'',1'' | |
| Weight(kg) | 17 | 20 | 20 | 24 | |
※For KSA series,the height of extra pressure gauge is 110m/m

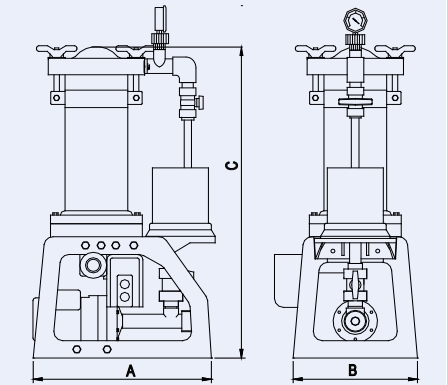

DIMENSION
UNIT:MM
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
