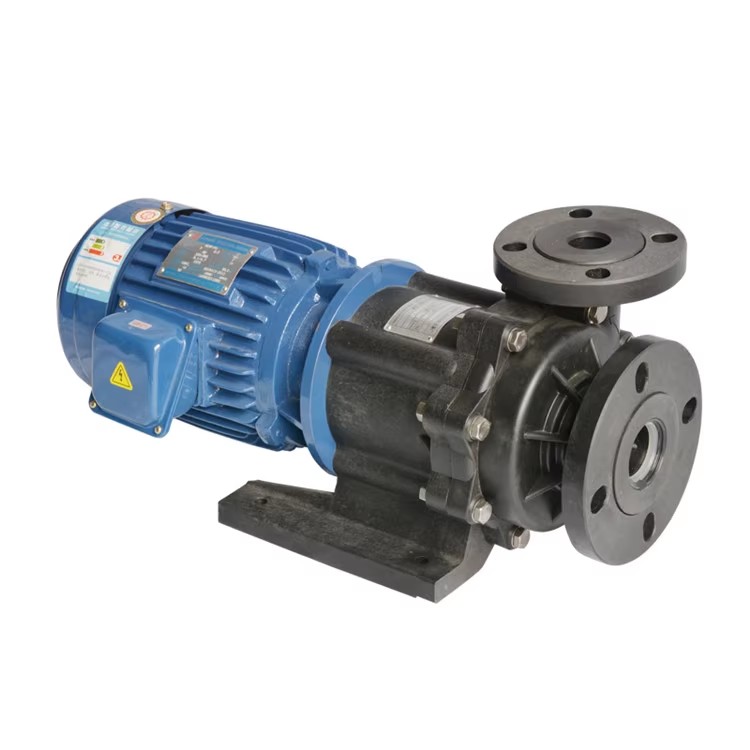

Magnet pump - SM Series (High head)
TIME：2024-06-29 Author：admin Views：
High head 丨Sealless 丨Energy conservation 丨Acid and alkali resistance
PRODUCT FEATURES
● Environmental protection, low power consumption and long service life
● No friction seal, this seal-less construction eliminates the leakage may caused by mechanical seak and can be applied to various applications.
● Magnetic transmission is suitable for clean acid and alkali liquid transportation
● The pumps are available in FRPP, CFRPP, PVDF materials below 85°C, depending on various chemical properties.
● One piece moded Acid resistant housing bracket construction, light and handy, corrosion resistant.

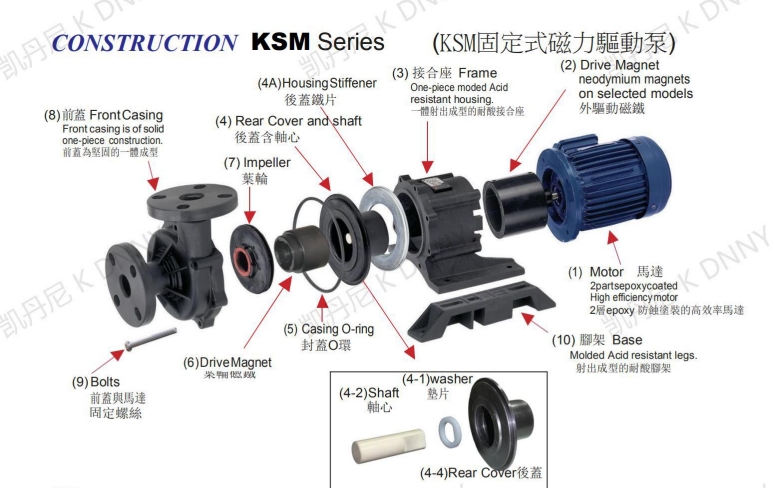

CONSTRUCTION
● Pump Capacity: 50Hz-Up to 860 L/min 60Hz-Up to 920 L/min
● Pump Head: 50-Up to 32m 60Hz-Up to 42m
● Power Range: 0.37kW-5.5 kW(%- 7.5 hp)
● Casing Material: FRPP, PVDF, CFRPP
● Type: Horizontal,Centrifugal
● Construction: Magnetic Drive, Sealless
Currently, we have below model of high head magnetic pump:
KSMF-250H, KSMF-251H, KSMF-400H, KSMF-401H, KSMF-402H, KSMF-502H,
KSMF-403H, KSMF-503H, KSMF-505H, KSMF-605H, KSMF-655H, KSMF-657H,
KSMK-250H, KSMK-251H, KSMK-400H, KSMK-401H, KSMK-402H, KSMK-502H,
KSMK-403H, KSMK-503H, KSMK-505H, KSMK-605H, KSMK-655H, KSMK-657H,
KSMP-250H, KSMP-251H, KSMP-400H, KSMP-401H, KSMP-402H, KSMP-502H,
KSMP-403H, KSMP-503H, KSMP-505H, KSMP-605H, KSMP-655H, KSMP-657H.
(1)Model:KSM
(2)Pump Material: F - FRPP K - PVDF P - CFRPP
(3)In-outlet: 40 - 1-1/2'' 50 - 2'' 65 - 2 -1/2''
(4)Power: 0 - 1/2HP 1 - 1HP 2 - 2HP 3 - 3HP 5 - 5HP
(5)Head: L - Low Head H - High Head
(6)Shaft Material: C - Ceramic S - SSIC
(7)Frequency: 5 - 50Hz 6 - 60Hz
(8)Elastomer: N - NBR E - EPDM V - VITON
(9)Impeller Bearing: R - RULON S - SSIC C - Carbon
(10)Motor: 4 - 4P N - Standard S - Special Model

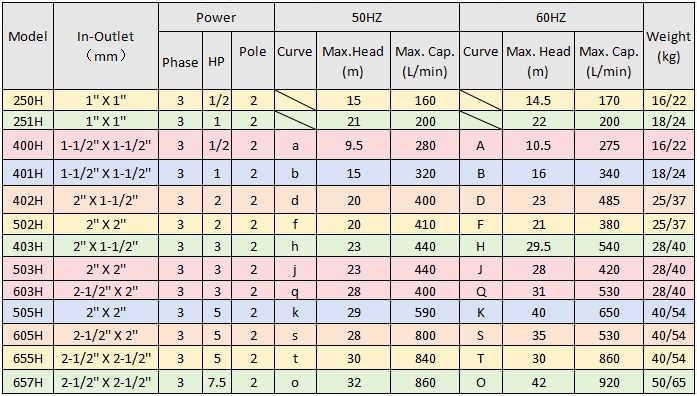

SPECIFICATION Testing fluid:Water (Specific gravity 1.0)测试流体:水（比重1.0）

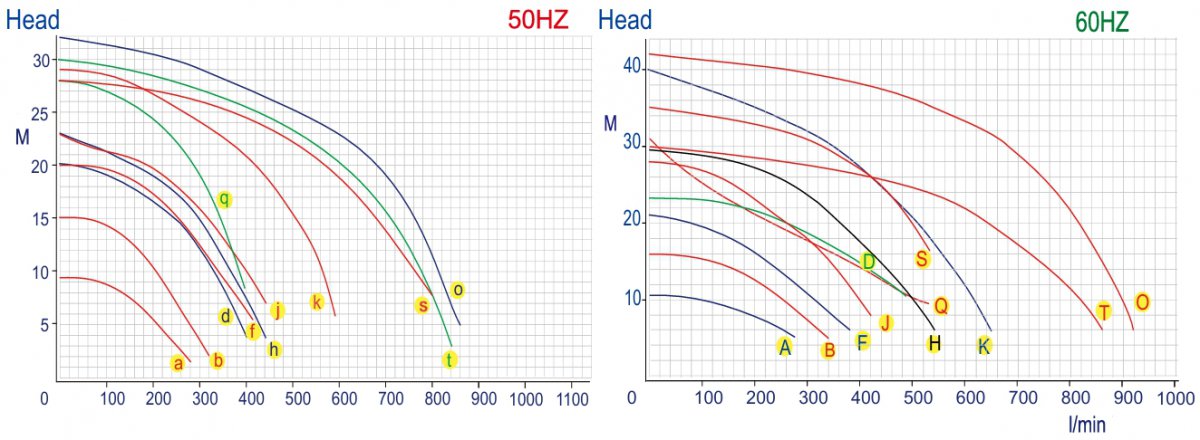

PERFORMANCE CURVES
Magnetic transmission resistant to most chemicals, suitable for all kinds of acid and alkali liquid circulation and cooling transportation.
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
