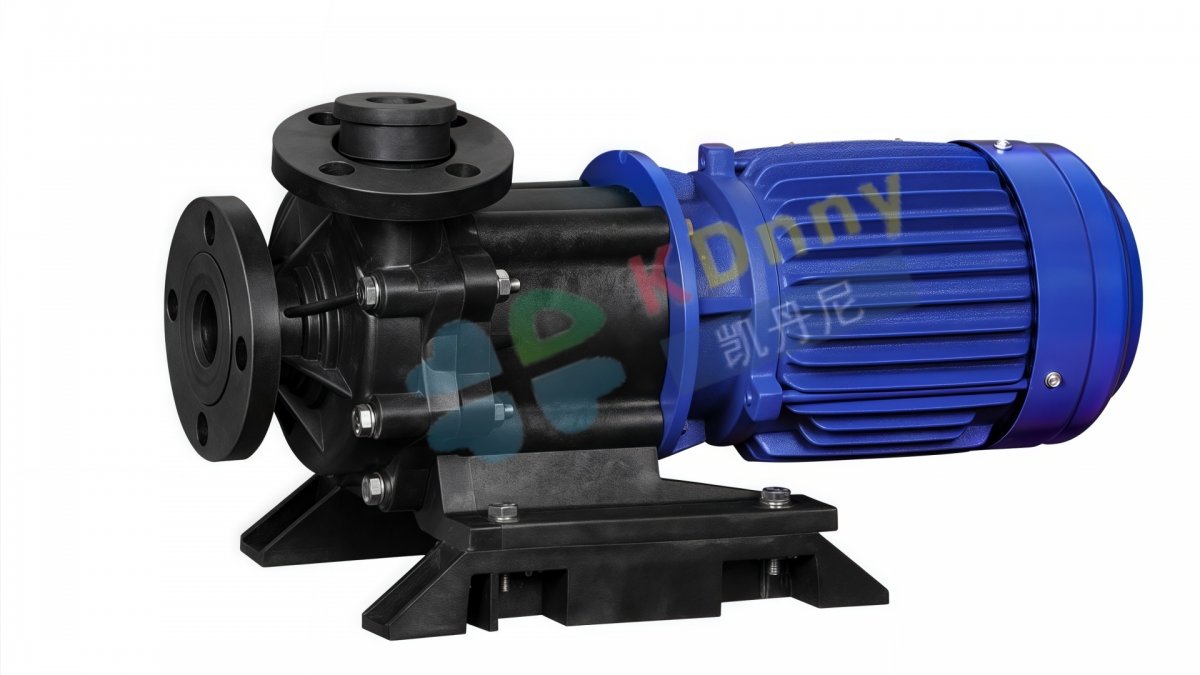

KDA Series - Magnetic Pump

TIME：2025-02-06 Author：admin Views：

PARAMETERS

● Max. Capacity: 50Hz-280~860 L/min 60Hz-275~920 L/min
● Max. Head: 50Hz-9.5~32 m 60Hz-10.5~42 m
● Power: 0.37~5.5 kW
● Pump Casing: FRPP, PVDF, CFRPP
● In-Outlet: 40×40mm, 50×40mm, 50×50mm, 65×65mm, 65×50mm

PRODUCT FEATURES

● Environmental protection, low power consumption and long service life.
● No friction seal, this seal-less construction eliminates the leakage may caused by mechanical seak and can be applied to various applications.
● Magnetic transmission is suitable for clean acid and alkali liquid transportation.
● The pumps are available in FRPP, CFRPP, PVDF materials below 85°C, depending on various chemical properties.
● One piece moded Acid resistant housing bracket construction, light and handy, corrosion resistant.

TYPICAL APPLICATIONS

● Wastewater treatment
● Electroplating
● Painting industry

● Photovoltaic

● PCB
● Clean acid and alkali liquid transportation

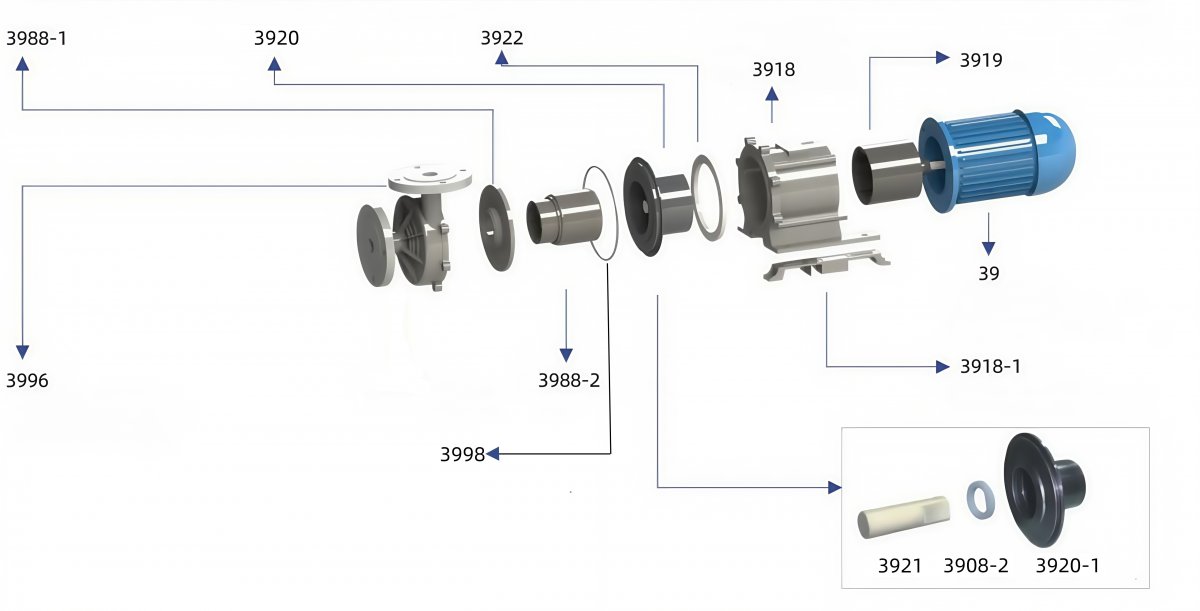

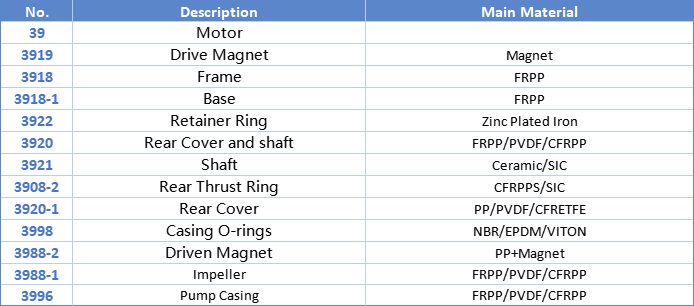

PARTS LIST

MODEL EXPLANATION

1、 Model: KDA

2、 In-Outlet: I-40*40 J-50*40

K-50*50 M-65*65 L-65*50

3、 Power: 8-0.37kW 10-0.75kW 16-1.5kW

18-2.2kW 20-3.75kW 25-5.5kW

4、 Pump Material: 1-FRPP 2-CFRPP 3-PVDF

5、 Head: H-High Head L-Low Head

6、 Shaft Material: C-Ceramic S-SSIC

7、 Bearing: C-Carbon S-SSIC

A-Ceramic R-RULON

8、 Frequency: 5-50Hz 6-60Hz

9、 Rubber: N-NBR E-EPDM V-VITON

10、N -Standard S-Special Specifications

These are Magnetic Drive Pump of KDA Series, we have the models number as below:

KDA-I8

KDA-I10

KDA-J16

KDA-K16

KDA-J18

KDA-K18

KDA-L18

KDA-K20

KDA-L20

KDA-M20

KDA-M25

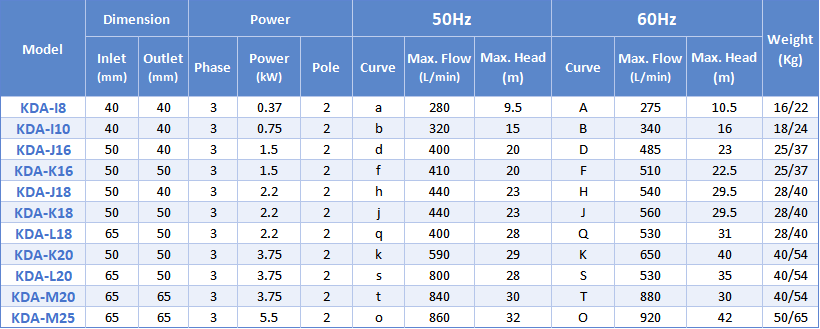

SPECIFICATION

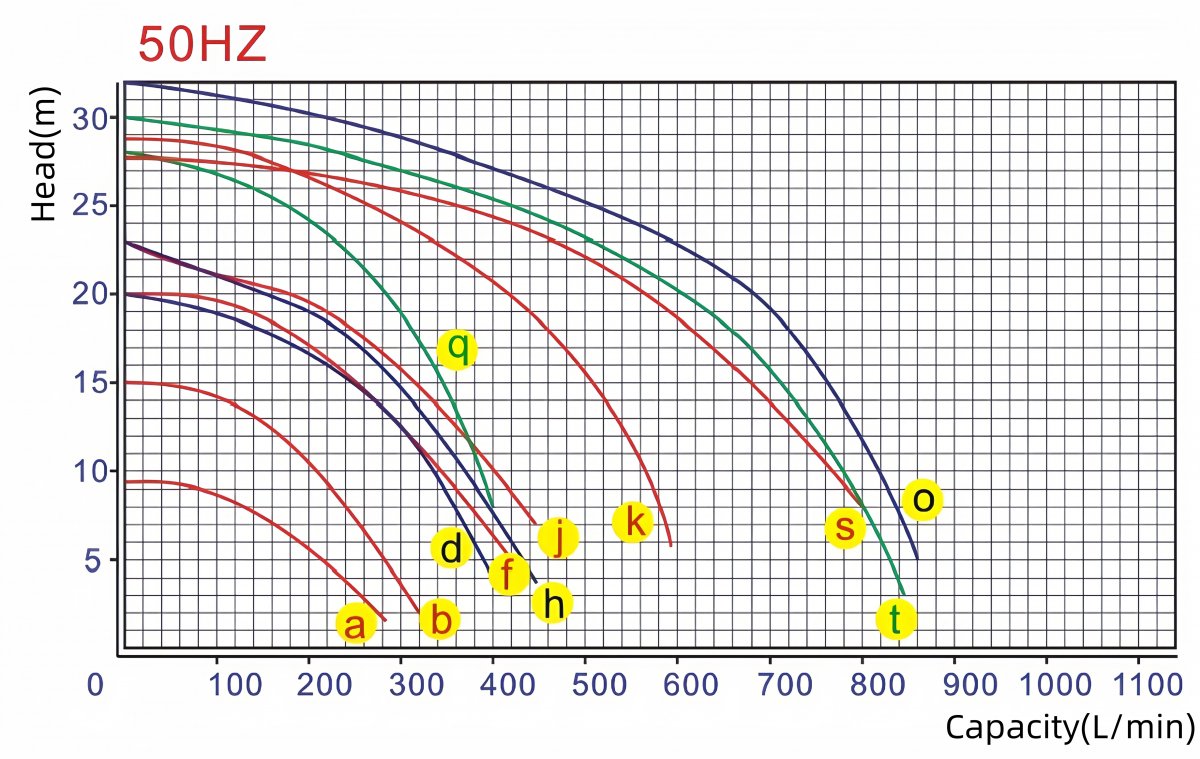

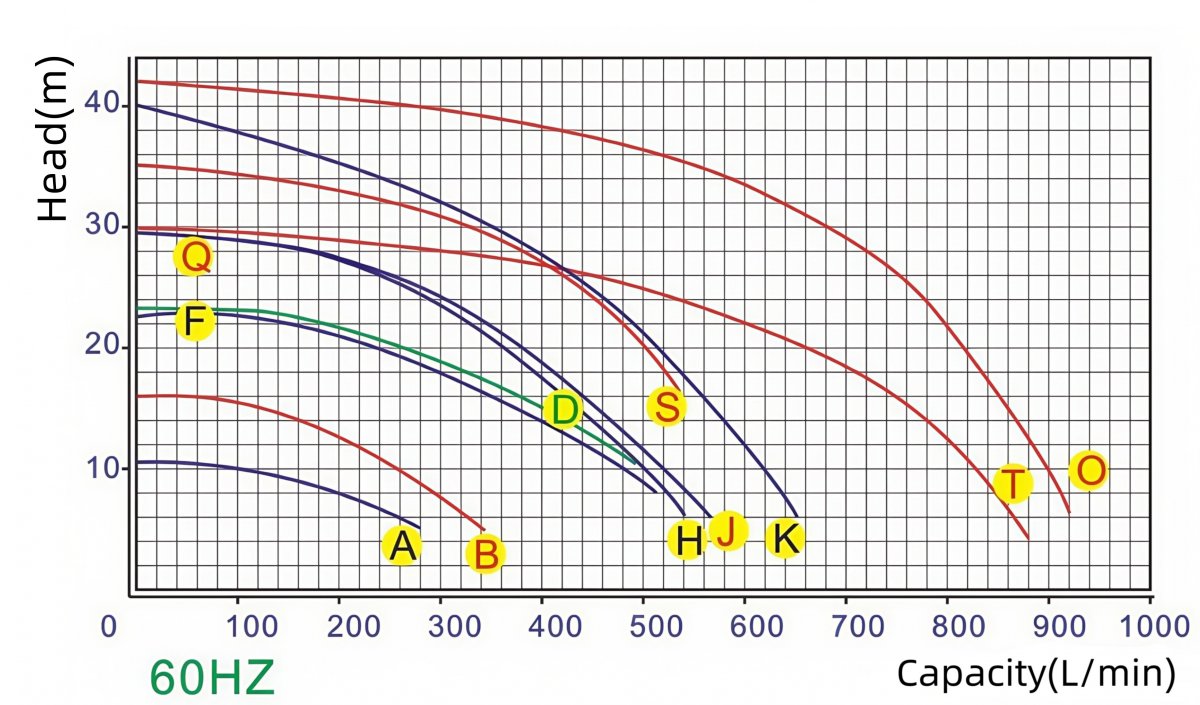

PERFORMANCE CURVES

While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
