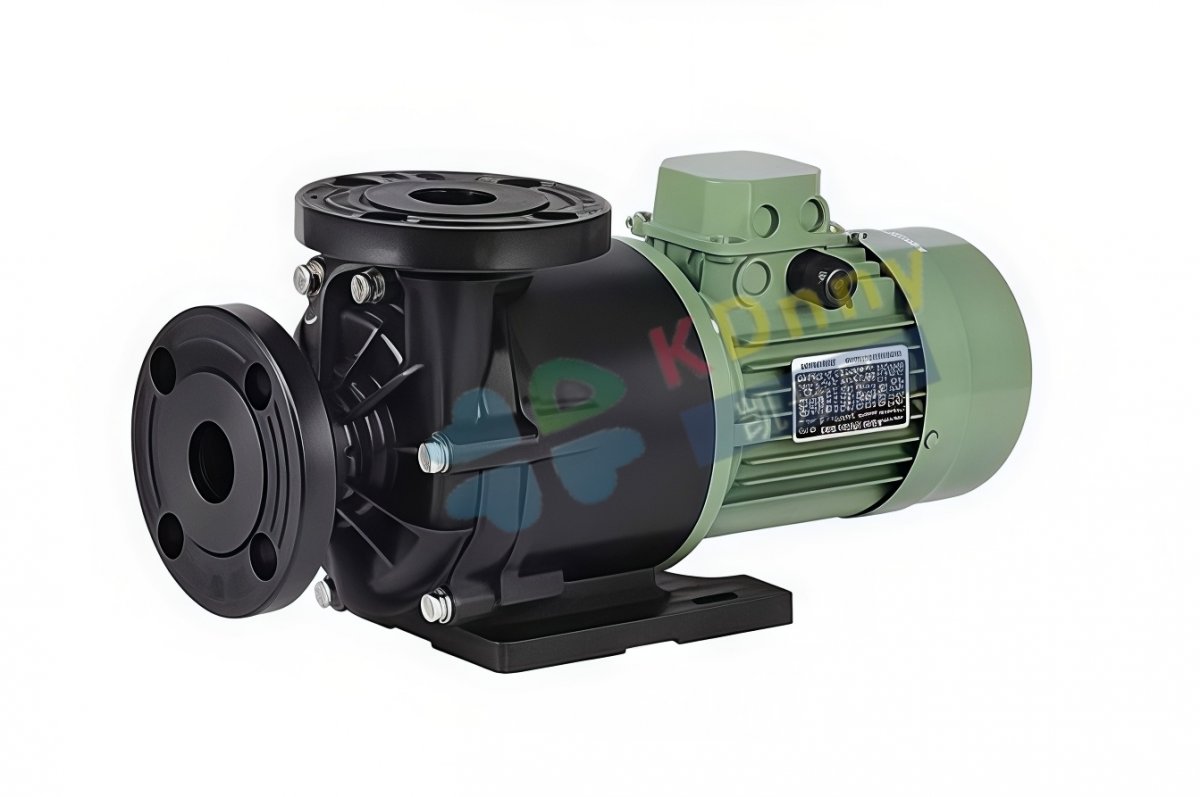

KDL Series - Magnetic Pump
TIME：2025-02-06 Author：admin Views：
PARAMETERS
● Rated Capacity: 50Hz-50~500 L/min 60Hz-50~500 L/min● Rated Head: 50Hz-9~25 m 60Hz-9~30 m
● Power: 0.4~4kW
● Pump Casing: GFR PP,CFR ETFE
PRODUCT FEATURES
● The shaft designed for durability is a both ends support structure. The both ends supports structure dramatically improved durability of the shaft. Well resisted abrasion SIC shaft id available.
● Air release structure of the rear casing with measures to prevent air lock. Air release structure of the rear casing and airaccumulation prevention of the impeller fulfillmeasures against air lock. Air release structure of the rear casing and air accumulation prevention of the impeller fulfill measures against air lock.
● The exclusive motor isan outdoor type as standard. The durabilityis much improved.
● Loose flange is adopted to freely match to thethe holes on the other side. Loose flange is adopted to freely match to thethe holes on the other side. No need to worry about fitting dimenslonwhen exchanging with other products.
● The bearing materialis SiC. The fine ceramics SiC bearing has hightchemical resistance and wear resistance.
● The impeller casted with magnets made it moreresistant to reverse rotation and troubles in hightemperature area. Our oriqinal impeller achieves high efficiency.
TYPICAL APPLICATIONS
● Photovoltaic industry
● Water treatment industry
● Food and beverage industry
● Chemical industry
● Pharmaceutical industry
● Printing and dyeing industry
● Water treatment industry
● Food and beverage industry
● Chemical industry
● Pharmaceutical industry
● Printing and dyeing industry

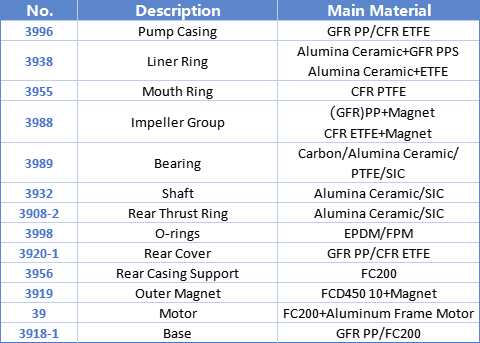

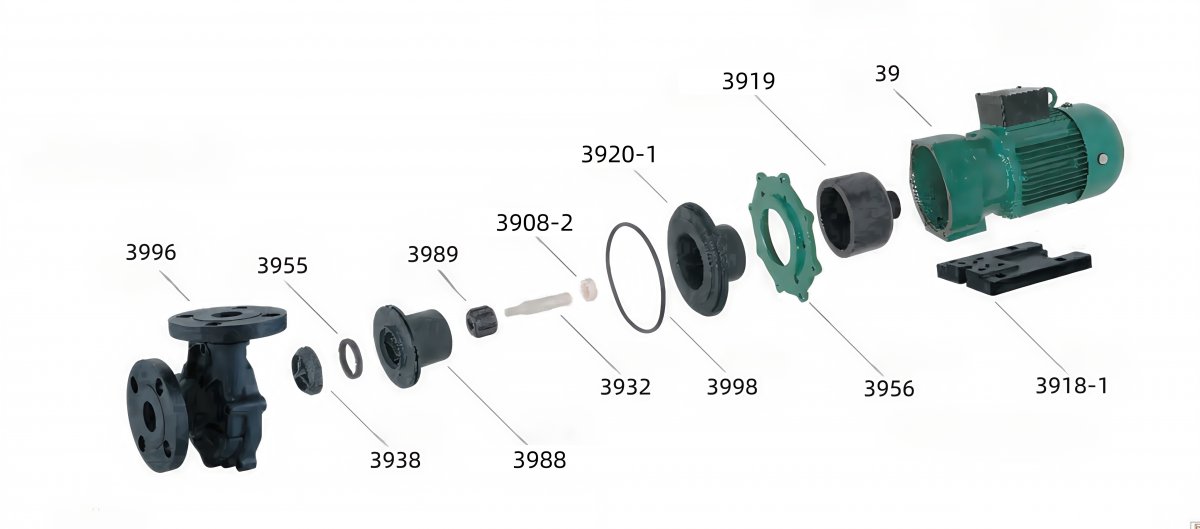

PARTS LIST
MODEL EXPLANATION
1、 Model: KDL
2、 In-Outlet: F-25*25 I-40*40 J-50*40 L-65*50
3、 Power: M-0.4kW 10-0.75kW 16-1.5kW
18-2.2kW 20-3.7kW
4、 Pump Material: 1-GFR PP 4-CFR ETFE
5、 Bearing: C-Carbon P-CFR PTFE A-Ceramic
6、 Rubber: E-EPDM R-FPM
7、 Frequency: 5-50Hz 6-60Hz
8、 Specific Gravity: 0-1.0 1.1(仅F18 60HZ)
1-1.05(仅1I08 1I10) 1.1
2-1.2 3-1.3 4-1.4 5-1.5 9-1.9
9、 N -Standard S-Special Specifications
KDL-FM
KDL-F10
KDL-F16
KDL-F18
KDL-IM
KDL-I10
KDL-J16
KDL-J18
KDL-J20
KDL-FM4
KDL-F104
KDL-F164
KDL-F184
KDL-IM4
KDL-I104
KDL-J164
KDL-J184
KDL-J204
KDL-L20

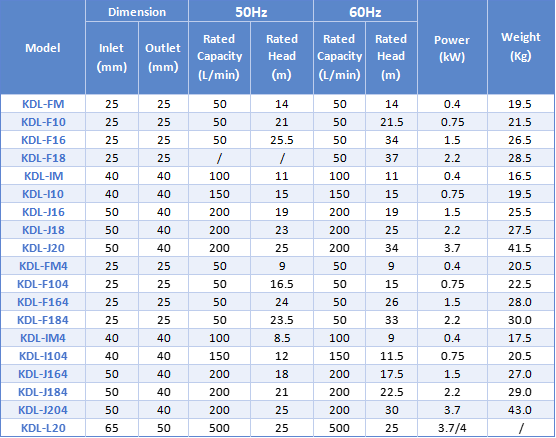

SPECIFICATION

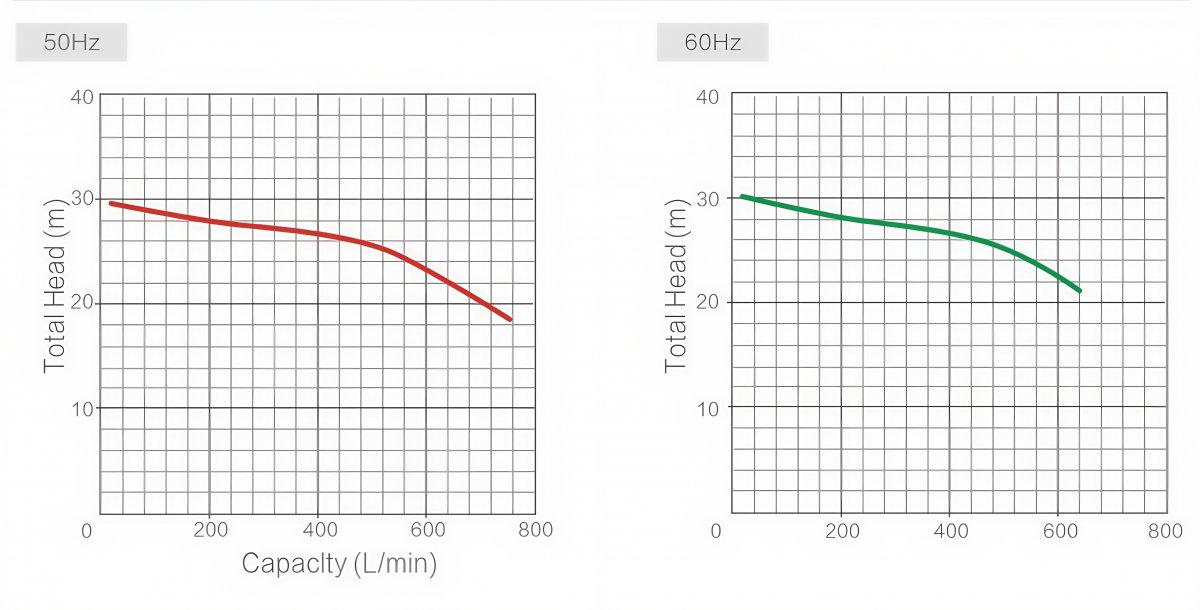

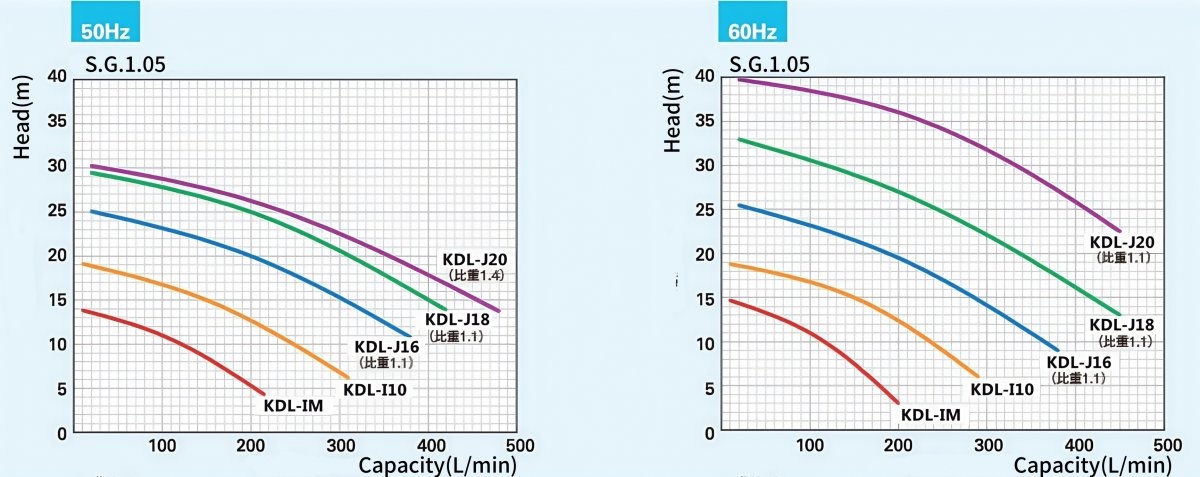

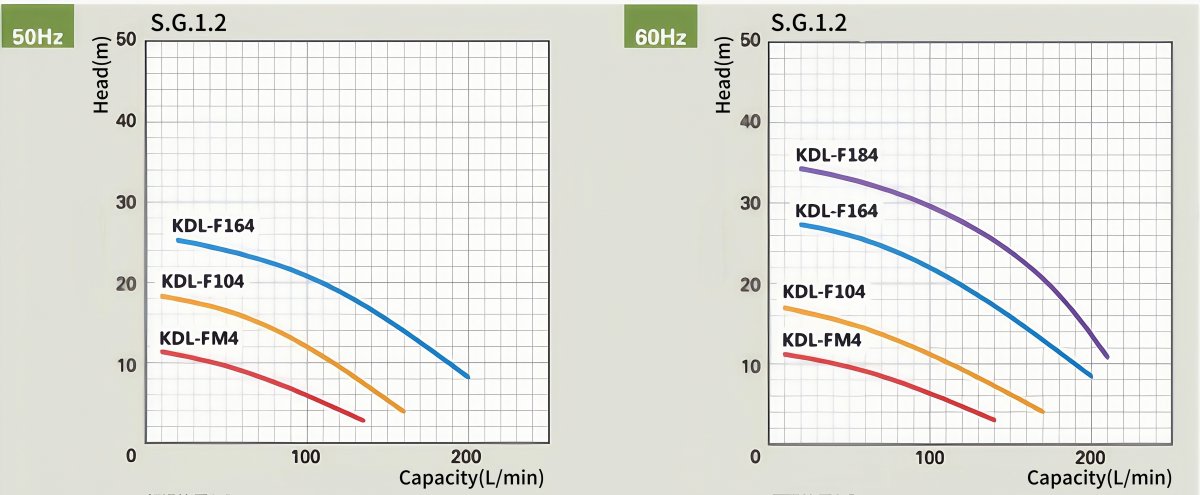

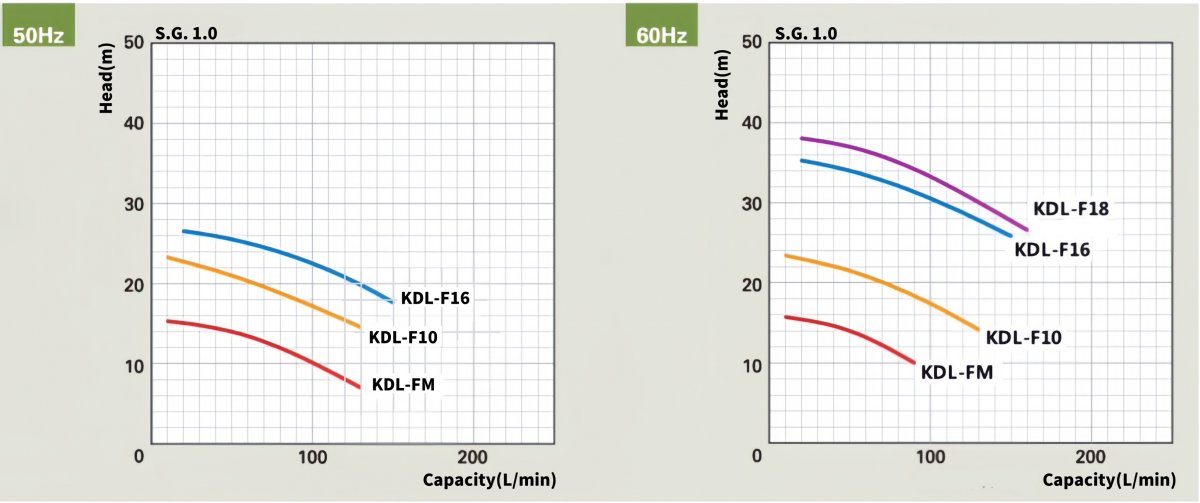

PERFORMANCE CURVE
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
