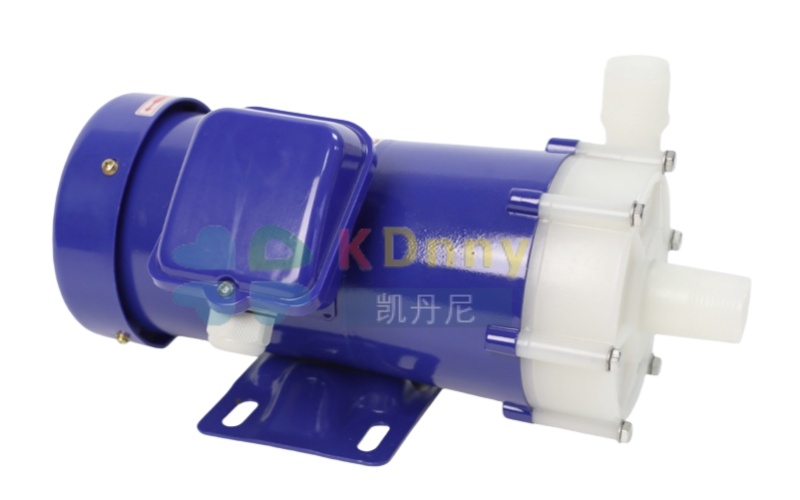

Small Magnetic Pump - KDB Series
TIME：2024-11-19 Author：admin Views：
PARAMETERS
● Max. Capacity: 50Hz-32~120 L/min 60Hz-38~135 L/min
● Max. Head: 50Hz-3.8~8.6 m 60Hz-5.4~11.9 m
● Power: Input-50Hz-60W~245W 60Hz-80W~365W
Output-50Hz-45W~255W 60Hz-45W~265W
● Pump casing material：PP/PVDF
● In-Outlet Range:
Hose-Inlet - 20mm, 26mm Outlet - 20mm, 26mm
Threaded-Inlet - G3/4'', G1'' Outlet - G3/4'', G1''
PRODUCT FEATURES
The material of pump body has four kinds to choose from, including PP(Polypropylene), GFRPP(Glass Fiber Filled Polypropylene), PVDF(Natural PVDF), CFRETFE(Carbon Fiber Filled ETFE). Correct choice of pump body material depends on acid / alkaline density of solution. To satisfied the market demand,The PP / GFRPP material can resist temperature up to 75℃. The PVDF material can resist temperature up to 90℃. The CFRETFE material can resist temperature up to100℃. In application almost all solutions can be transferred with safety.
● Corrosion Resisting
● Sealless and No Leakage
Eliminate the mechanical shaft seal design on the conventional pump, the high performance magnetic drive pump features complete seal. It fully eliminates the problem of environmental pollution due to pump damage.
● Easy to Assemble
● Maximum Durability
The KDB series pump motor is equipped with temperature protection device which avoids motor damaged due to high temperature caused by overload.
● Versatile Applications
The magnetic drive sealless pump KDB series is ideal for low capacity with high head or high capacity with low head applications. It is widely applied in various industrial process. Such as PCB process, chemical industry, circulated filtering, etching, plating, surface treatment, polluted water treatment,etc. these pumps assure outstanding performance and maximum durability.
TYPICAL APPLICATIONS

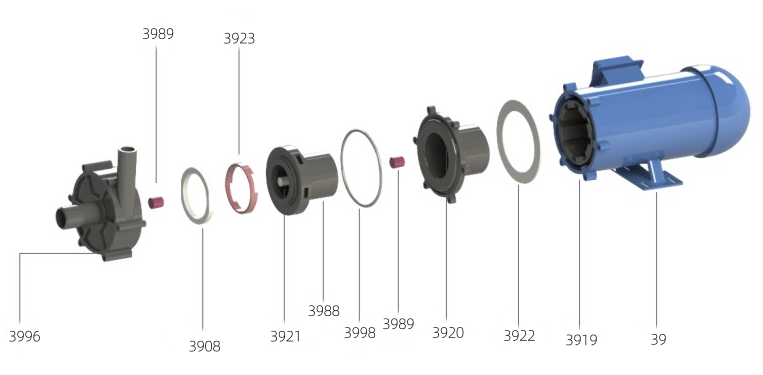

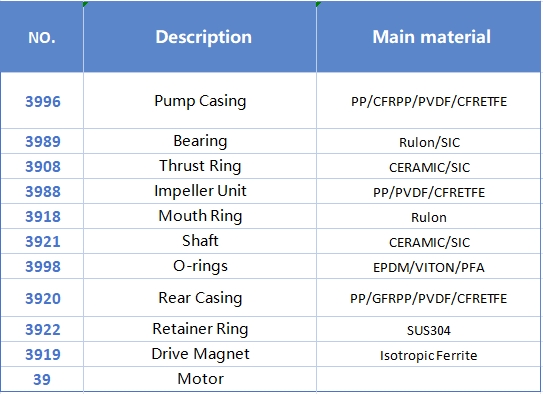

PARTS LIST
(1)Model：KDB
(2)In-outlet: E-20×20 F-25×25
(3)Power: D - 45W E - 65W F - 90W
J -180W K - 260W
(4)Pump Material：1 - GFRPP 3 - PVDF 4 - CFRETFE 8 - PP
(5)Shaft Material: C -Ceramic S - SIC
(6)Phase: 1 - Single 3 - Three
(7)Connection: S - SCREW H - HOSE
(8)Frequency: 5 - 50Hz 6 - 60Hz
(9)Voltage: 1-110V/1∅ 13-220V/240V 1∅ 15-220V/380V 9-208V/415V 3∅
(10)Rubber: V - VITON E - EPDM P - PFA
(11)N - Standard S - Special Specifications
These are seal-less small magnetic pump of KDB Series, we have the models number as below:
KDB-ED, KDB-EE, KDB-GF, KDB-GI/J, KDB-GK

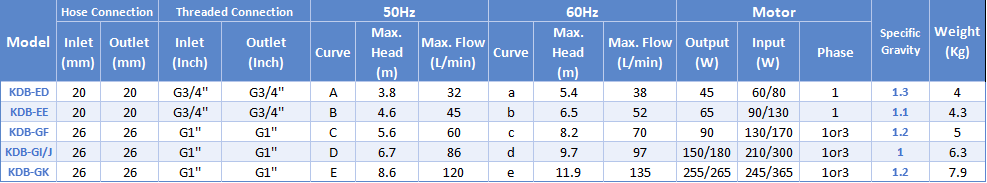

SPECIFICATION

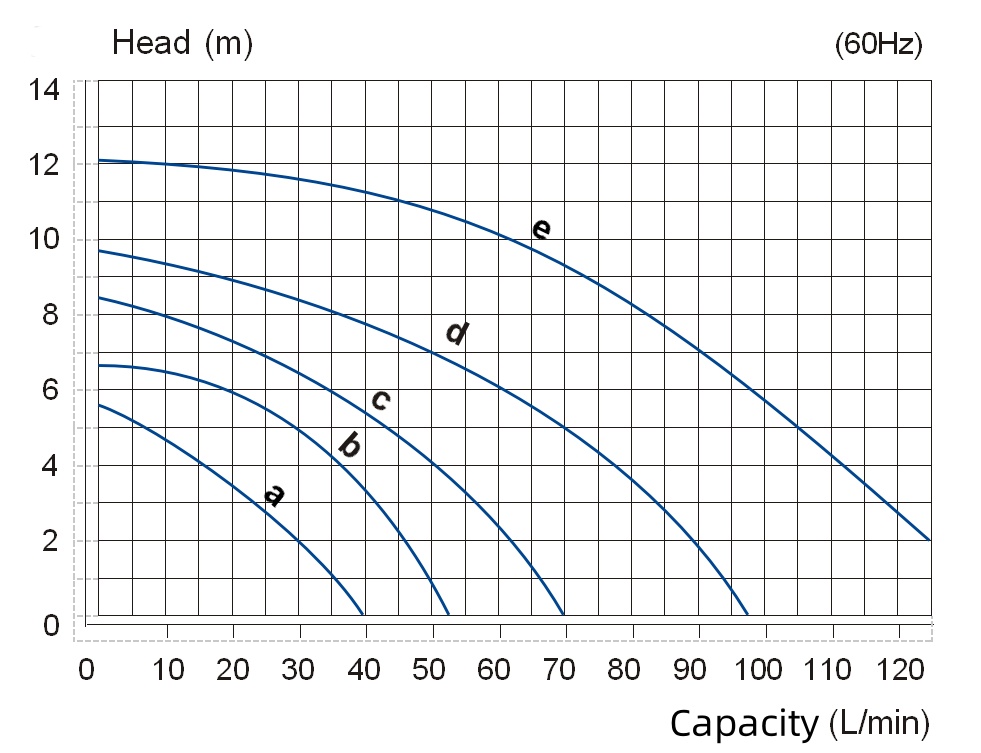

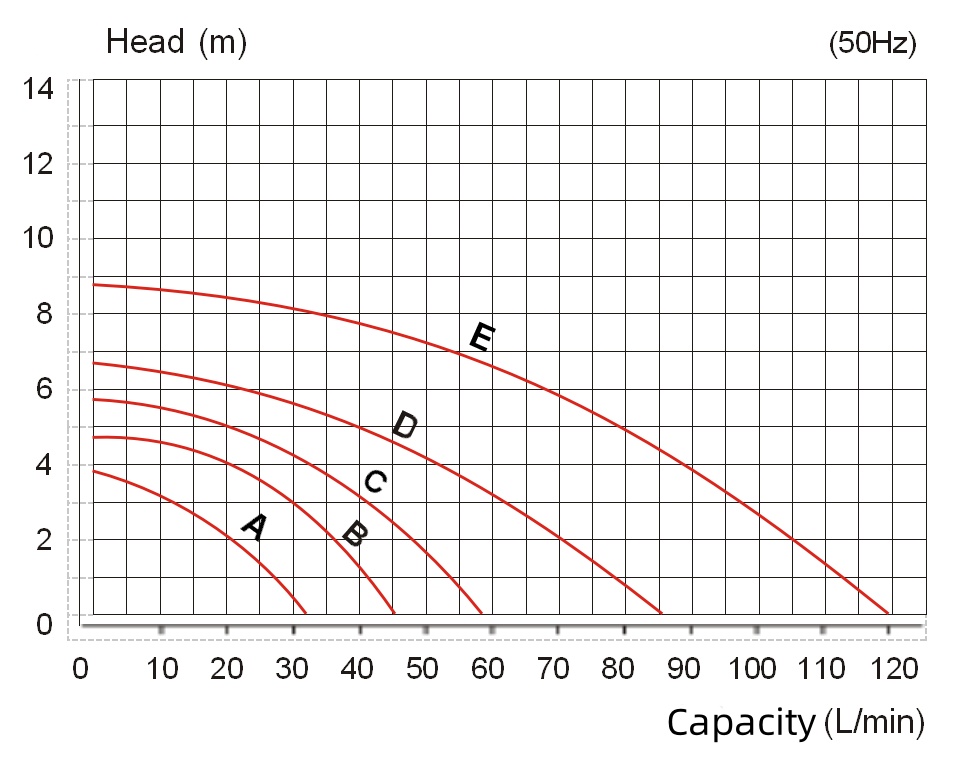

PERFORMANCE CURVES

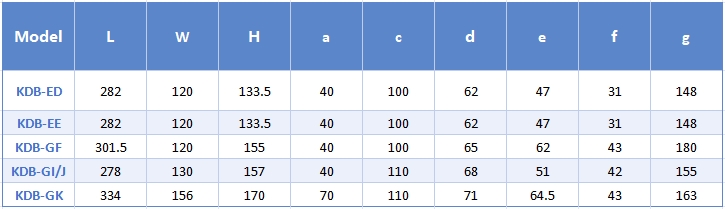

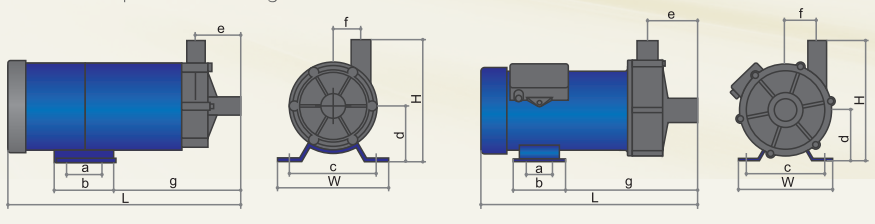

DIMENSION
KDB-ED/KDB-EE KDB-GF/KDB-GI/J /KDB-GK
Unit: mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
