PAPAMETERS

● Max. Capacity: 50Hz-60~125 L/min      60Hz-68~150 L/min

● Max. Head: 50Hz-6~12 m      60Hz-7.5~17 m

● Power:100~400 W

● Pump casing material：FRPP/CFRPP/PVDF

● Type: small, horizontal, seal-less, magnetic drive

● In-Outlet Range: Inlet - 3/4'', 1''         Outlet - 3/4'',1''




---

PRODUCT FEATURES

● The pumps are seal-less design, no leakage, bubble-free, magnetic drive.
● The motor is of soild TEFC construction and is painted with 2 parts epoxy paint
● The KDA series pumps incorporates ceramic shaft and dual trust bearings to give smoother running and inscreased durability compared to other pumps in it's class.
● The pumps are available in FRPP, CFRPP, PVDF materials below 85°C, depending on various chemical properties.
● The pumps are available with VITON, NBR or EPDM gaskets.
● The pumps have no metallic parts in contact with the solution being pumped.

---

TYPICAL APPLICATION

● Plating industry: with the filter cycle filtration of all kinds of electroplating solution
● Surface treatment: all kinds of strong acid, strong alkali and other corrosive and highly medicinal liquid circulation and transportation.
● Wastewater and exhaust gas treatment: collecting and conveying waste liquid, and desulfurization before discharging exhaust gas.
● PCB:conveying corrosive liquids.
● Chemical process: corrosive liquid transportation


---

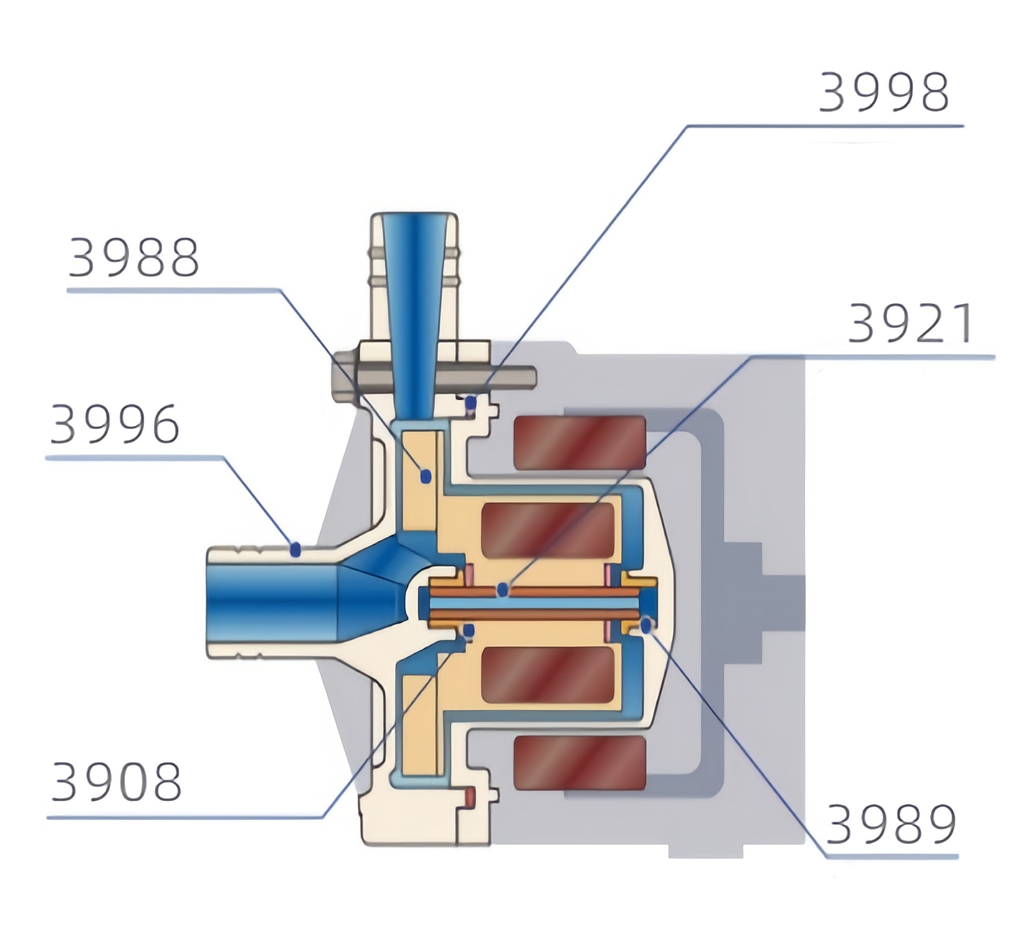

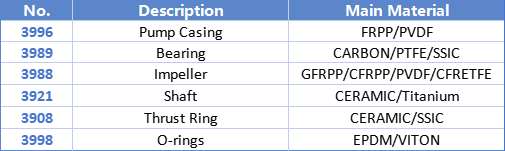

PARTS

---

(1)Model: KDA
(2)In-Outlet: E-20×20     F-25×25
(3)Power: G - 100W   J - 180W      K - 260W    M - 400W
(4)Casing material: 1- GFRPP      3- PVDF
(5)Shaft material: C - Ceramic    T - Titanium
(6)Phase:  1 - Single phase   3 - 3 phase
(7) Access Link: S - Threaded type       H - Hose type
(8)Frequency: 5 - 50Hz     6 - 60Hz
(9)N - Standard Specific    S - Special Specification

These are seal-less small magnetic pump of KDA Series, we have the model number as below:
 KDA-EG, KDA-EJ, KDA-FJ, KDA-FK, KDA-FM

---

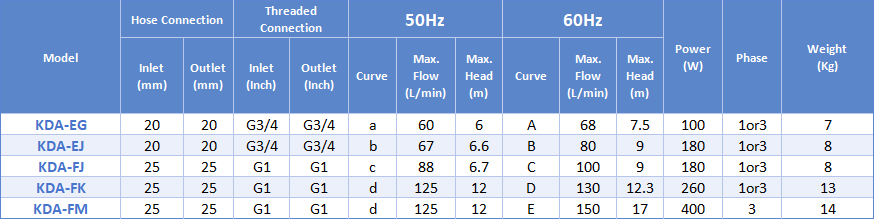

SPECIFICATION

---

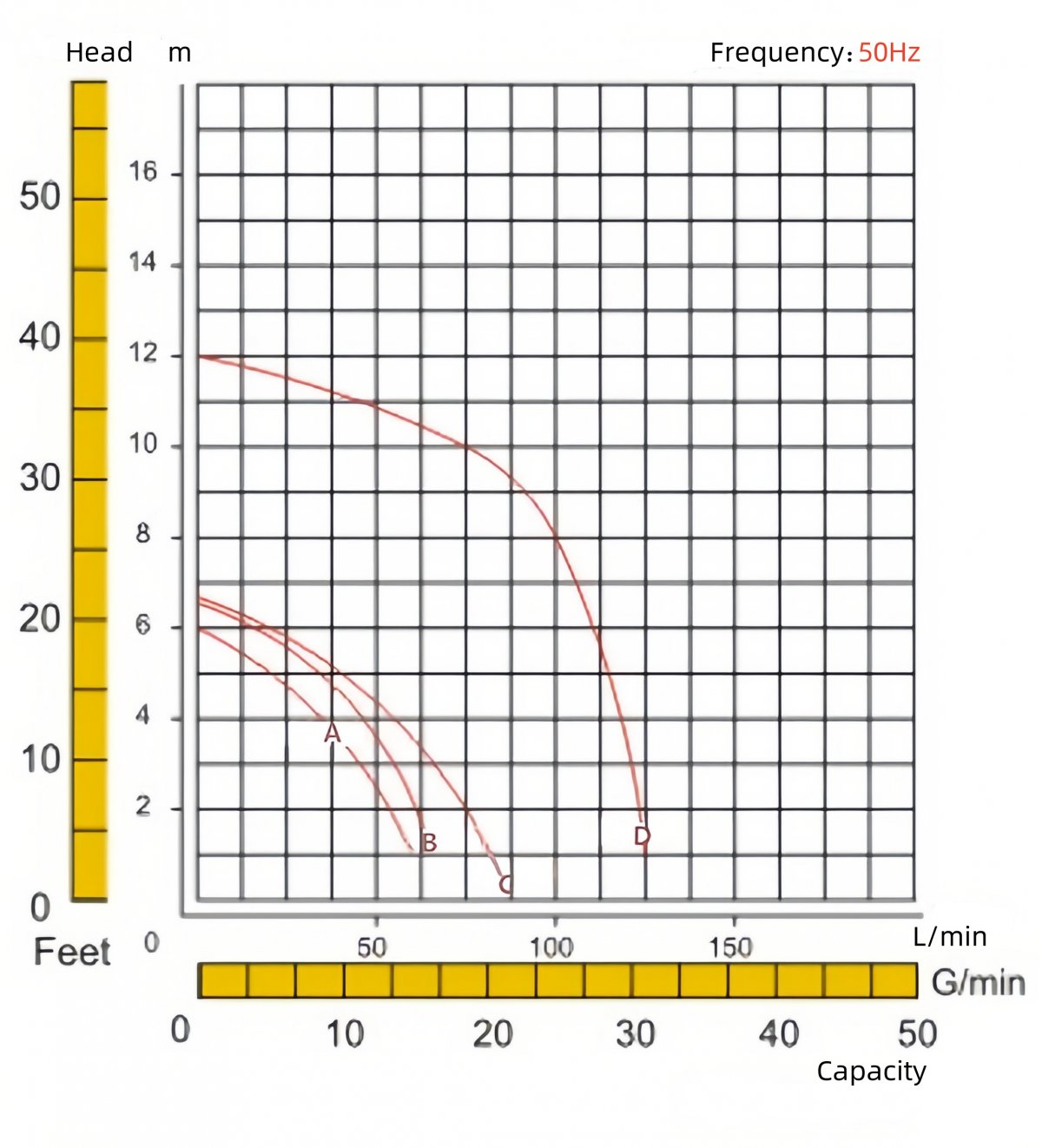

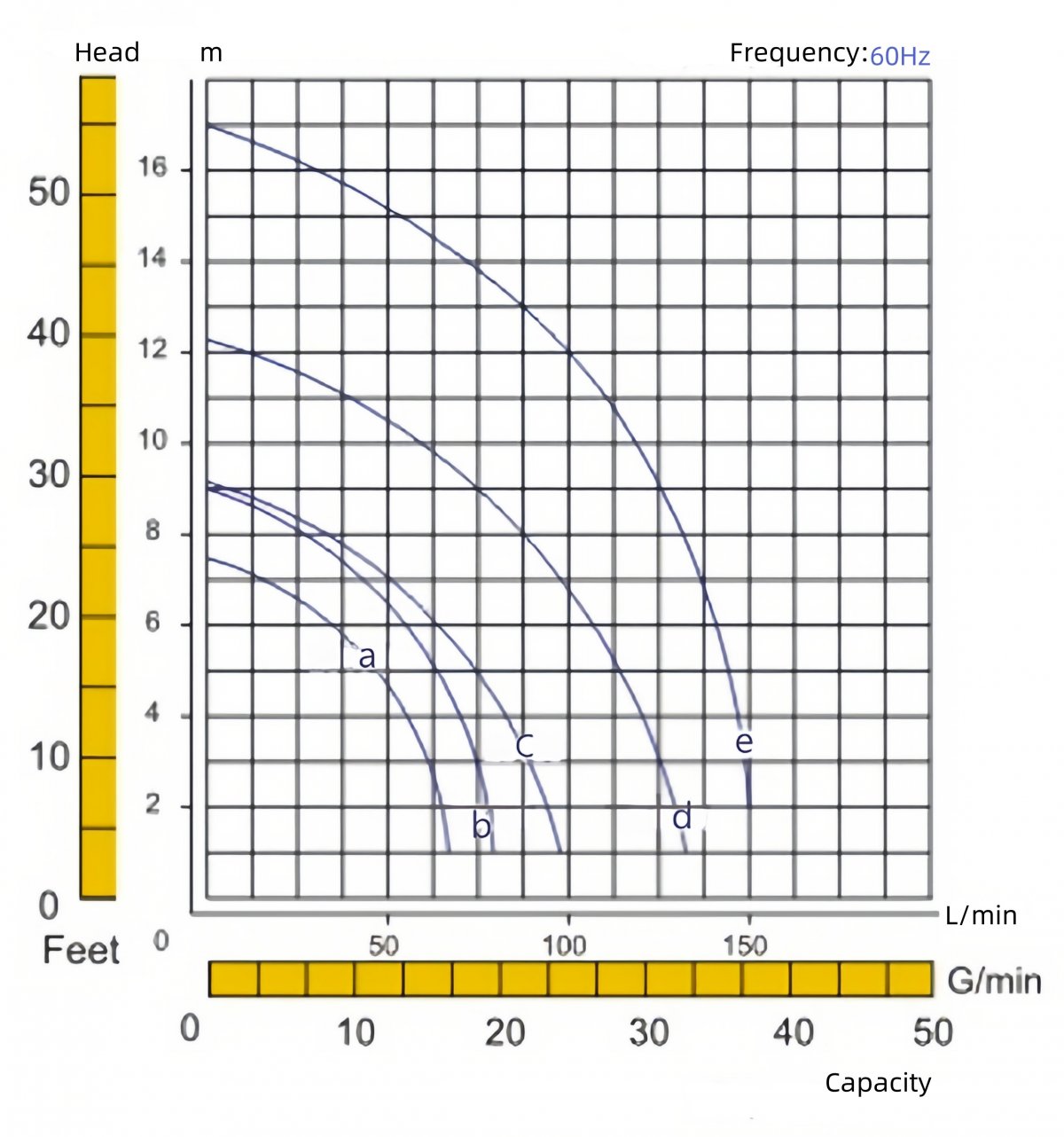

PERFORMANCE CURVE

---

DIMENSION

Unit:mm

While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
