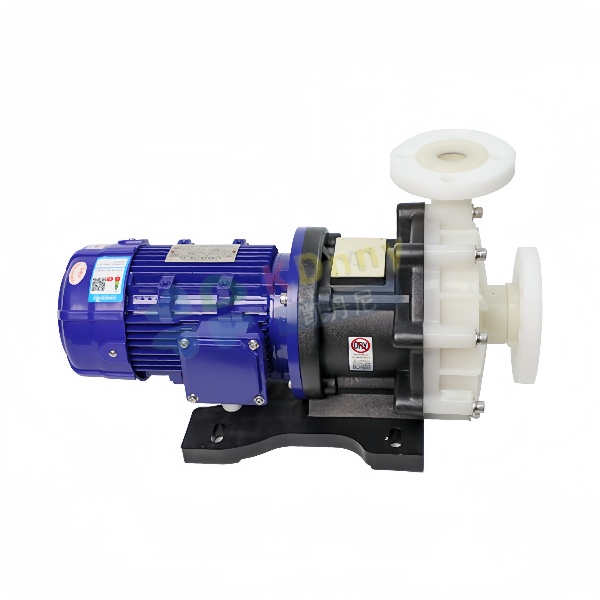

Magnetic Pump - KDC Series
TIME：2024-11-19 Author：admin Views：
PARAMETERS
● Pump Capacity: 280-730 L/min
● Pump Head:11.5-29 m
● Power Range:0.37kW-3.75 kW
● Caliber Range: Inlet:40-65 mm Outlet:40-50 mm
● Transmission Medium: Available chemical with PH value between 0 and 14 (suitable for temperature range 0-80°C)
● Construction: Magnetic Drive, Sealless
● Pump Head:11.5-29 m
● Power Range:0.37kW-3.75 kW
● Caliber Range: Inlet:40-65 mm Outlet:40-50 mm
● Transmission Medium: Available chemical with PH value between 0 and 14 (suitable for temperature range 0-80°C)
● Construction: Magnetic Drive, Sealless
PRODUCT FEATURES
● Outstanding Acid / Alkaline Resisting Capability
The material of pump body has four kinds to choose from, including PP(Polypropylene), GFRPP(Glass Fiber Filled Polypropylene), PVDF(Natural PVDF), CFRETFE(Carbon Fiber Filled ETFE). Correct choice of pump body material depends on acid / alkaline density of solution. To satisfied the market demand, we provide PP pump material for enhancing the capability of acid resistance. The PP / GFRPP material can resist temperature up to 75℃. The PVDF material can resist temperature up to 90℃. The CFRETFE material can resist temperature up to100℃. In application almost all solutions can be transferred with safety.
● Corrosion Resisting
The major parts of the pump feature outstanding corrosion-resist capability. For example the pump spindle can be made from ceramic and SIC. The ceramic spindle is generally applied for low corrosion liquid. The SIC spindle is excellent for high corrosion liquid.
● Unique design of Bearing for dry running endure
Due to the unique design of Bearing, while the pump operating normally, the fluid circulated cooling with impeller, spindle and magnet capsule. Although the pump dry-running, the temperature cannot be get higher quickly to avoid pump be damaged seriously.
● Easy to Assemble
The internal parts of a magnetic drive sealless pump are fully standard for easy assembling
completely constructed with high performance. Parts replacement is easy to made without need to of any specially tool. It features convenient maintenance, dismantling and inspection for time saving service.
● Maximum Durability
The KDC(0.37Kw~3.75Kw) series pump employs extra powerful permanent magnet featuring outstanding performance and coupling capability.
● Versatile Applications
The magnetic drive sealless pump KDC series is ideal for low capacity with high head or high capacity with low head applications. It is widely applied in various industrial process. Such as PCB process, chemical industry, circulated filtering, etching, plating, surface treatment, polluted water treatment, etc. these pumps assure outstanding performance and maximum durability.
TYPICAL APPLICATIONS
● Electroplating industry
● PCB circuit board
● Semiconductor industry
● Chemical industry
● New energy industry
● Waste gas treatment equipment

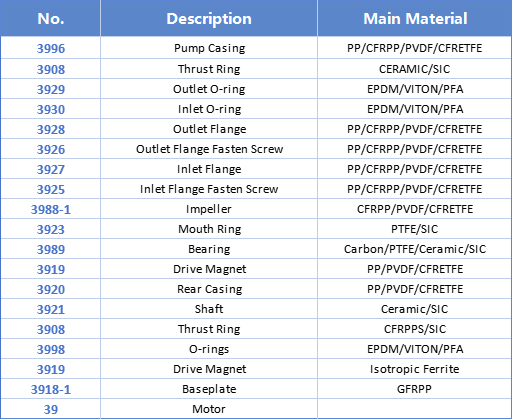

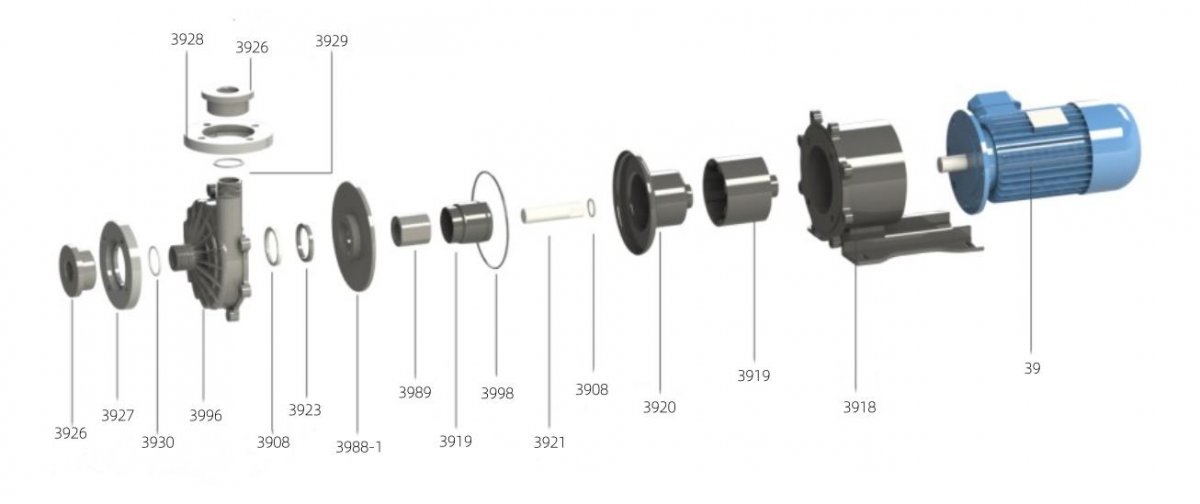

PARTS LIST

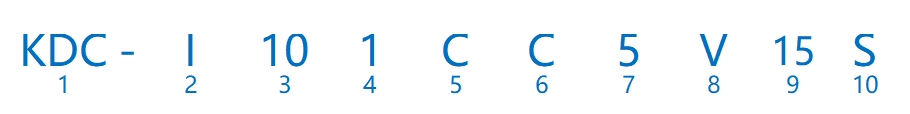

1. Model: KDC
2. Inlet-Outlet: F - 25*25 I - 40*40 J - 50*40 L - 65*50
3. Power: 8 - 0.37kW 10 - 0.75kW 16 - 1.5kW
18 - 2.2kW 20 - 3.75kW
4. Material: 1 - GFRPP 3 - PVDF 8 - PP 4 - CFR ETFE
5. Shaft Material: C - Ceramic S - SIC
6. Impeller Bearing: C - Carbon A - Ceramic S - SIC P - CFRPTFE
7. Frequency: 5 - 50Hz 6 - 60Hz
8. Rubber: V - VITON E - EPDM P - PFA
9. Votage: 4 - 280V/415V 6 - 240V/440V 15 - 220V/380V
10. N - Standard S - Special Specification
These are seal-less magnetic drive pump of KDC Series, we have the models number as below:
KDC-I8, KDC-I10, KDC-J16, KDC-J18, KDC-J20, KDC-L18, KDC-L20, KDC-M18, KDC-M20, KDC-M25

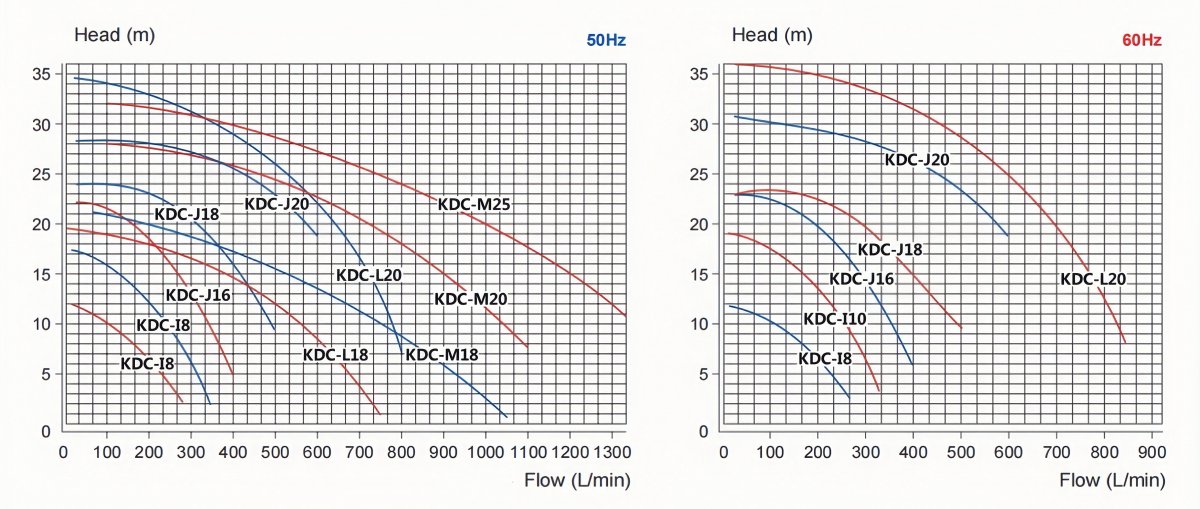

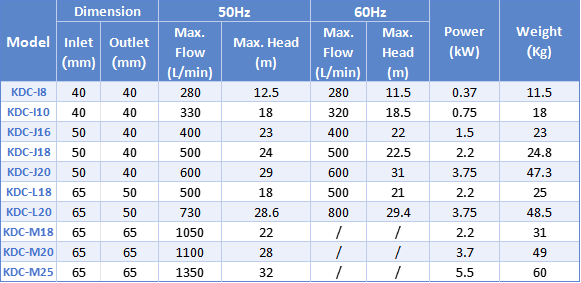

SPECIFICATION

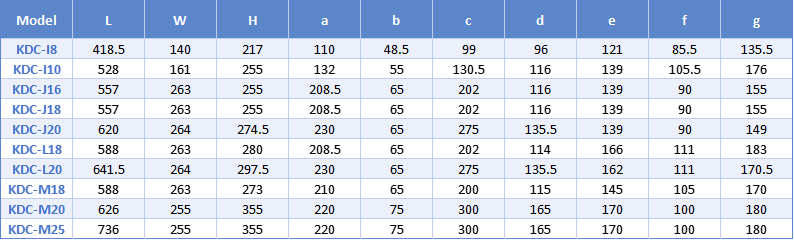

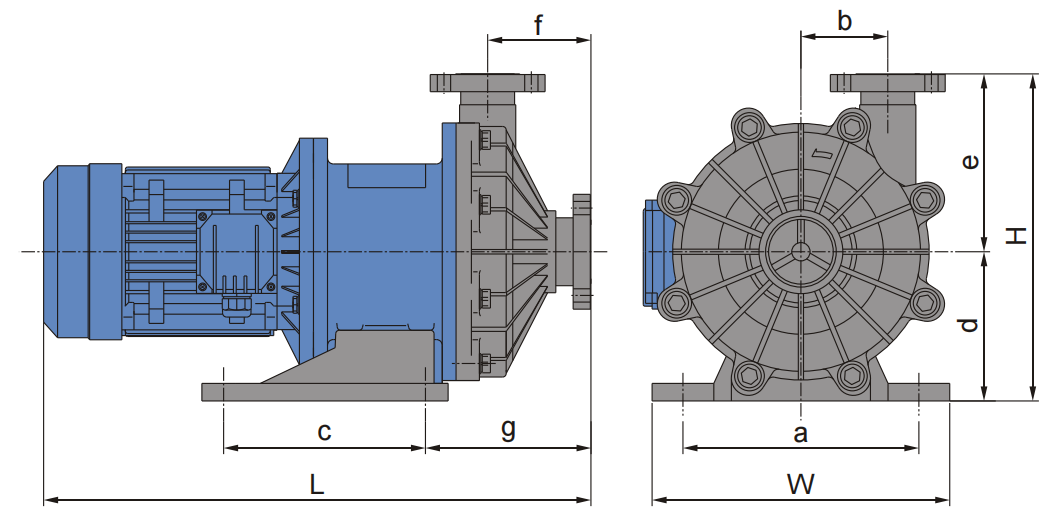

DIMENSION
Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
