Magnetic Pumps

Current Location:HOME > Produts > Magnetic Pumps >

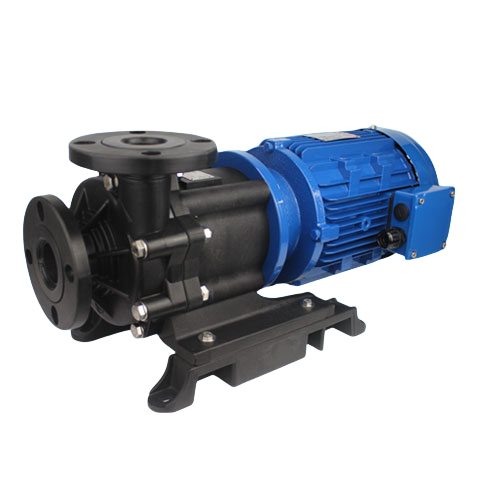

Magnet pump - KSM Series (Low heaad)

TIME:2024-12-18 Author:admin Views:



PRODUCT FEATURES

● This seal-less construction eliminates the leakage may caused by mechanical seak and can be applied to various applications.
 Magnetic transmission is suitable for clean acid and alkali liquid transportation
 The pumps are available in FRPP, CFRPP, PVDF materials below 85°C, depending on various chemical properties.

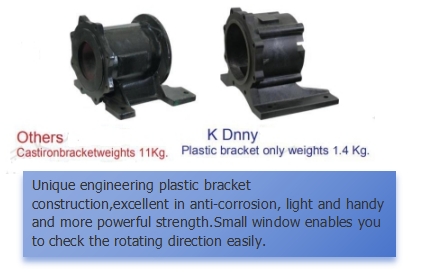

 One piece moded Acid resistant housing bracket construction, light and handy, corrosion resistant.

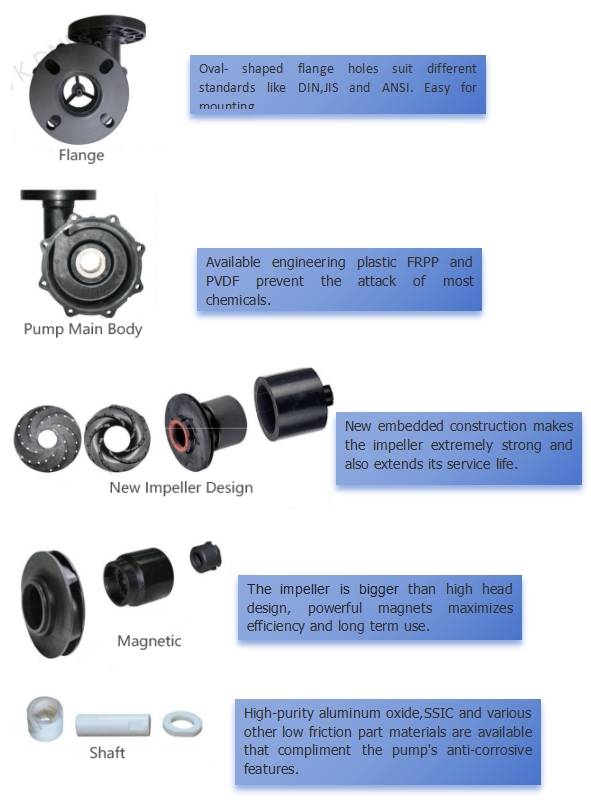

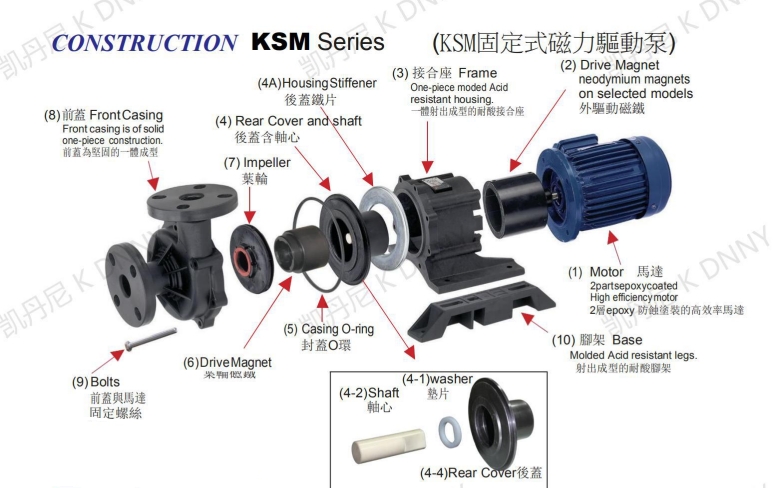

CONSTRUCTION

 Pump Capacity: 50Hz-Up to 860 L/min   60Hz-Up to 860 L/min
● Pump Head: 50-Up to 32m   60Hz-Up to 34.5m
● Power Range: 0.37kW-5.5 kW(%- 7.5 hp)
● Casing Material: FRPP, PVDF, CFRPP
● Type: Horizontal,Centrifugal
● Construction: Magnetic Drive, Sealless

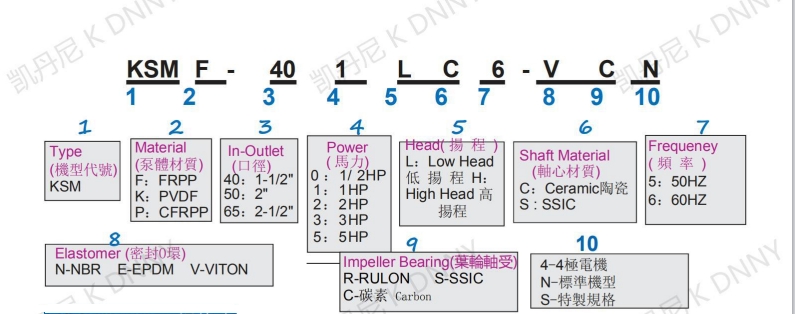

Currently, we have below model of low head magnetic drive pump:
KSM-401L, KSM-402L, KSM-502L, KSM-403L, KSM-503L, KSM-603L,
KSM-653L, KSM-605L, KSM-655L, KSM-657L, KSM-4014, KSM-5014, KSM-6524

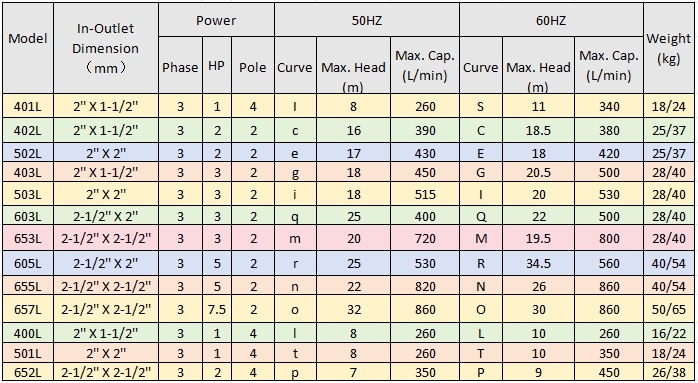

SPECIFICATION
Testing fluid:Water (Specific gravity 1.0)测试流体:水(比重1.0)

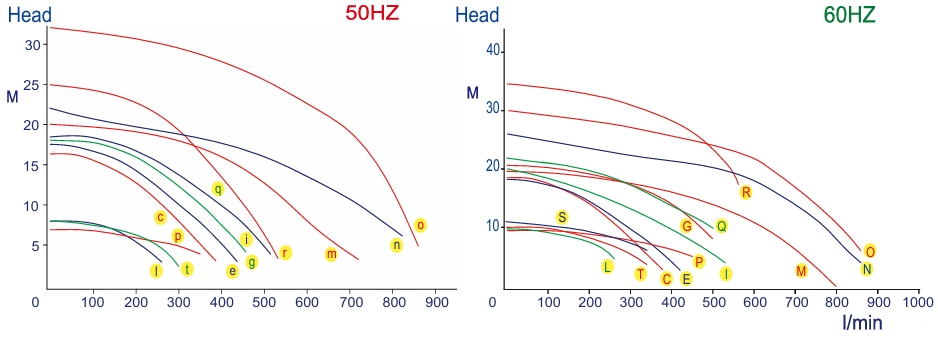

PERFORMANCE CURVES


Magnetic transmission resistant to most chemicals, suitable for all kinds of acid and alkali liquid circulation and cooling transportation.

While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
