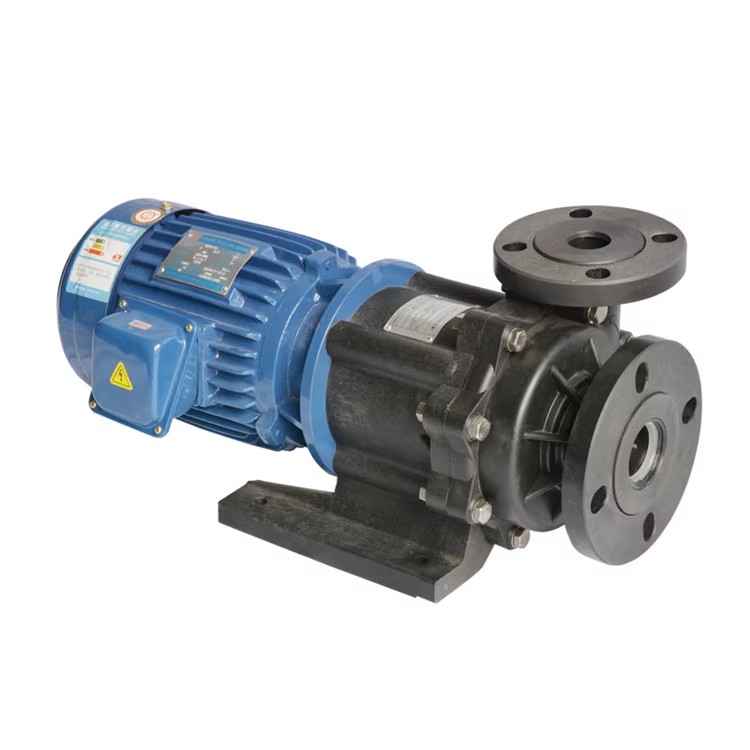

Magnet pump Acid and alkali resistant - CM Series

Magnetic Drive Sealless Chemical Pump-CM series

High head 丨Lightweight 丨Corrosion resistant




Product Features
▲ The front cover of the pump body is with a patented design, can be selected from high-temperature-resistant materials,  not easy to be damaged by idling, and low maintenance costs.
▲ Patented cooling blades located at the middle of the shaft help dissipate heat caused by friction
▲ The shaft through-hole has a hollow design, improve the cooling effect and heat dissipation during idle operation.
▲ The pumps are available in FRPP, CFRPP, PVDF materials below 85°C, depending on various chemical properties.
▲ Unique engineering plastic bracket construction, excellent in anti-corrosion, light and handy , corrosion resistant.

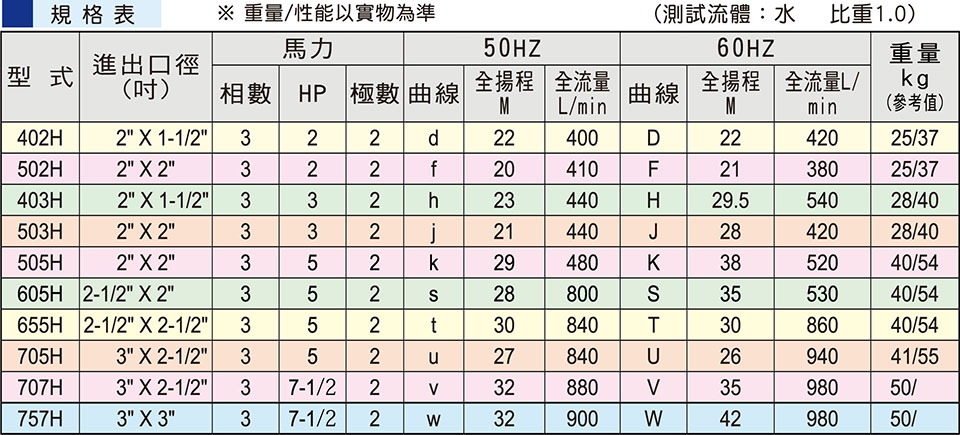

SPECIFICATION
                                                                                                                                                                                        Testing fluid:Water (Specific gravity 1.0)测试流体:水（比重1.0）

Model 型式	In-Outlet进出口径 Dimension（mm）	Power马力			50HZ			60HZ			Weight 重量 (kg)

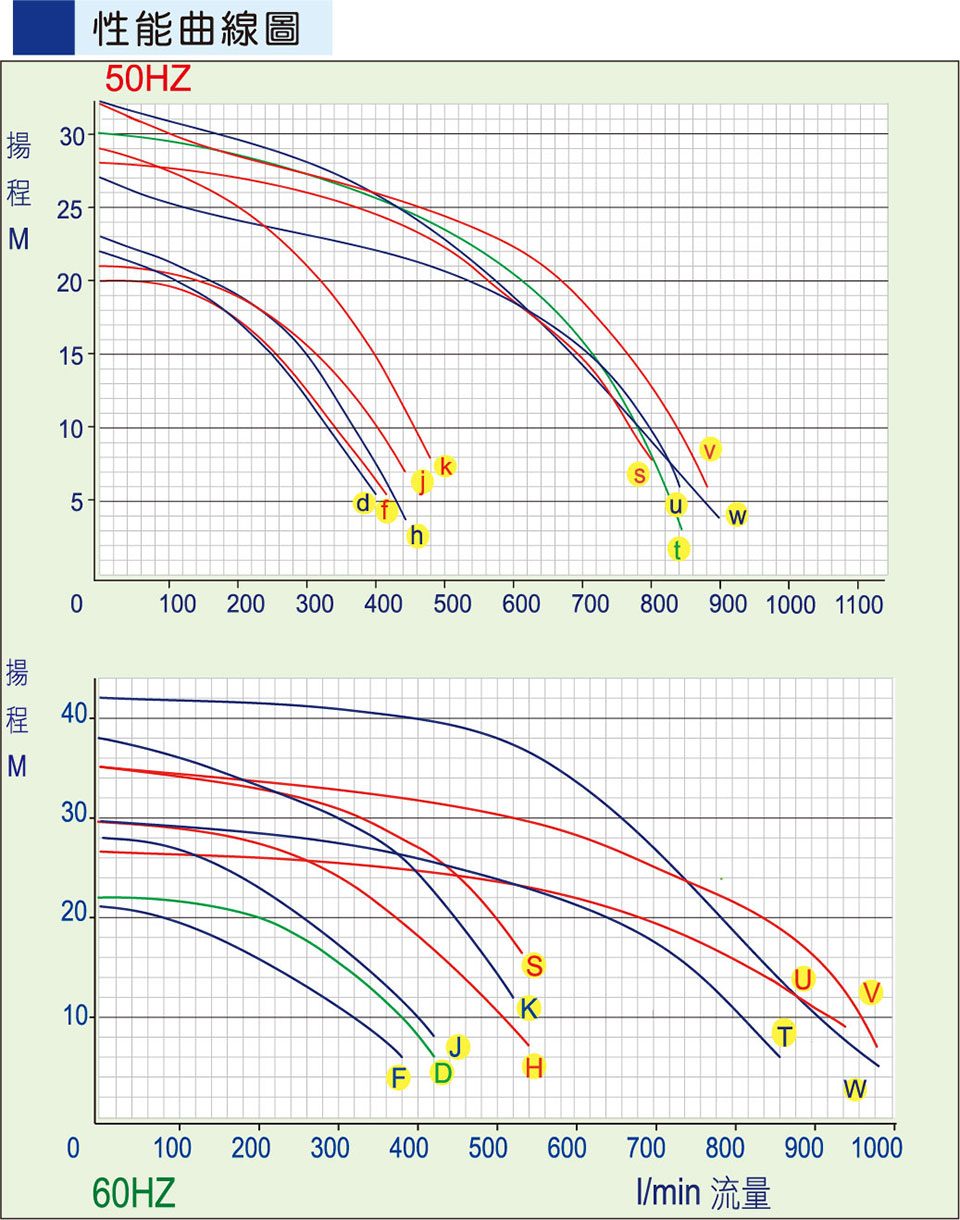

		Phase 相数	HP	Pole 极数	Curve 曲线	Max Cap. 全扬程 M	Max Cap. 全流量 L/min	Curve 曲线	Max Head 全扬程 M	Max Cap. 全流量 L/min
402H	2'' X 1-1/2''	3	2	2	d	20	400	D	23	485	25/37
502H	2'' X 2''	3	2	2	f	20	410	F	22.5	510	25/37
403H	2'' X 1-1/2''	3	3	2	h	23	440	H	29.5	540	28/40
503H	2'' X 2''	3	3	2	j	21	440	J	29.5	560	28/40
505H	2'' X 2''	3	5	2	k	29	590	K	40	650	40/54
603H	2-1/2'' X 2''	3	3	2	q	28	400	Q	31	530	28/40
605H	2-1/2'' X 2''	3	5	2	s	28	800	S	35	530	40/54
655H	2-1/2'' X 2-1/2''	3	5	2	t	30	840	T	30	880	40/54
705H	3'' X 2-1/2''	3	5	2	u	27	840	U	26	940	41/55
707H	3'' X 2-1/2''	3	7-1/2	2	v	32	880	V	35	980	50/
757H	3'' X 3''	3	7-1/2	2	w	32	900	W	42	980	50/
