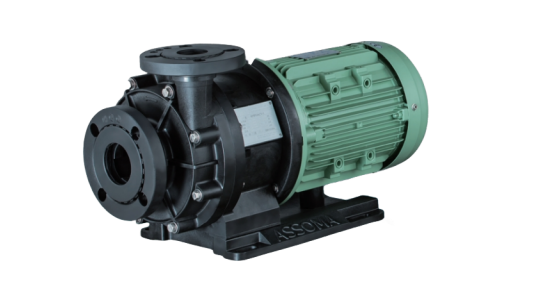

Magnetic Pumps Sealless - AMX Series

Leak-free 丨protect against dangerous chemical丨Magnetic coupling



TYPICAL APPLICATIONS



PRODUCT FEATURES

● Maintenance-Free Pump Casing.
The flanges are socket welded to the pump casing, eliminating O-ring, thus, requiring no maintenance.

● High-Efficiency Impeller.
Closed impeller precision designed to streamline flow dynamics, minimizing hydraulic loss and maximizing pump efficiency.

● Pump-Protection Buffer System.
The unique buffer system absorbs shock generated during abnormal pump operation such as cavitation, protecting the pump from damage.

● Force-Cooled Bearing System.
Specially designed flow channels force circulation through the bearing system, rapidly dissipating heat to prevent damage to the pump under dry-run conditions.

● Long-Service Gasket.
Greatly reduces the need to service the pump.

● Flastic Containment Shell.
The plastic containment shell does not generate any eddy current loss, therefore, no additional heating of the pumped chemical.

● Magnetic Coupling.
Torque from the motor is transferred to the pump impeller through magnetic coupling . The seal-less design is leak- free and there is no seal maintenance necessary.

● Corrosion -Resistant Bracket Base.
Ideal for corrosive and saline environment. Protects against accidental checmical drips.Engineered to provide structural strength and long service life.

● Standardized Motor.
The pump bracket is designed to fit standard IEC motor frames.

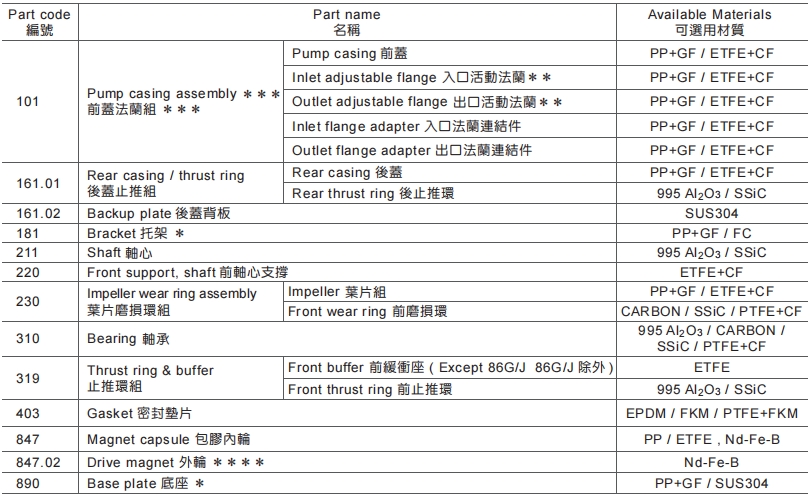

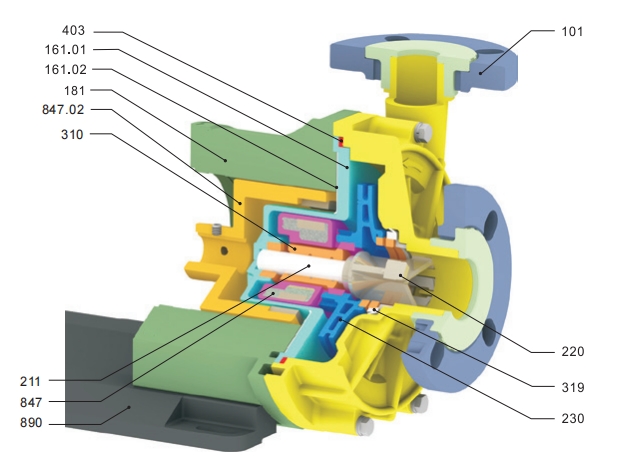

CONSTRUCTION

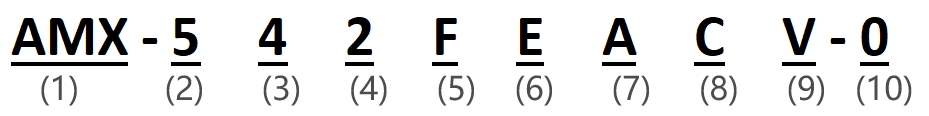

(1)Model: AMX
(2)Suction size: 2 - 25A(1'')     4 - 40A(1.5'')         5 - 50A(2'')          6 - 65A(2.5'')         8 - 80A(3'')
(3)Discharge size: 2 - 25A(1'')     4 - 40A(1.5'')         5 - 50A(2'')          6 - 65A(2.5'')
(4)Motor power: 0 - 0.5HP(0.37kW)     1 - 1HP(0.75kW)      3 - 3HP(2.2kW)
                          5 - 5HP(3.75kW)        G - 7.5HP(5.5kW)     J - 10HP(7.5kW)
(5)Type of Connection: F - Flange        U - Union
(6)Casing material: E - ETPE+CF    G - PP+GF
(7)Shaft material: A - 995AL?O?         S - SSIC
(8)Bearing material: A - 995AL?O?          C - CARBON              R - PTFE+CF         S - SSIC
(9)Sealing material: E - EPDM           V - VITON           P - PTFE+FKM
(10)Motor type:  0 - IP54           1 - IP55             2 - Explosion proof eG3
                         3 - Explosion proof d2G4           S - Special motor

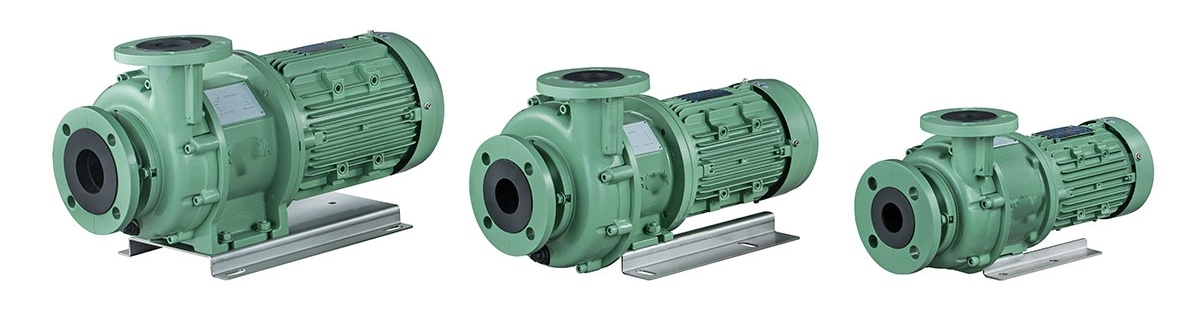

These are AMX Series of magnetic pumps,the model numbers are as below:

AMX-220 , AMX-440 ,AMX-221 , AMX-441, AMX-222 , AMX-223 , AMX-552 , AMX-552H ,
AMX-553 , AMX-553H , AMX-555 , AMX-653, AMX-655, AMX-86G , AMX-86J


SPECIFICATION
                                                                          Testing fluid:Water (Specific gravity 1.0)测试流体:水（比重1.0）

Model 型号	Suction×Discharge （mm）	Rated Capacity 额定流量 （L/min）		Rated Head 额定扬程 （m）		Motor output （kW)
		50Hz	60Hz	50Hz	60Hz
AMX-220	25×25	80	10.6	80	11.8	0.37
AMX-440	40×40	100	9.9	100	10.3	0.37
AMX-221	25×25	80	19.2	80	21.1	0.75
AMX-441	40×40	150	15	150	15.4	0.75
AMX-222	25×25	80	33.2	80	34.5	1.5
AMX-223	25×25	80	33.2	80	41.7	2.2
AMX-552	50×50	200	21.1	200	20.3	1.5
AMX-552H	50×50	100	25.8	100	27.2	1.5
AMX-553	50×50	250	24.1	250	25.9	2.2
AMX-553H	50×50	150	31.7	150	34.8	2.2
AMX-555	50×50	250	31.4	250	37.4	3.75
AMX-653	65×50	450	15.7	450	15.9	2.2
AMX-655	65×50	500	23.9	500	23.9	3.75
AMX-86G	80×65	800	22.7	800	20.4	5.5
AMX-86J	80×65	800	29	800	30.5	7.5

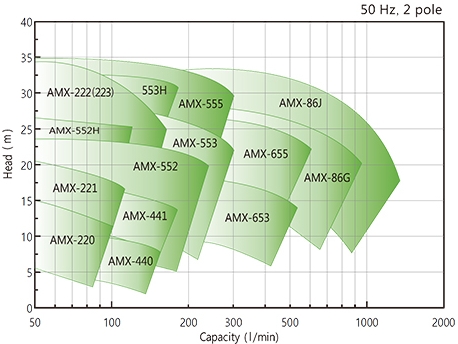

PERFORMANCE CURVE

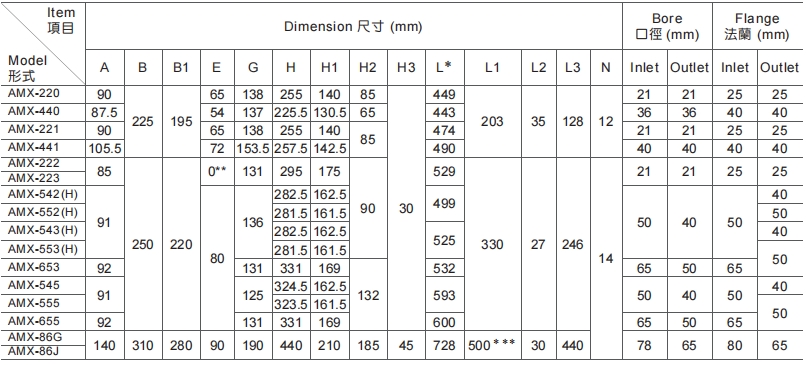

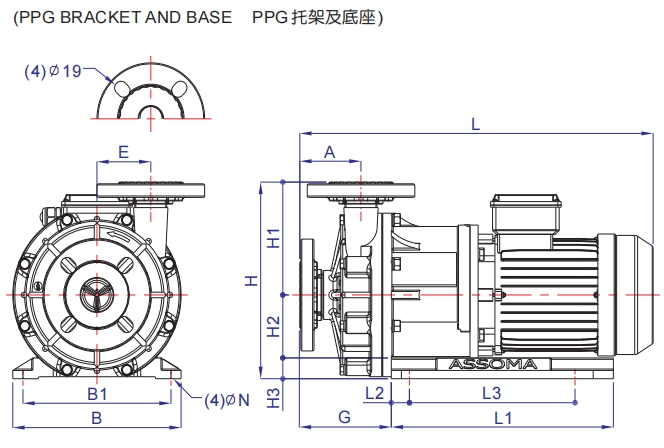

DIMENSION                                                                               UMIT:MM


While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
