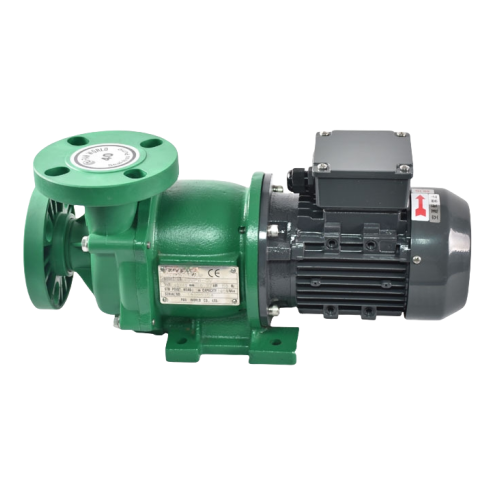

Magnetic Pump - NH-PW Series

TYPICAL APPLICATIONS:

● Plating industry,electrical appliance industry, metal industry,
● Photo industry,food industry,medical,
● Mining industry, water treatment, sewage control

PRODUCT FEATURES:

● ETFE (carbon fiber strengthening) anti-corrosion materials

● 9 models with flow rates up to 530 lit/min and discharge head of 42m.

● Able to handle many types of chemical and temperature of up to 90°C.

● Adaptable to IEC Standard motor, power range is 0.37 to 11kW.

● Available in flange connections.

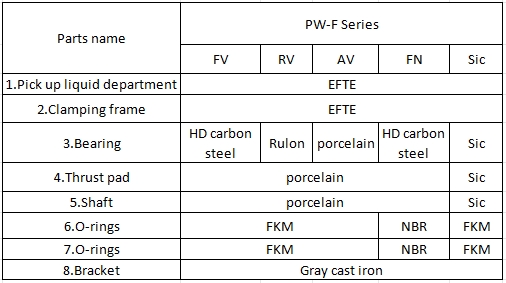

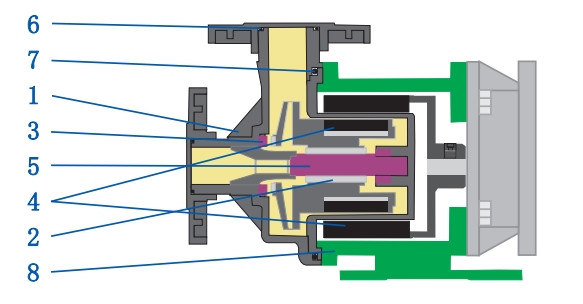

CONSTRUCTION

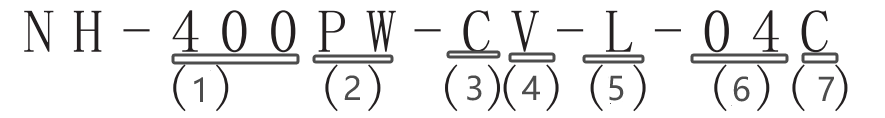

(1)In-outlet: 400,401 - 40×40      402,403,405 - 40×50    655,657,6510,6515 - 65×80
(2)Series-PW
(3)C-Carbon Bearing    R-soft teflon    A-oxide porcelain
(4)O-ring : V-FKM      N-NBR    E-EPDM
(5)Impeller size : S S.G.=1.0     L S.G.=1.1     M S.G.=1.3     H S.G.=1.5
(6)Motor output:     04--0.37kW    07--0.75kW     15--1.5kW      22--2.2kW       37--3.7kW
(7)Required motor: No-- indoor use    B--With B Explosion proof   C--With C Weather proof



These are Chemical Magnetic drive Pump - NH Series,the model number are as below:

NH-400PW , NH-401PW , NH-402PW , NH-403PW , NH-405PW , NH-655PW , NH-657PW , NH-6510PW , NH-6515PW

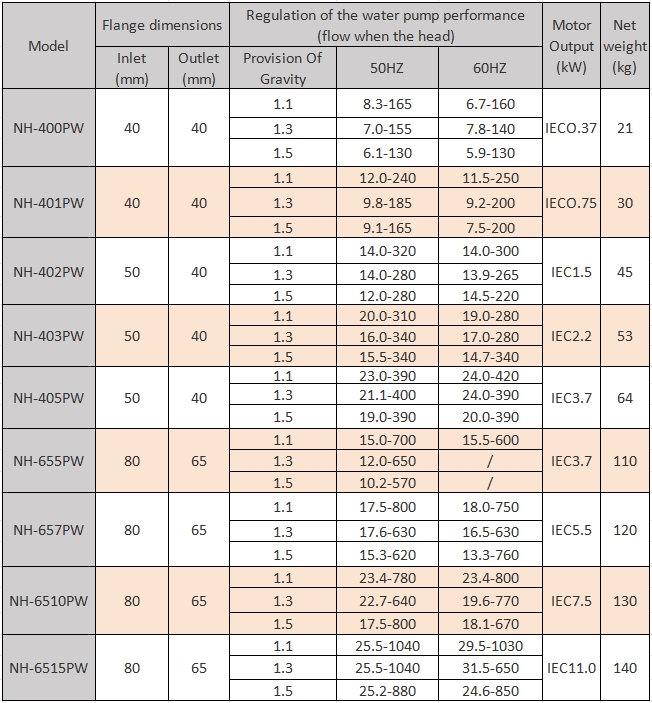

SPECIFICATION

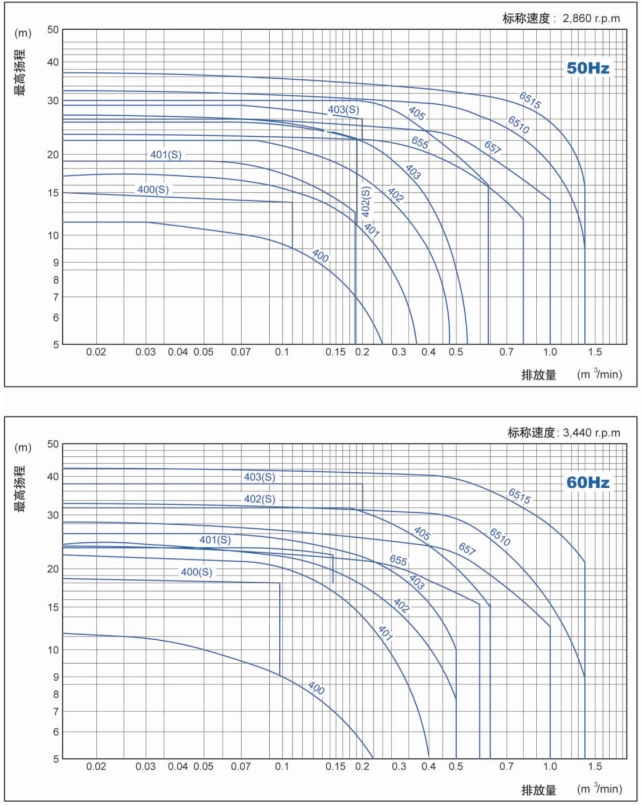

PERFORMANCE CURVES

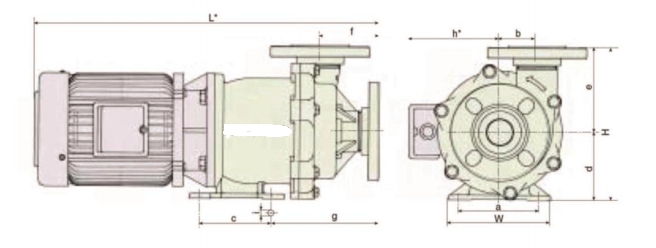

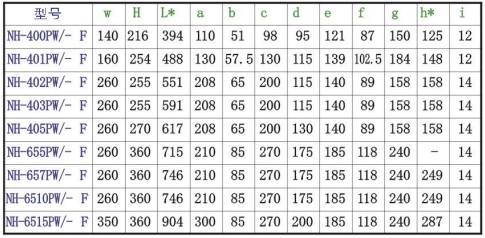

Size:

(mm)


While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
