Magnetic Pump - MSH Series
TIME：2024-02-21 Author：admin Views：
Corrosion Resistant丨Leak-Free 丨High Efficient 丨Low Noise
TYPICAL APPLICATIONS
● Electroplating industry: filter and filter with allkinds of electroplating solution.
● Surface treatment: all kinds of acid, alkali andother corrosive liquid conveying high cycle.
● Waste water and waste gas treatment: collectionand transportation of waste liquid, as well as thedischarge of waste gas desulfurization.
● PCB: transport corrosive liquids.
● Chemicalprocess:corrosiveliquid transport.
PRODUCT FEATURES
● PP,FRPP,PVDF material have excellent corrosion resistance
● No shaft seal design solves the problem of "running and dripping''
● Rare eath permanent magnet, not easy to demagnetize
● Spiral case design reduces friction and reduces noise
CONSTRUCTION
● Head：1 - 31m
● Flow Rate: 1 - 700 L/min
● Pump Material: GFRPP / PVDF/CFRPP/ ETFE
● Voltage:220V/380V
● In-Outlet Range: Inlet: 40 - 50mm Outlet:40mm
● Type:Horizontal, Magnetic
PARTS LIST
(1)Model: MSH
(2)Pump Material: F - GFRPP P - PVDF C - CFRPP E - ETFE
(3)In-Outlet: 44 - 40×40mm 45 - 50×40mm (6)Bearing Material: C - CARBON P - PTFE S - SIC
(7)Elastomer: V - VITON(FKM) E - EPDM
(8)Frequency: 5 - 50HZ 6 - 60HZ
(9)Voltage: V38 - 220V /380V /3∅ V44 - 220V/440V/3∅ V41 - 208V/415V/3∅
(10)Liquid Specific Gravity: 50Hz: A - 1.2 B - 1.5 C - 2.0
60Jz: D - 1.2 E - 1.5 F - 2.0
(11)Motor Form: No presentation - Indoor type S1 - Outdoor type
S2 - EG3 safety explosion-proof S3 - D2G4 Pressure resistance explosion-proof
Currently, we have below model of Magnetic pump of MSH Series:
MSH-F-440 , MSH-F-441 , MSH-F-452 , MSH-F-453 , MSH-F-455
SPECIFICATION
PERFORMANCE CURVES
DIMENSION
UNIT:MM
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
TYPICAL APPLICATIONS
● Electroplating industry: filter and filter with allkinds of electroplating solution.
● Surface treatment: all kinds of acid, alkali andother corrosive liquid conveying high cycle.
● Waste water and waste gas treatment: collectionand transportation of waste liquid, as well as thedischarge of waste gas desulfurization.
● PCB: transport corrosive liquids.
● Chemicalprocess:corrosiveliquid transport.
PRODUCT FEATURES
● PP,FRPP,PVDF material have excellent corrosion resistance
● No shaft seal design solves the problem of "running and dripping''
● Rare eath permanent magnet, not easy to demagnetize
● Spiral case design reduces friction and reduces noise
CONSTRUCTION
● Head：1 - 31m
● Flow Rate: 1 - 700 L/min
● Pump Material: GFRPP / PVDF/CFRPP/ ETFE
● Voltage:220V/380V
● In-Outlet Range: Inlet: 40 - 50mm Outlet:40mm
● Type:Horizontal, Magnetic

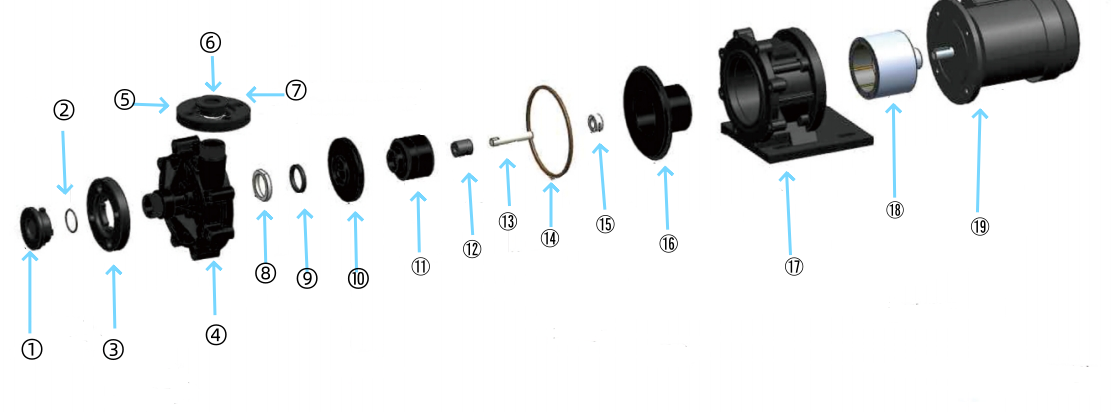

PARTS LIST
|
(1)Model: MSH
(2)Pump Material: F - GFRPP P - PVDF C - CFRPP E - ETFE
(3)In-Outlet: 44 - 40×40mm 45 - 50×40mm (6)Bearing Material: C - CARBON P - PTFE S - SIC
(7)Elastomer: V - VITON(FKM) E - EPDM
(8)Frequency: 5 - 50HZ 6 - 60HZ
(9)Voltage: V38 - 220V /380V /3∅ V44 - 220V/440V/3∅ V41 - 208V/415V/3∅
(10)Liquid Specific Gravity: 50Hz: A - 1.2 B - 1.5 C - 2.0
60Jz: D - 1.2 E - 1.5 F - 2.0
(11)Motor Form: No presentation - Indoor type S1 - Outdoor type
S2 - EG3 safety explosion-proof S3 - D2G4 Pressure resistance explosion-proof
Currently, we have below model of Magnetic pump of MSH Series:
MSH-F-440 , MSH-F-441 , MSH-F-452 , MSH-F-453 , MSH-F-455
SPECIFICATION
| Model | Curve |
Standard Size Inlet×Outlet (mm) |
Max Cap. L/min 50Hz/60Hz |
Max Head (m) 50Hz/60Hz |
Standard Output Flow Head (L/min) (m) 50Hz/60Hz |
Specific Gravity |
Motor Output Phase |
| MSH-F-440 | a A | 40×40 | 280/280 | 12.5/11.5 | 150 8.5 | ＜1.3 | 0.55,2P 1or3 |
| MSH-F-441 | b B | 40×40 | 330/320 | 18/19 | 200 12/12.5 | ＜1.3 | 0.75,2P 3 |
| MSH-F-452 | c C | 50×40 | 400/400 | 23/22 | 200 18.5 | ＜1.3 | 1.5,2P 3 |
| MSH-F-453 | d D | 50×40 | 500/500 | 24/22.5 | 300 20.5/19 | ＜1.3 | 2.2,2P 3 |
| MSH-F-455 | e E | 50×40 | 600/600 | 29/31 | 400 25.5/26.5 | ＜1.3 | 3.7,2P 3 |

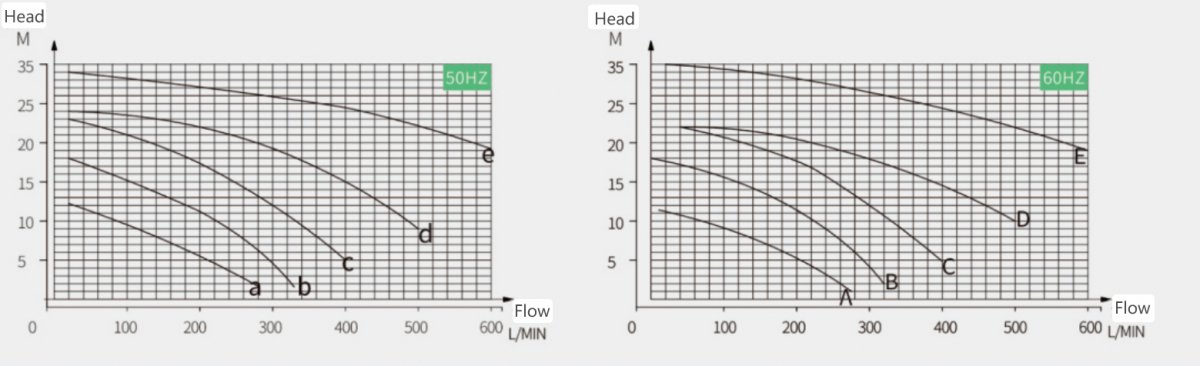

PERFORMANCE CURVES

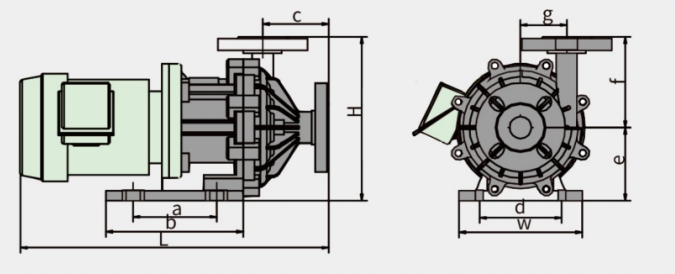

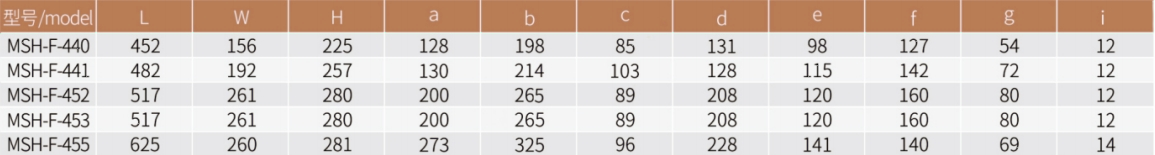

DIMENSION
UNIT:MM
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
