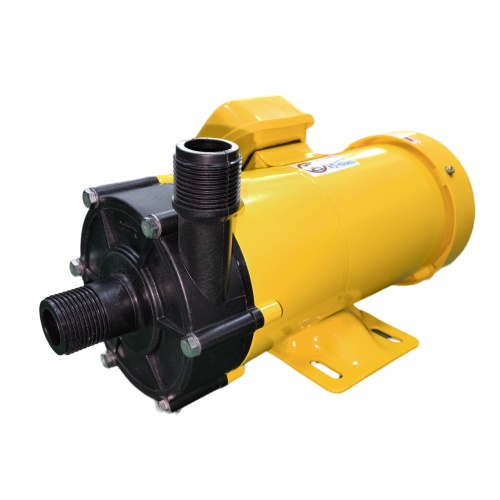

Magnetic Pump- NH-PS Series
TIME：2024-07-30 Author：admin Views：
TYPICAL APPLICATIONS
● Filter
● Chemical Transfer
● Heat Transfer
● Computer Cooling
● Refrigeration Systems
● Aguariums
● lce Makers and lce Flankers
● Vending Eauipment
● Carbon Arc Furnace Cooling
● Microchip Manufacturing
● Semi-Conductor
● Battery Industry
● MC/CNC Machinery
● Pharmaceutical
● Laboratory Application
PRODUCT FEATURES
NH Series Magnetic pumps, are leakage free construction with corrosive resistance PPG material.
● Long Operation Life
20,000 Hours life expectancy of bearing.Zero Leakage
● Leak-free
The pump is driven by a synchronous magnetic coupling for zero leakage.
● Easy maintenance
The part are easy to replace without the use of special tool or jig.
● Built in safety
The bearing, thrust pad, and shaft are molded or supported by plastic for one component.
● Best choice of wetted end
Many kind of combination among bearing, spindle thrust pad, O-rings are standarized to meet required specification.

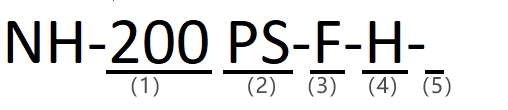

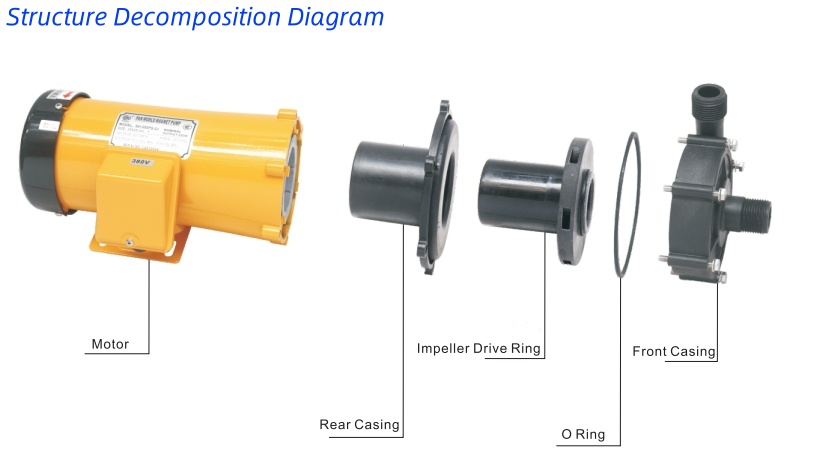

CONSTRUCTION
(1)Size
(2)Series
(3)Material: F-ETFE ∅-PP K-PVDF
(4)Pipe connection:H - Hose G - Thread BSP F = Flange T= Thread NPT
(5)Supply voltage:∅-with original1 phase motor 220 V (or 110 V) 3J= with original 3 phase motor
3EO = without 3 phase motor,for lEC mounted
These are NH-PS Series of Vertical Pumps,the model number are as below:
NH-125PS, NH-150PS, NH-150PS-3, NH-200PS-Z, NH-200PS, NH-200PS-3
NH-250PS, NH-250PS-3, NH-300PS, NH-300PS-3.

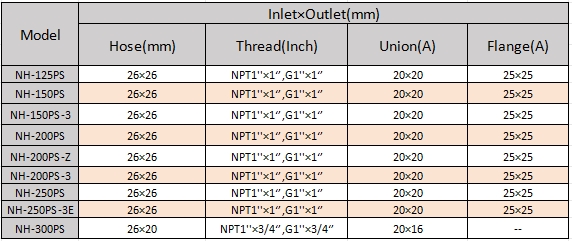

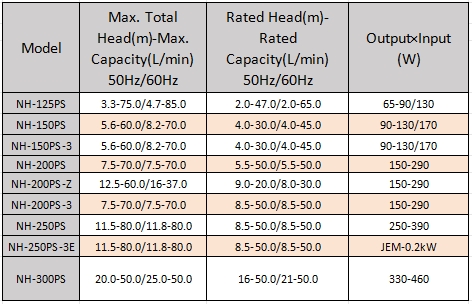

SPECIFICATION

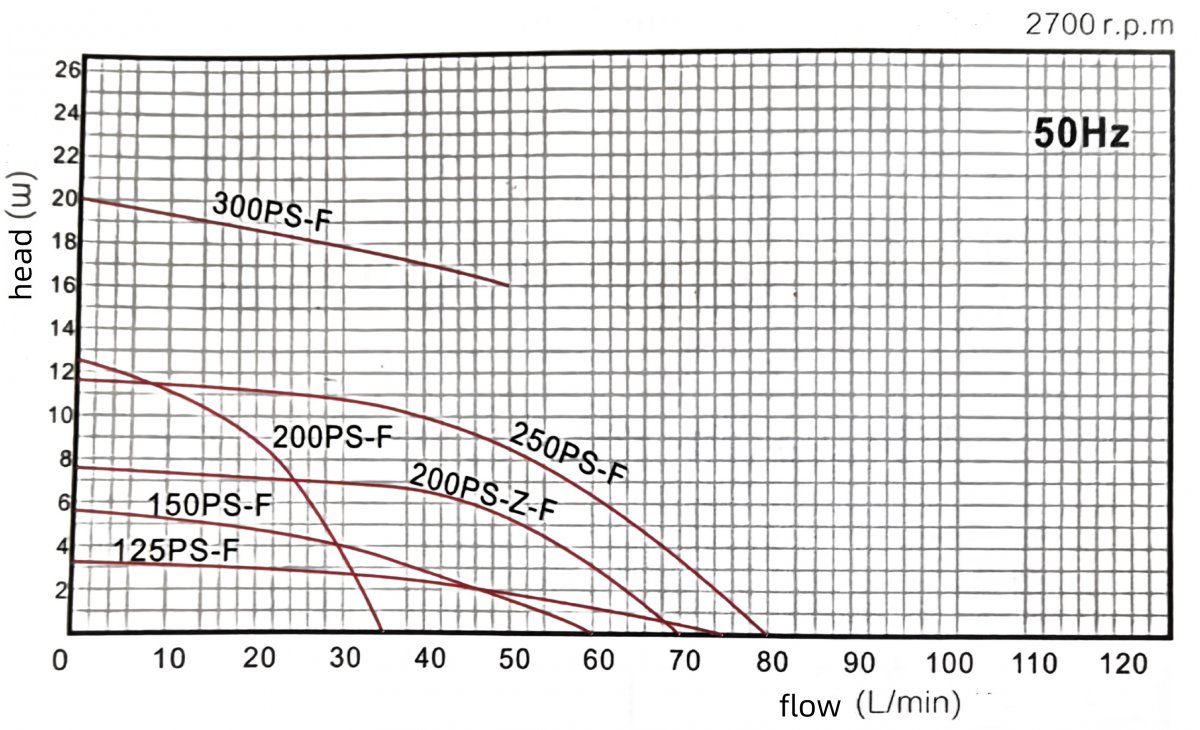

PERFORMANCE CURVES

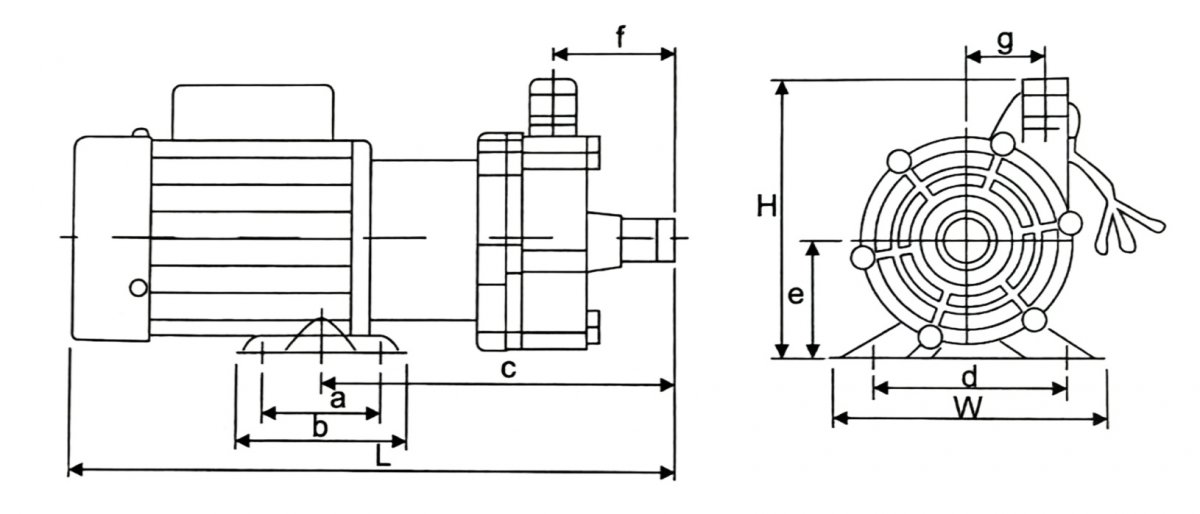

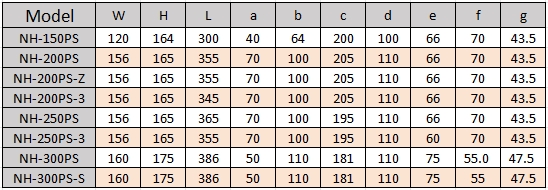

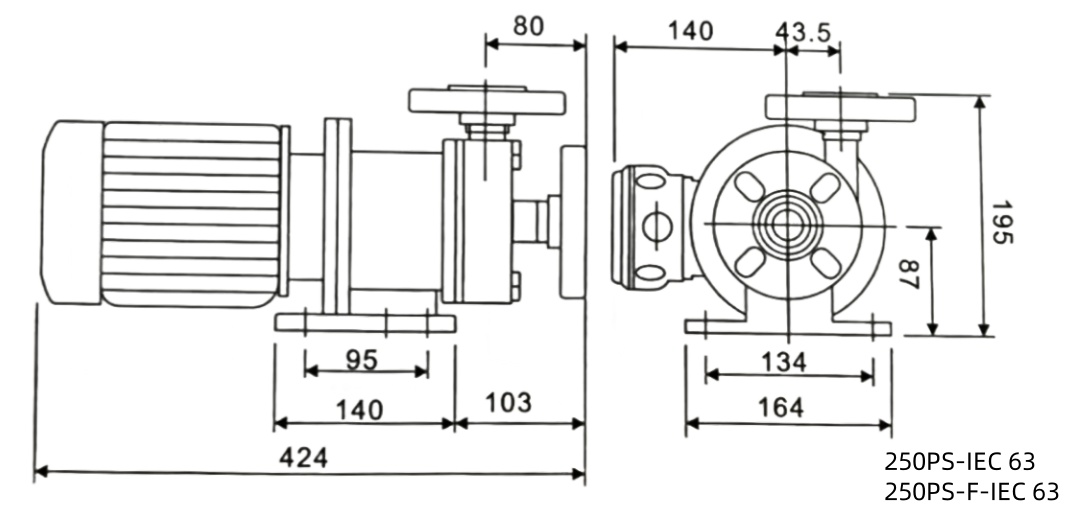

DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
