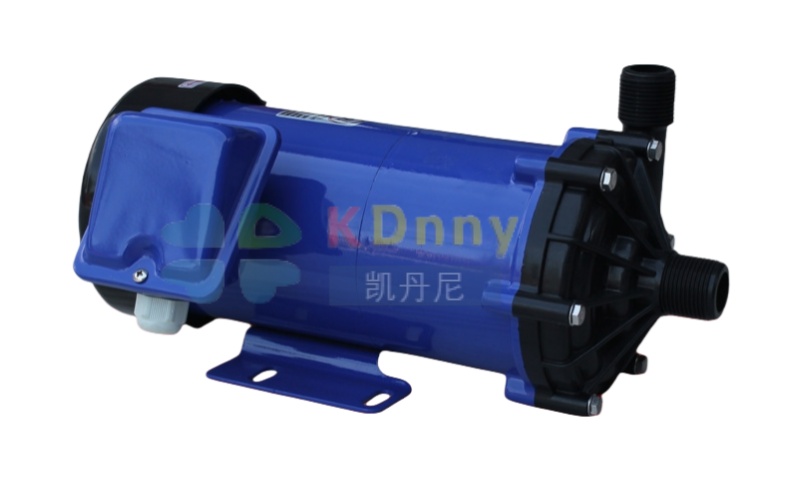

Small Magnetic Pump - KDE Series
TIME：2024-11-26 Author：admin Views：
PARAMETERS
● Max. Capacity: 50Hz-90~110 L/min 60Hz-100~125 L/min
● Max. Head: 50Hz-8 ~8.6 m 60Hz-10.8~11.8 m
● Power Range: 150W~260W
● Caliber Range:
Inlet:25mm Outlet:25mm -Hose Connection
Inlet:G1'' Outlet:G1''-Threaded Connection
● Transmission Medium: Available chemical with PH value between 0 and 14(suitable for temperature range 0-100°C)
● Construction: Magnetic Drive, Sealless
● Max. Head: 50Hz-8 ~8.6 m 60Hz-10.8~11.8 m
● Power Range: 150W~260W
● Caliber Range:
Inlet:25mm Outlet:25mm -Hose Connection
Inlet:G1'' Outlet:G1''-Threaded Connection
● Transmission Medium: Available chemical with PH value between 0 and 14(suitable for temperature range 0-100°C)
● Construction: Magnetic Drive, Sealless
PRODUCT FEATURES
● Outstanding Acid / Alkaline Resisting Capability
The PP / GFRPP material can resist temperature up to 75℃. The PVDF material can resist temperature up to 90℃. The CFRETFE material can resist temperature up to100℃.
● Corrosion Resisting
The major parts of the pump feature outstanding corrosion-resist capability
● Sealless and No Leakage
Eliminate the mechanical shaft seal design on the conventional pump, the high performance magnetic drive pump features complete seal. It fully eliminates the problem of environmental pollution due to pump damage.
The PP / GFRPP material can resist temperature up to 75℃. The PVDF material can resist temperature up to 90℃. The CFRETFE material can resist temperature up to100℃.
● Corrosion Resisting
The major parts of the pump feature outstanding corrosion-resist capability
● Sealless and No Leakage
Eliminate the mechanical shaft seal design on the conventional pump, the high performance magnetic drive pump features complete seal. It fully eliminates the problem of environmental pollution due to pump damage.
TYPICAL APPLICATIONS
● PCB process
● Chemical industry
● Circulated filtering
● Etching
● Plating
● Surface treatment
● Polluted water treatment
● Chemical industry
● Circulated filtering
● Etching
● Plating
● Surface treatment
● Polluted water treatment

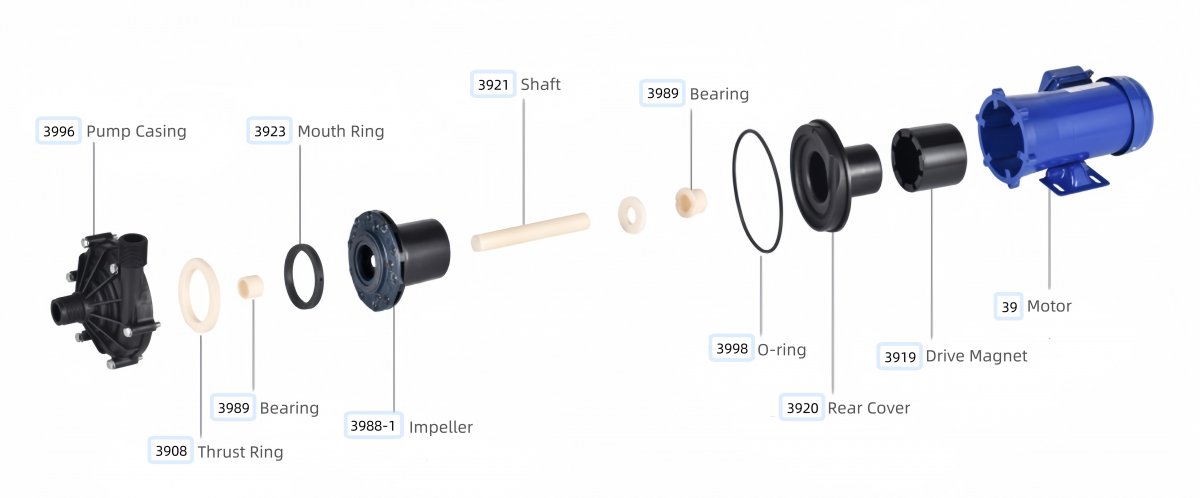

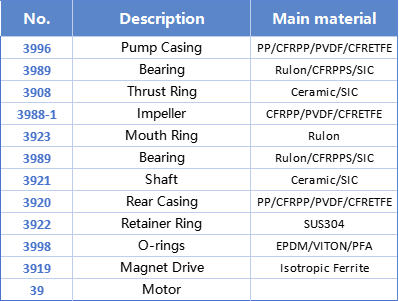

PARTS LIST

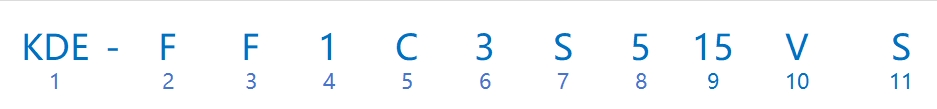

1. Model: KDE
2. Inlet-Outlet: E - 20*20 F - 25*25 J - 50*40 L - 65*50
3. Power: D - 45W E - 65W E - 90W
J - 180W K - 260W
4. Material: 1 - GFRPP 3 - PVDF 8 - PP 4 - CFR ETFE
5. Shaft Material: C - Ceramic S - SIC
6. Phase: 1 - Single 3 - Three
7. Access Mode: S - Screw H - Hose
8. Frequency: 5 - 50Hz 6 - 60Hz
9. Votage: 1 - 110V 1∅ 13-220V/240V 1Φ 15-220V/380V 9-208V/415V 3Φ
10. Rubber: V - VITON E - EPDM P - PFA
11. N - Standard S - Special Specifications
These are seal-less magnetic drive pump of KDE Series, we have the models number as below:
KDE-FI/J, KDE-FK
SPECIFICATION

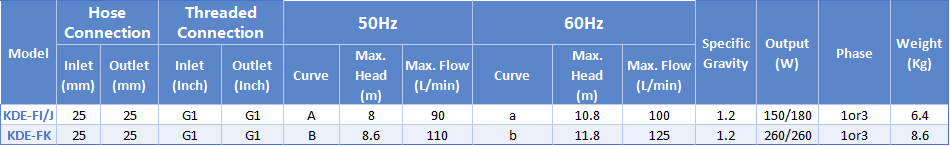

TECHNICAL PAPAMETERS Testing fluid：Water（Specific gravity 1.0）

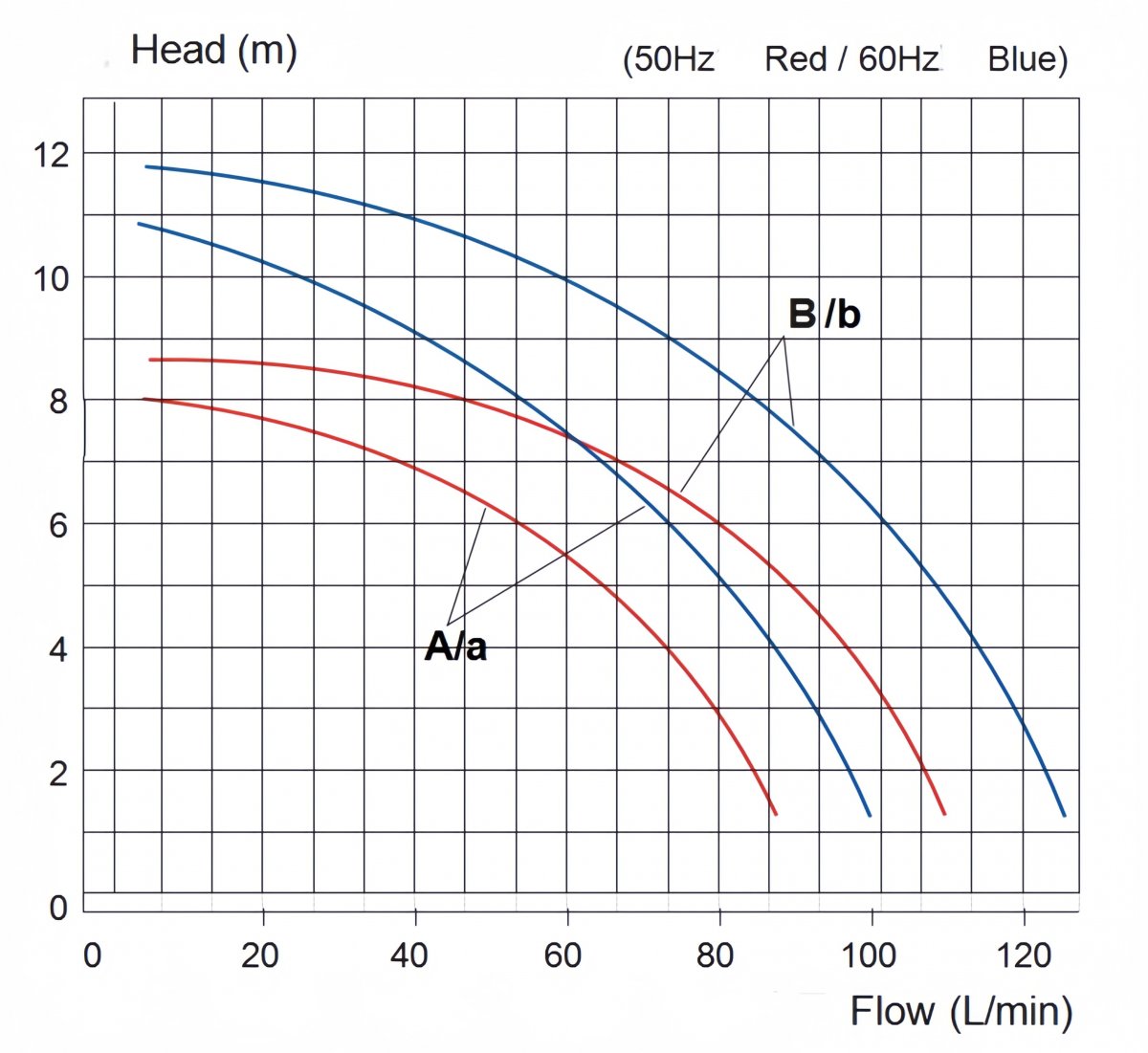

PERFORMANCE CURVES

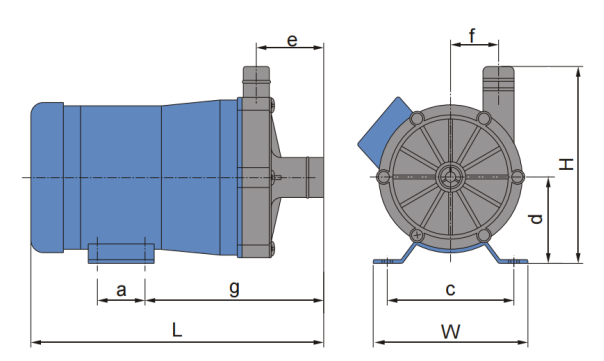

DIMENSION
Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
