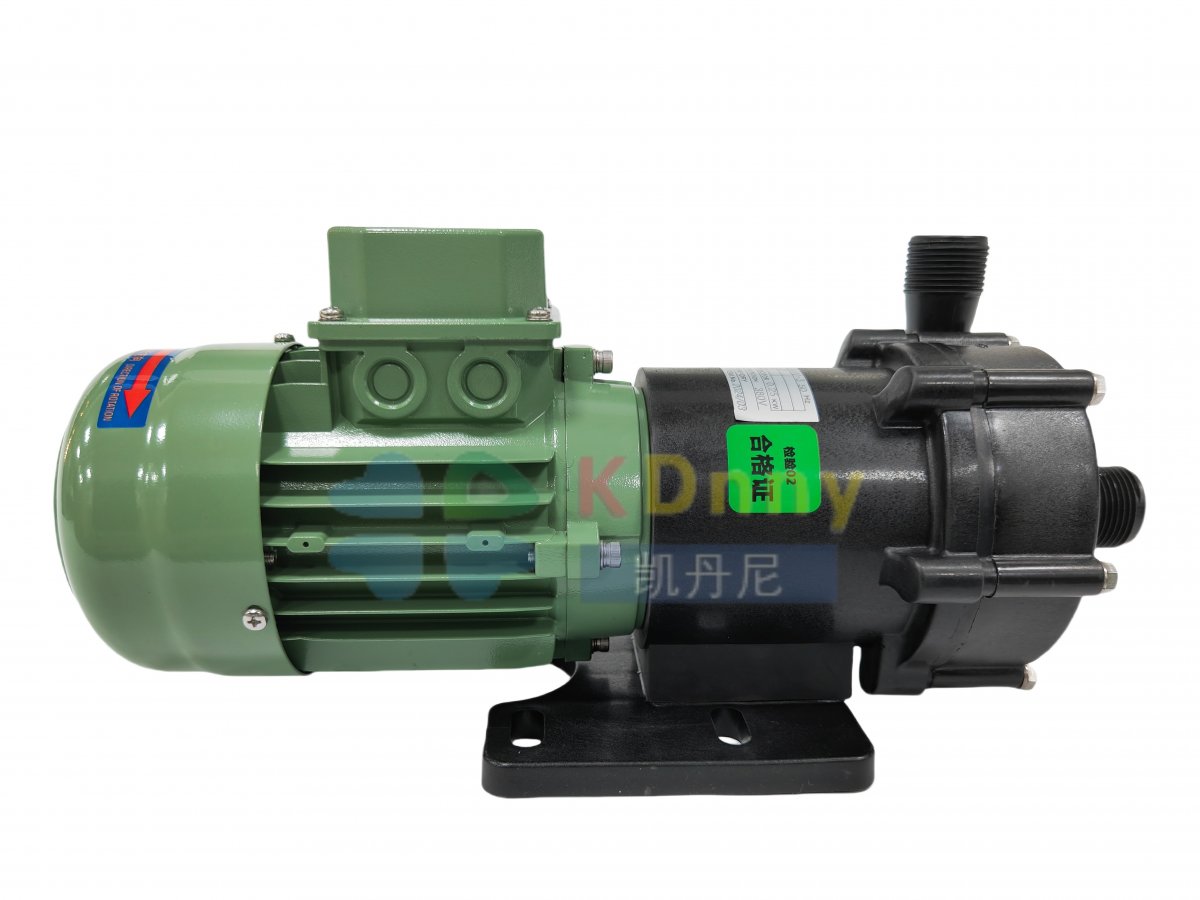

Magnetic Pump - KDF Series

● Rated Capacity: 50Hz/60Hz -20~80 L/min

● Rated Head: 50Hz-2.6~8.2 m
                      60Hz-3.8~9.3 m

● Power: 65~250W

● Caliber:
Hose-20mm, 25mm
Threaded-G1/2'', G1''
Union-15A, 25A
Flange-20A

● Casing Material: PP, GFRPP, PVDF, CFRETFE

---

PRODUCT FEATURES

● Various piping connection such as hose, threaded, union and flange are provided to facilitate customers' choice.

● The wetted parts are made of engineering plastics with strong corrosion resistance. PP, PP+GF, ETFE+CF or PVDF materials can be selected depending on the corrosiveness of the conveyed fluid.
● Simple structure, easy repair and maintenance.
● Leak-free to handle corrosive, dangerous chemical.

---

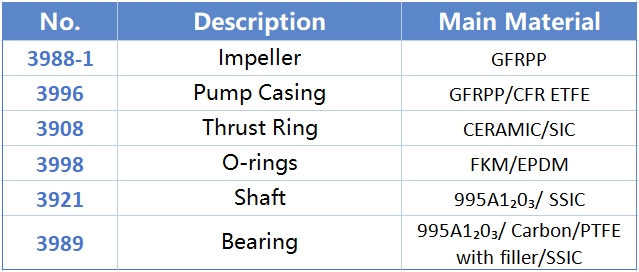

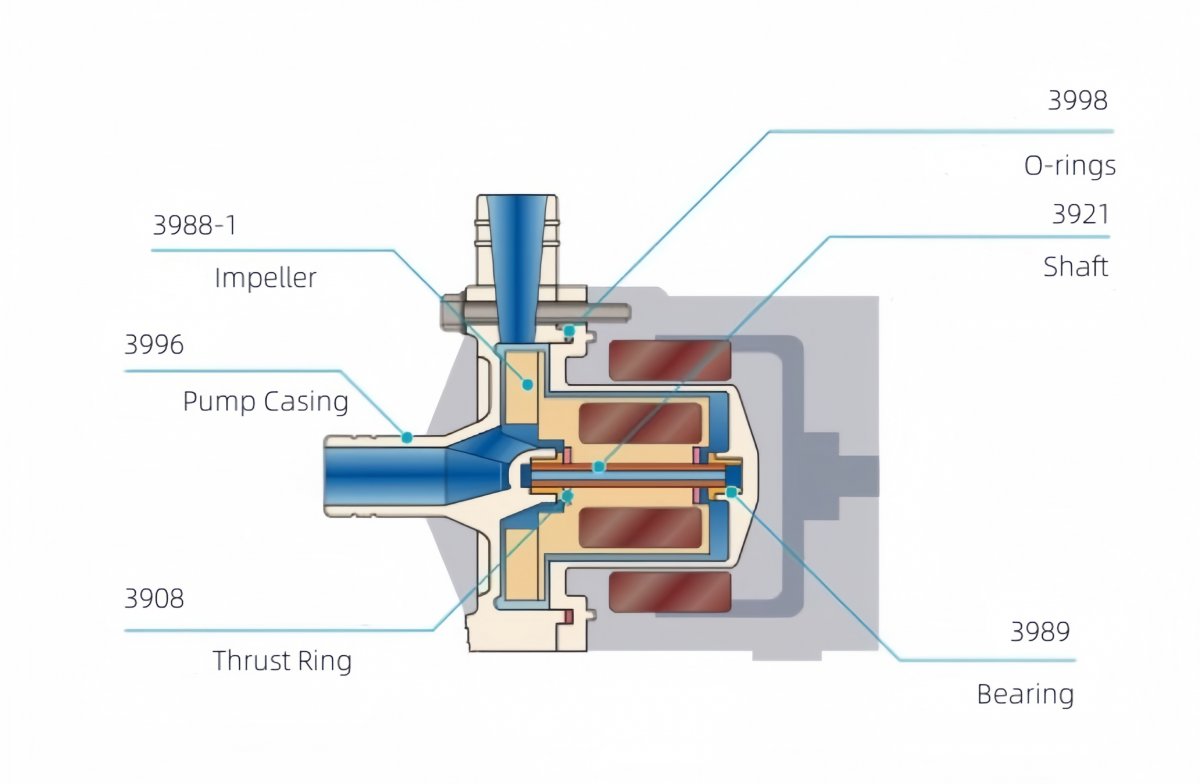

PARTS LIST

---

1. Model: KDF
2. Inlet-Outlet: E - 20*20   F - 25*25
3. Power: E - 65W   J - 180W      K - 250W
4. Material: 1 - GFRPP    4 - CFR ETFE
5. Impeller Bearing: N-995A1?0?  C-Carbon  T-PTFE with filter   S-SSIC
6. Phase: 1 - Single   3 - Three
7. Access Mode: S - Screw   F - Flange   U - Union
8. Frequency: 5 - 50Hz   6 - 60Hz
9. Votage: 15-220V/380V    16-110V-220V   18-220V/440V  19-230V/460V
10. Rubber: V - VITON   E - EPDM
11. N - Standard     S - Special Specifications

These are seal-less magnetic drive pump of KDF Series, we have the models number as below:
KDF-EE, KDF-FJ, KDF-FK

---

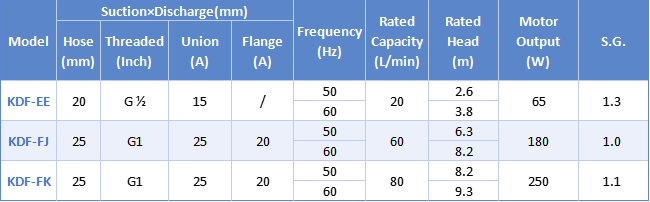

SPECIFICATION

---

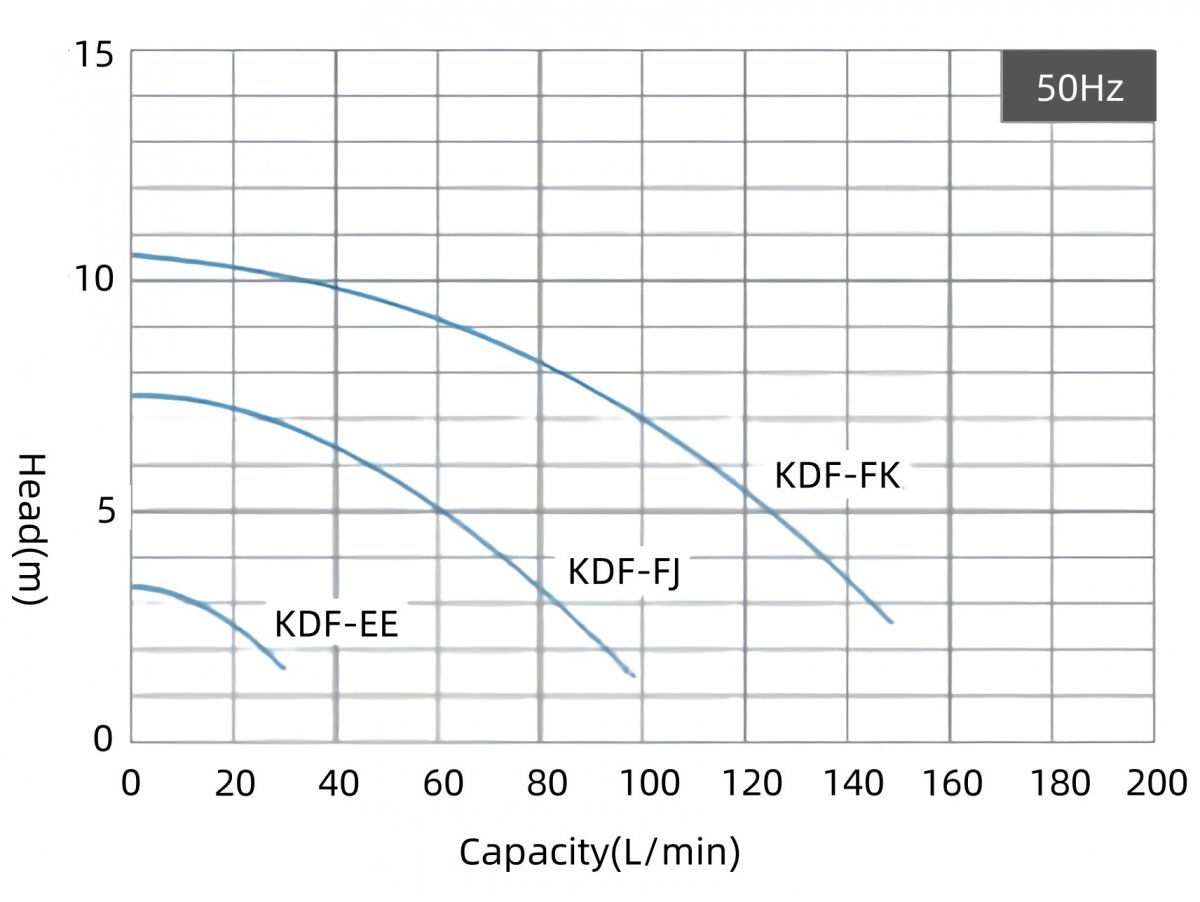

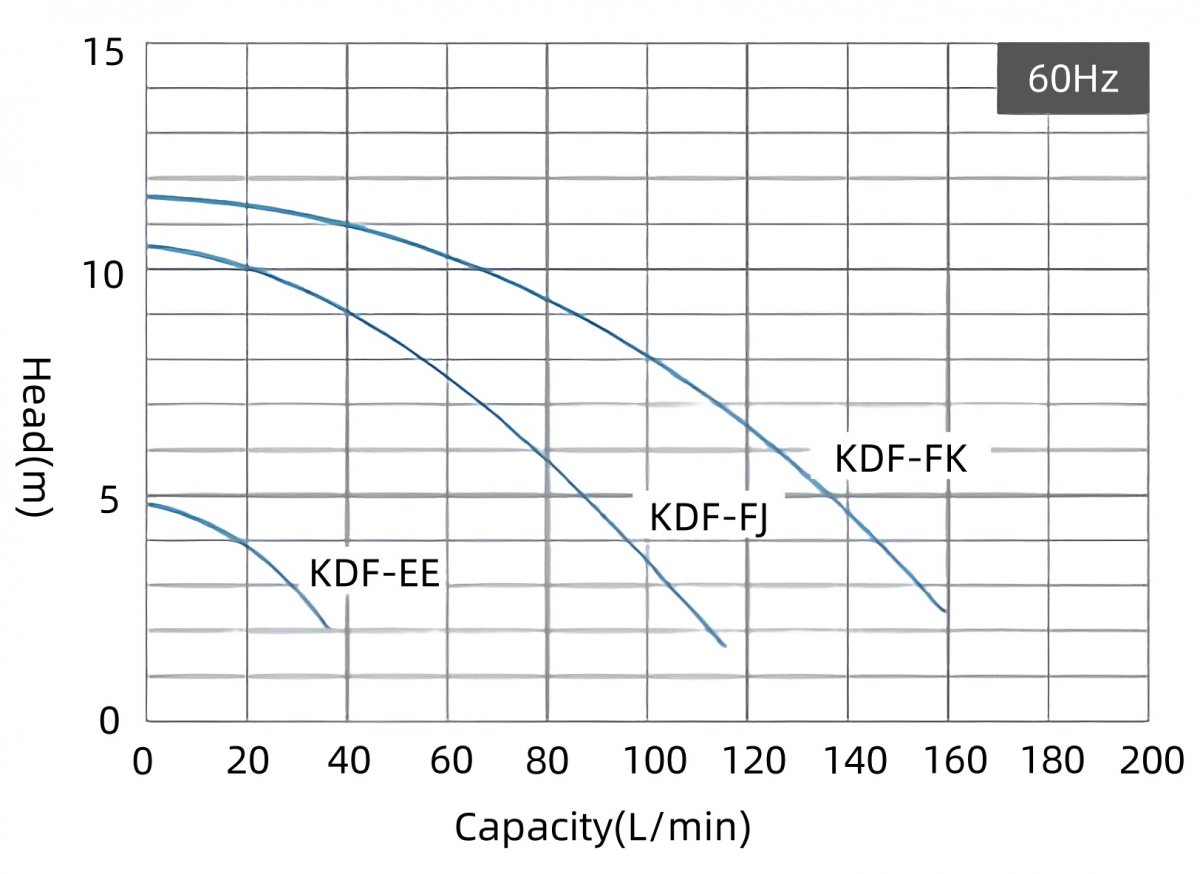

PERFORMANCE CURVES

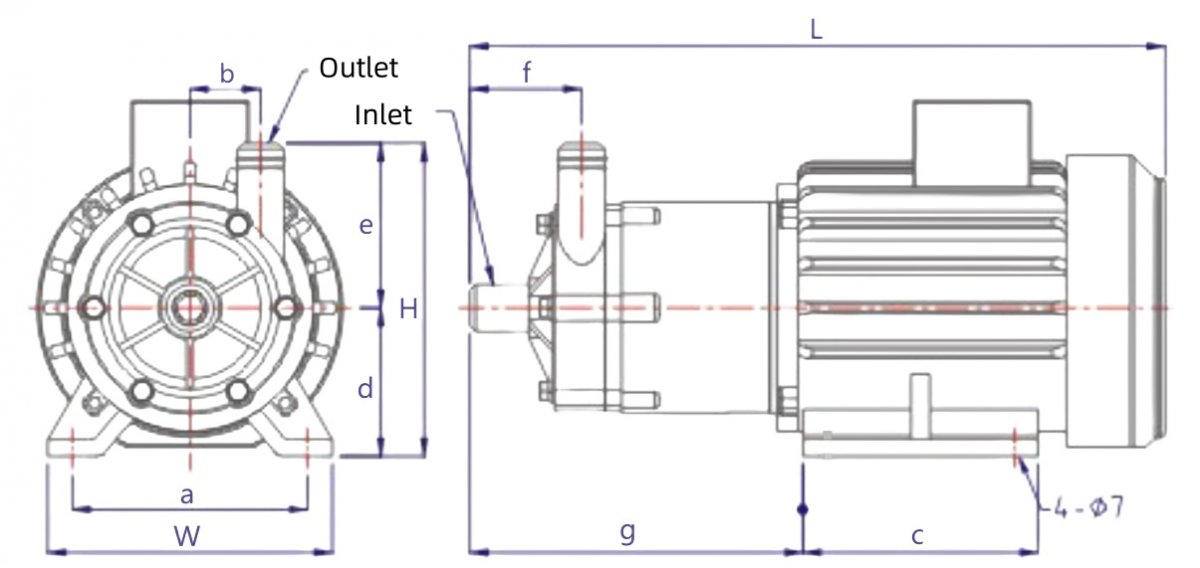

DIMENSION

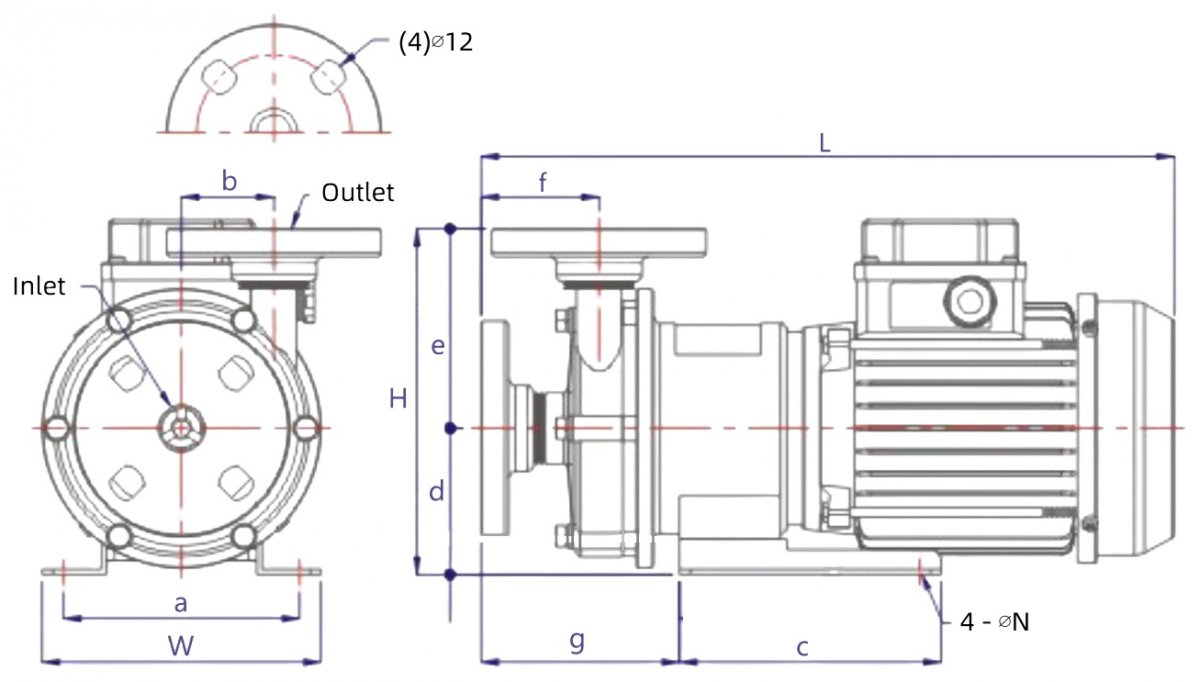

                                KDF-EE                                                                                                                                KDF-FJ /KDF-FK
