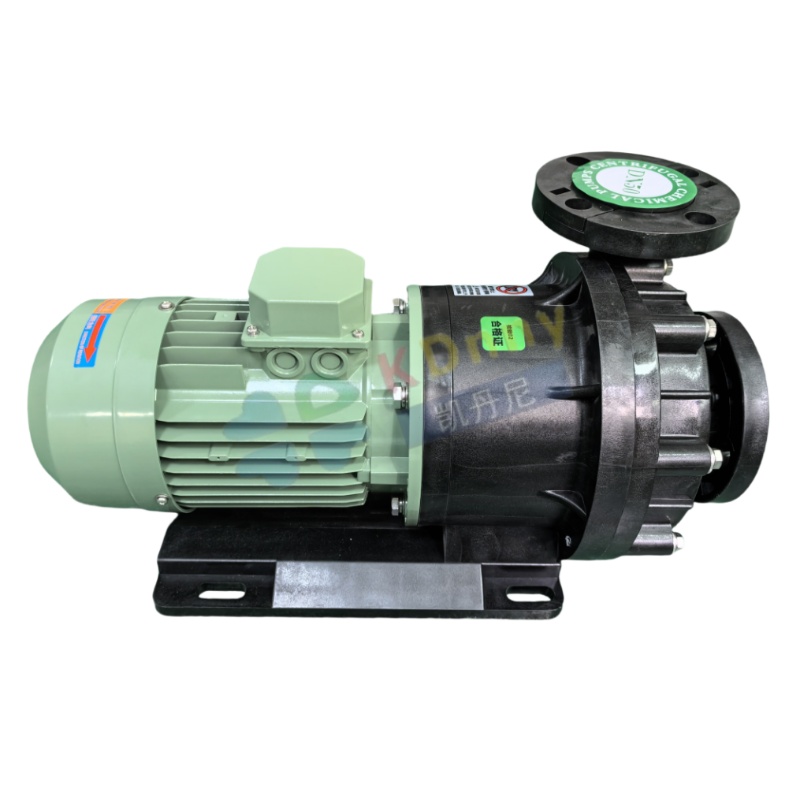

Magnetic Pump - KDG Series
TIME：2024-11-20 Author：admin Views：
PARAMETERS
● Rated Capacity: 50Hz/60Hz - 80~800 L/min
● Rated Head: 50Hz-9.9~33.2 m
60Hz-11.8~41.7 m
● Max. Capacity: 50Hz/60Hz - 150~1350 L/min
● Max. Head: 50Hz-11~37.1 m
60Hz-11.4~40.9 m
● Power: 0.37~7.5kW
● Caliber: Inlet-25~65 mm Outlet-25~50 mm
● Casing Material: PP+GF/ETFE+CF
● Rated Head: 50Hz-9.9~33.2 m
60Hz-11.8~41.7 m
● Max. Capacity: 50Hz/60Hz - 150~1350 L/min
● Max. Head: 50Hz-11~37.1 m
60Hz-11.4~40.9 m
● Power: 0.37~7.5kW
● Caliber: Inlet-25~65 mm Outlet-25~50 mm
● Casing Material: PP+GF/ETFE+CF
TYPICAL APPLICATIONS
● Electroplating industry: Circulation and filtration of various types of electroplating solutions.● For transferring corrosion chemical liquid
● Sewage disposal industry
● Painting industry
● Pollution Control: collecting and transporting waste liquids
PRODUCT FEATURES
● Maintenance-free pump casing.
The flanges are socket welded to the pump casing, eliminating O-ring, thus, requiring no maintenance.
● High-efficiency impeller.
Closed impeller precision designed to streamline flow dynamics, minimizing hydraulic loss and maximizing pump efficiency.
● Pump-protection buffer system.
The unique buffer system absorbs shock generated during abnormal pump operation such as cavitation, protecting the pump from damage.
● Force-cooled bearing system.
Specially designed flow channels force circulation through the bearing system, rapidly dissipating heat to prevent damage to the pump under dry-run conditions.
● Long-service gasket.
Greatly reduces the need to service the pump.
● Plastic containment shell.
The plastic containment shell does not generate any eddy current loss, therefore, no additional heating of the pumped chemical.
● Magnetic coupling.
Torque from the motor is transferred to the pump impeller through magnetic coupling . The seal-less design is leak- free and there is no seal maintenance necessary.
● Corrosion - resistant bracket base.
Ideal for corrosive and saline environment. Protects against accidental chemical drips.Engineered to provide structural strength and long service life.

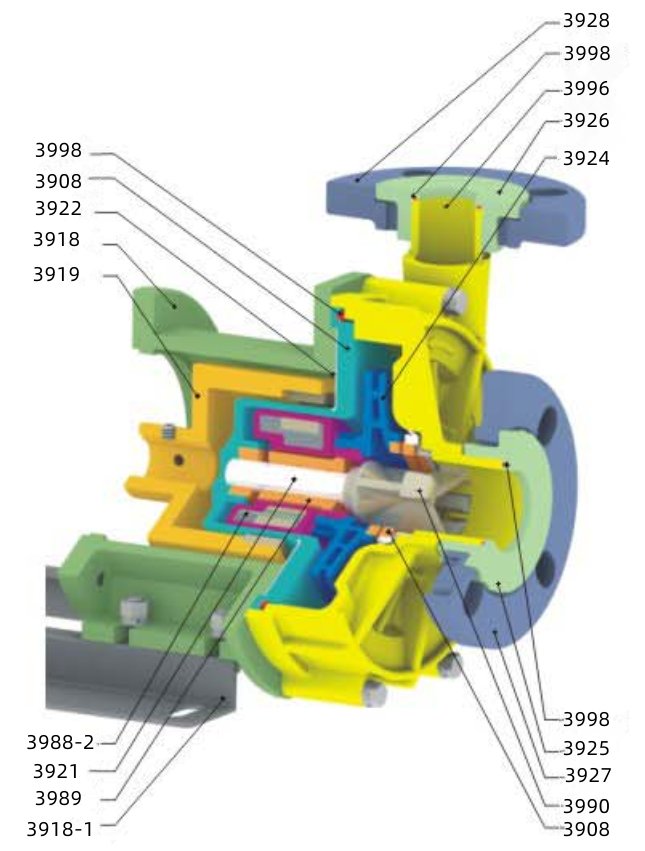

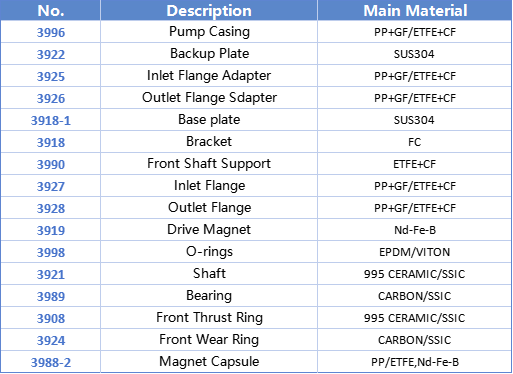

PARTS LIST
1.Model: KDG
2. Inlet-Outlet: F-25*25 I-40*40 J-50*40 L-65*50 N-80*65
3. Power: 8 - 0.37kW 10 - 0.75kW 16 -1.5kW 18 - 2.2kW
20 - 3.75kW 25 - 5.5KW 30 - 7.5KW
4. Material: 1 - PP+GF 4 - ETFE+CF
5. Shaft Material: N-995Al203 S-SIC
6. Access Mode: F - Flange U - Union
Phase: 1 - Single 3 - Three
7. Impeller Bearing: N - 995Al203 C - CARBON F - PTFE+CF S - SSIC
8. Rubber: E - EPDM F - FKM K - PTFE+FKM
9. Motor Type: 0 - IP54 1 - IP55 2 - Explosion Proof eG3
3-Explosion Proof d2G4
10. N - Standard S - Special Specifications
These are seal-less magnetic drive pump of KDG Series, we have the models number as below:
KDG-F8, KDG-I8, KDG-10, KDG-F16, KDG-F18, KDG-J16, KDG-K16, KDG-J16H, KDG-K16H, KDG-J16H, KDG-K16H,
KDG-J18, KDG-K18, KDG-J18H, KDG-K18H, KDG-J20,KDG-K20, KDG-L18, KDG-L20, KDG-L25, KDG-L30.
2. Inlet-Outlet: F-25*25 I-40*40 J-50*40 L-65*50 N-80*65
3. Power: 8 - 0.37kW 10 - 0.75kW 16 -1.5kW 18 - 2.2kW
20 - 3.75kW 25 - 5.5KW 30 - 7.5KW
4. Material: 1 - PP+GF 4 - ETFE+CF
5. Shaft Material: N-995Al203 S-SIC
6. Access Mode: F - Flange U - Union
Phase: 1 - Single 3 - Three
7. Impeller Bearing: N - 995Al203 C - CARBON F - PTFE+CF S - SSIC
8. Rubber: E - EPDM F - FKM K - PTFE+FKM
9. Motor Type: 0 - IP54 1 - IP55 2 - Explosion Proof eG3
3-Explosion Proof d2G4
10. N - Standard S - Special Specifications
These are seal-less magnetic drive pump of KDG Series, we have the models number as below:
KDG-F8, KDG-I8, KDG-10, KDG-F16, KDG-F18, KDG-J16, KDG-K16, KDG-J16H, KDG-K16H, KDG-J16H, KDG-K16H,
KDG-J18, KDG-K18, KDG-J18H, KDG-K18H, KDG-J20,KDG-K20, KDG-L18, KDG-L20, KDG-L25, KDG-L30.

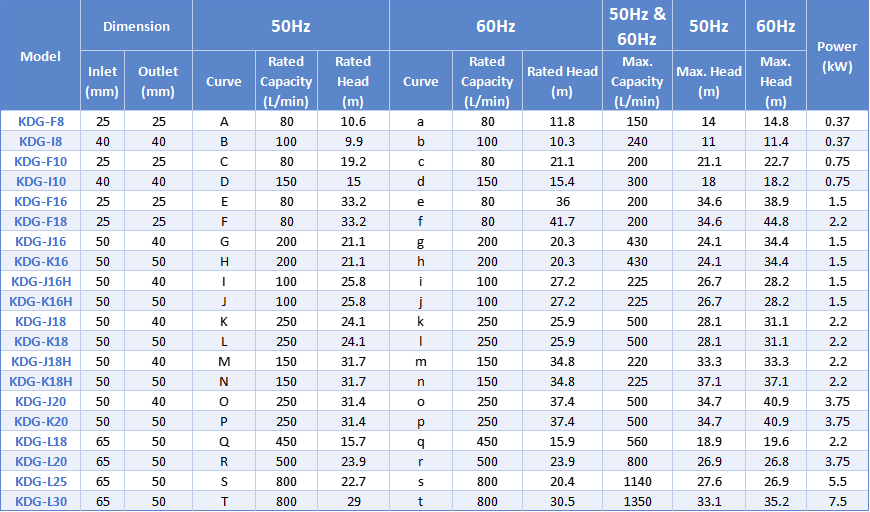

SPECIFICATION

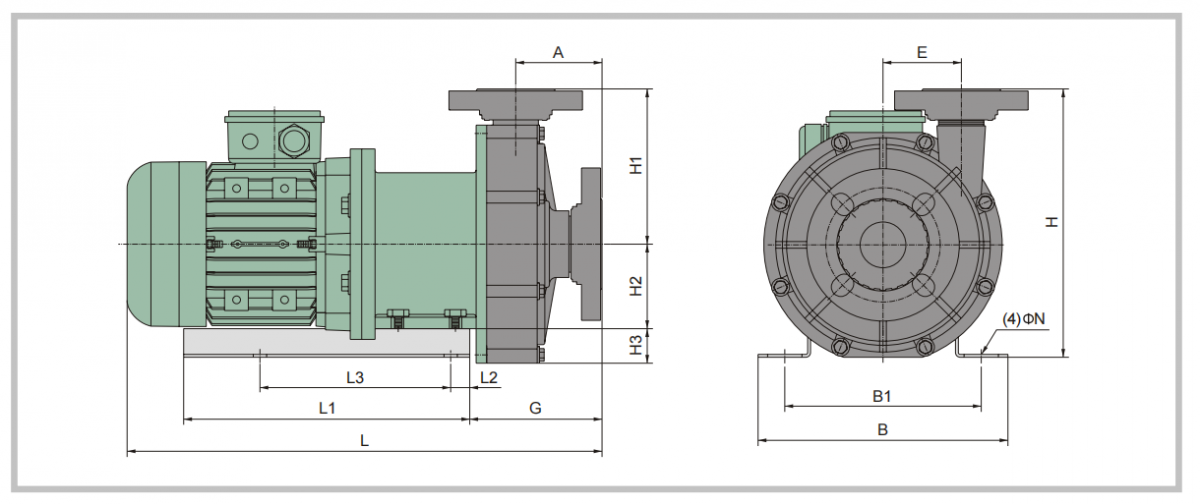

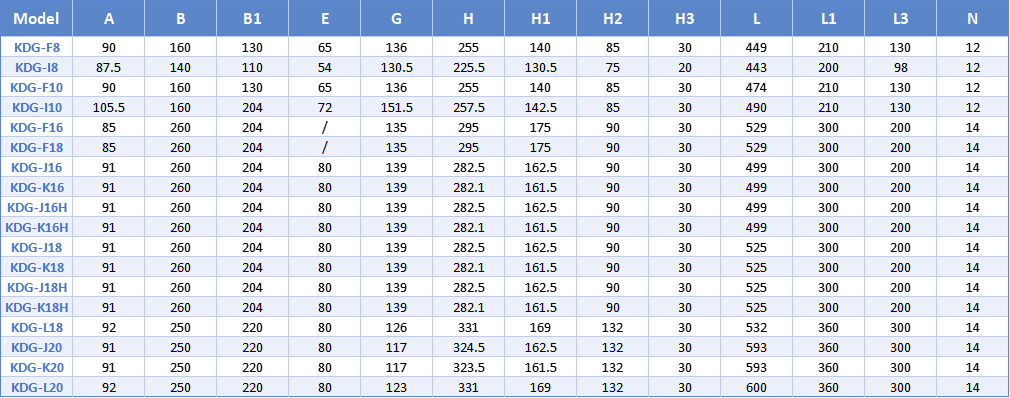

DIMENSION
Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
