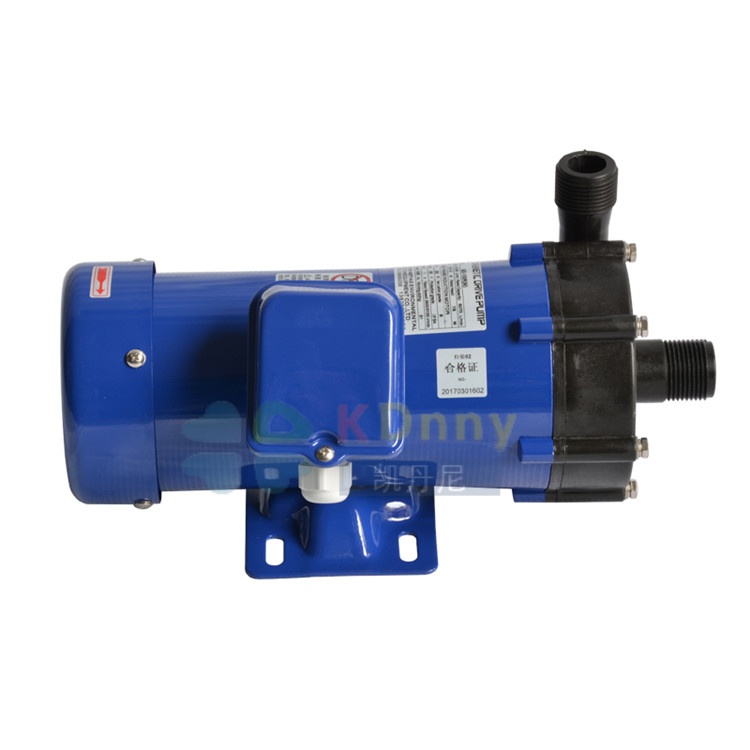

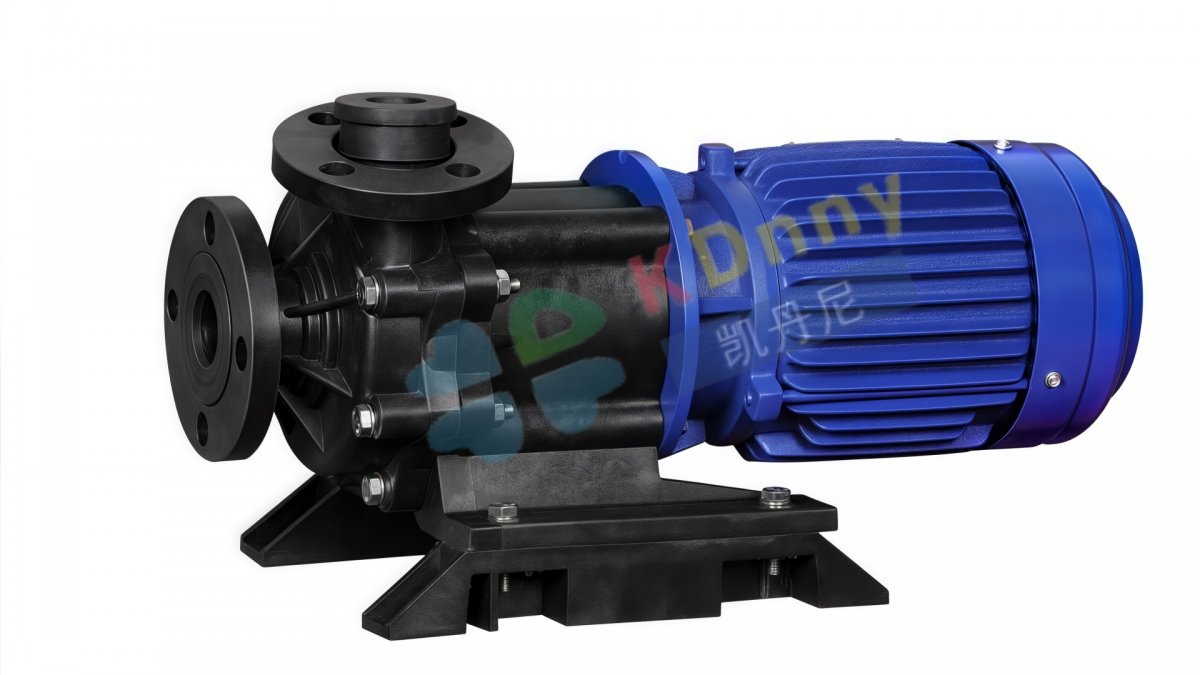

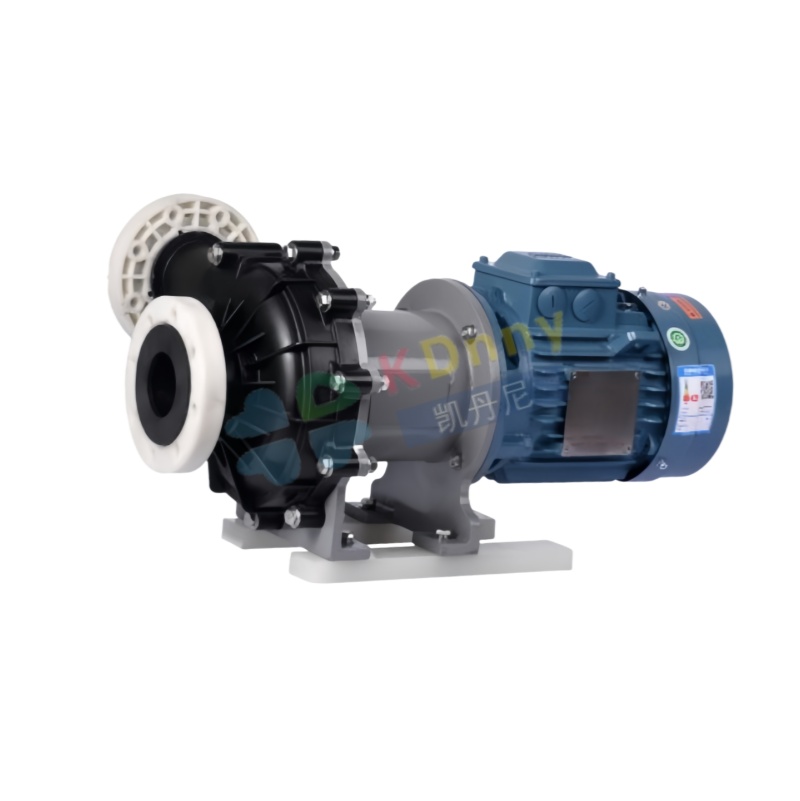

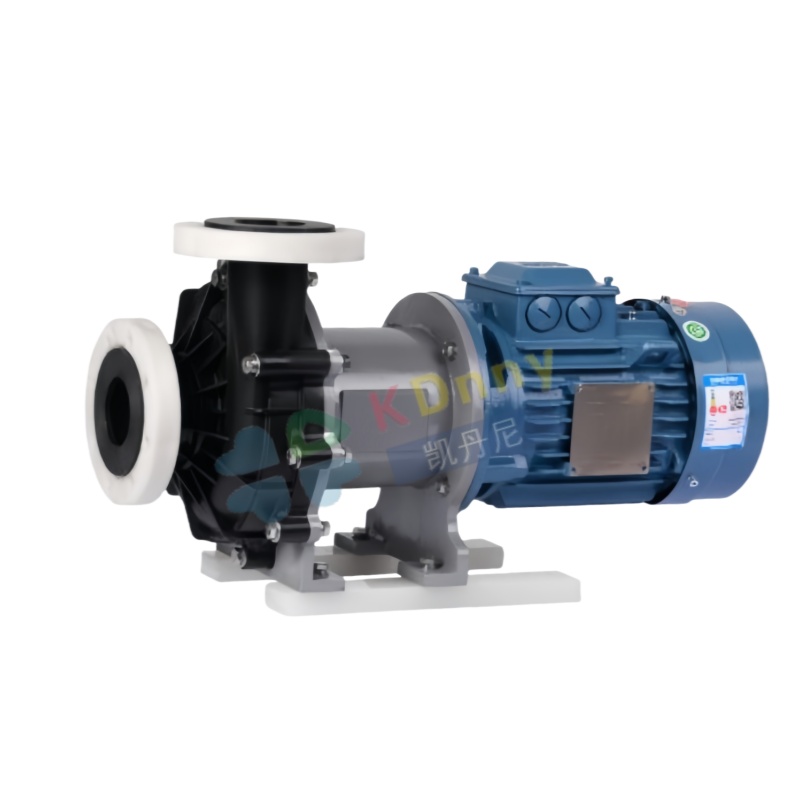

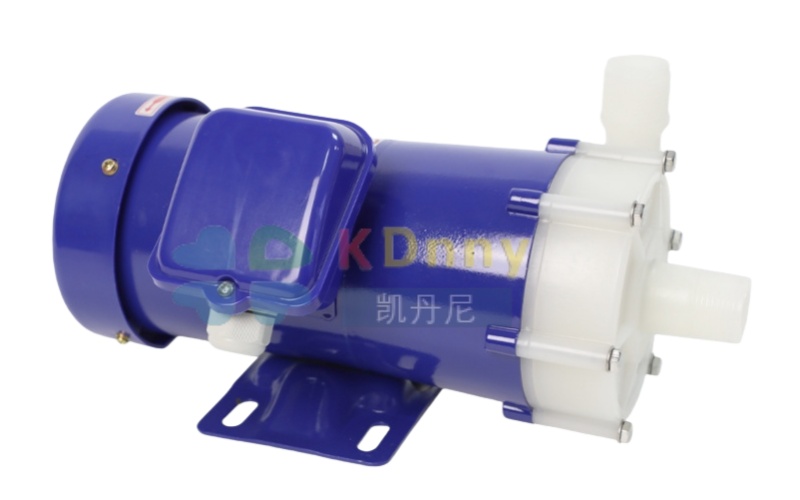

Magnetic Pump - KDK Series
TIME：2024-12-09 Author：admin Views：
PARAMETERS
● Max.Capacity: 50Hz-280~800 L/min
● Max. Head：50Hz-12.5~36 m
● Rated Capacity: 150~600 L/min
● Rated Head:8.5~26 m
● Power Range：0.4~4kW
● Caliber: Inlet-40mm, 50mm Outlet-40mm, 50mm
● Pump Casing: FRPP, CFRPP, PVDF, CFRETFE
● Max. Head：50Hz-12.5~36 m
● Rated Capacity: 150~600 L/min
● Rated Head:8.5~26 m
● Power Range：0.4~4kW
● Caliber: Inlet-40mm, 50mm Outlet-40mm, 50mm
● Pump Casing: FRPP, CFRPP, PVDF, CFRETFE
TYPICAL APPLICATION
● Chemical industry
● Continuous plating
● Wastewater treatment
● Hardware plating
● Pharmaceutical factory
● Surface treatment
● Wastewater treatment
● Hardware plating
● Pharmaceutical factory
● Surface treatment
PRODUCT FEATURES
● Magnetic transmission. The shaft seal-free design is completely leak-proof and will not cause chemical leakage and pollution.● High-quality accessories. The use of high-purity ceramic and silicon carbide accessories is more resistant to corrosion, wear and thermal shock.
● Various models. Magnetic pumps are available in a variety of models. You can choose the appropriate model according to the flow rate, head and diameter.
● The magnetic pump without shaft seal is simple in structure, small in size and reliable in operation.

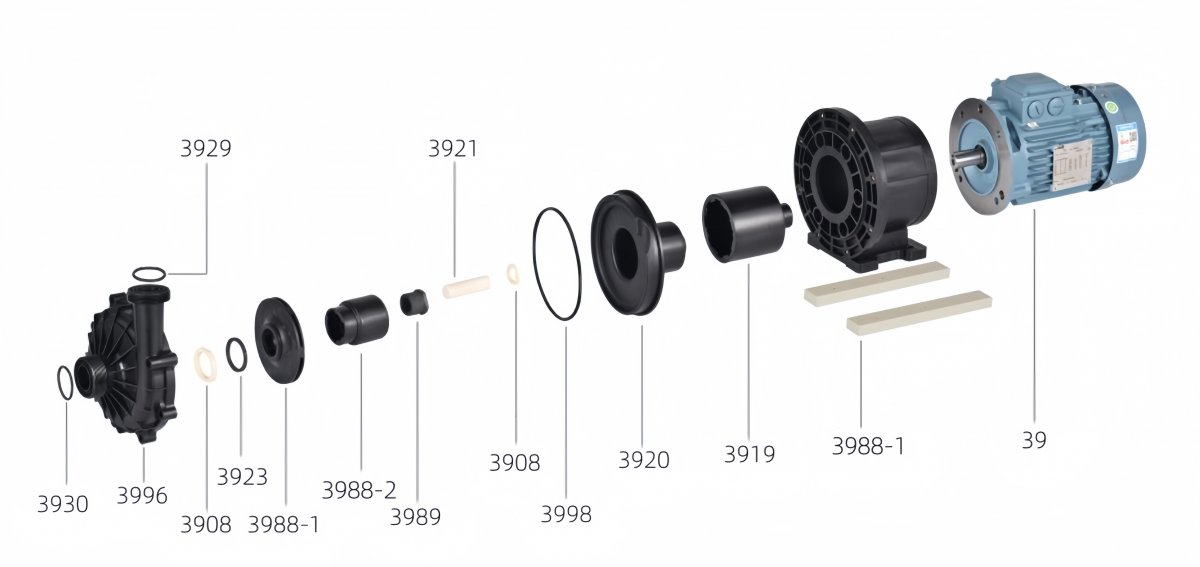

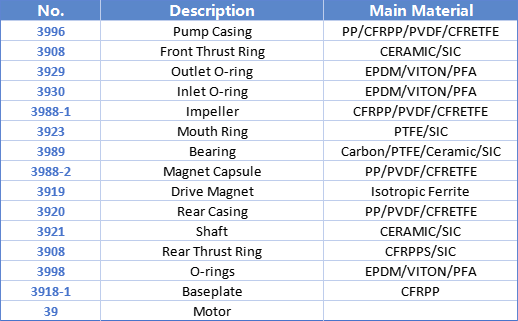

PARTS LIST
MODEL EXPLANATION
1、 Model: KDK
2、 In-Outlet: I-40*40 J-50*40 K-50*50
3、 Power: 8-0.37kW 10-0.75kW 16-1.5kW 18-2.2KW 20-4KW
4、 Material:1-FRPP 2-CFRPP 3-PVDF 4-CFRETFE
5、 Shaft Material: C-Carbon S-SIC
6、 Impeller Bearing：C-Carbon P-PTFE A-Ceramic
7、 Frequency: A-Ceramic
8、 Rubber: E-EPDM V-VITON P-PFA
9、 Outlet Installation: AD-Installed Upwards BD-Toward The Right Installation
10、 N -Standard S- Special Specifications
These are seal-less magnetic drive pump of KDK Series, we have the models number as below:
KDK-IM,
KDK-I10,
KDK-J16,
KDK-J18,
KDK-K16,
KDK-K18,
KDK-K22
These are seal-less magnetic drive pump of KDK Series, we have the models number as below:
KDK-IM,
KDK-I10,
KDK-J16,
KDK-J18,
KDK-K16,
KDK-K18,
KDK-K22

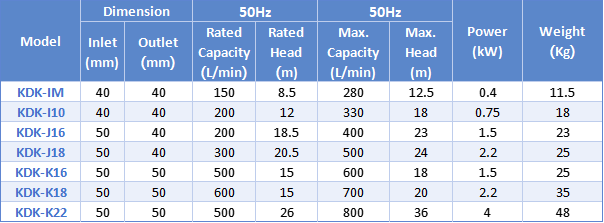

SPECIFICATION
TECHNICAL PAPAMETERS Testing fluid：Water（Specific gravity 1.0）

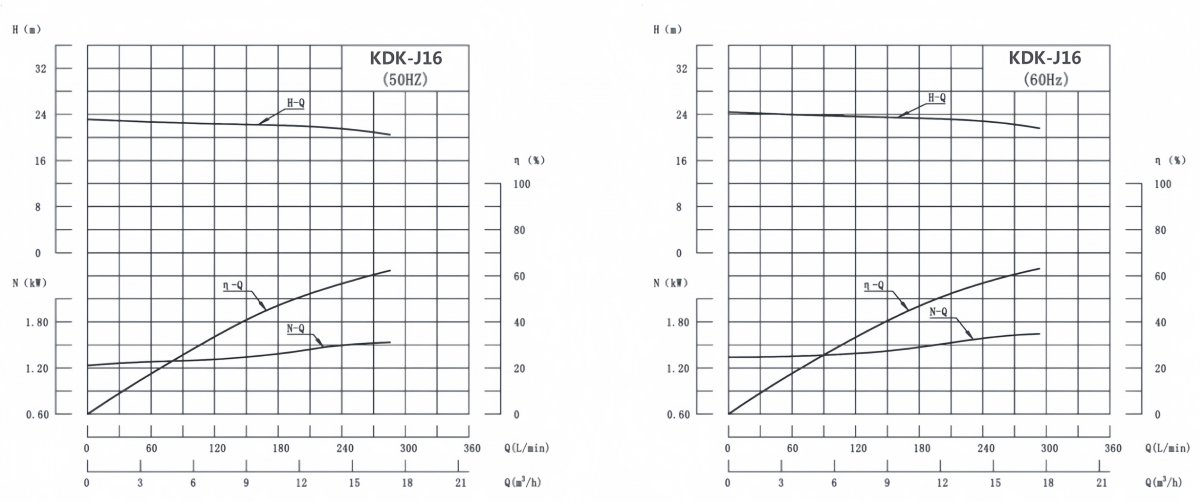

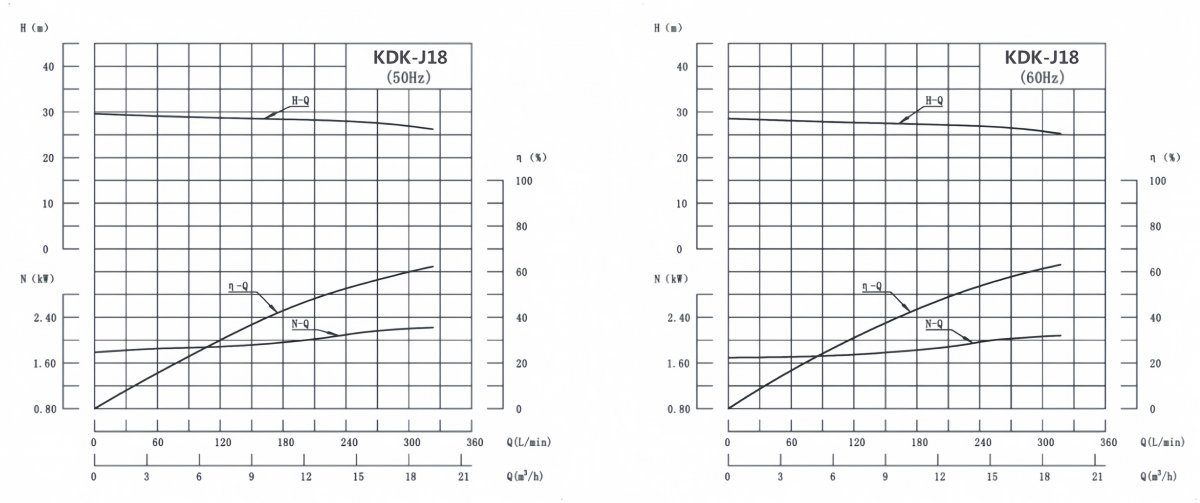

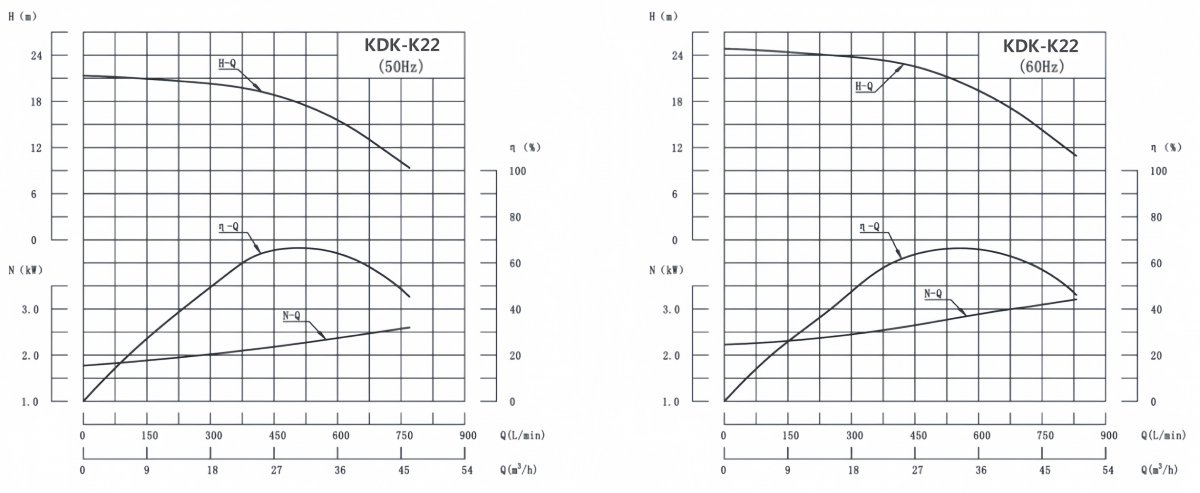

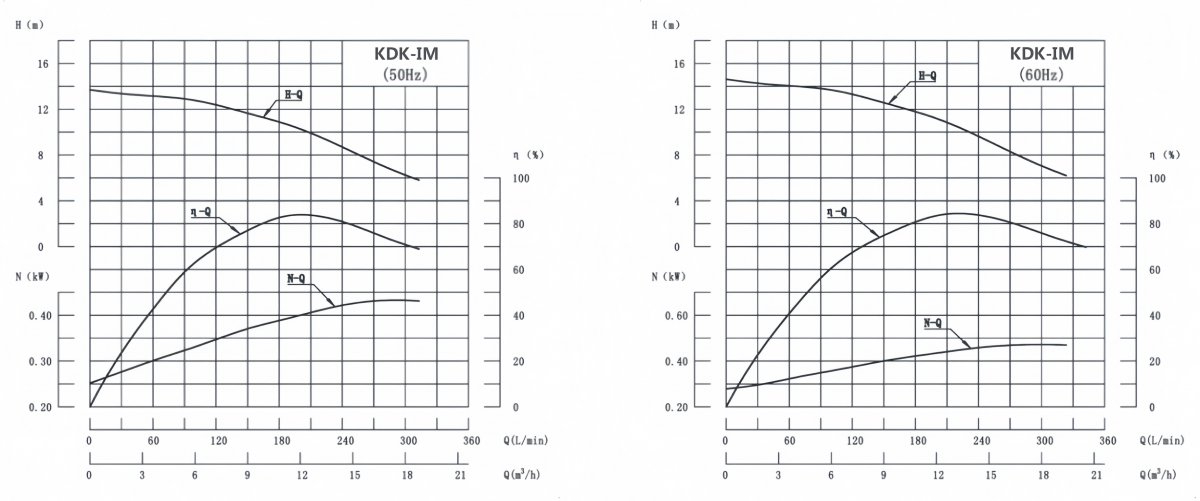

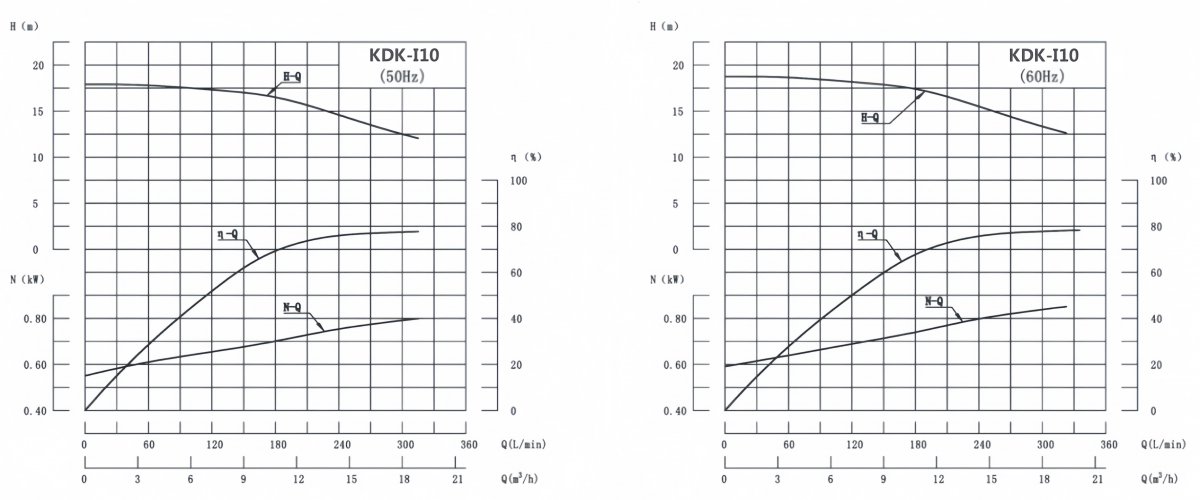

PERFORMANCE CURVE
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
