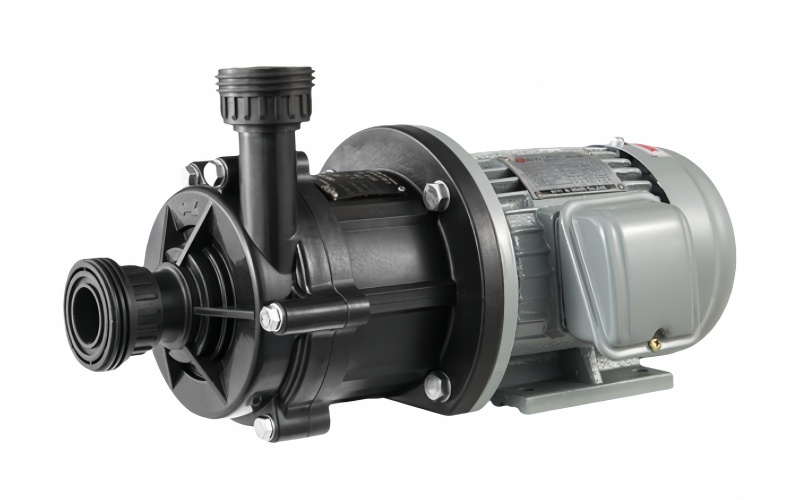

Magnetic Pump - KDH Series

PARAMETERS

● Max.Capacity: 16~600 L/min
● Max. Head: 2.7~29 m
● Rated Capacity: 8~400 L/min
● Rated Head:1.5~25.5 m
● Power Range：0.015~4kW
● Caliber: Inlet-10~50mm   Outlet-8~40mm
● Pump Casing: GFRPP

---



TYPICAL APPLICATION

● Chemical industry

● Continuous plating
● Wastewater treatment
● Hardware plating
● Pharmaceutical factory
● Surface treatment

---

PRODUCT FEATURES

● From the smallest to the largest non-metallic chemical pumps

● No leakage, quiet operation

● Compact structure, durable and efficient

● Excellent corrosion resistance

● Suitable for recycling of various chemical liquids

● Innovative idling resistance design

● Pump operating temperature: GFRPP 0-80℃

---

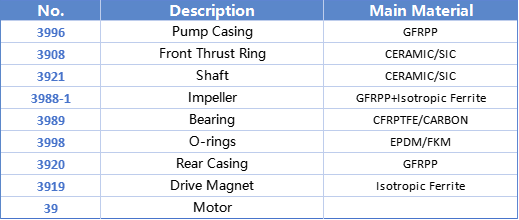

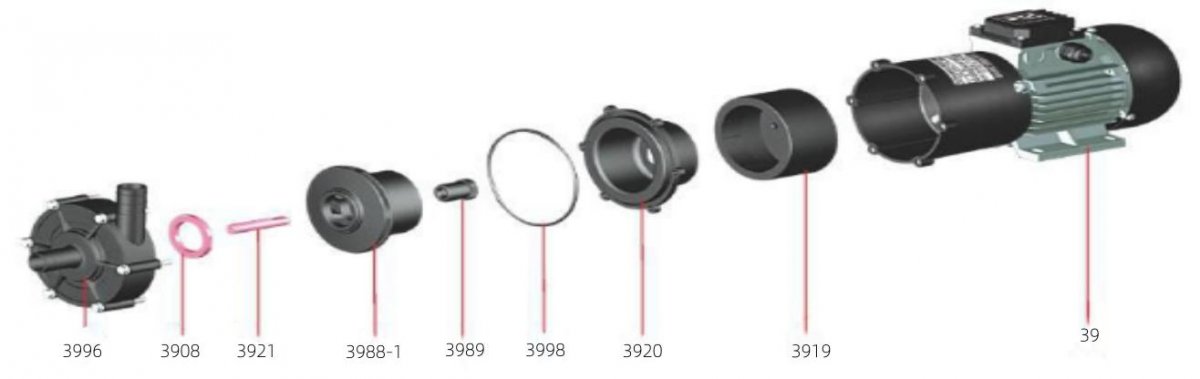

PARTS LIST

---

MODEL EXPLANATION

1、 Model:KDH

2、 In-Outlet: U-15*15  E-20*20  P-20*15

       Q-25*20  R-32*25  S-32*32

       T-40*32  I-40*40

3、 Power: H-120W  J-180W 8-370W

      N-550W 10-750W

      P-1.1kW  16-1.5kW  18-2.2kW  20-4kW

4、 Material: 1-GFRPP

5、 Impeller Bearing: C-Carbon T-PTFE  S- SSIC

6、 Impeller Diameter

      A-80  B-105  C-110  D-125

      E-130  F-135  G-160

7、 Shaft Material: C-Ceramic

8、 Access Mode: F - Flange  U - Union  E - Three-way   H- Hose

9、 Frequency: 5-50Hz  6-60Hz

10、 Voltage: 2-220V  3-380V

11、 Rubber: E-EPDM  V-VITON

12、 N -Standard

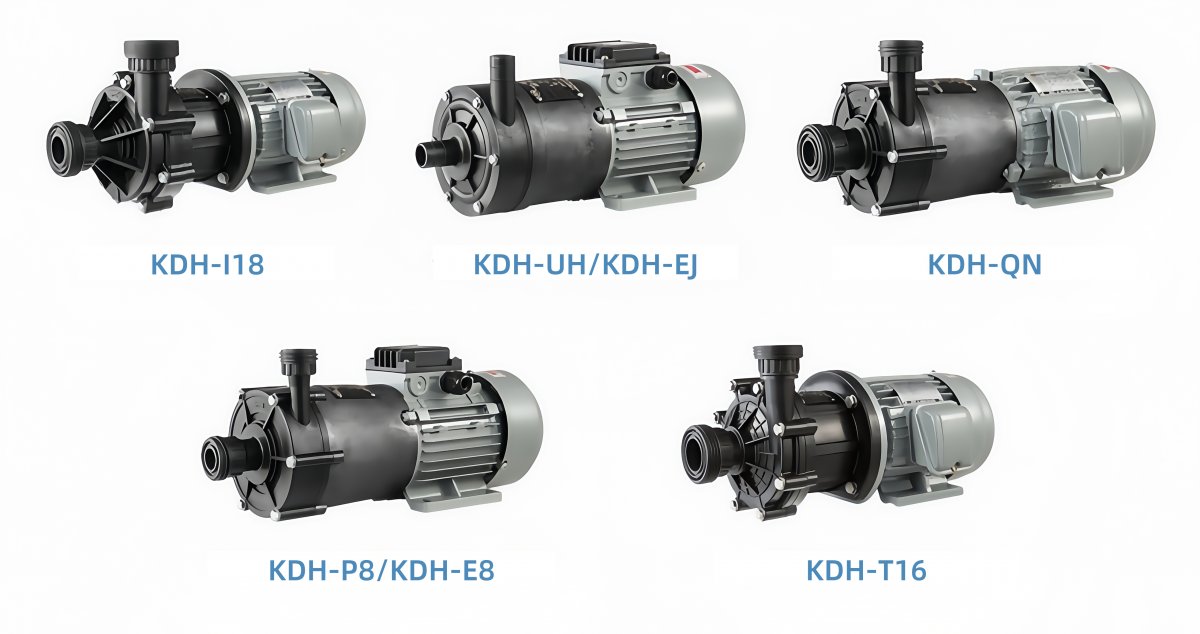

These are seal-less magnetic drive pump of KDH Series, we have the models number as below:
KDH-10815,
KDH-1210X,
KDH-UH,
KDH-EJ,
KDH-P8,
KDH-E8,
KDH-QN,
KDH-R10B

---

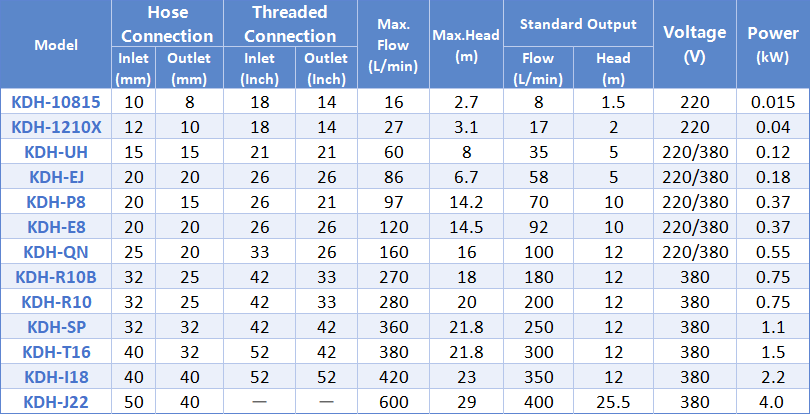

SPECIFICATION

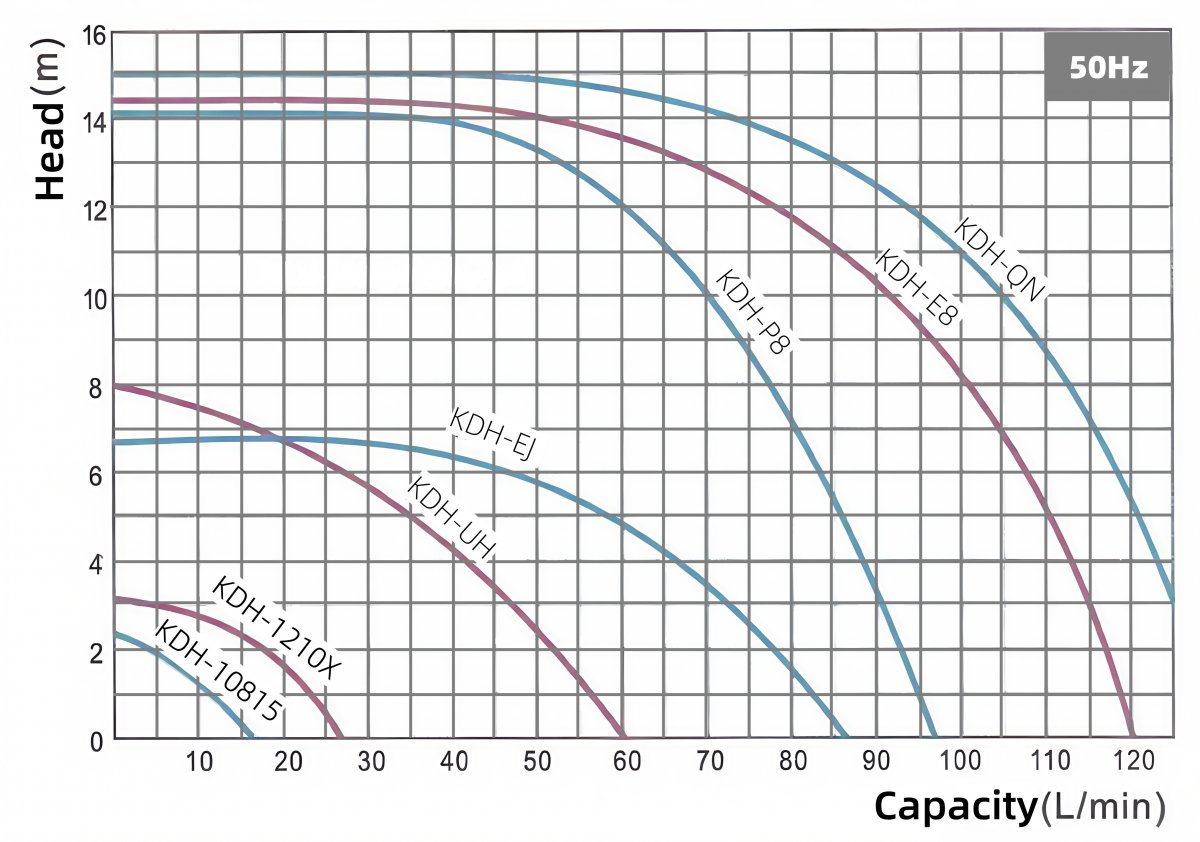

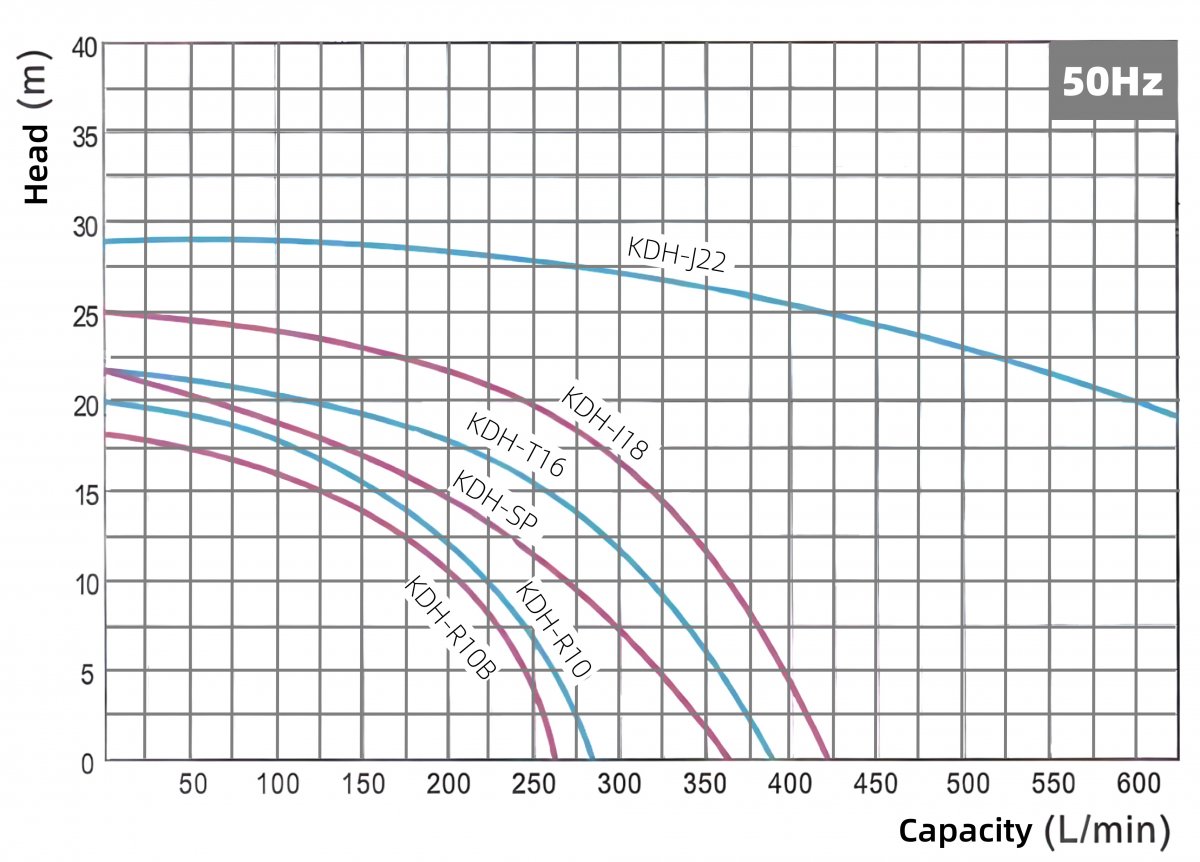

PERFORMANCE CURVE

While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
