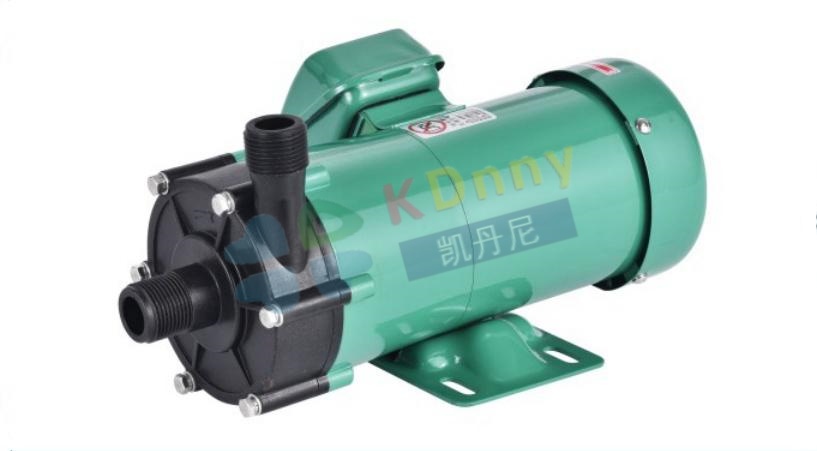

Small Magnetic Pump - KDL Series

● Standard Sample Points
Capacity: 50Hz - 24~70 L/min    60hz - 25~70 L/min
Head: 50Hz - 50~12 m     60Hz - 5~14 m
● Caliber: Inlet - 20mm   Outlet - 16mm, 20mm
●  Power: 180~260W
● Casing Material: GFRPP, CFR ETFE

---

●  Resistance to idle
Back cover set exhaust structure and impeller anti air trapping and prevent air blocking maximum power.
●  A integrated magnetic and impeller
The impeller and magnet integration in reverse and high temperature is not easy to damage.
●  Application of rare earth magnet
Achieve more miniaturization, light weight. One of the more than 1.5 kW model is made of super strong rare earth magnet, miniaturization, a more powerful force into full play.
●  Using activity type flange
To adopt activity type flange, can turn position when installing the mounting screws.

---

● Solar photovoltaic equipment
● LCD equipment ● Small flow/high head liquid movement for outdoor installations, especially suitable for sites where chemical resistance is important.


1、 Model: KDL

2、 In-Outlet: O-20*16  E-20*20

3、 Power: J-180W  K-260W

4、 Material: 1-GFRPP  3-PVDF

5、 Head: N-Stanard Head  H-High Head

6、 Access Mode: S-Screw  U-Union  F-Flange

7、 Frequency: 5-50Hz  6-60Hz

8、 N -Standard       S-Special Specifications

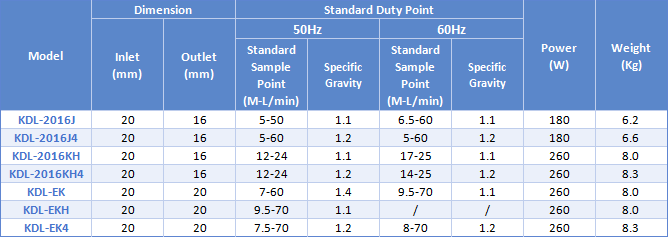

KDL-2016J, KDL-2016J4, KDL-2016KH, KDL-2016KH4, KDL-EK, KDL-EKH, KDL-EK4

---

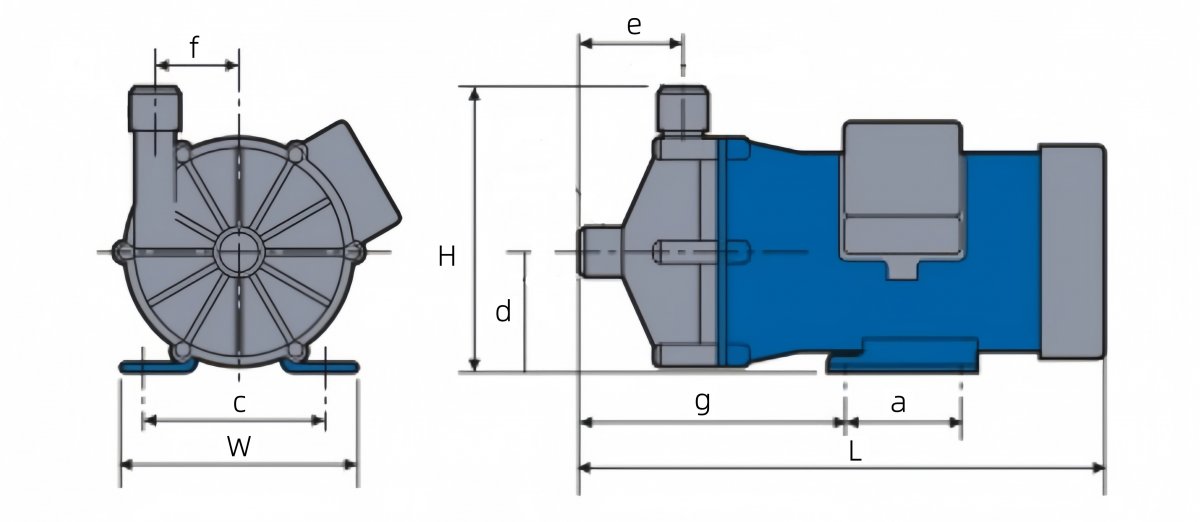

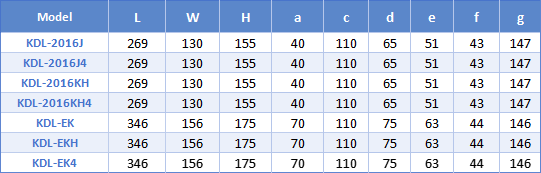

Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm
