PARAMETERS
● Rated Capacity: 50/60Hz - 50~500 L/min
● Rated Head: 50Hz - 5.4~35 m 60Hz - 7.8~36 m
● Max. Capacity: 50Hz - 90~800 L/min 60Hz - 100~800 L/min
● Caliber: Inlet - G1'', 25mm, 40mm, 50mm, 65mm Outlet - G1'', 25mm, 40mm, 50mm
● Power: 0.15~3.7kW
● Casing Material: GFRPP
PRODUCT FEATURES
● The KDM series is resistant to idling, cavitation and closed valve operation, and can adapt to extremely harsh abnormal operating conditions.
● The KDM series uses carbon bearings, which can withstand short-term idling. The "self-circulating cooling structure" adopted, coupled with the "non-contact structure" with extremely high reliability that has been proven in practice and the design of the front and rear supports of the pump shaft, greatly improves the pump's tolerance performance under abnormal conditions such as idling, cavitation, and outlet valve closure.
● In order to cope with operation under abnormal conditions, a design that enhances mechanical strength is adopted to reduce operating and maintenance costs.
● The combined volute pump chamber realizes high efficiency of the pump.
● Simple structure, firm and easy to maintain
TYPICAL APPLICATIONS
● Electroplating
● Filtration
● Spraying
● Cleaning
● Etching
● Electrolysis
● Electrophoresis

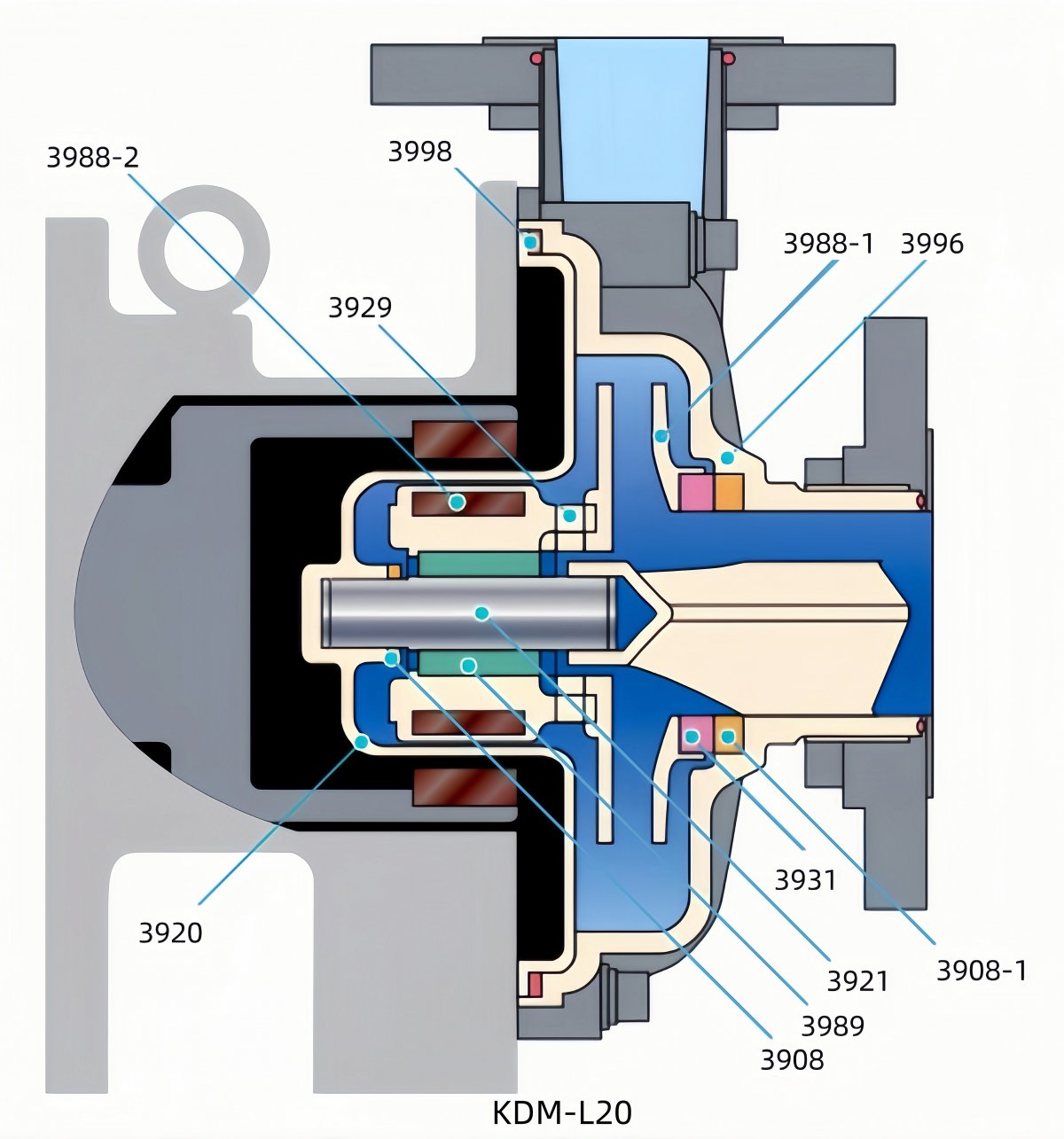

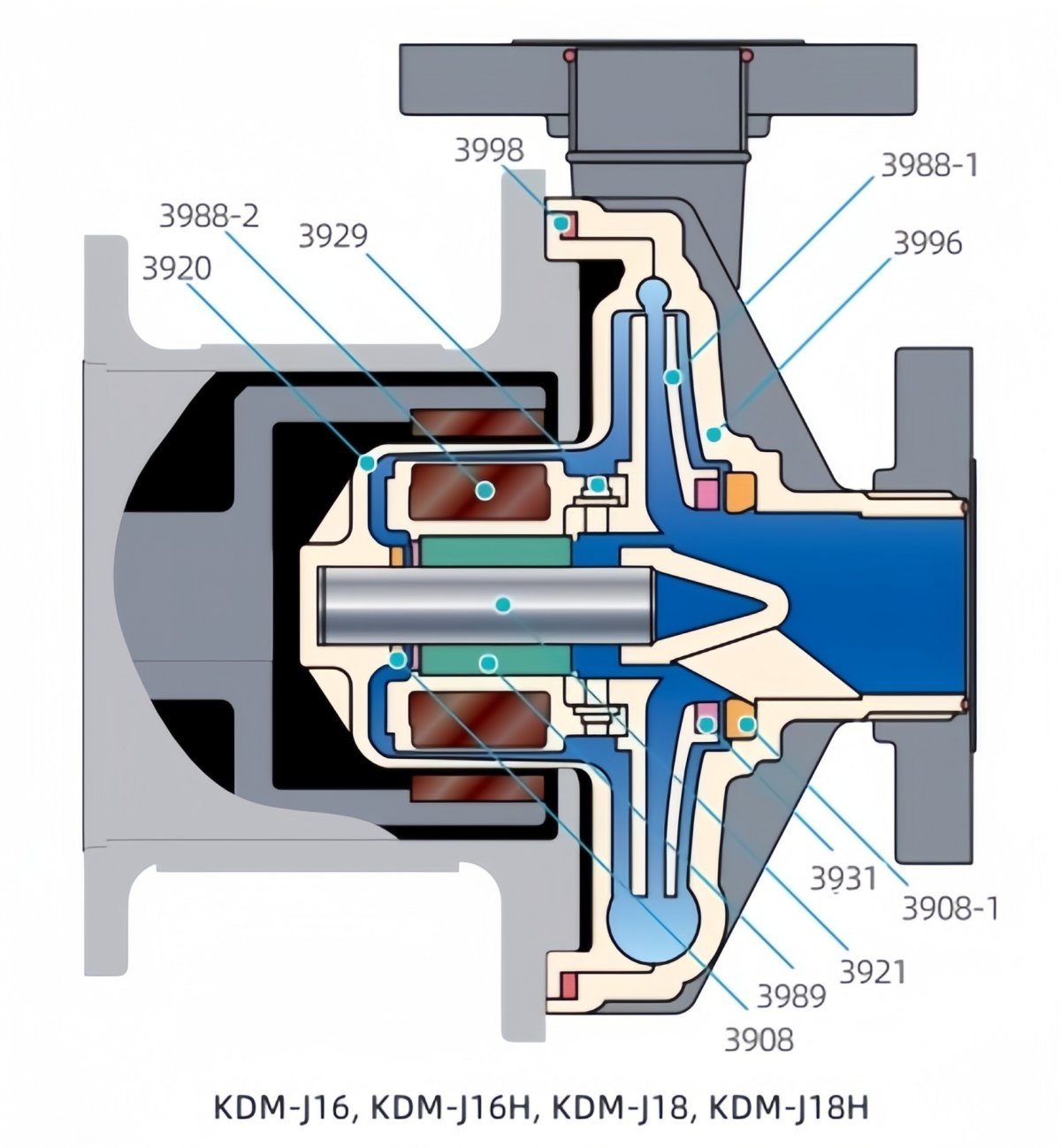

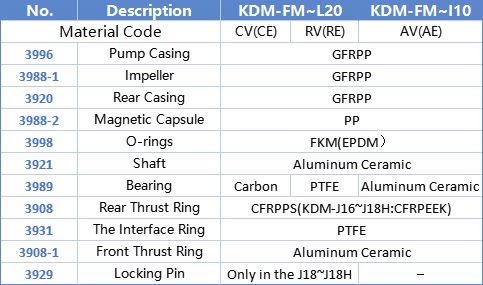

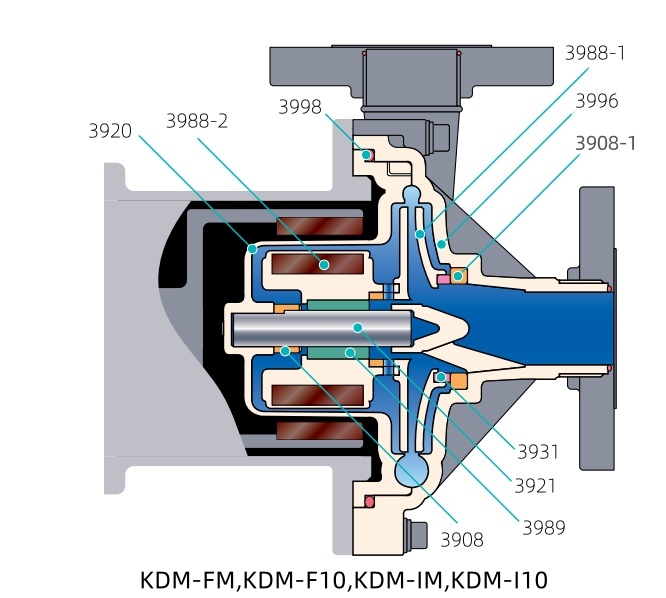

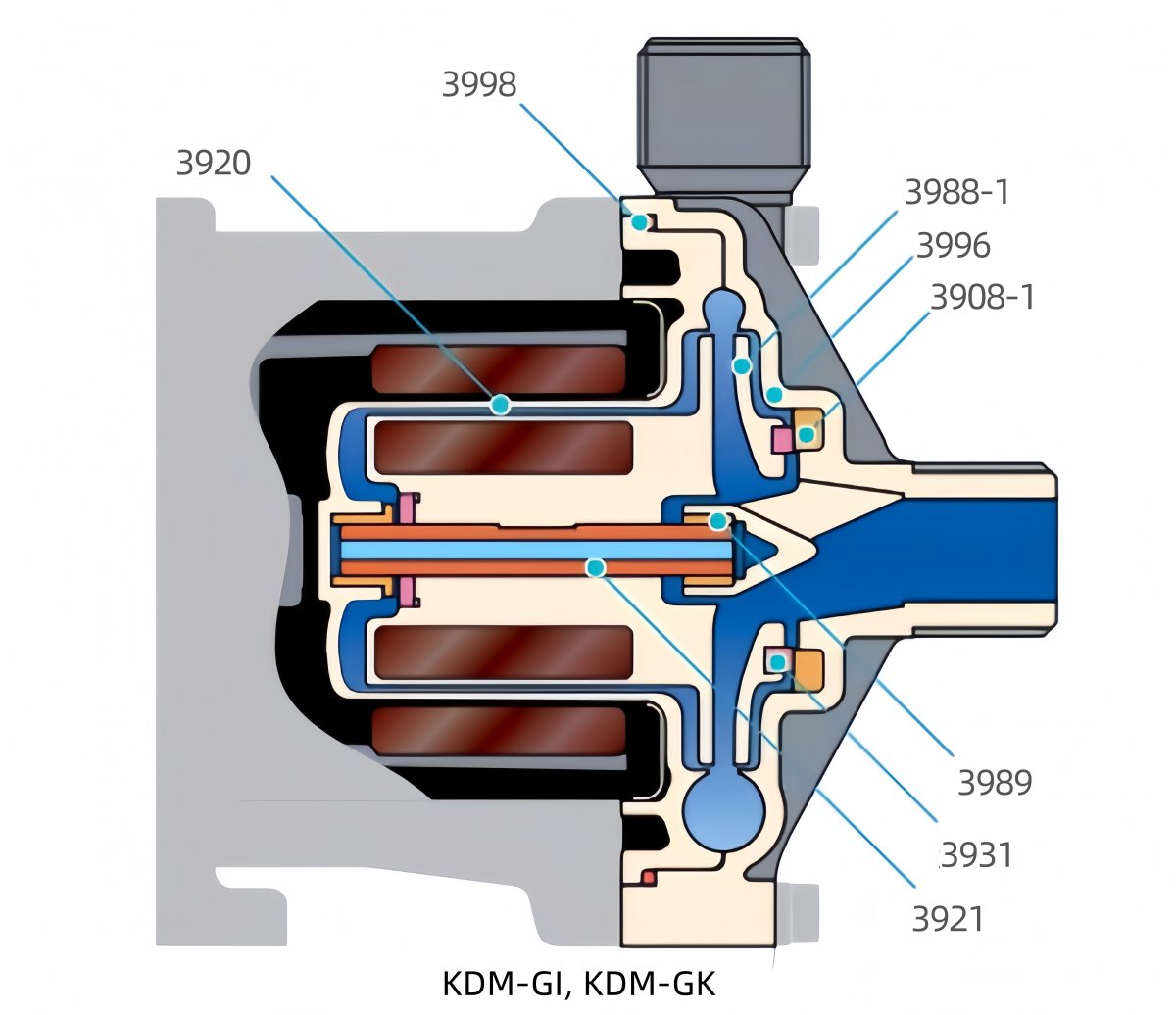

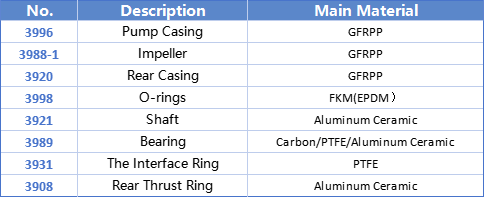

PARTS LIST
MODEL EXPLANATION
1、 Model: KDM
2、 In-Outlet: F-25*25 I-40*40 J-50*40 L-65*50
3、 Power: 8-0.37kW 10-0.75kW 16-1.5kW 18-2.2kW 20-3.75kW
4、 Material: 1-GFRPP 4-CFR ETFE
5、 Shaft Material: C-Ceramic
6、 Impeller Bearing: C-Carbon C-Ceramic P-PTFE
7、 Frequency: 5-50Hz 6-60Hz
8、 Rubber: E-EPDM O-FKM
9、 Voltage: 5-200V/220V 15-220V/380V
10-400V/440V 3Φ 11-380/400V/415V/440V 3Φ
10、Motor Type: N-TEFC Indoor Type C-TEFC Outdoor Type
A-Increased Safety Type(Not including 2.2kW )
11、N -Standard S-Special Specifications

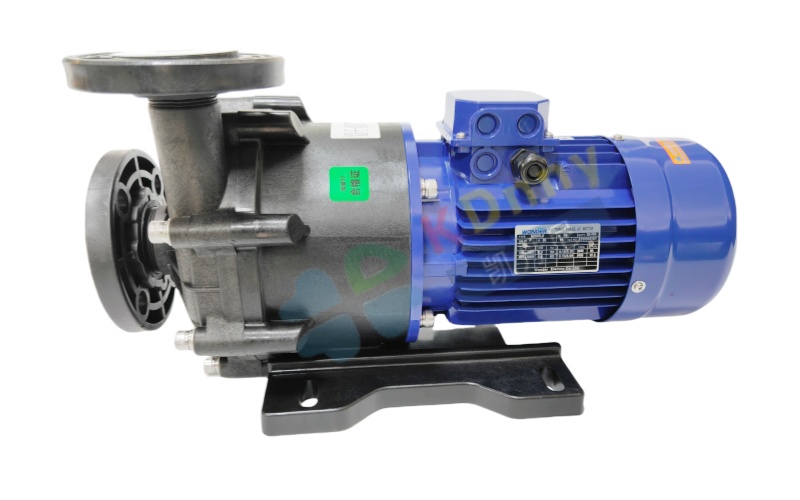

These are sealless Magnetic Drive Pump of KDM Series, we have the models number as below:
KDM-GI,
KDM-GK,
KDM-FM,
KDM-F10,
KDM-IM,
KDM-I10,
KDM-J16,
KDM-J16H,
KDM-J18,
KDM-J18H,
KDM-L20

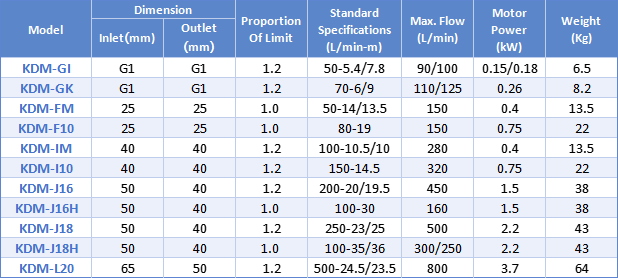

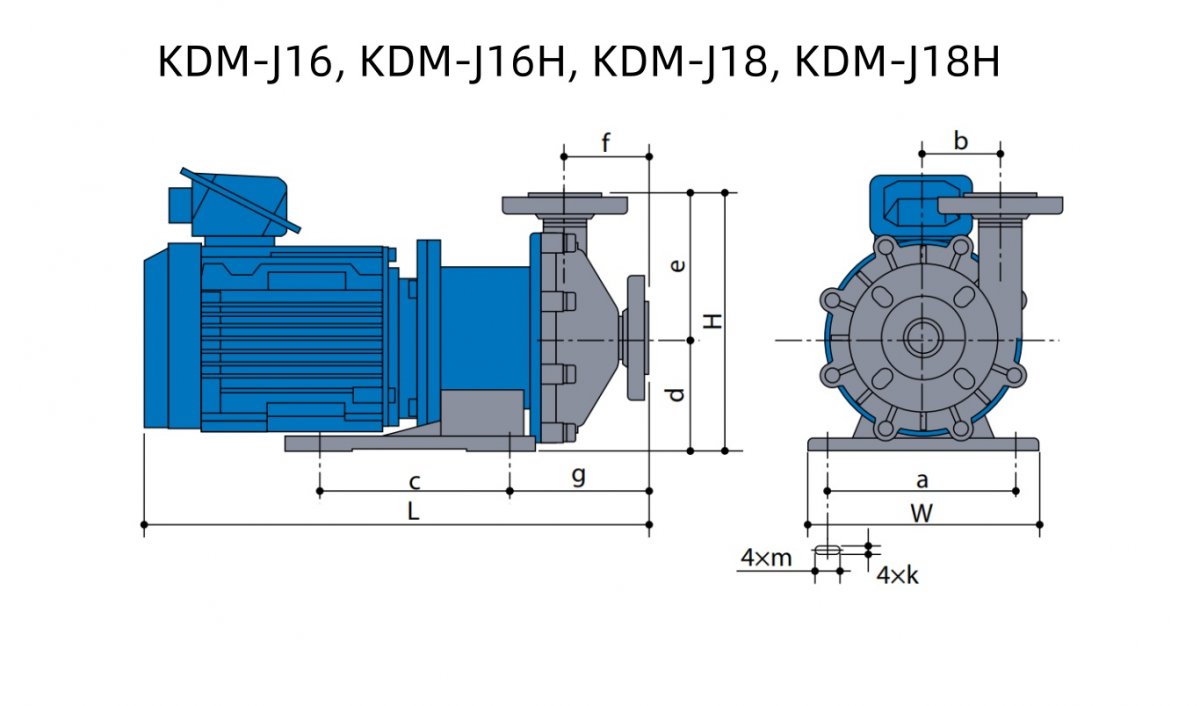

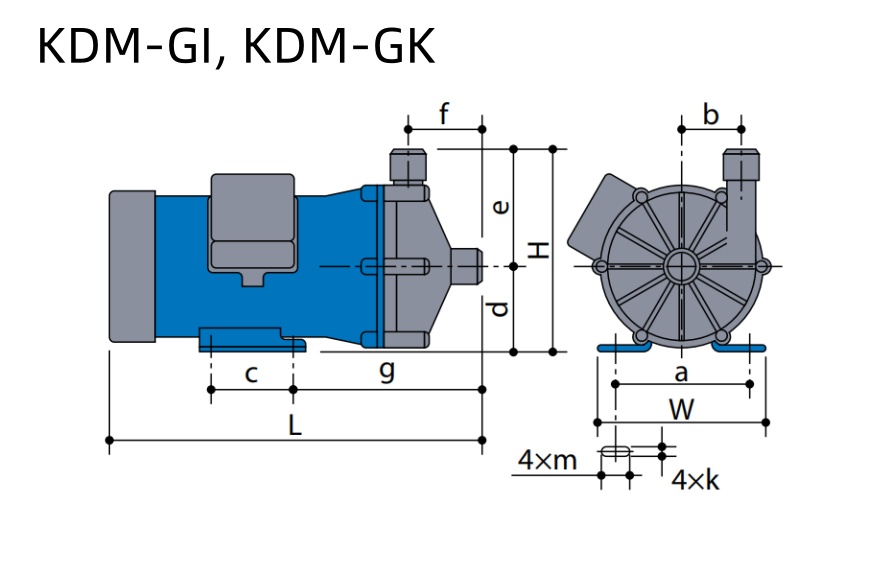

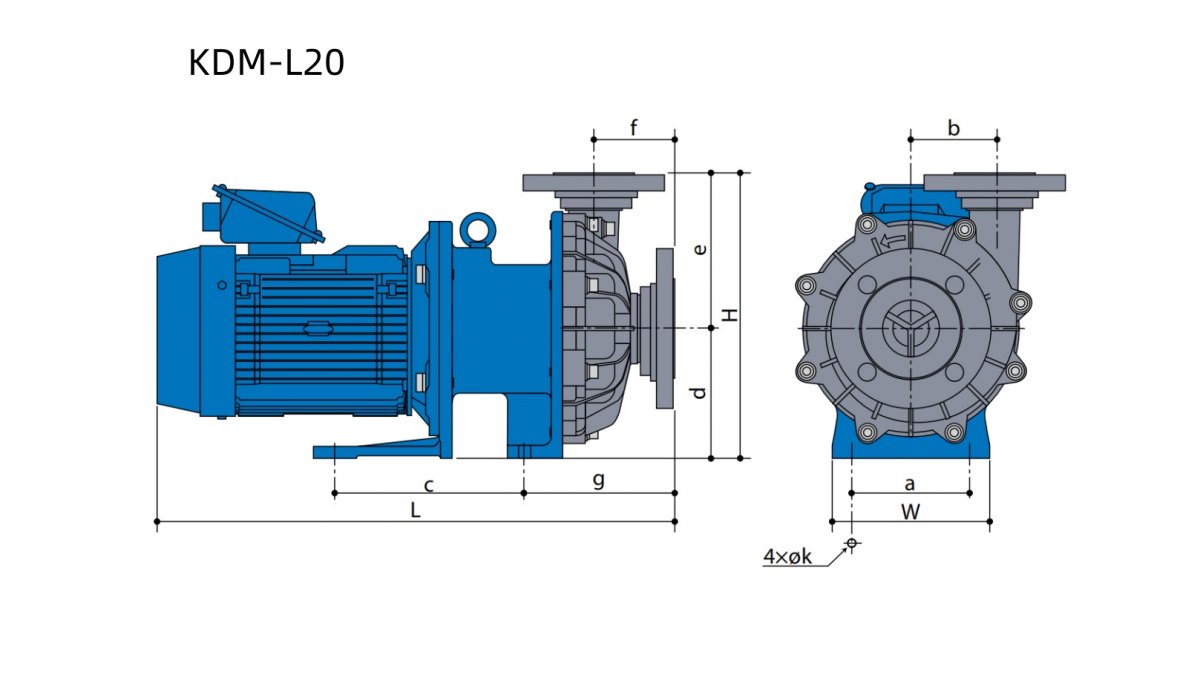

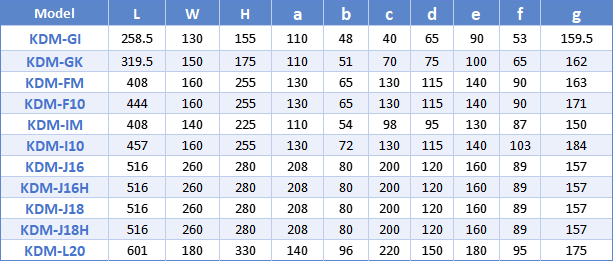

SPECIFICATION

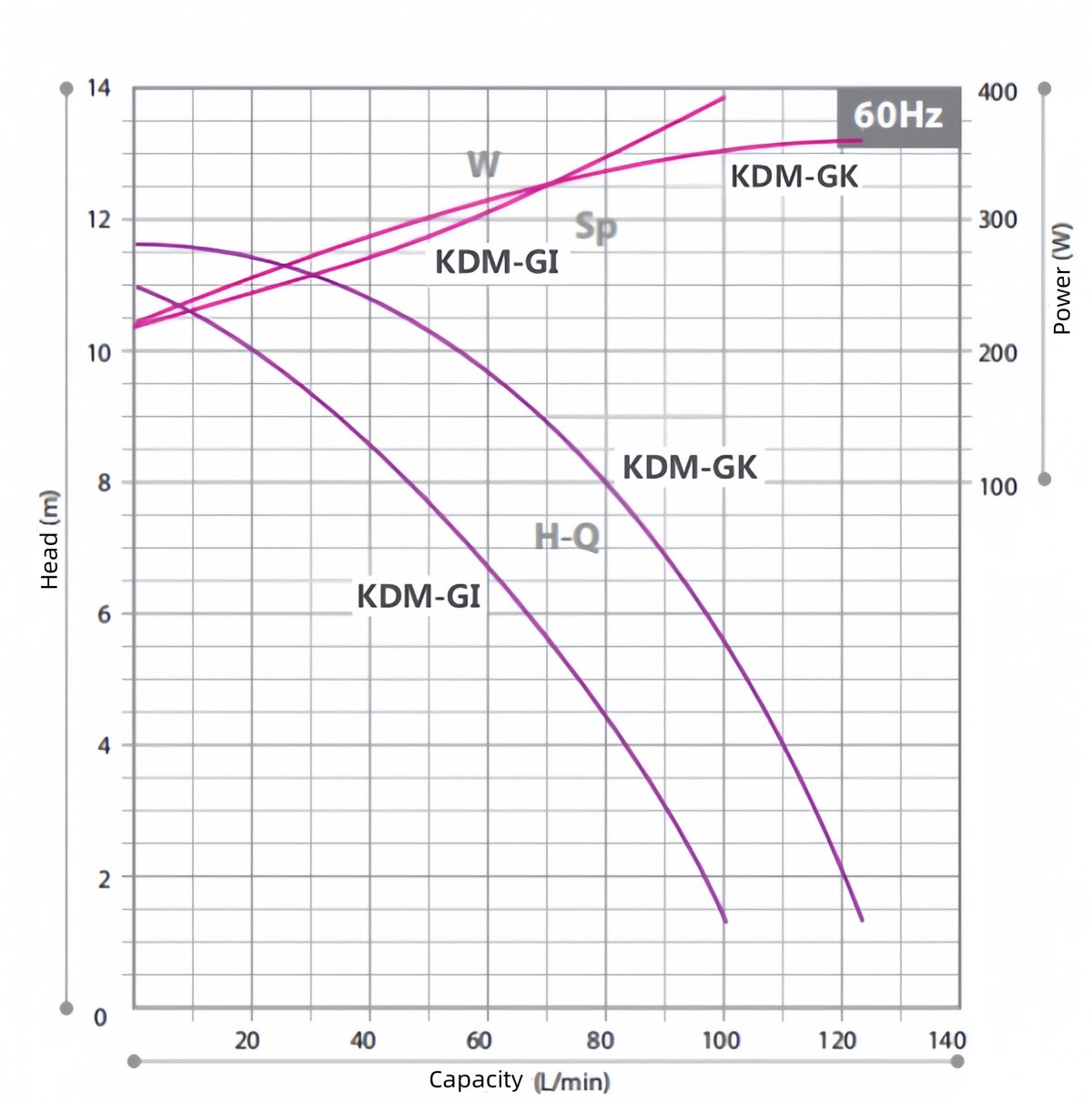

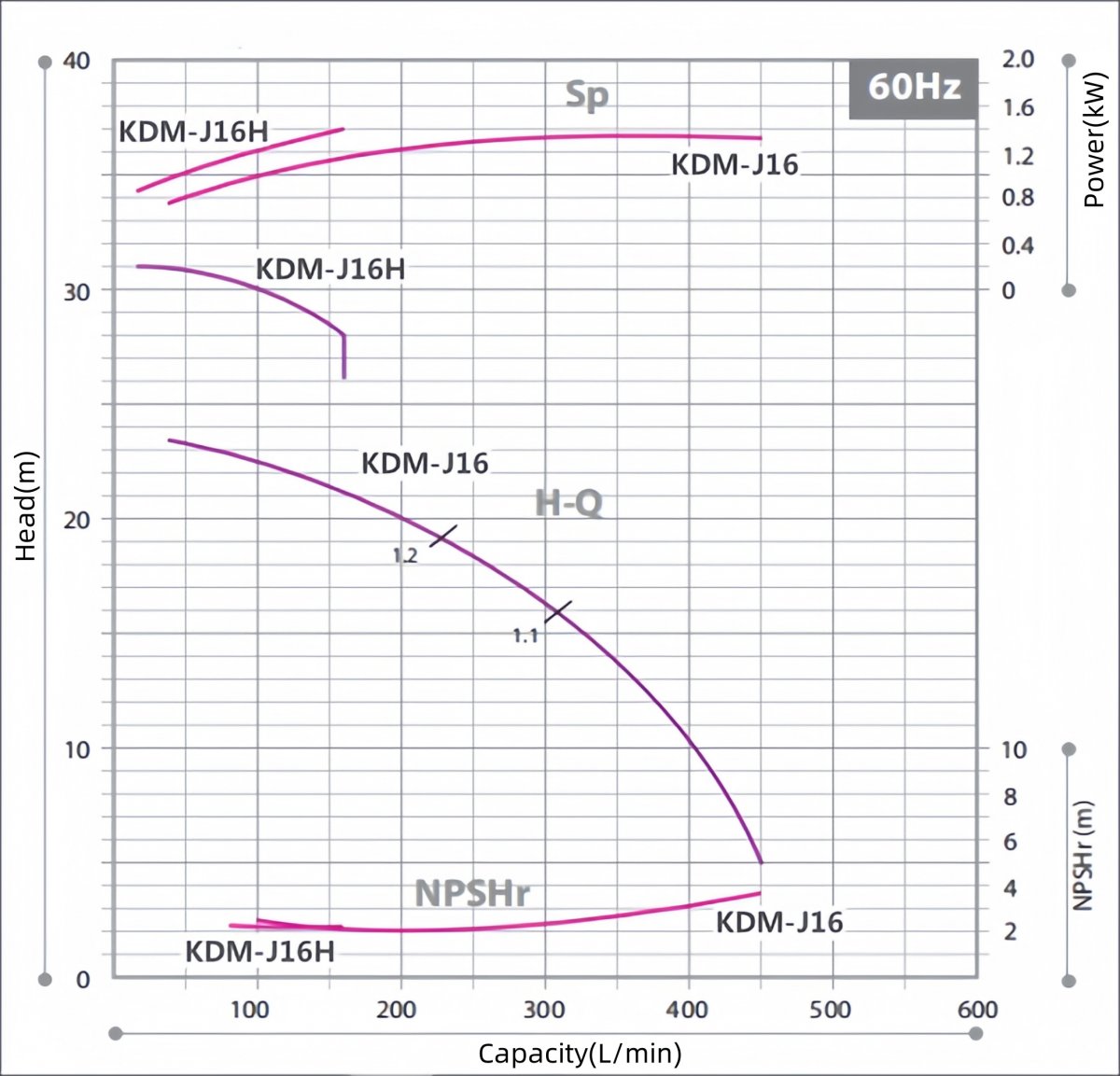

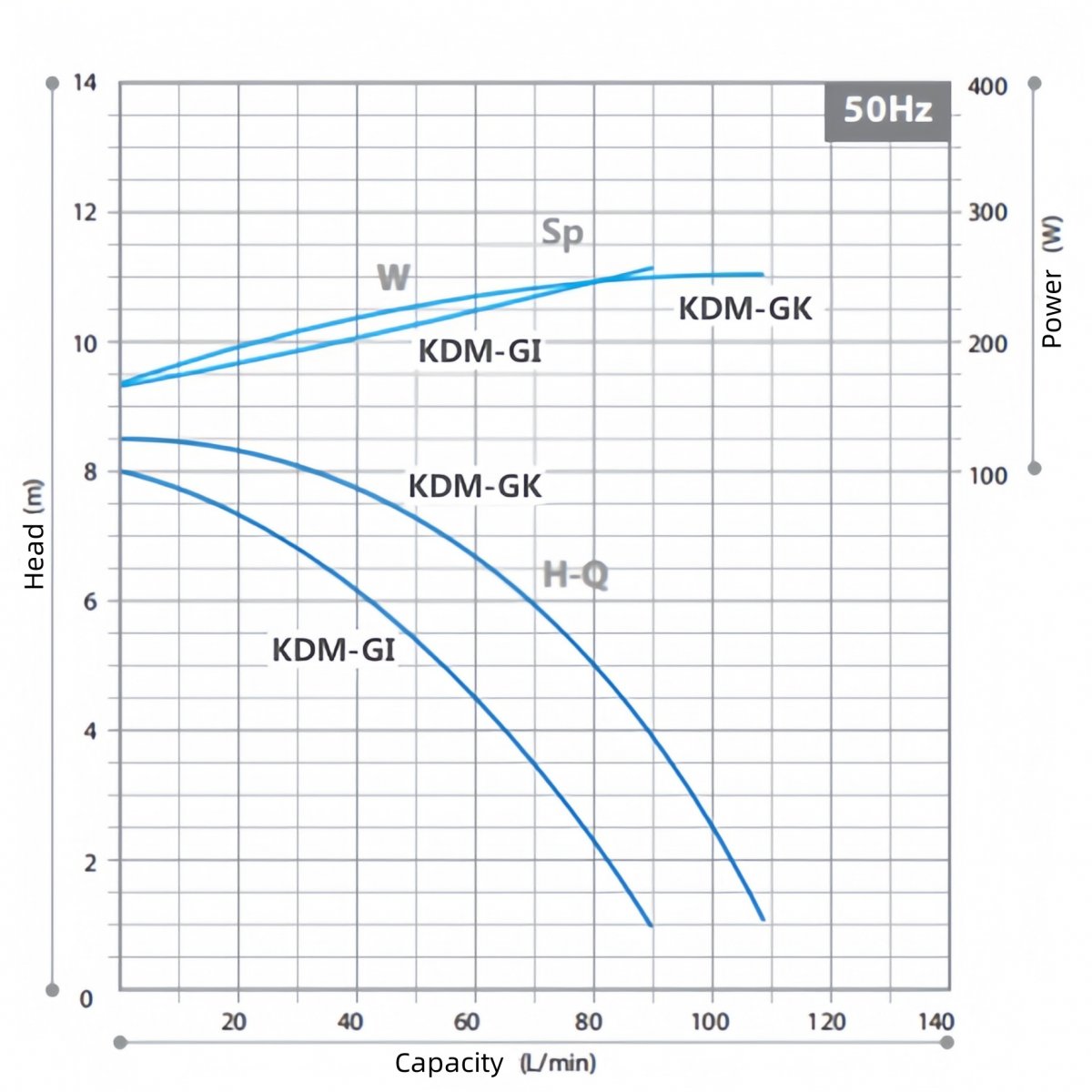

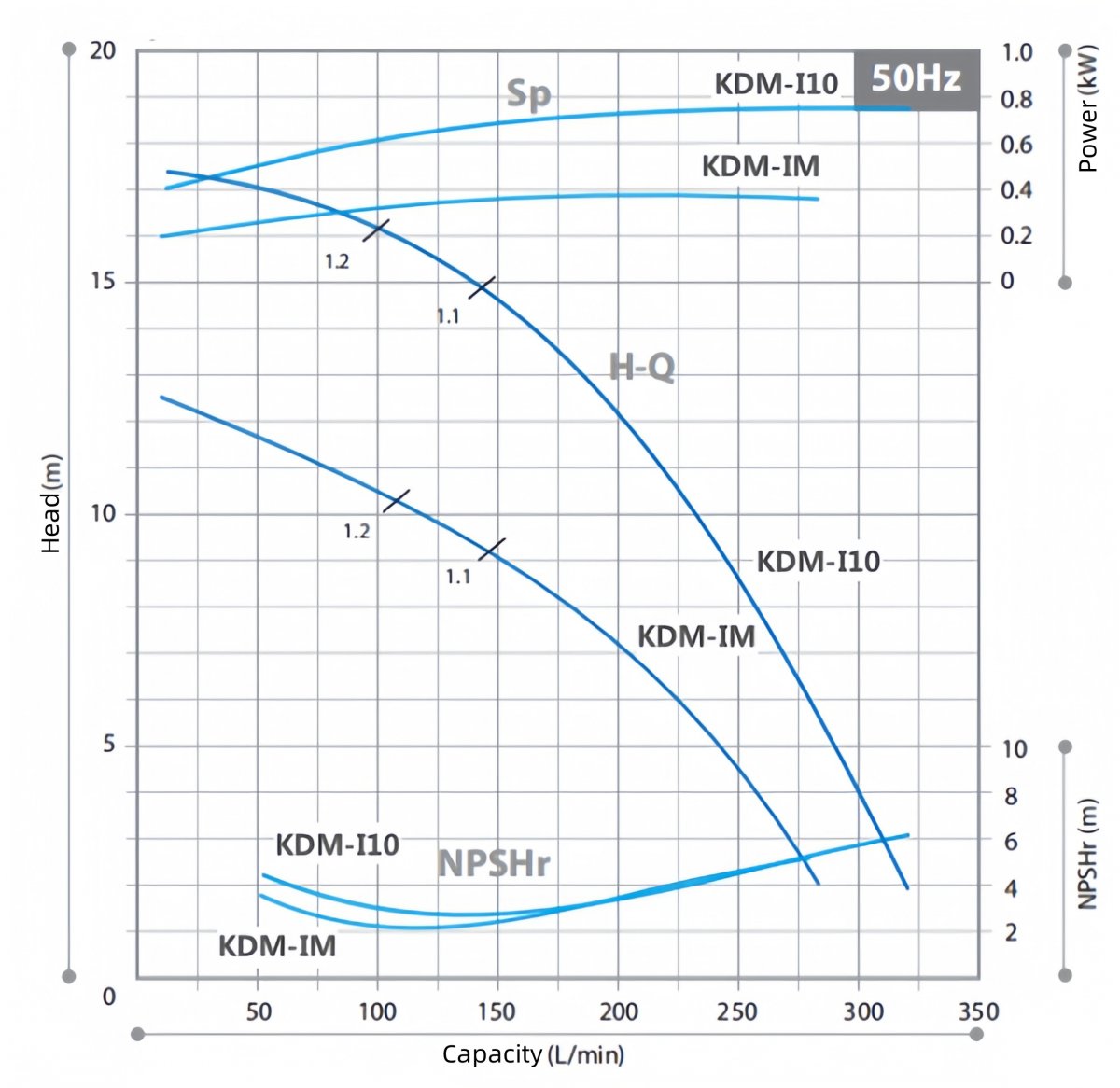

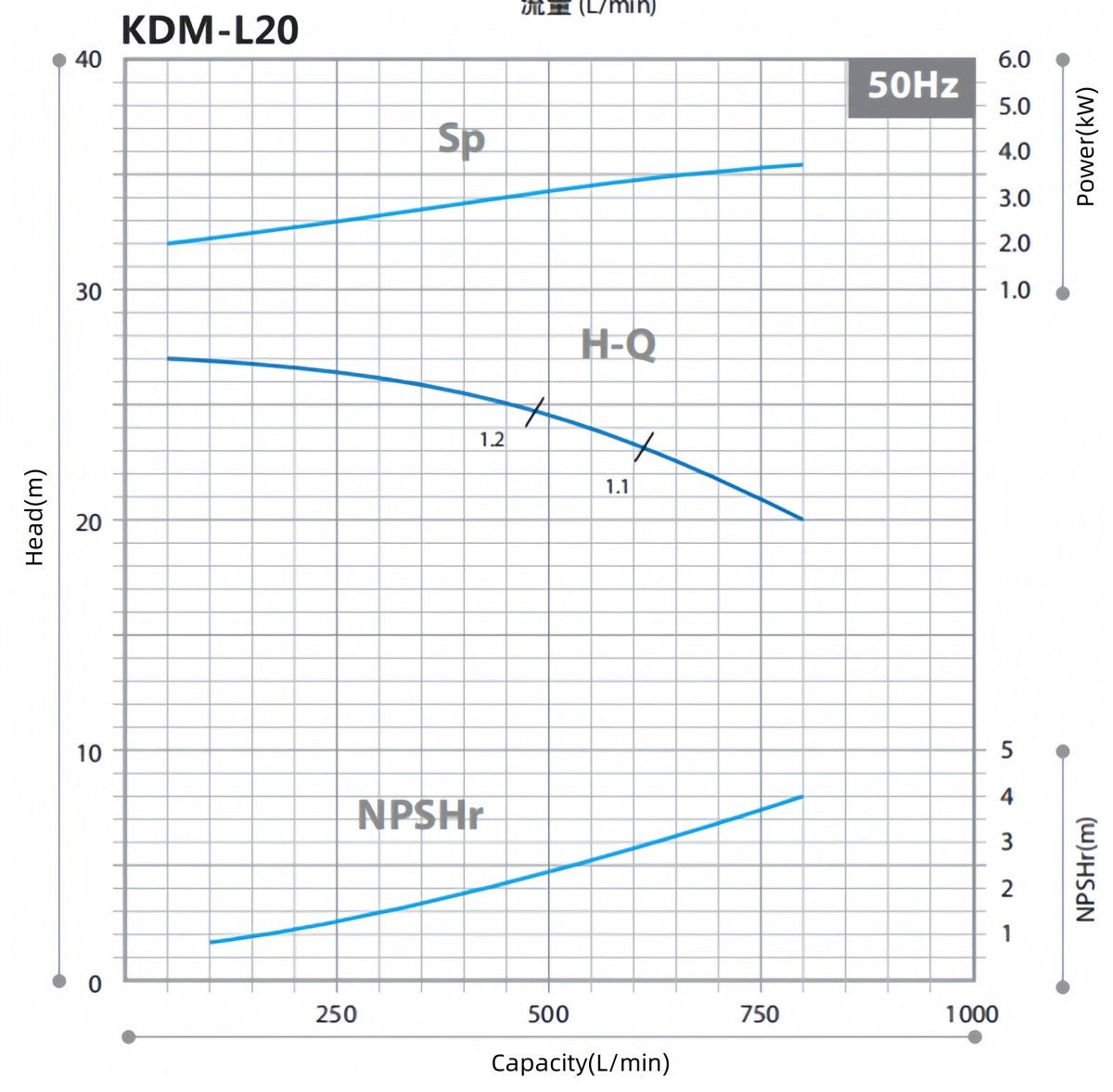

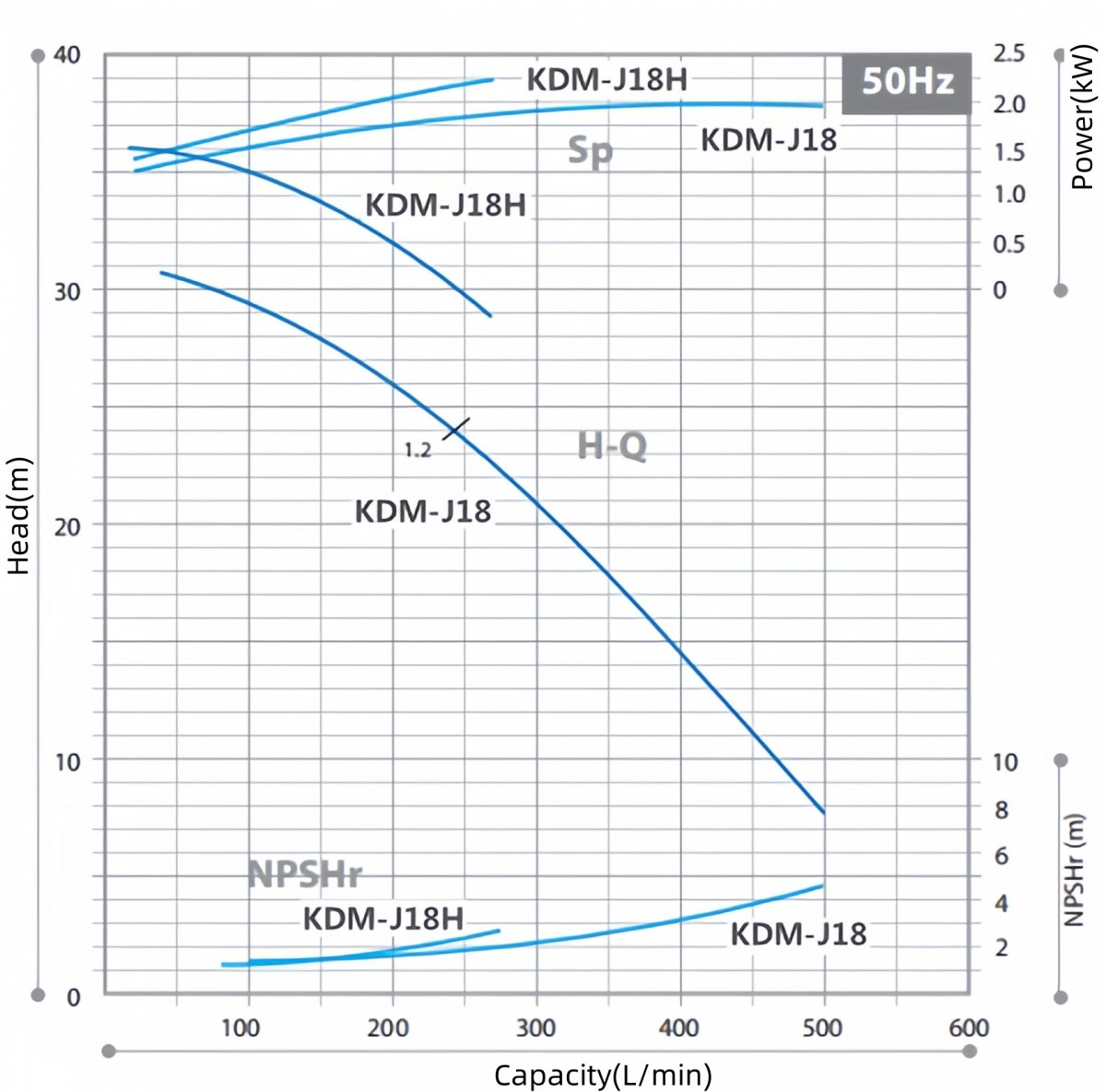

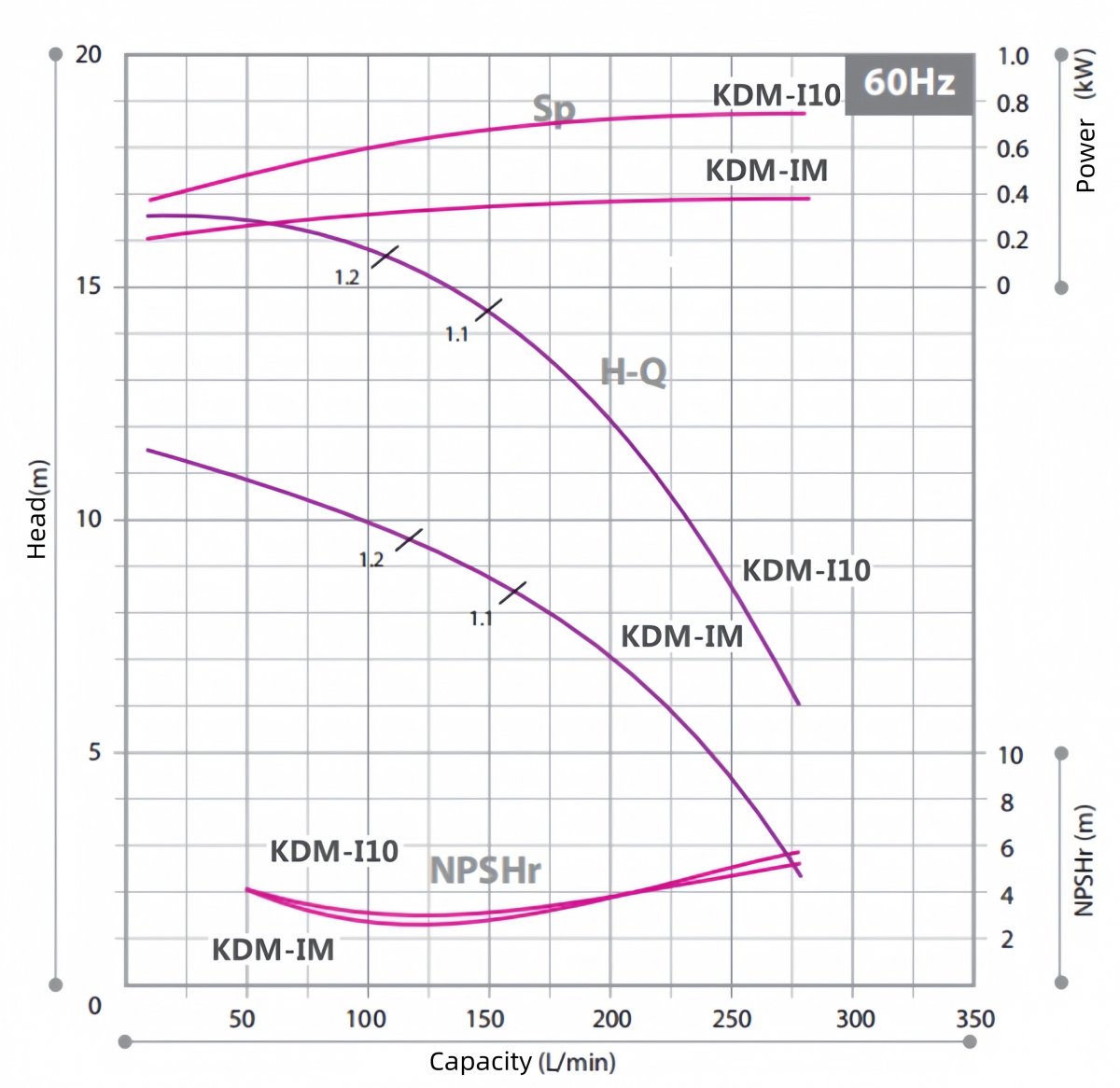

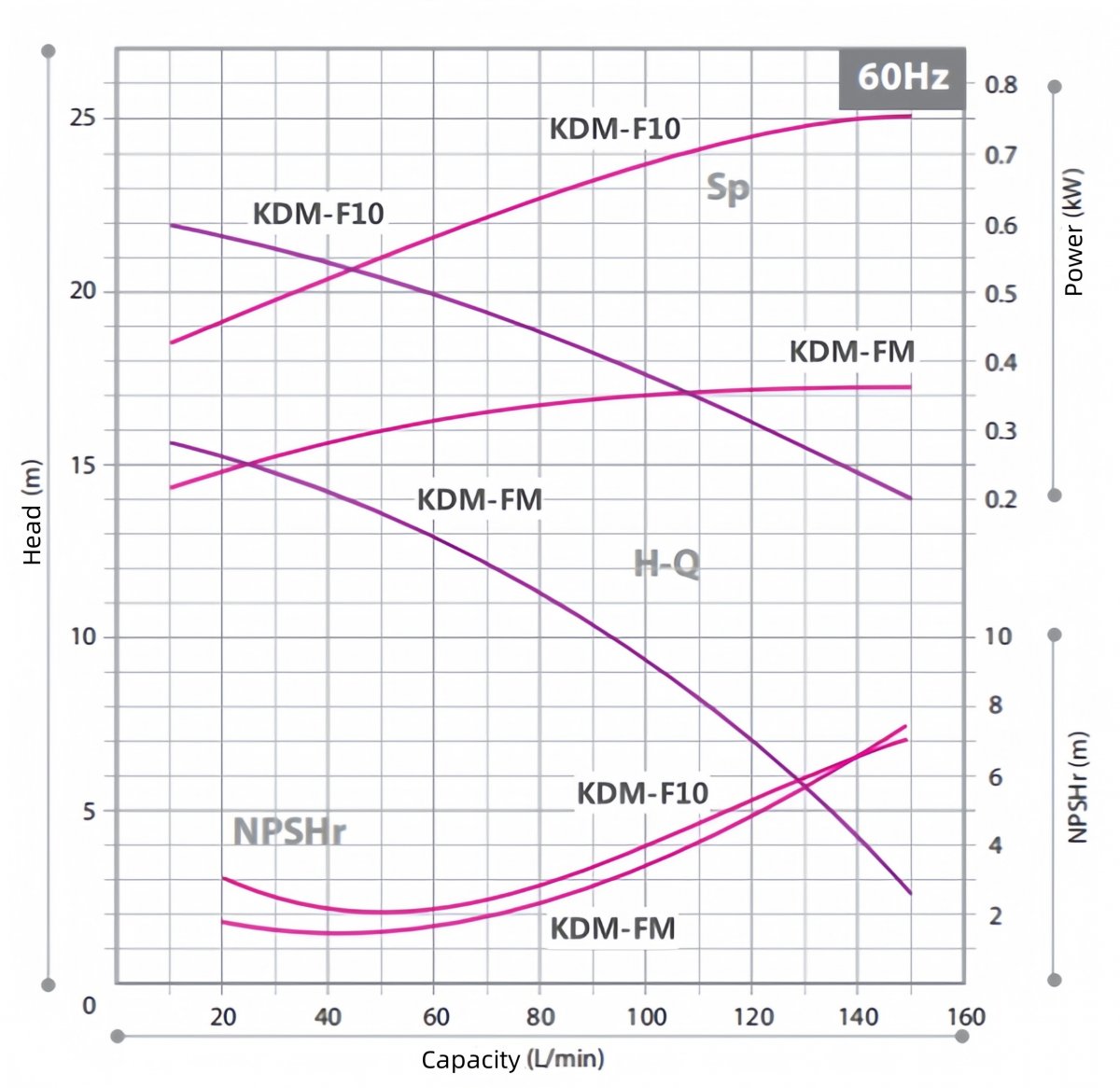

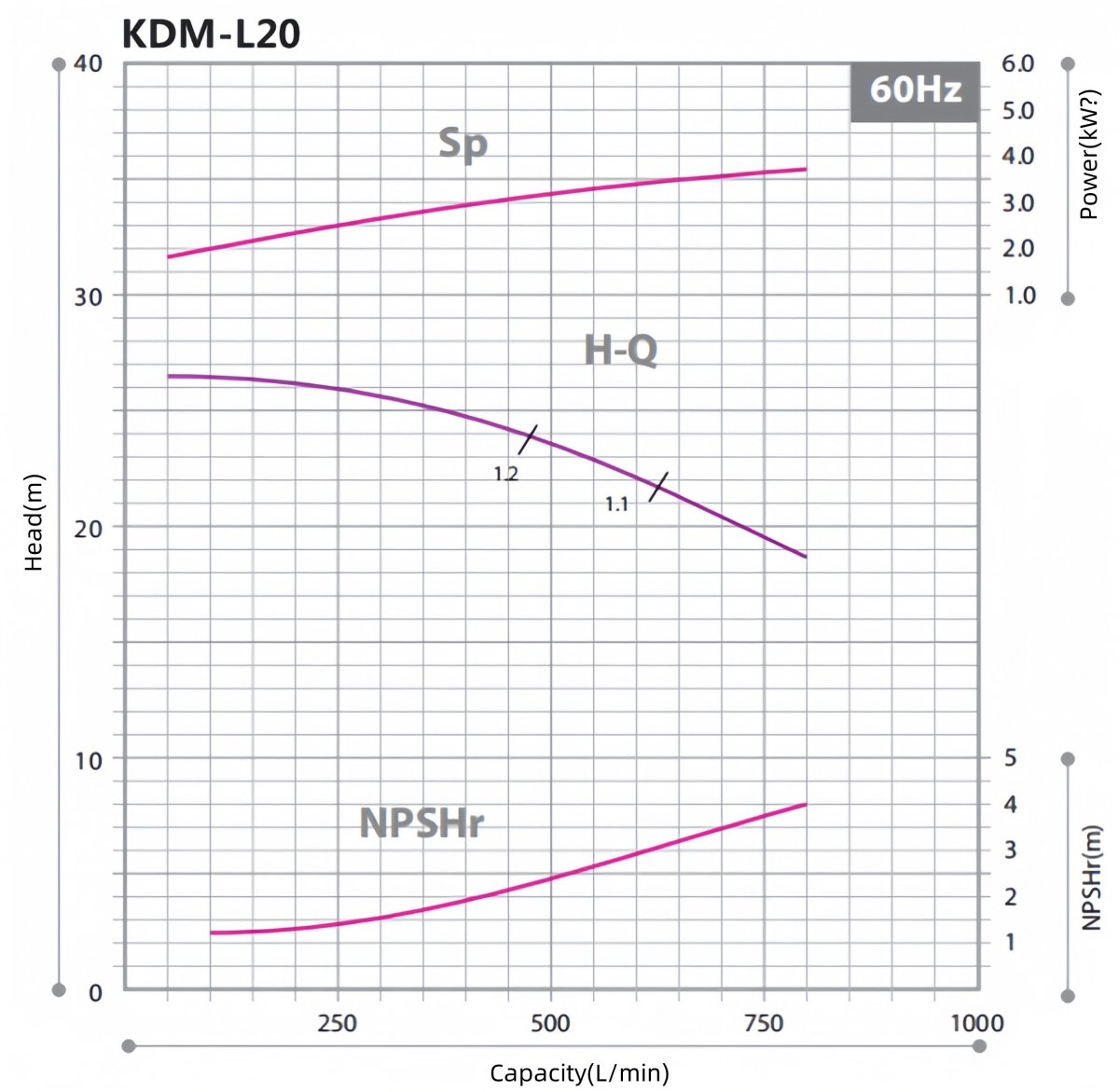

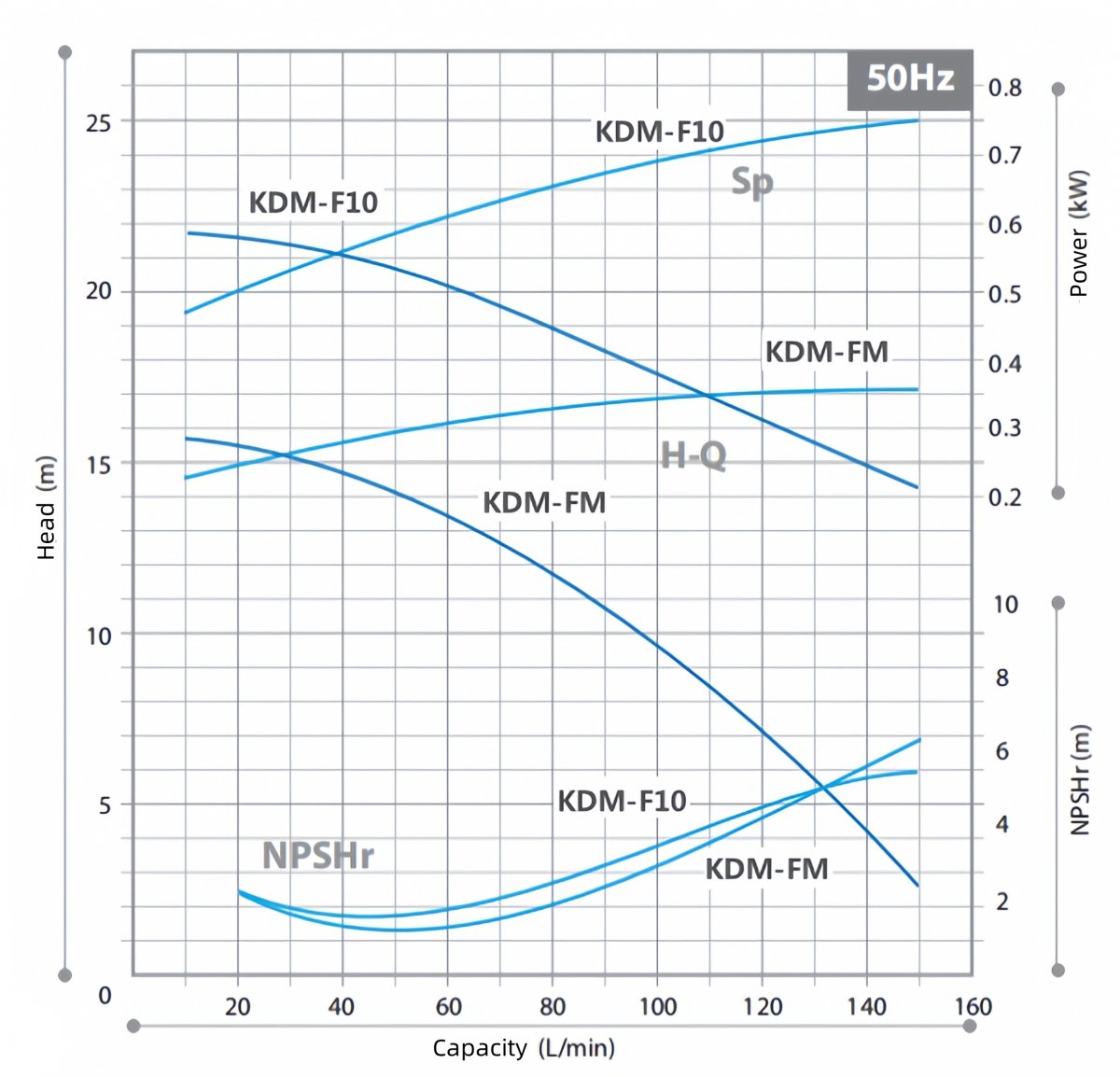

PERFORMANCE CURVE

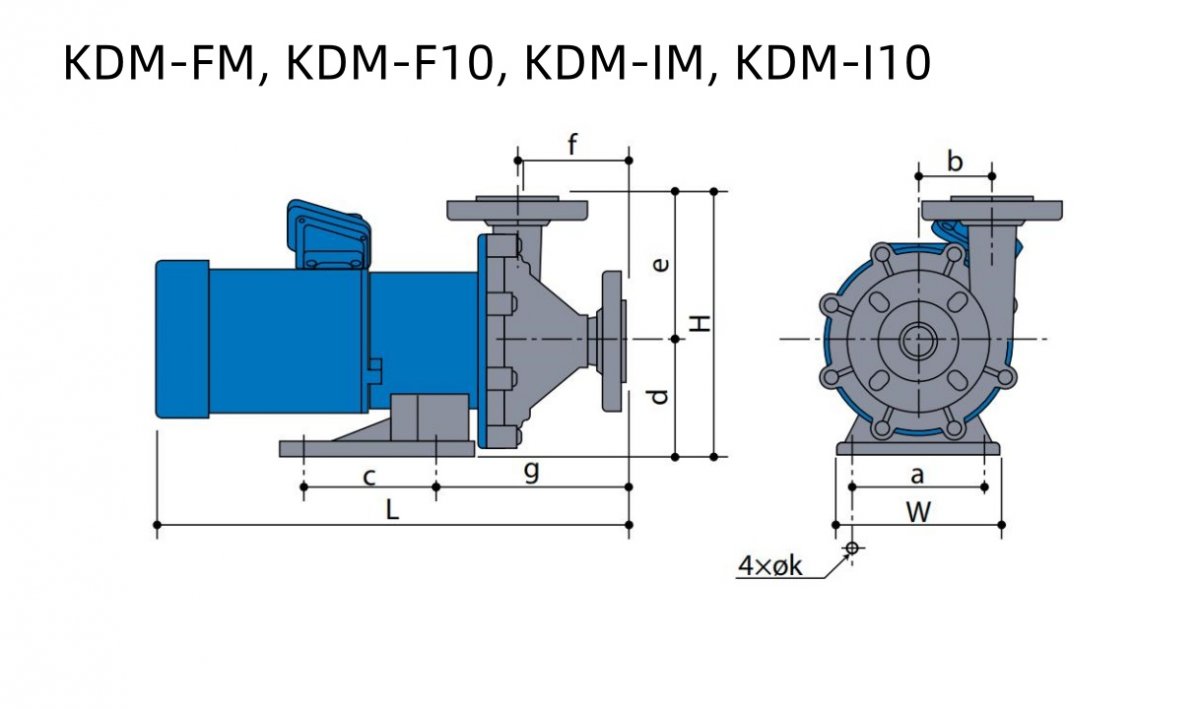

Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
