Magnetic Pumps

Current Location:HOME > Produts > Magnetic Pumps >

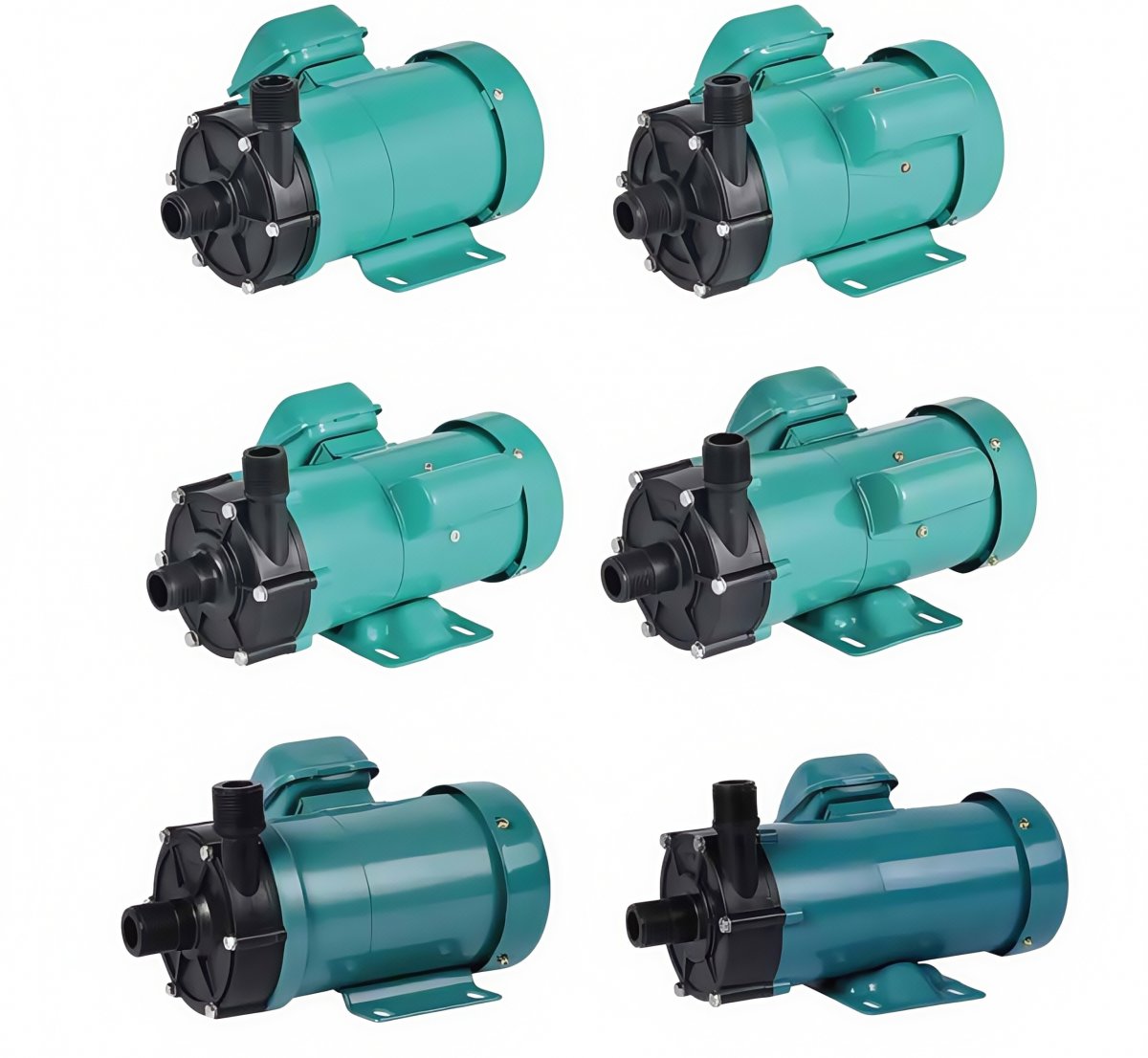

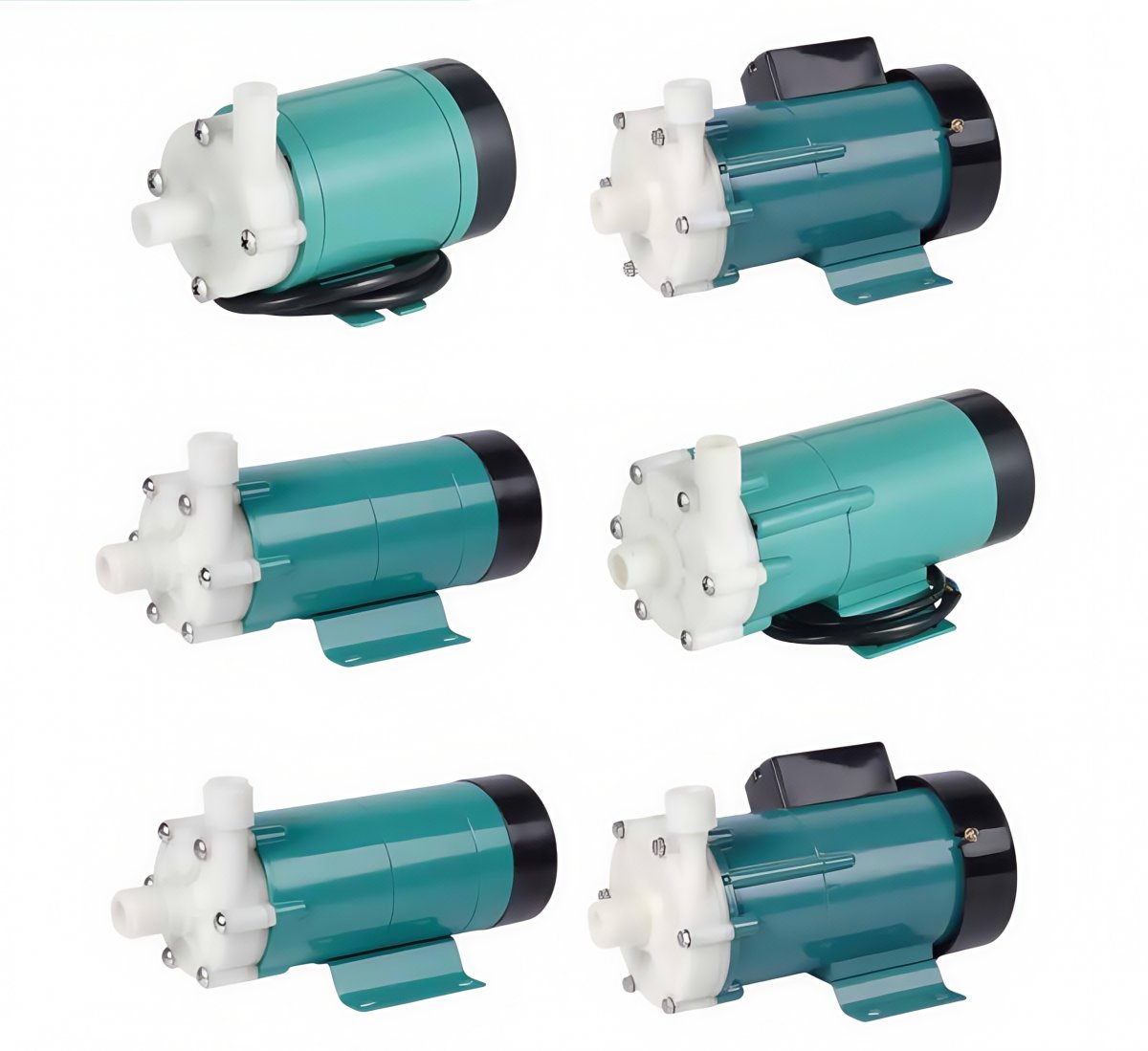

Small Magnetic Pump - KDN Series

TIME:2024-12-10 Author:admin Views:



PARAMETERS

● Max. Capacity: 50Hz-5.5~135 L/min  60Hz-6~135 L/min
● Max. Head: 50Hz-1~11.7 m    60Hz-1.4~13.5 m
● Caliber: Hose-14mm, 17mm, 17.5mm, 18mm, 20mm, 26mm
Threaded- G3/4'', G1''
●  Pump Casing: GFRPP



PRODUCT FEATURES

Alsolutely leakproof. KDN Series is a leak-free magnetic pump with no seal wear and replacement issues. It i s compact and easy to  install, making it an ideal device for embedded equipment.

● Excellent wear resistance. KDN series is made of GFRPP (glass fiber reinforced polypropylene), which can safely transport various chemical liquids.

● Easy to maintain. KDN series components are standardized, with a small number of parts, and easy and convenient disassembly and maintenance.



TYPICAL APPLICATIONS

● KDN series magnetic pumps are suitable for various medical devices, analytical instruments, constant temperature baths, surface treatment and various chemical liquid transportation, etc.

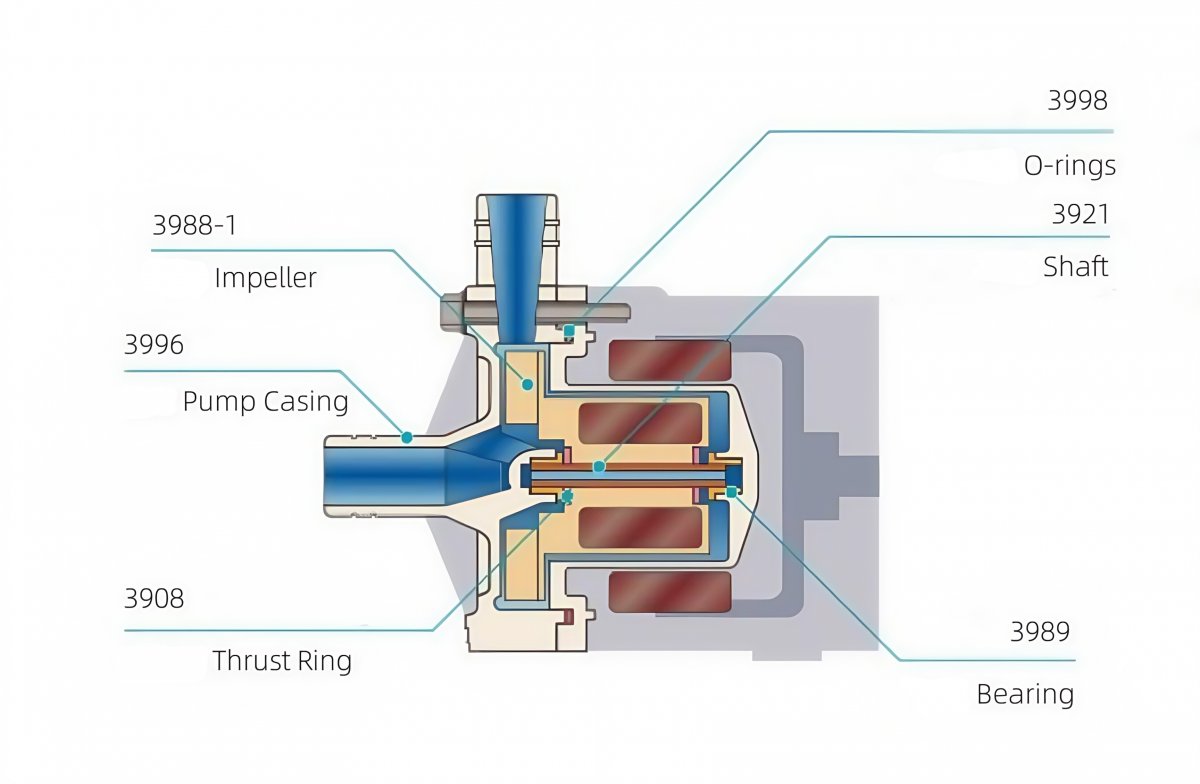

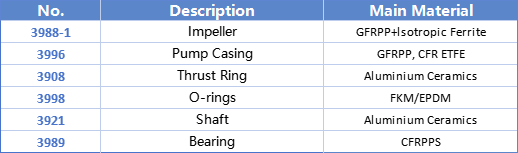

PARTS LIST



MODEL EXPLANATION
1、 Model: KDN
2、 In-Outlet: A-14*14   V-18*17   G-26*26
                       W-17.5*17   E-20*20
3、 Power: F-90W  I-150W  J-180W  K-260W
4、 Material: 1-GFRPP
5、 Shaft Material: C-Ceramic
6、 Rubber: E-EPDM  R-FKM
7、 Phase: 1-Single     3-Three
8、 Access Mode: H-Hose  S-Screw
                             F-Flange(Only for EJ,GK)
9、 Frequency: 5 - 50Hz   6 - 60Hz
10、 Voltage: 2-220V 3-380V  10-400V/440V  20-100V
                      13-220V-240V   22-200V
11、 N-Standard Head    H-High Head
12、 N -Standard      S-Special Specifications

These are sealless Magnetic Drive Pump of KDN Series, we have the models number as below:
KDN-A1-6
KDN-A1-6H
KDN-A1-10
KDN-AB
KDN-1817C
KDN-ED
KDN-EE
KDN-17.517C
KDN-17.517D
KDN-EEH
KDN-EE-5
KDN-GC
KDN-GD
KDN-GE
KDN-GF
KDN-GF-5
KDN-GI/J
KDN-EJ
KDN-GK
KDN-GK-5

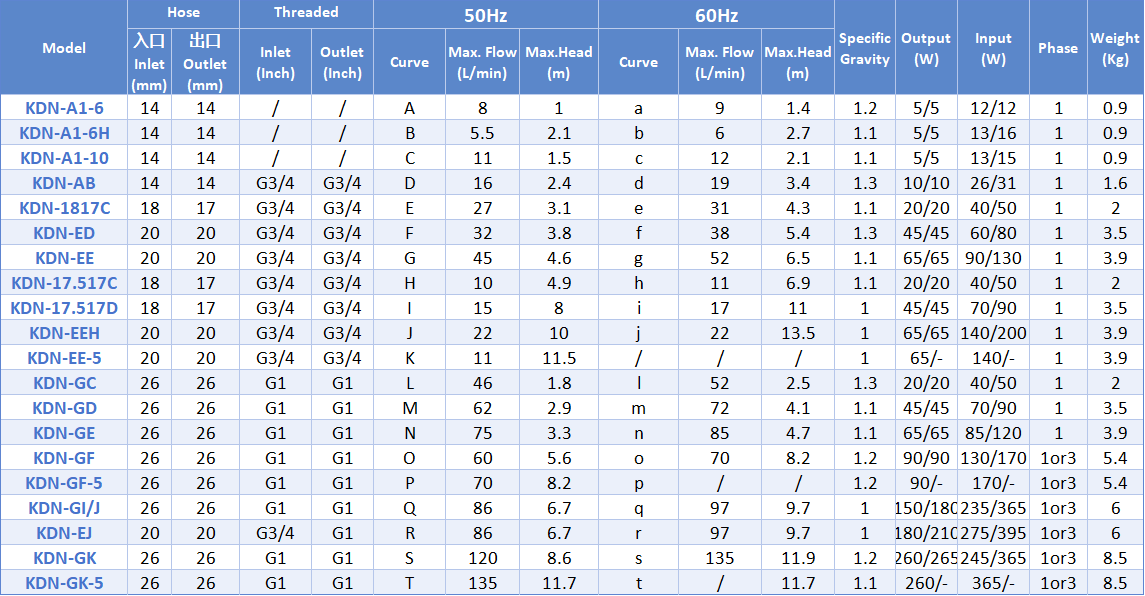

SPECIFICATION

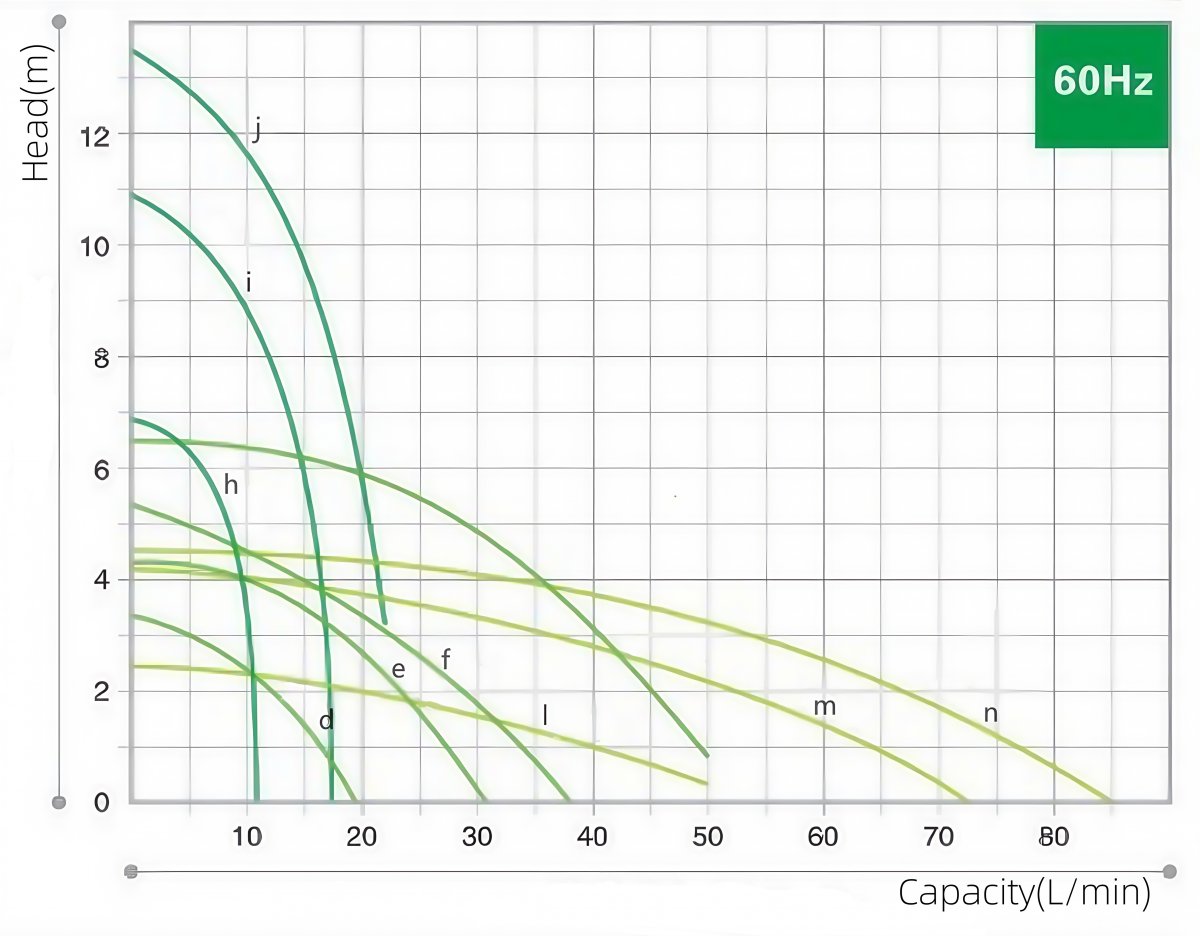

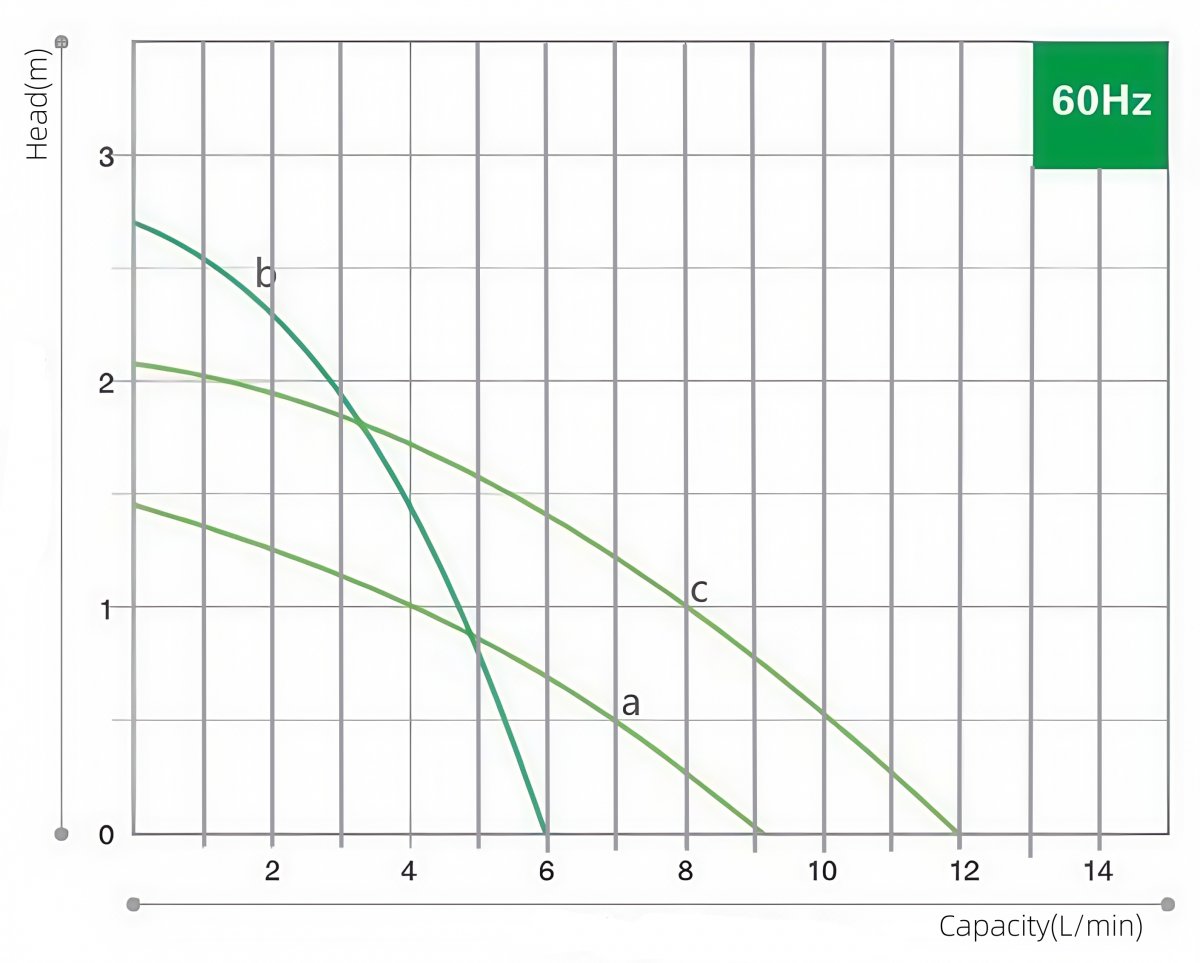

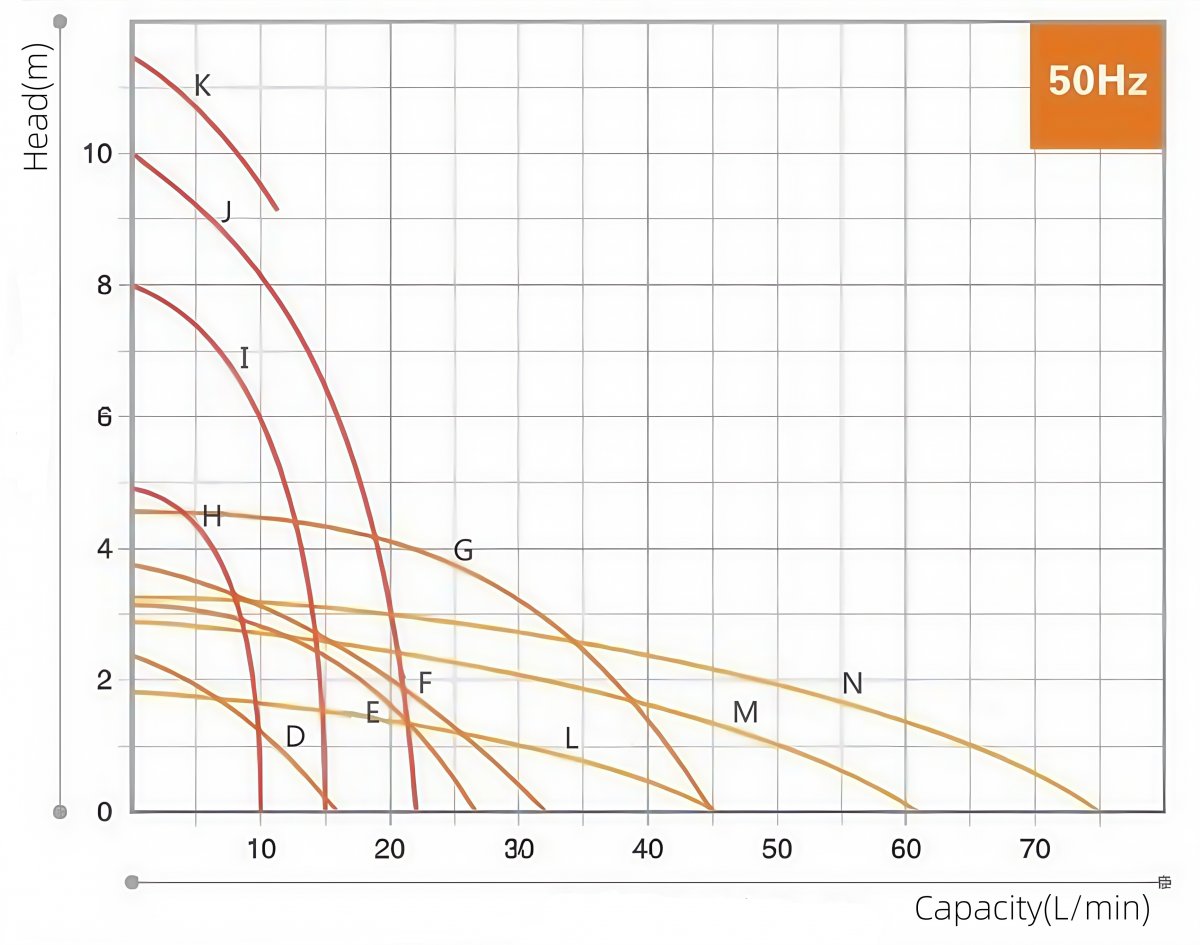

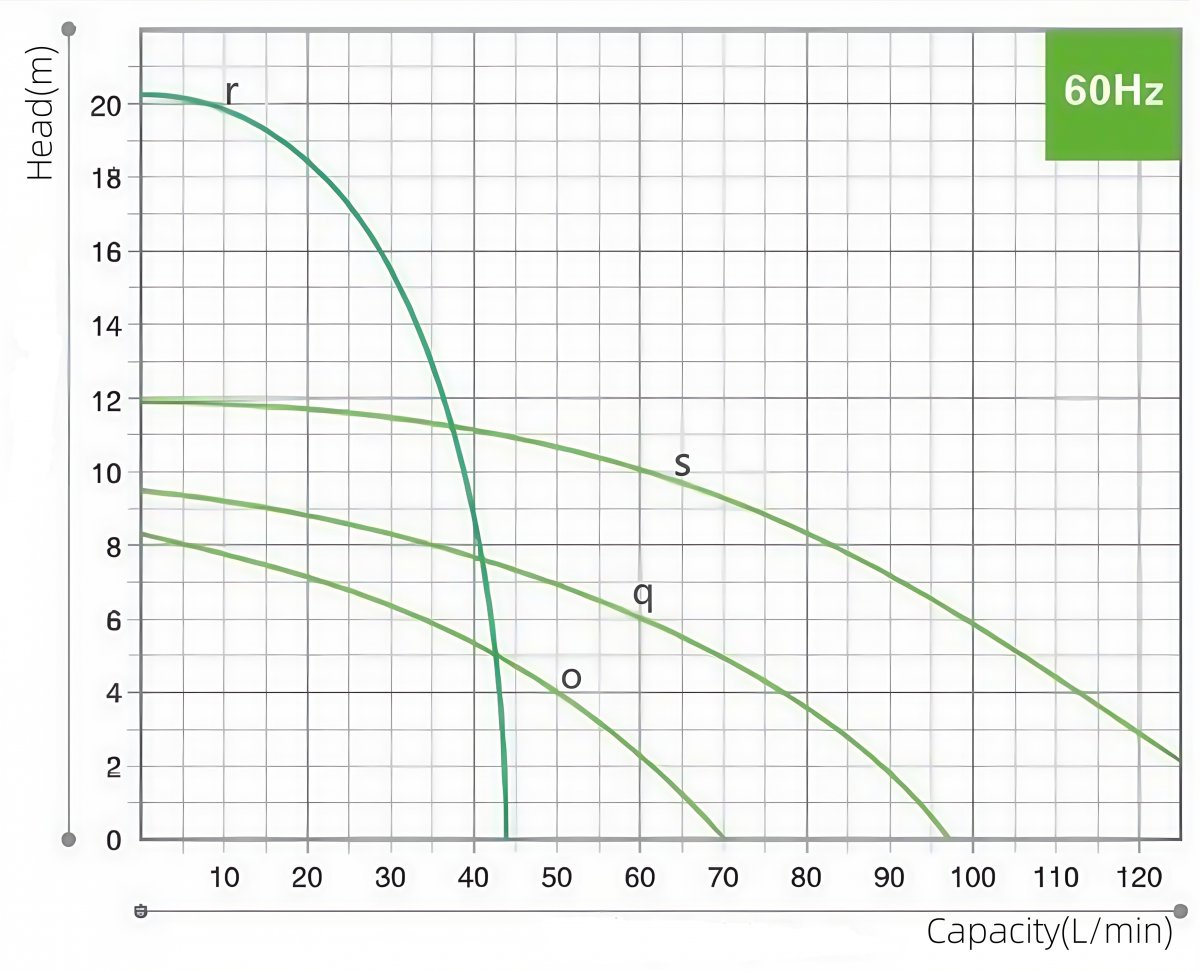

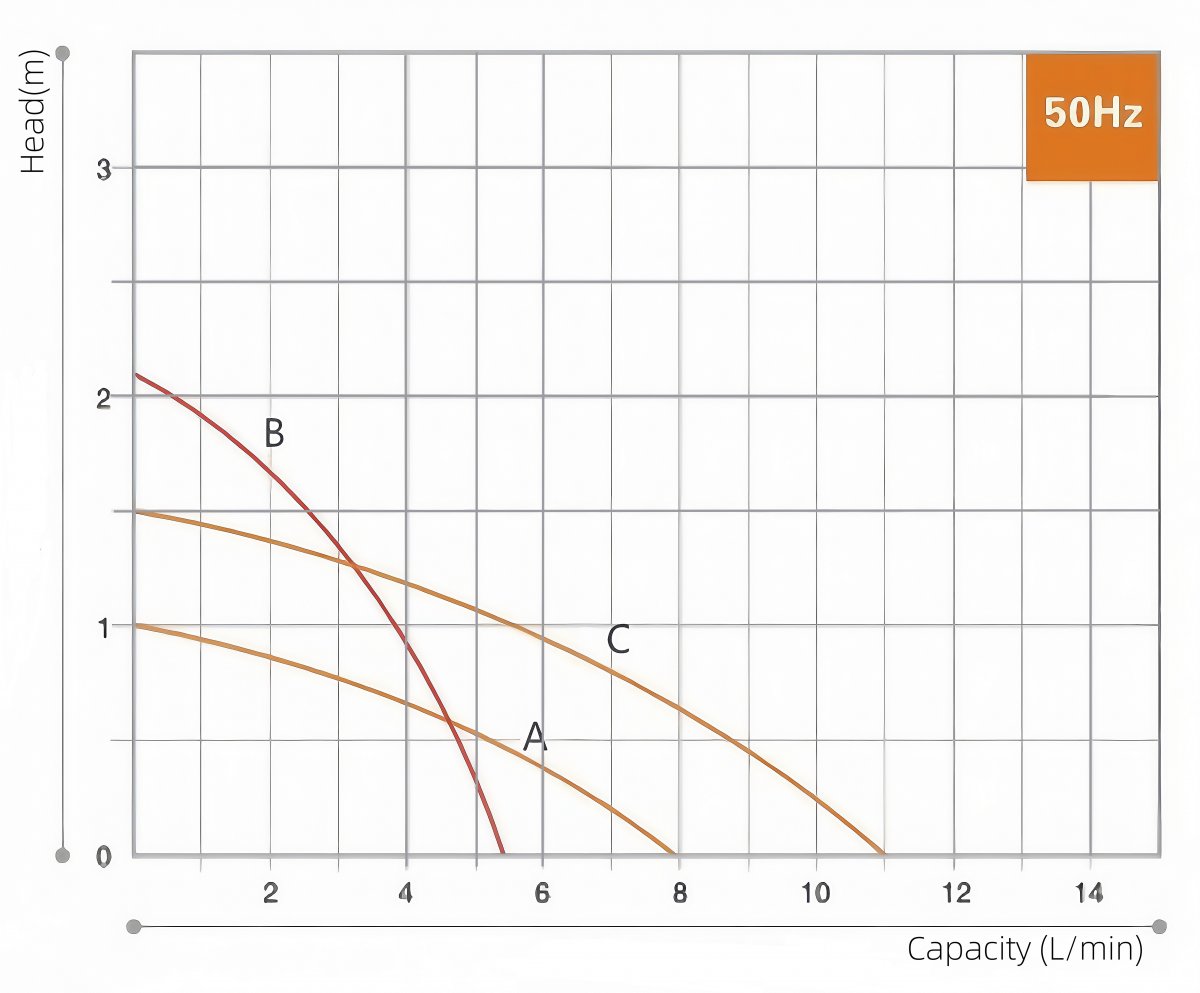

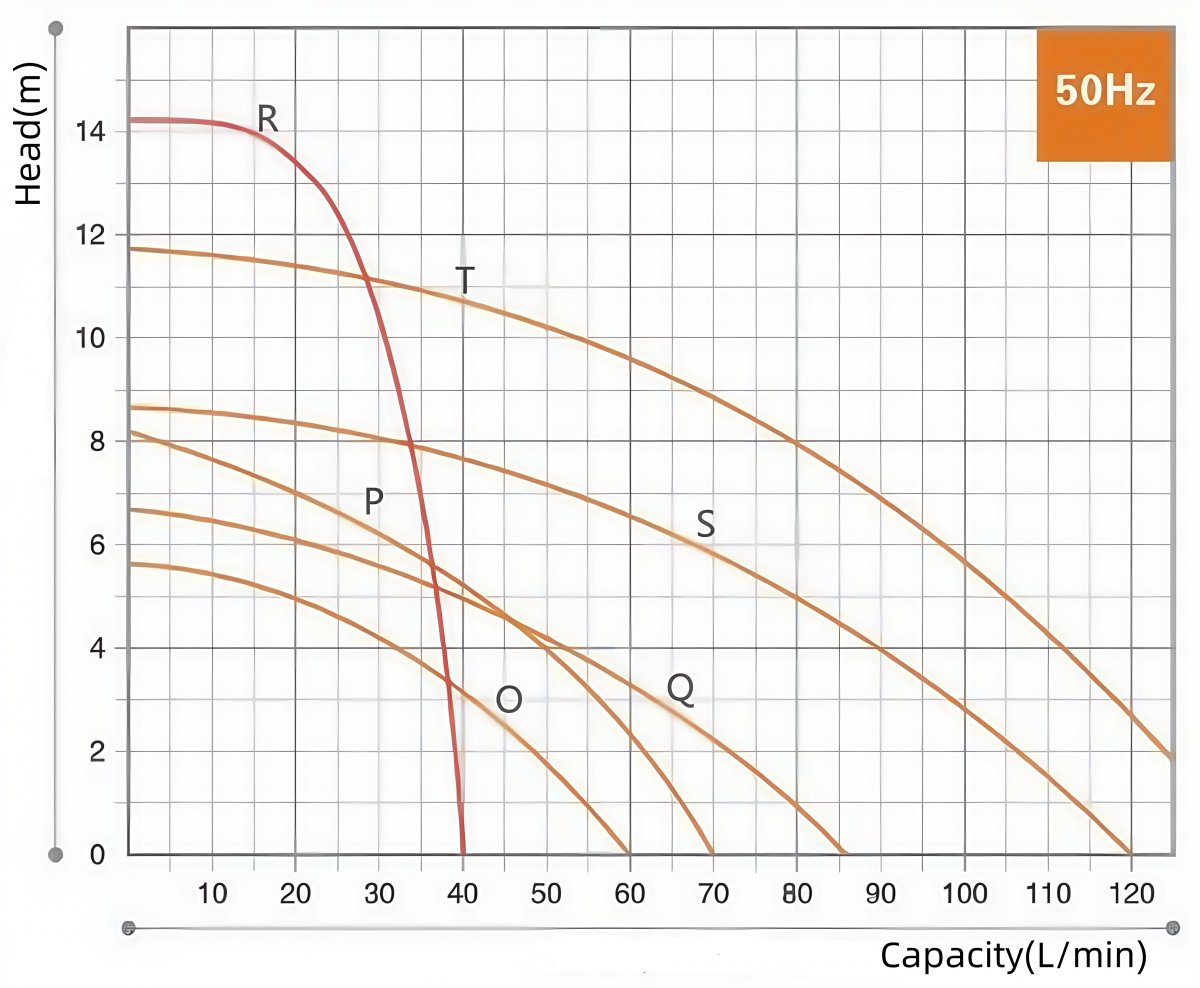

PERFORMANCE CURVE

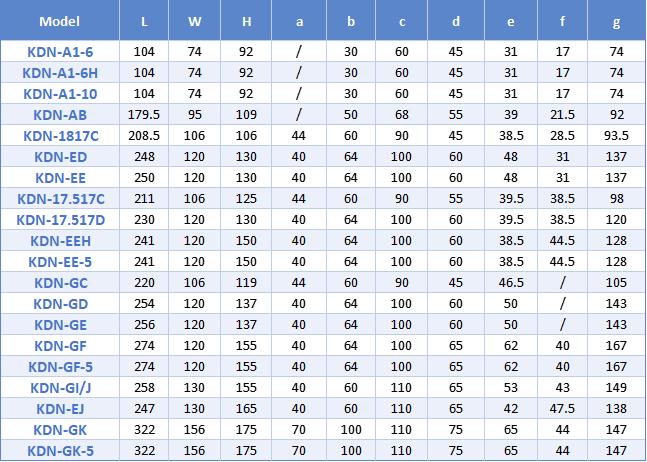

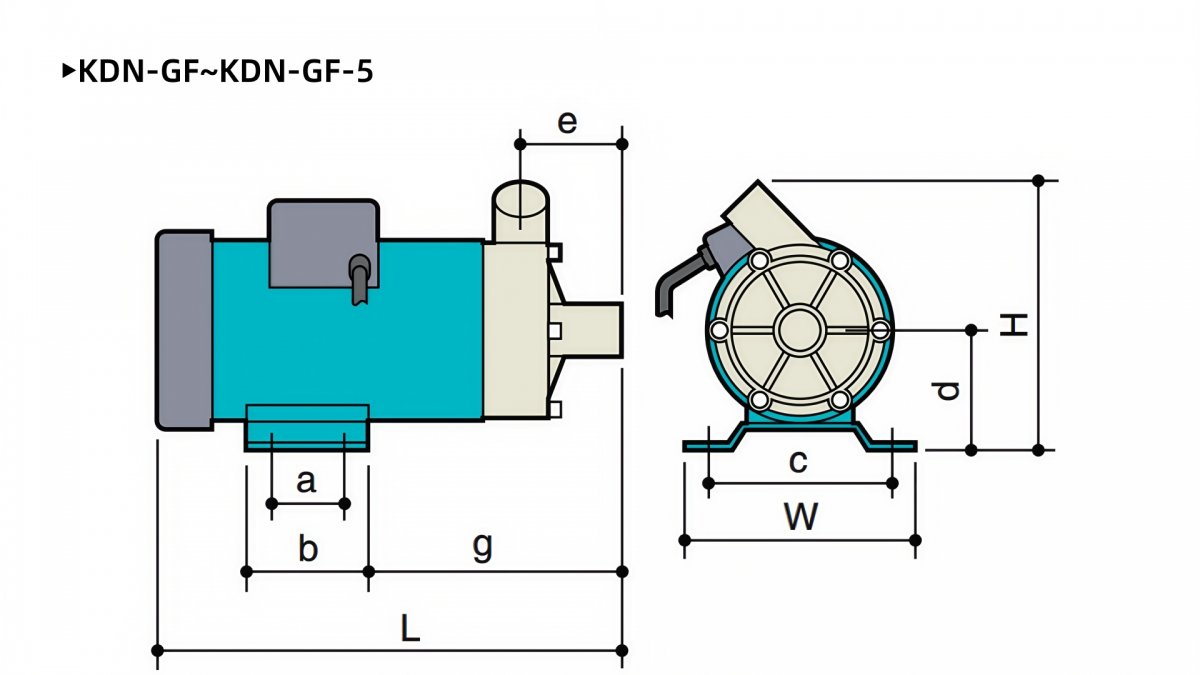

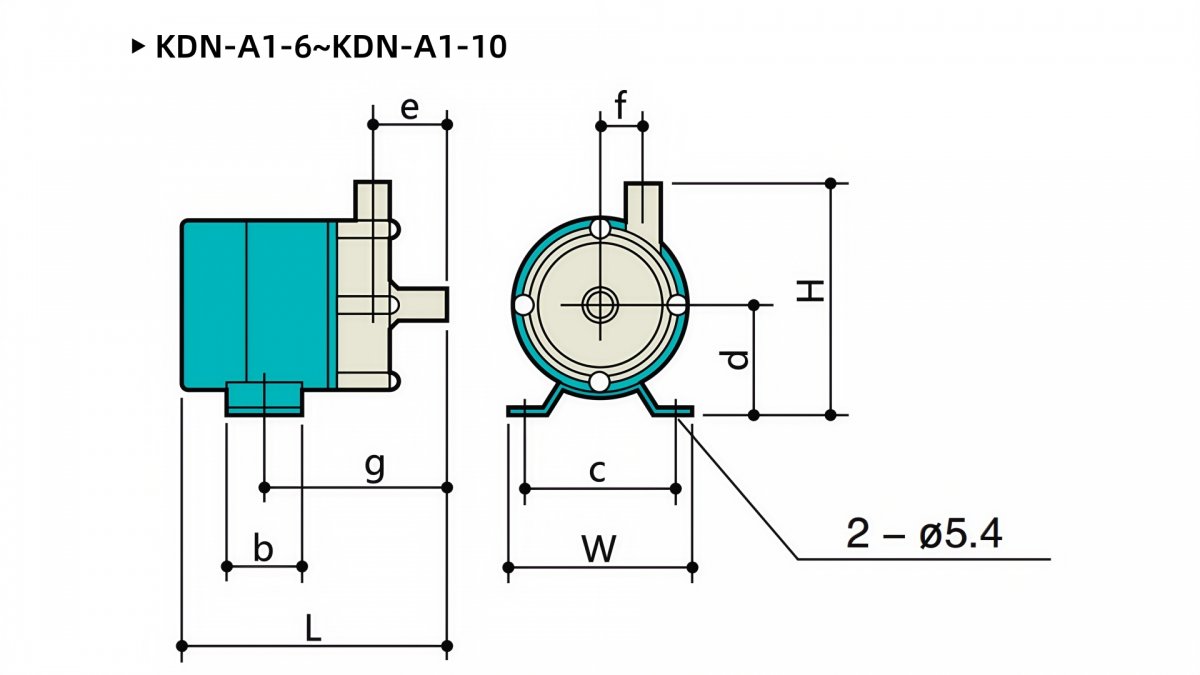

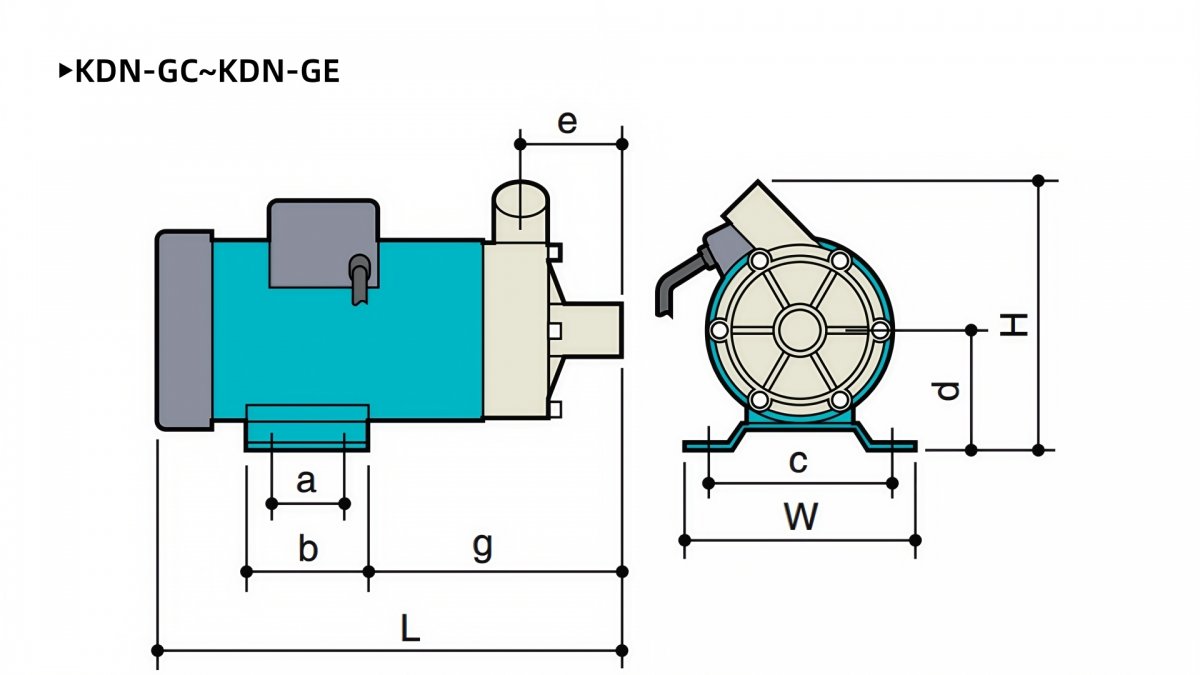

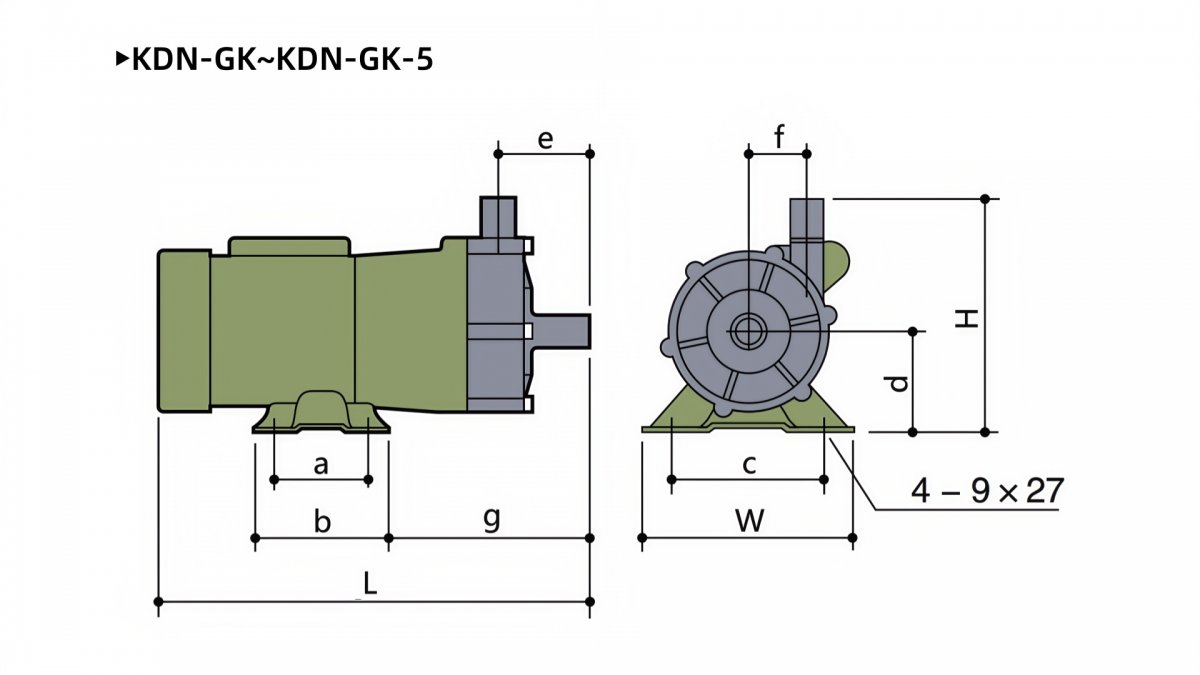

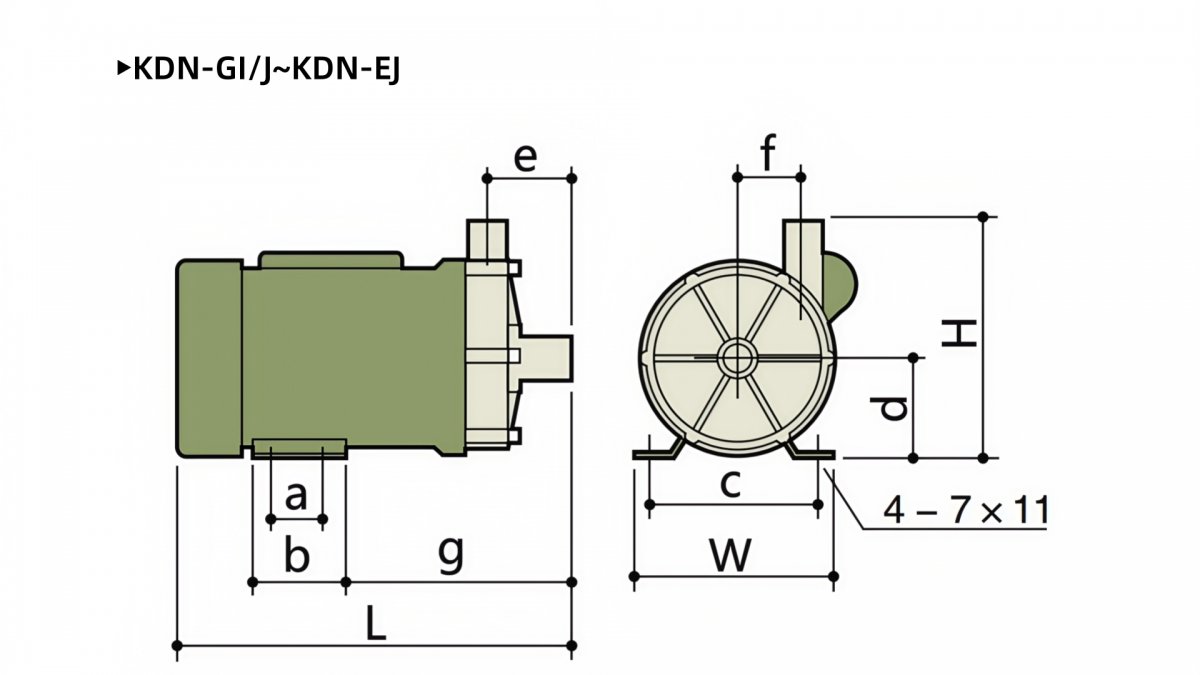

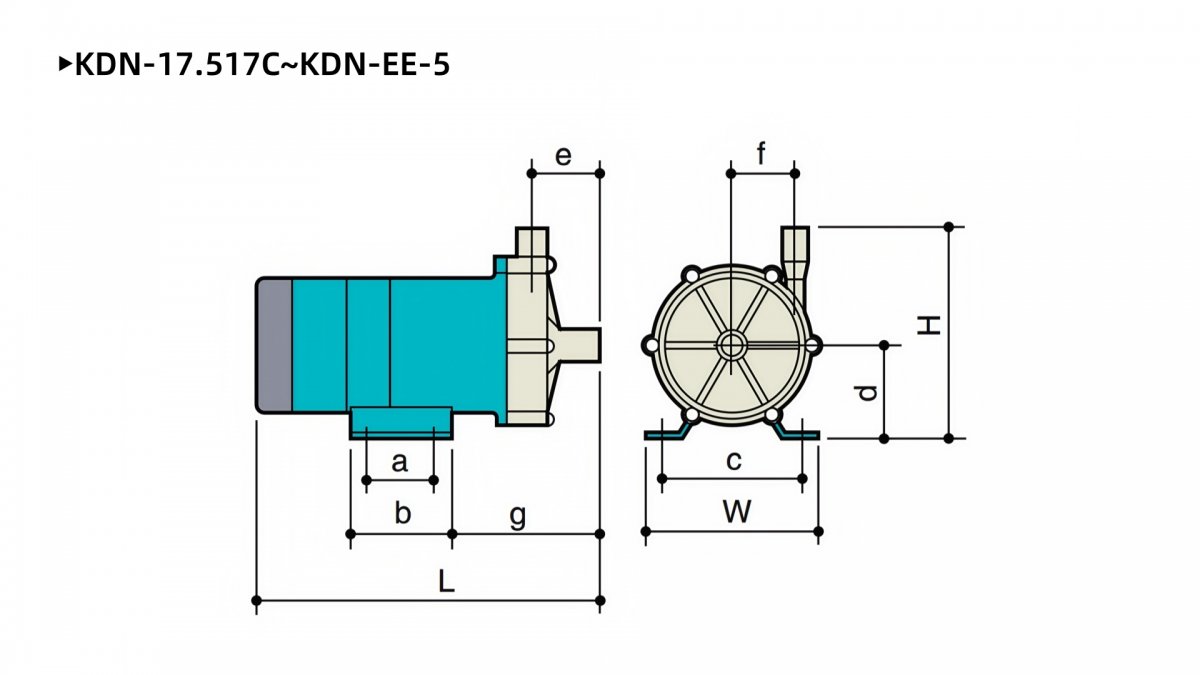

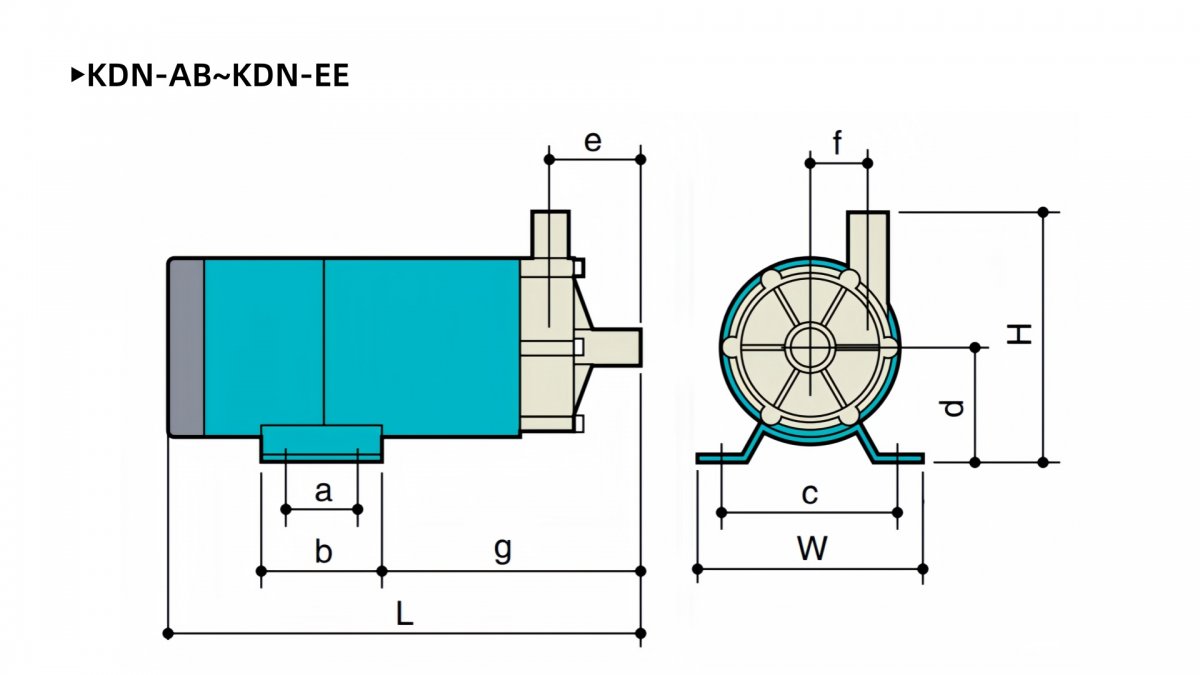

DIMENSION




Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm


While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
