Magnetic Pumps

Current Location:HOME > Produts > Magnetic Pumps >

Small Magnetic Pump - KDP Series

TIME:2024-12-06 Author:admin Views:


PARAMETERS

● Max. Capacity:50Hz-0.9~20 L/min  60Hz-1.2~25 L/min
● Max. Head: 50Hz-5.5~80 m   60Hz-7~80 m
● Power:Input-2.5~330 W  Output-17~460W
● Pump Casing: FRPP, ETFE

PRODUCT FEATURES

● Chemicals and dangerous area ETFE anticorrosion material

● The pump shaft is changed from a dynamic seal to a closed static seal, which completely avoids medium leakage.

● No independent lubrication and cooling water are required, which reduces energy consumption.

● The coupling drive is changed to synchronous drag, and there is no contact and friction. Low power consumption, high efficiency, and damping vibration reduction, reducing the impact of motor vibration on the pump and the impact of cavitation vibration on the motor when the pump occurs.

● When the driven part of the magnetic transmission is running under overload or the rotor is stuck, the main and driven parts of the magnetic transmission will automatically slip off to protect the motor and pump.  At this time, the permanent magnet on the magnetic transmission will produce eddy loss and magnetic loss under the action of the alternating magnetic field of the active rotor, causing the permanent magnet temperature to rise and the magnetic transmission to slip and fail.



TYPICAL APPLICATIONS

● Plating,
● Chemical industry
● Filter
● PCB equipment
● Food processing
● Beverage packaging
● Sewage treatment
● Storage tank
● Cleaning machine

MODEL EXPLANATION

1、 Model: KDP
2、 In-Outlet: I-40*40  J-50*40  N-50*50
3、 Power: 8-0.37kW   10-0.75kW  16-1.5kW
       18-2.2kW  20-3.75kW 25-5.5KW 30-7.5kW
4、 Material: 1-GFRPP  2-CFR ETFE
5、 Impeller Bearing: C-Carbon  P-CFRPTFE  A-Ceramic
6、 Rubber: E-EPDM    R-FKM  N-NBR
7、 Specific Gravity: 1-1.0  1A-1.1  3-1.3  5-1.5
8、 Motor Type: No-TEFC Indoor Type
       B-Explosion   D-Protection
9、 N-Standard S-Special Specifications

These are sealless Magnetic Drive Pump of KDP Series, we have the models number as below:
KDP-A18-1
KDP-AC-1
KDP-AC-3
KDP-A18-5
KDP-AC-5
KDP-AC-10
KDP-A30
KDP-DD-40
KDP-D55
KDP-EF
KDP-GE
KDP-DD-100
KDP-EH
KDP-GH
KDP-E200
KDP-GF
KDP-G170-F
KDP-G170-F3
KDP-G290-ZF
KDP-G290-F
KDP-G290-F3
KDP-G390-F
KDP-G390-3
KDP-G200
KDP-26209-D
KDP-26209-F3

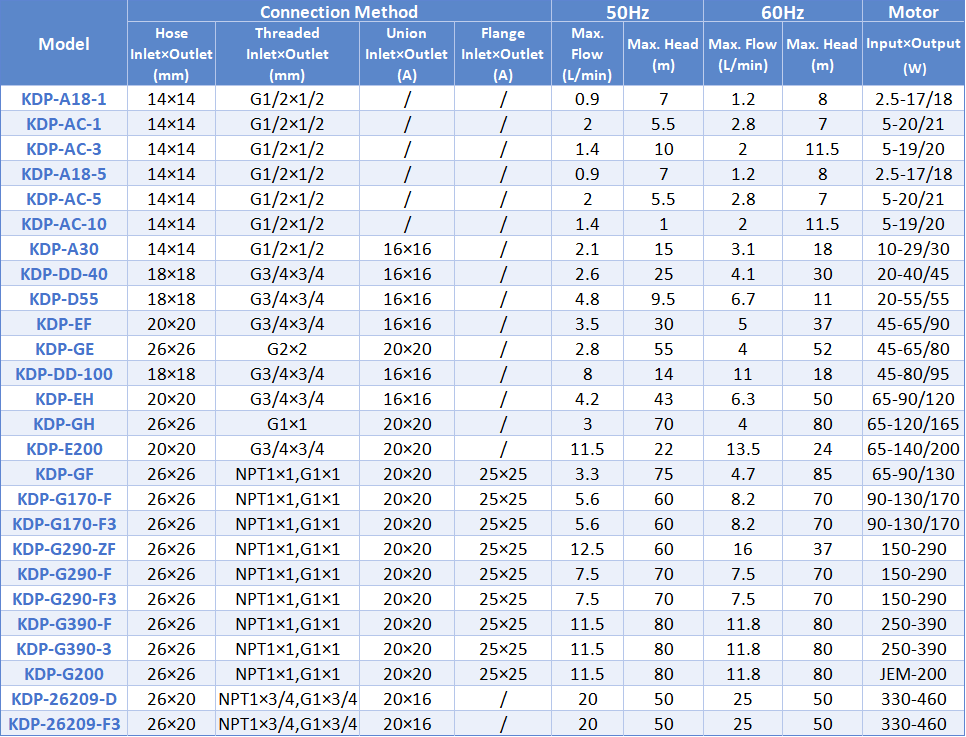

SPECIFICATION

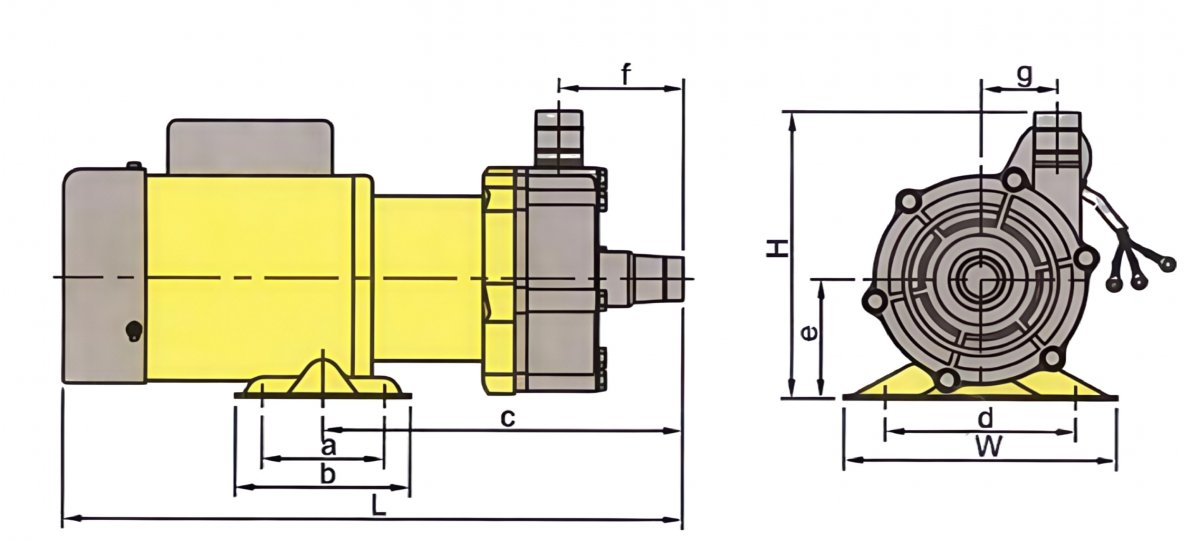

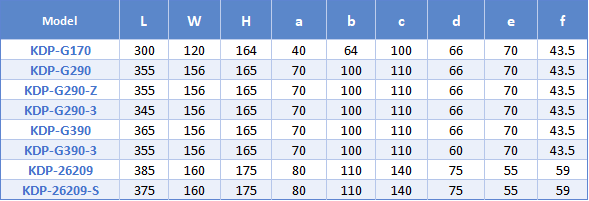

DIMENSION

Data are for reference only, different reasons such as exterior use motor size changes. Unit: mm


While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
