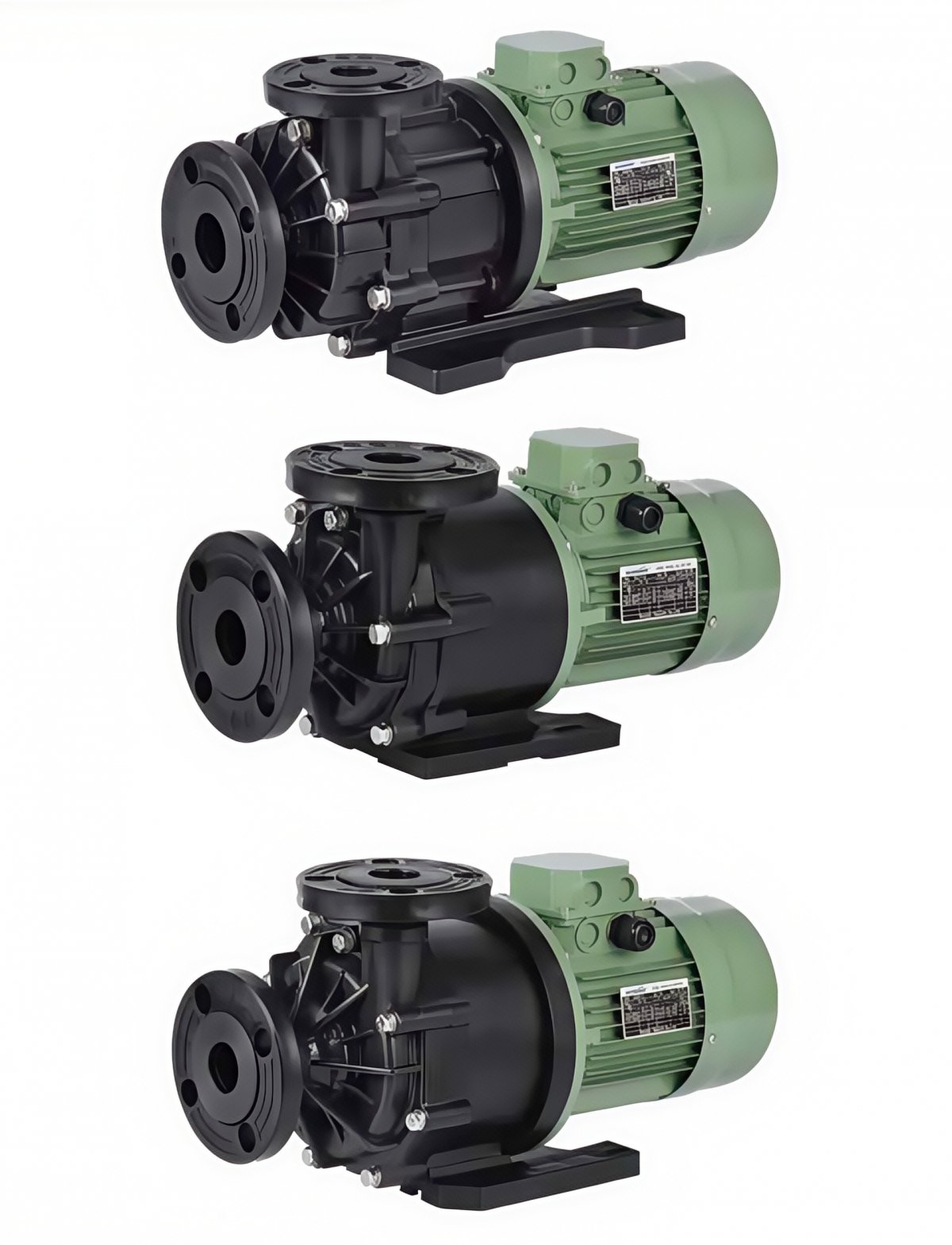

Magnetic Pump - KDP Series

TIME：2024-12-10 Author：admin Views：

PARAMETERS

● Standard Capacity: 50Hz-130~1040 L/min 60Hz-130~1030 L/min
● Standard Head: 50Hz-6.1~25.5 m 60Hz--5.9~31.5 m
● Power: 0.37~11kW
● Pump Casing: ETFE
● Connection: Flange
● Temperature of Liquid: 0~90 degree

PRODUCT FEATURES

● One-piece injection molding, the impeller and magnet are one-piece injection molded, which is not easily damaged under high-speed operation and high temperature.
● Offering ceramic bearing & ceramic spindle as standard wearing parts to achieve long life expectancy.
● Standard connections available in hose, threads or union type.
● A variety of materials are available. The pump bearing part is available in silicon carbide ceramic and titanium metal materials to meet the needs of different workplaces.

TYPICAL APPLICATIONS

● Electroplating industry
● Wastewater industry
● Waste gas treatment
● Chemical industry

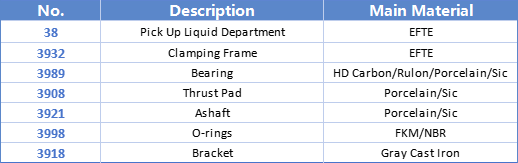

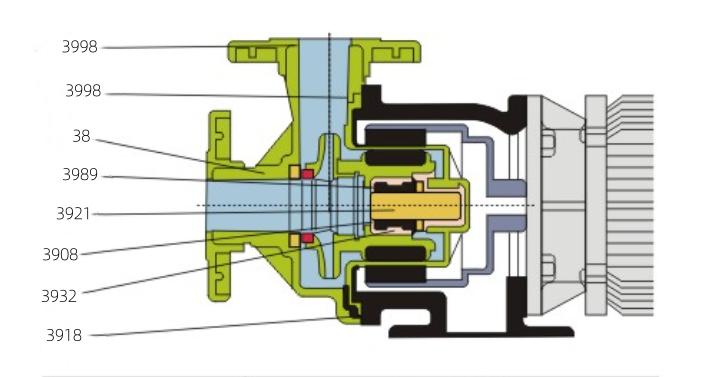

PARTS LIST

MODEL EXPLANATION

1、 Model: KDP

2、 In-Outlet: I-40*40 J-50*40 N-50*50

3、 Power: 8-0.37kW 10-0.75kW 16-1.5kW

18-2.2kW 20-3.75kW 25-5.5KW 30-7.5kW

4、 Material: 1-GFRPP 2-CFR ETFE

5、 Impeller Bearing: C-Carbon P-CFRPTFE A-Ceramic

6、 Rubber: E-EPDM R-FKM N-NBR

7、 Specific Gravity: 1-1.0 1A-1.1 3-1.3 5-1.5

8、 Motor Type: No-TEFC Indoor Type

B-Explosion D-Protection

9、 N-Standard S-Special Specifications

These are sealless Magnetic Drive Pump of KDP Series, we have the models number as below:

KDP-I8

KDP-I10

KDP-J16

KDP-J18

KDP-J20

KDP-N20

KDP-N25

KDP-N30

KDP-N35

SPECIFICATION

PERFORMANCE CURVE

While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
