Magntic Pump - KDW Series
TIME：2024-12-10 Author：admin Views：
PARAMETERS
● Max. Motor Output: 1.1~4 kW● Capacity Range: 20-300, 40-450, 60-600, 60-750, 60-500, 80-750, 80-1100 L/min
● Head Range: 5-20, 8-31, 4-22, 3-17, 8-31, 8-31, 7-28, 6-19.5 m
● Rated Current 380V: 2.2A~8.2A.
● Pump Casing: ETFE+CF, PVDF, PP+GF
PRODUCT FEATURES
● Permanent magnet synchronous filling motor, the motor has the highest efficiency of IE5 and the protection level of IP67..
● Use vector inverter control, the operating range is adjustable from 1000-3000rpm, energy saving and longer pump life.
● Low heat generation, low noise, no cooling fan, suitable for high-level clean rooms
● Small size, lightweight, reducing installation space and maintenance resources
● The pump head is one-piece molding jection, eliminating the pump inlet and outlet rings or welding, fundamentally solving the leakage problem and improving the safety and reliability of the pump.
● Use vector inverter control, the operating range is adjustable from 1000-3000rpm, energy saving and longer pump life.
● Low heat generation, low noise, no cooling fan, suitable for high-level clean rooms
● Small size, lightweight, reducing installation space and maintenance resources
● The pump head is one-piece molding jection, eliminating the pump inlet and outlet rings or welding, fundamentally solving the leakage problem and improving the safety and reliability of the pump.

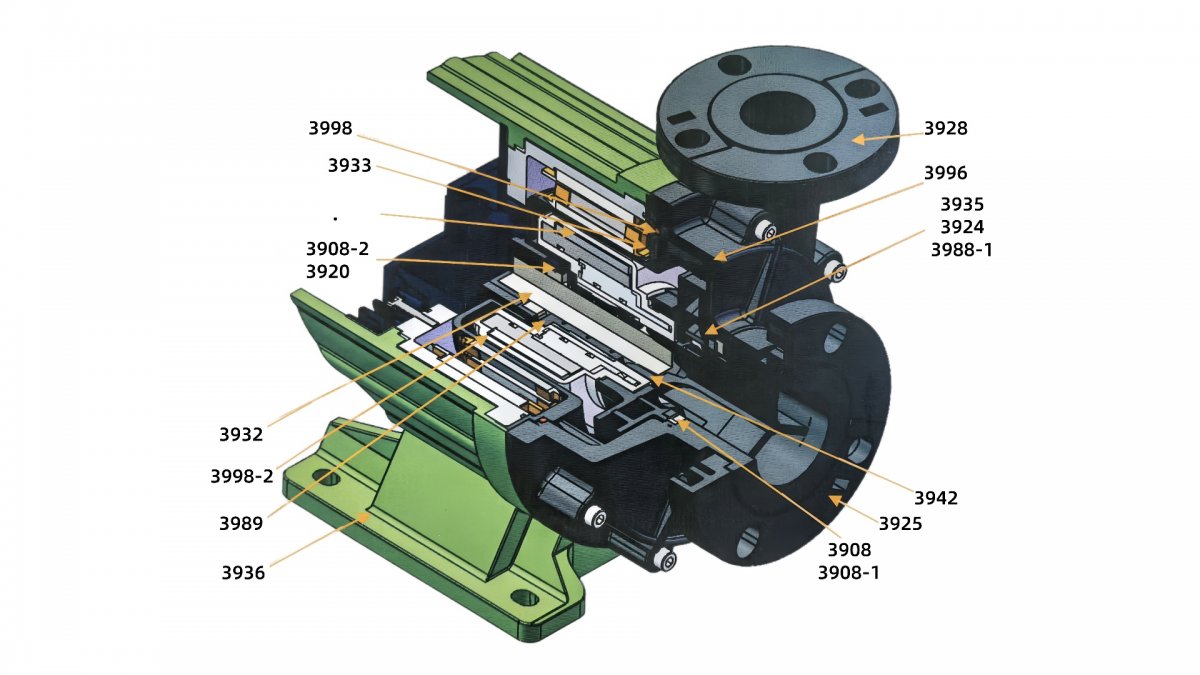

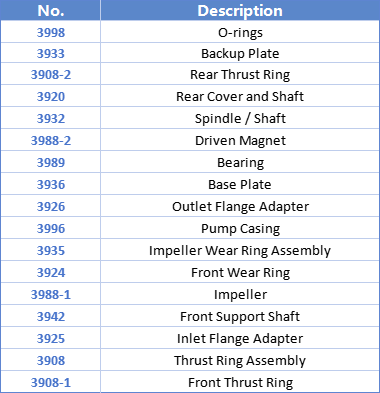

PARTS LIST
MODEL EXPLANATION
1、 Model: KDW
2、 In-Outlet: I-40*40 J-50*40 L-65*50 M-65*65
3、 Power: P-1.1KW 18-2.2KW 22-4KW
4、 Material: 9-ETFE+CF 3-PVDF 10-PP+GF
5、 Impeller Bearing: C-Carbon F-PTFE+CF S-SSIC
6、 Shaft Material: N-995A1?0? S-SSIC
7、 Rubber: E-EPDM V-VITON
8、 N -Standard S- Special Specifications
KDW-IP
KDW-J18
KDW-J22
KDW-K18
KDW-K22
KDW-L18
KDW-L22
KDW-M22
KDW-M18

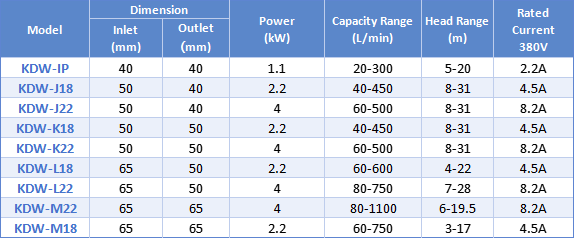

SPECIFICATION

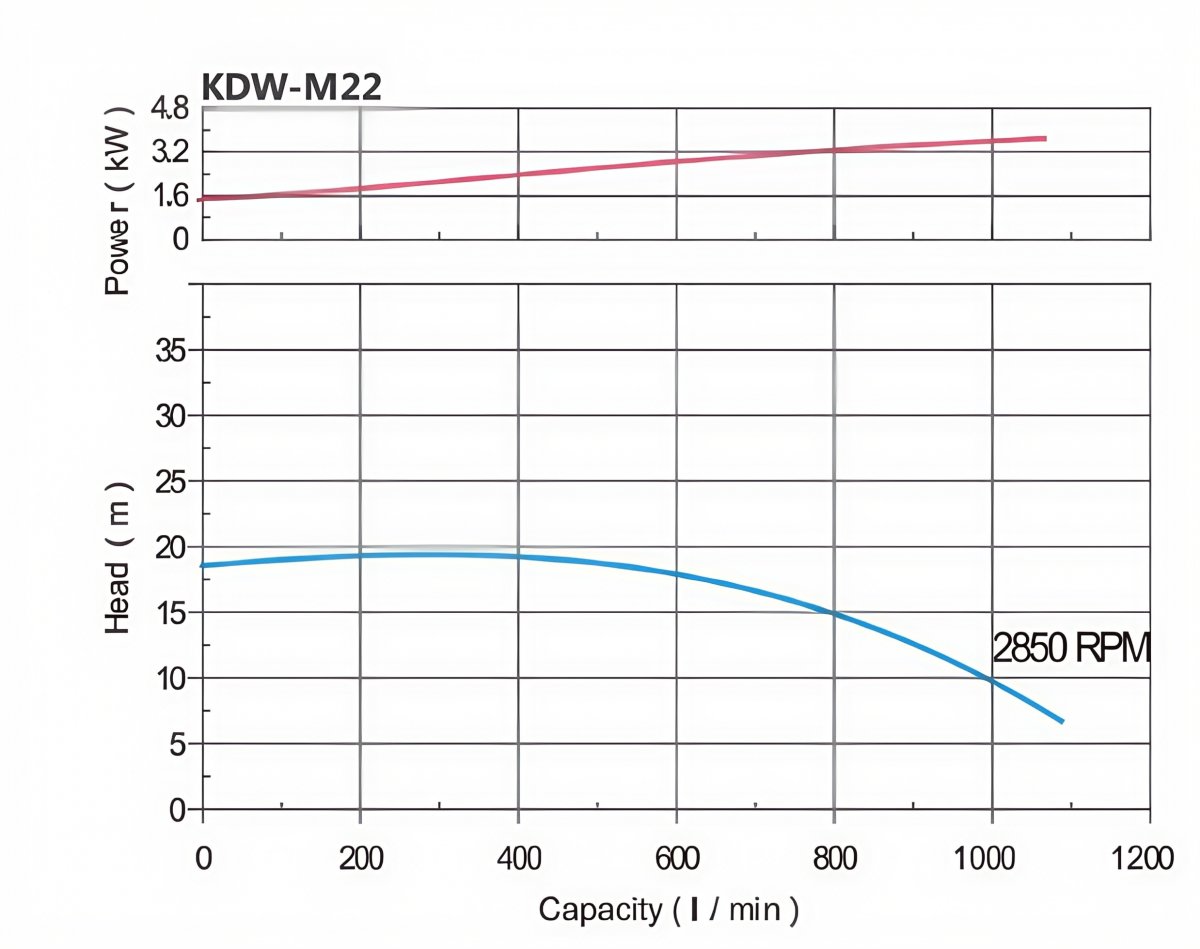

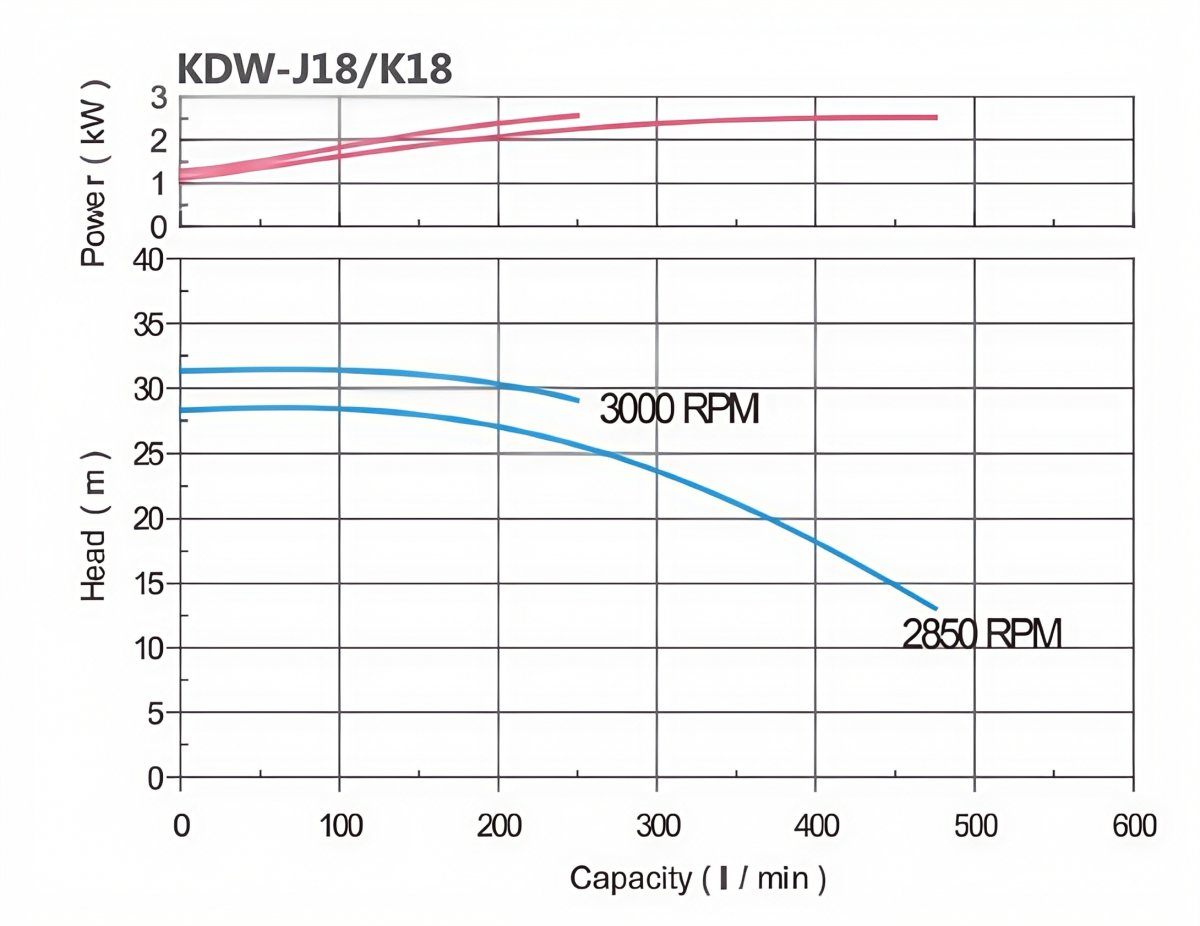

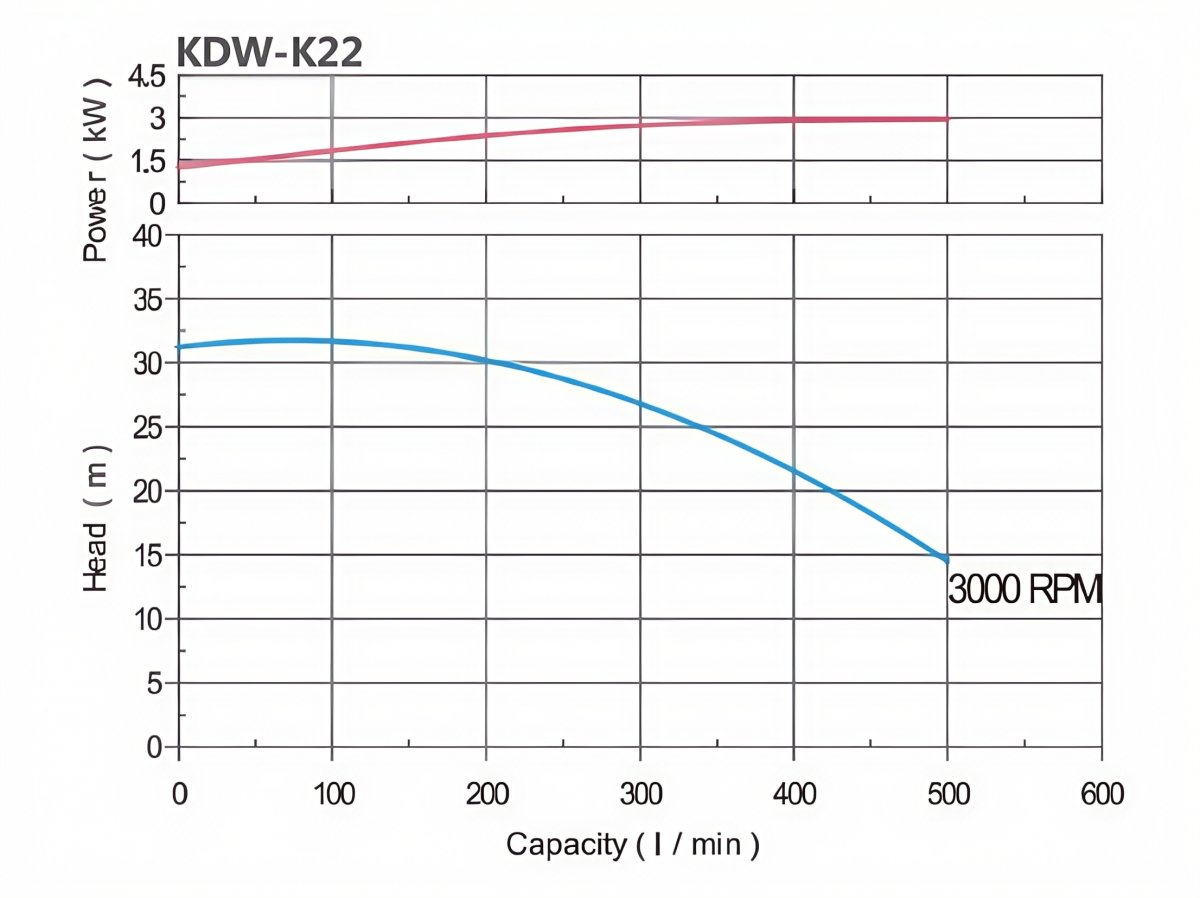

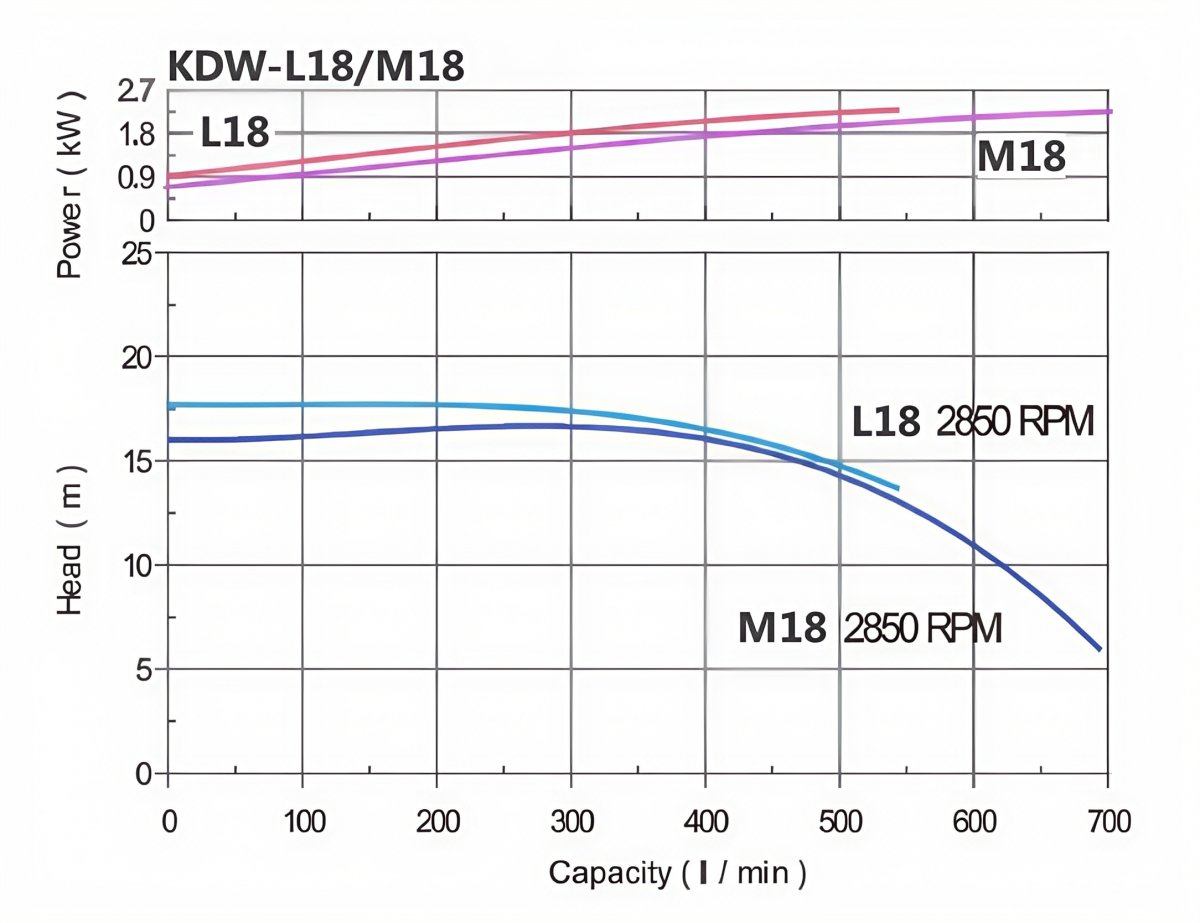

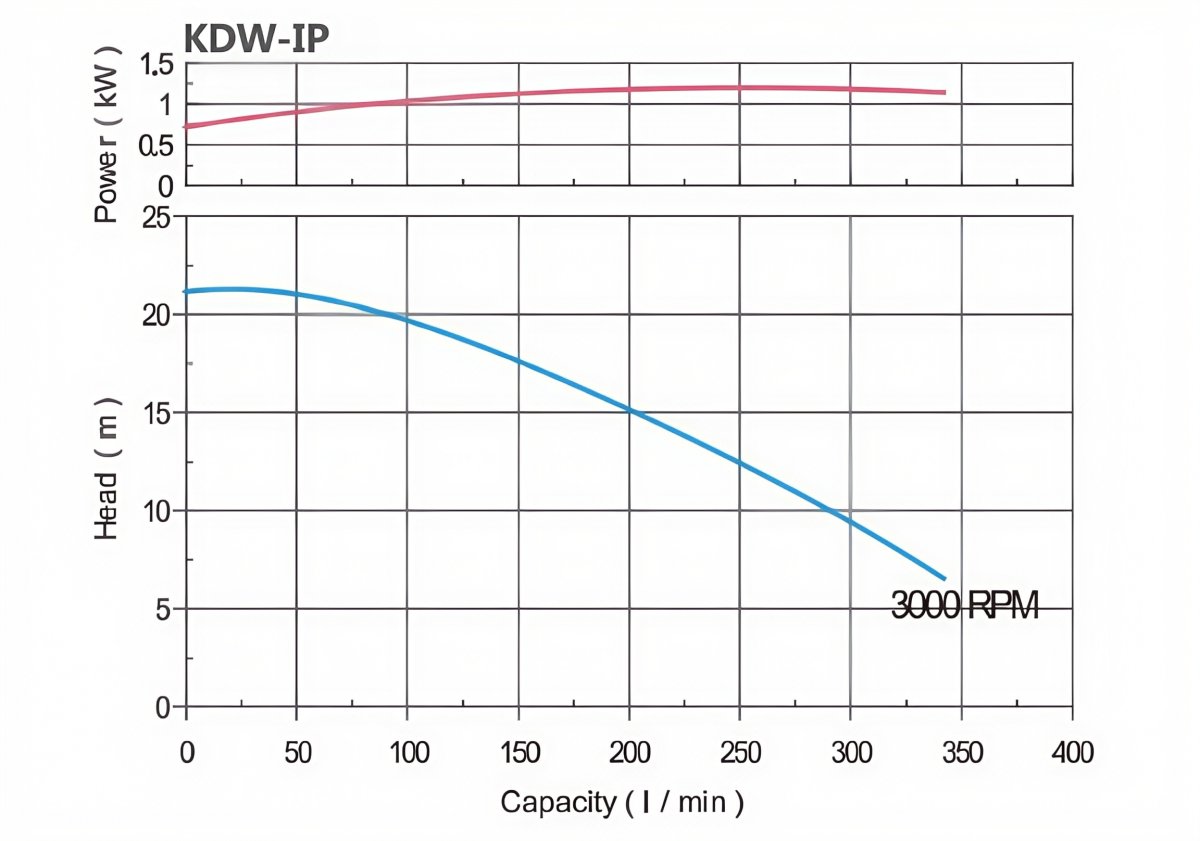

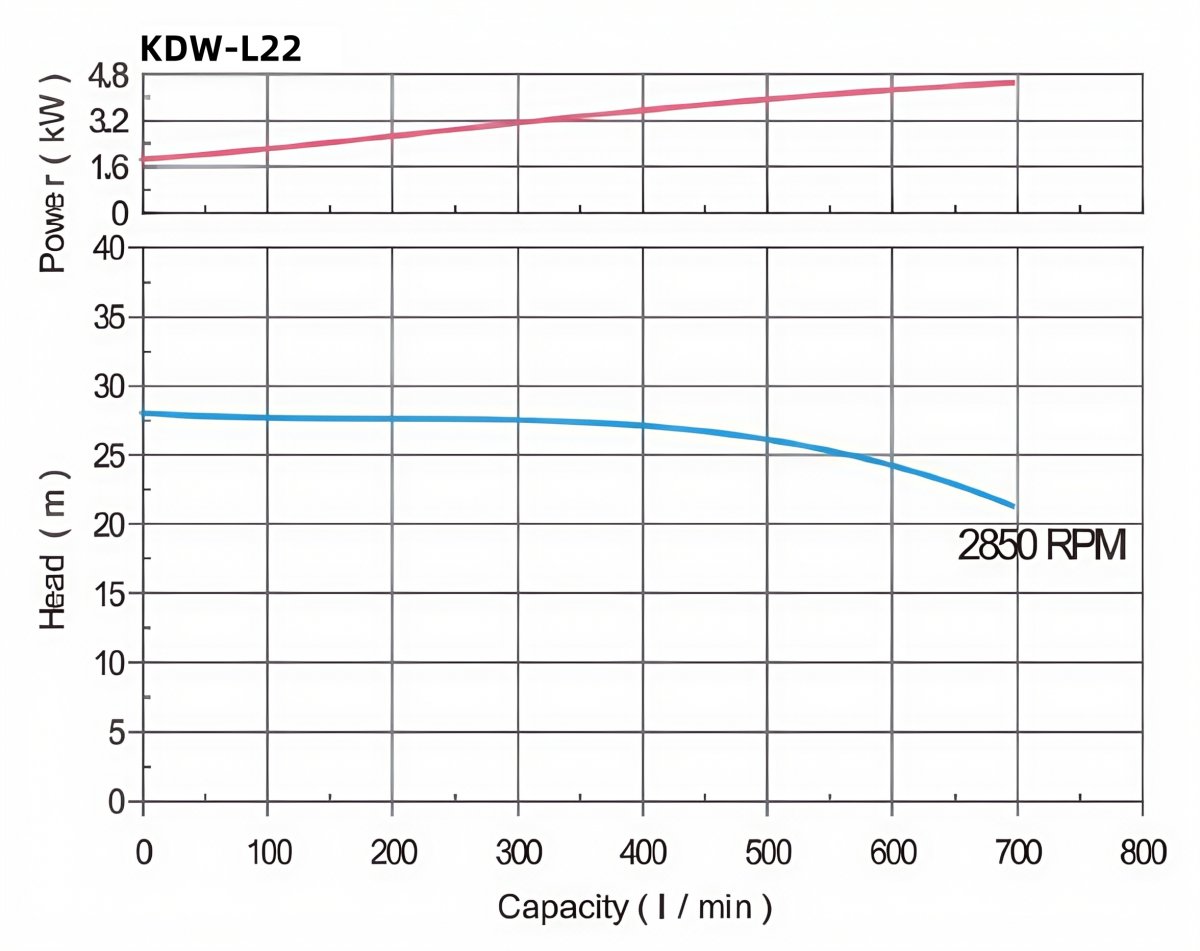

PERFORMANCE CURVE
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
