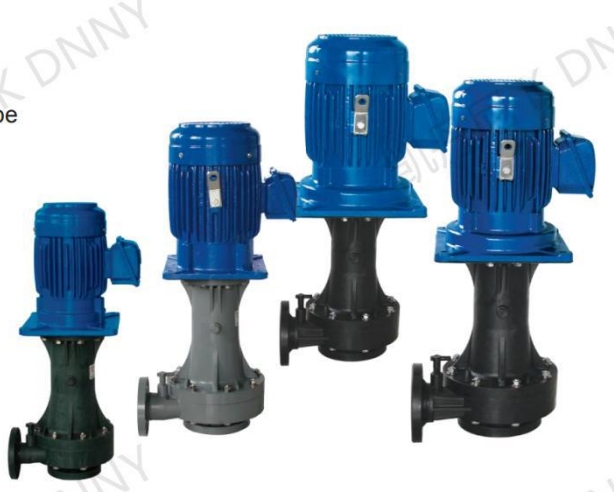

Vertical pump - KD Series
TIME:2024-03-06 Author:admin Views:
TYPICAL APPLICATIONS:
● Industrial wastewater, waste gas treatment
● Electroplating,circuit boards,photovoltaic,semiconductors
● Chemical plants, surface treatment, pharmaceuticals
● Printing and dyeing, coating, cleaning equipment and other fields.
PRODUCT FEATURES:
● Pumps are manufactured from the four materials(FRPP,CFRPP,CPVC,PVDF) to ensure resistance to high heat and corrosion.
● Dry Vapor seal (1~10HP):ensure to prevent pumps and bearings form being etched by chemical gas and prolong the using life of pump.
● For etching machines , spraying equipments, cooling circulating of acid and alkali liquids, waste gas towers, waste water treatment and be used with filite.
● Pumps are no damaged in drying running.
● We suggest using Ti screws and painting EPOXY on motors for increasing the corrosion insistence and life of usage in the strong etching chemical solution environment.
● Compared to traditional FC motor front cover, motor spacer which is innovatively made of FRPP can dramatically weaken acid corrosion and reduce the weight of machine.
● It's applicable for circulating transportation of electroless nickel plating chemical copper and other kinds of special electroplating solutions.
CONSTRUCTION

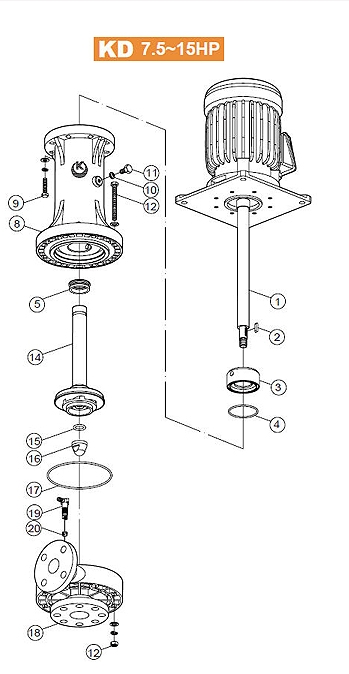

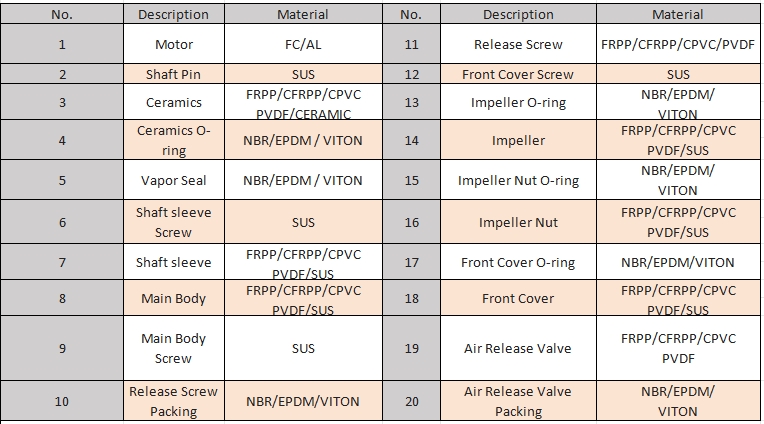

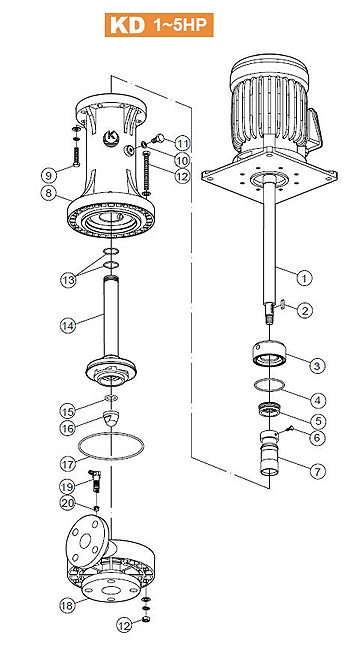

PARTS LIST
1.Model: KD series
2.IN-OUTLET: 15-1/2'' 20-3/4'' 25-1''
32-1.25'' 40-1.5'' 50-2''
65-2.5'' 80-3'' 100-4''
3.Specfic Gravity: VK-1.1 VP-1.4
4.Power: 1/15 - 1/15HP 1/8 -1/8HP 1/6 -1/6HP
1/4 -1/4HP 1/3 - 1/3HP 1/2 - 1/2HP
1 - 1HP 2 - 2HP 3 - 3 HP
5 - 5HP 7.5 - 7.5HP 10 - 10HP
5.Frequency: 5- 50Hz 6 - 60 Hz
6.O-ring: N- NBR E-EPDM V-VITON T-PTFE
7.Pump Material: F-FRPP P-PVDF C-CPVC
8.NOTES: B-Motor Spacer is FRPP H-High head
Vertical pump - KD Series,we have the model number as below:
KD-41VK-15 , KD-42VK-25 , KD-42VK-35 , KD-50VK(VP)-35 , KD-50VK(VP)-55
KD-65VK-55 , KD-65VK(VP)-7.55 , KD-65VK(VP)-105 , KD-100VK(VP)-155
VK / VP TYPE 50Hz
Testing fluid:Water (Specific gravity 1.0)测试流体:水(比重1.0) | ||||||||
Model 型式 |
In-Outlet进出口径 Dimension(mm) |
Power马力 |
Curve 曲线 |
Max Cap. 全流量 FLOW L/min |
Max Head 全扬程 M |
Weight 重量 (kg) |
||
HP | VK | VP | VK | VP | ||||
KD-41VK-15 | 50×40 | 1 | A | 175 | - | 6 | - | 29 |
KD-42VK-25 | 50×40 | 2 | B | 190 | - | 12 | - | 38 |
KD-42VK-35 | 50×40 | 3 | C | 270 | - | 12 | - | 41 |
KD-50VK(VP)-35 | 65×50 | 3 | D | 330 | 290 | 12 | 12 | 41 |
KD-50VK(VP)-55 | 65×50 | 5 | E | 470 | 400 | 14 | 14 | 55 |
KD-65VK-55 | 80×65 | 5 | F | 500 | - | 14 | - | 55 |
KD-65VK(VP)-7.55 | 80×65 | 7.5 | G | 590 | 500 | 16 | 18 | 95 |
KD-65VK(VP)-105 | 80×65 | 10 | H | 590 | 570 | 18 | 18 | 106 |
KD-100VK(VP)-155 | 100×80 | 15 | I | 1000 | 800 | 27 | 29 | 155 |

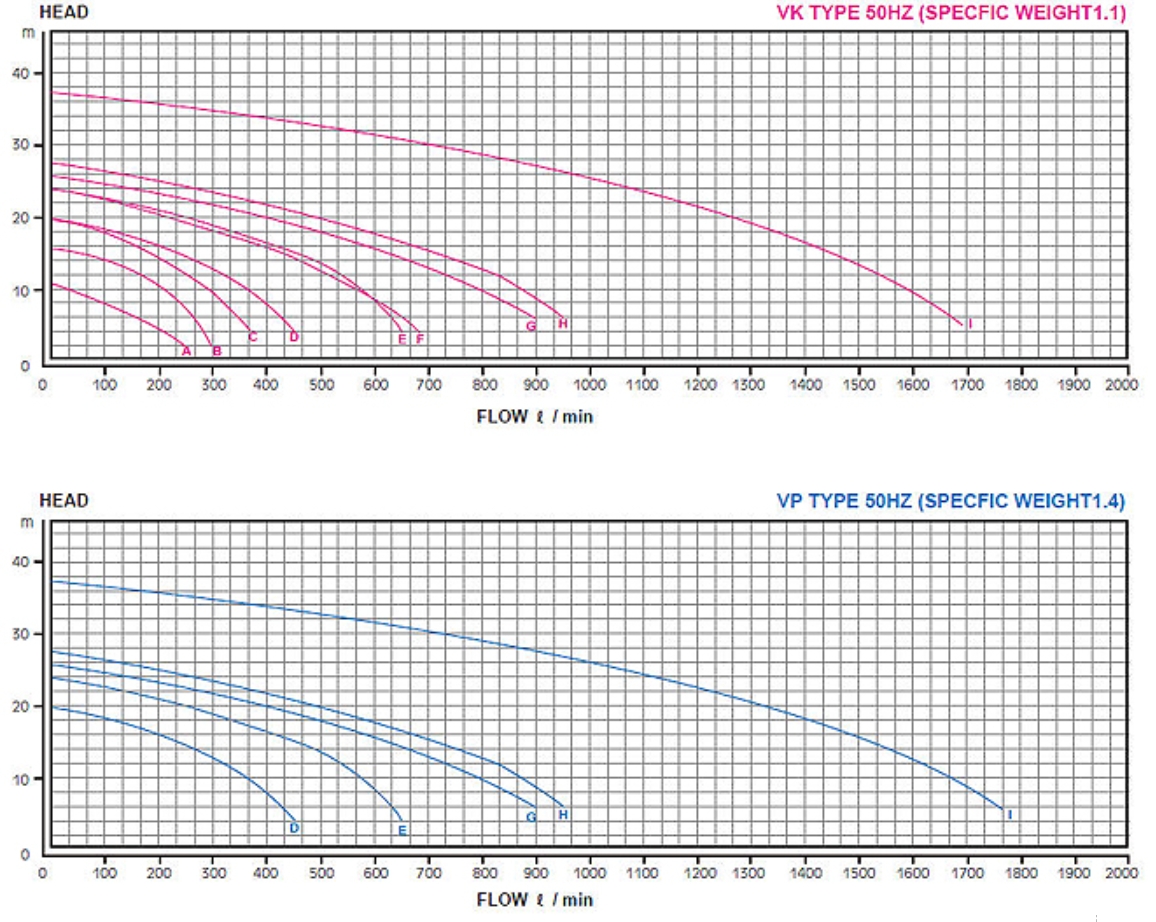

PERFORMANCE CURVE
SPECIFICATION
VK / VP TYPE 60Hz
Testing fluid:Water (Specific gravity 1.0)测试流体:水(比重1.0) | ||||||||
Model 型式 |
In-Outlet进出口径 Dimension(mm) |
Power马力 |
Curve 曲线 |
Max Cap. 全流量 FLOW L/min |
Max Head 全扬程 M |
Weight 重量 (kg) |
||
HP | VK | VP | VK | VP | ||||
KD-41VK-16 | 50×40 | 1 | a | 120 | - | 8 | - | 29 |
KD-42VK-26 | 50×40 | 2 | b | 300 | - | 10 | - | 38 |
KD-42VK-36 | 50×40 | 3 | c | 350 | - | 14 | - | 41 |
KD-50VK(VP)-36 | 65×50 | 3 | d | - | 300 | - | 12 | 41 |
KD-50VK(VP)-56 | 65×50 | 5 | e | 550 | 430 | 15 | 15 | 55 |
KD-65VK-56 | 80×65 | 5 | f | 650 | - | 15 | - | 55 |
KD-65VK(VP)-7.56 | 80×65 | 7.5 | g | 780 | 600 | 18 | 16 | 95 |
KD-65VK(VP)-106 | 80×65 | 10 | h | 890 | 800 | 20 | 18 | 106 |
KD-100VK(VP)-156 | 100×80 | 15 | i | 1200 | 1000 | 25.5 | 29 | 155 |

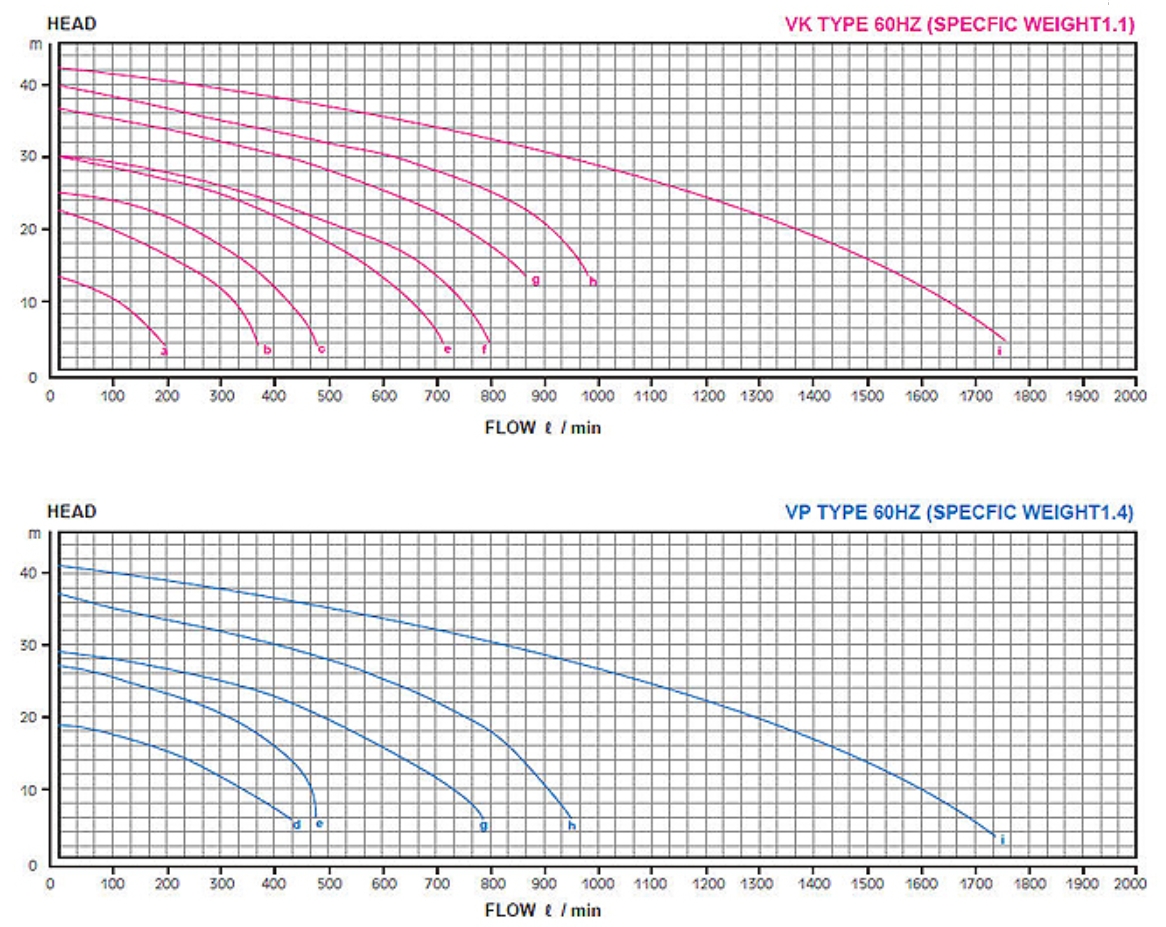

PERFORMANCE CURVE

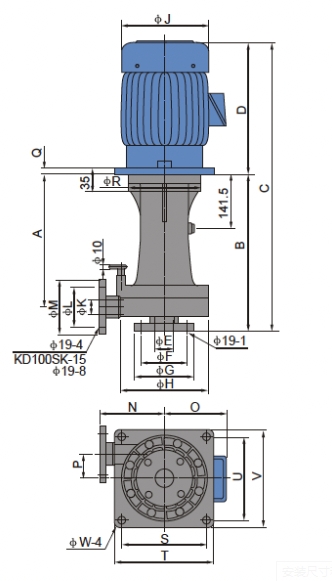

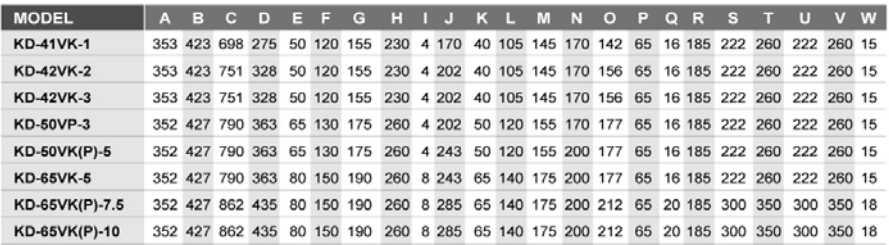

DIMENSION UMIT:MM
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
