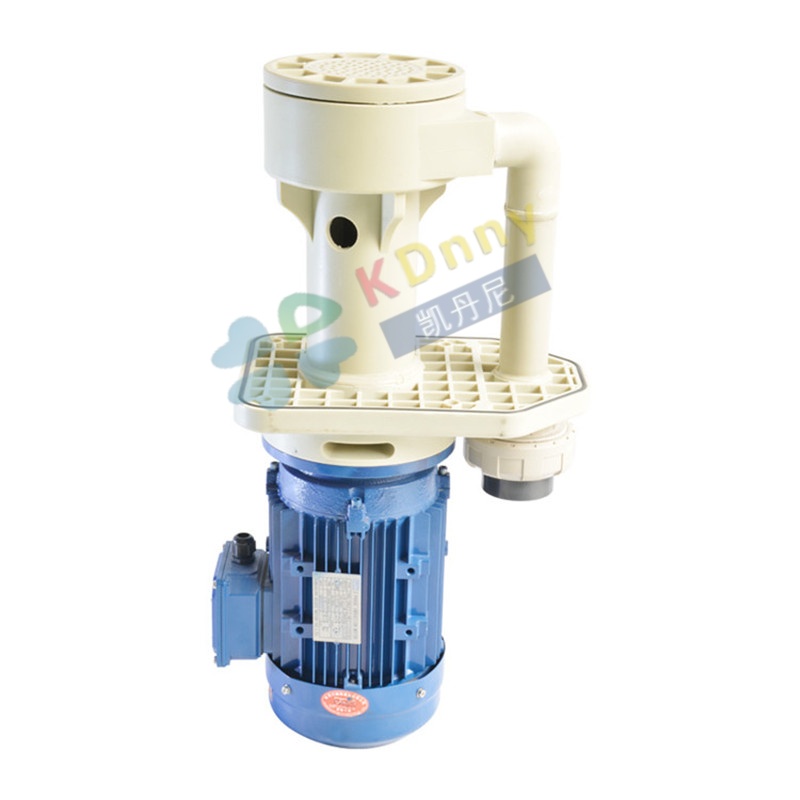

NMB Series - Chemical Vertical Pump

TIME：2025-02-05 Author：admin Views：

PARAMETERS

● Max. Capacity:50Hz-150~800 L/min 60Hz-150~800 L/min
● Max. Head: 50Hz-10.5~40 m 60Hz-10.5~44 m
● Power: 0.37~7.5 kW

● Pump Casing: FRPP, CFRPP, PVDF

PRODUCT FEATURES

● Impact size and mounting plate structure make it the most ideal for in-tank applications. Easy to mount and maintain.

● Double vapor seals stops corrosive vapor to reach the motor bearing perfectly.

● O-ring below the mounting plate prevents the corrosive vapor to escape and pollute the environment.

● Various materials are available for various chemicals.

● Suitable for chemical circulation, cooling,spraying and scrubber applications.

● Both flanges of motor have oil seals to prevent acid vapor from entering the motor.

TYPICAL APPLICATIONS

● Chemical or water recirculation
● Fume scrubbers/waste treatment
● Plating solutions PCB
● Wet processing
● Cleaning solutions
● Deliver acids

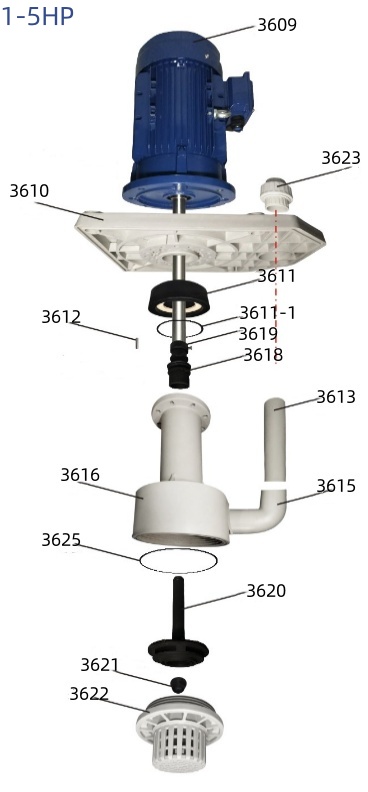

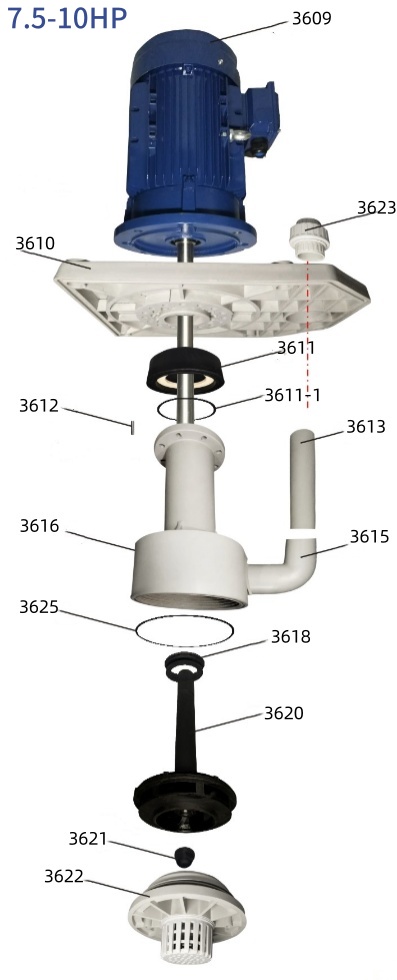

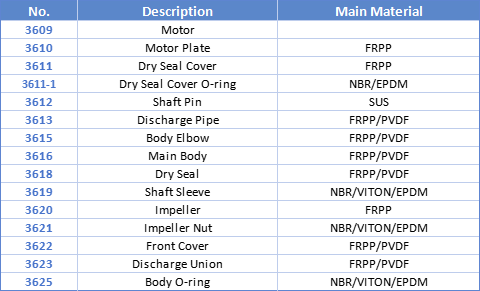

PARTS LIST

MODEL EXPLANATION

1、 Model: NMB

2、 Pump Material: 1-FRPP 2-CFRPP 3-PVDF

3、 In-Outlet: E-50*25 F-50*32 G-50*40

H-50*50 I-65*50 L-100*100

4、 Specific Gravity: K-1.1 Specific Gravity 1.1

P-1.4 Specific Gravity 1.4

A- Large Flow L- 4P Low Speed

5、 Power：8-370W 10-0.75kW 16-1.5kW 18-2.2kW

20-3.75kW 25-5.5kW 30-7.5kW

6、 Rubber: N-NBR E-EPDM V-VITON

7、 Frequency: 5-50Hz 6-60Hz

8、 Motor Type: N-Standard Type

B-Explosion Type

9、 Shaft Material: No Show-Standard Type T-Titanium

These are Vertical Pump In-tank type of NMB Series, we have the models number as below:

NMB-EK-8

NMB-EK-10

NMB-EK-16

NMB-FK-16

NMB-GK-18

NMB-QK-20

NMB-QK-25

NMB-IK-25

NMB-IK-30

NMB-RK-25

NMB-RK-30

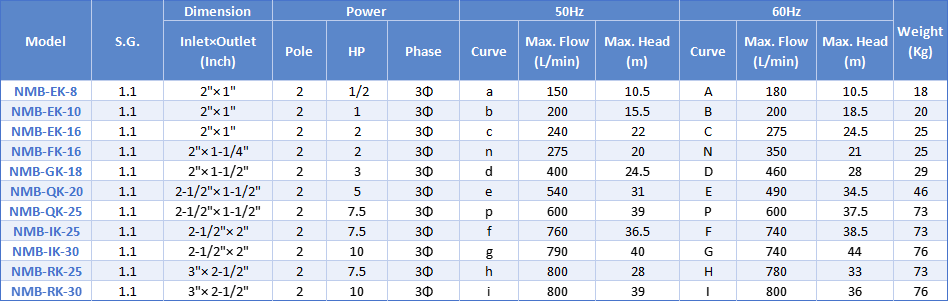

SPECIFICATION

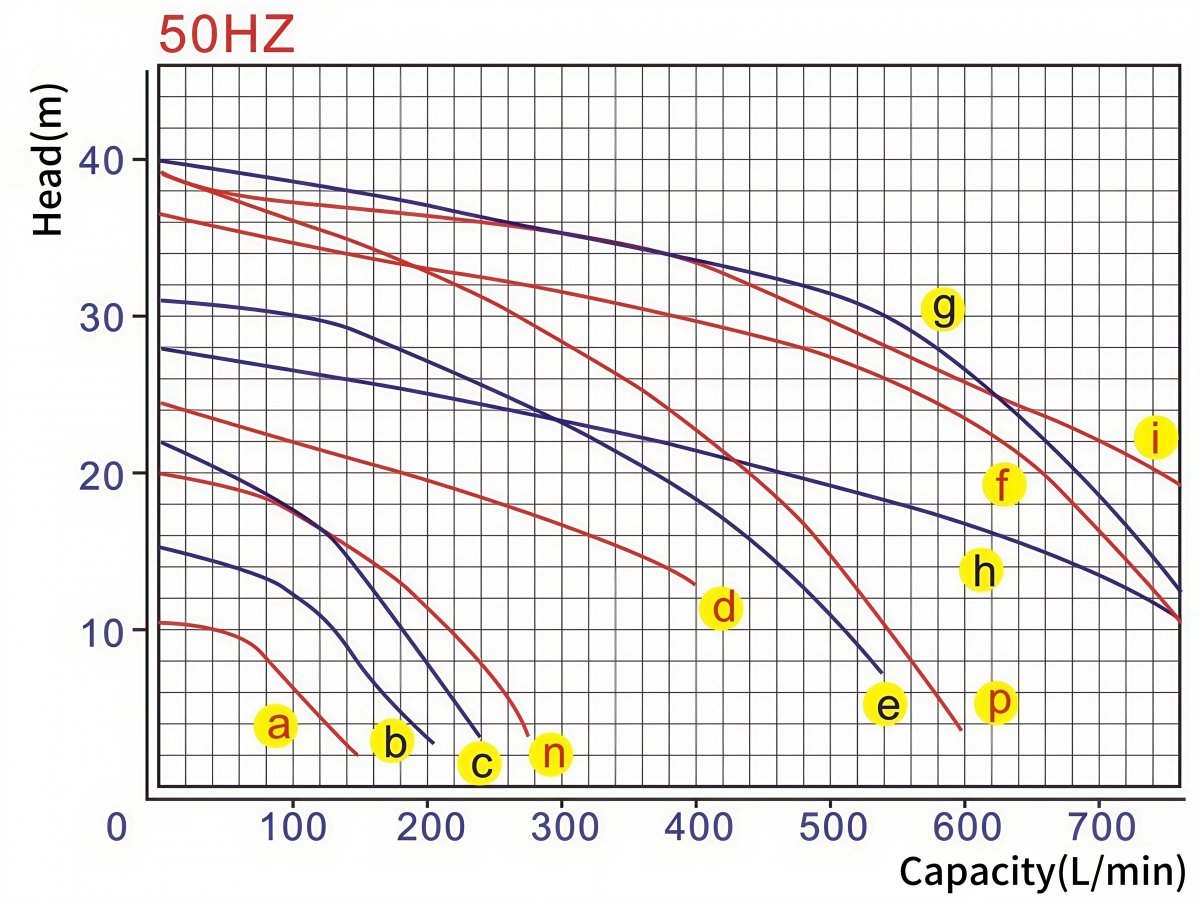

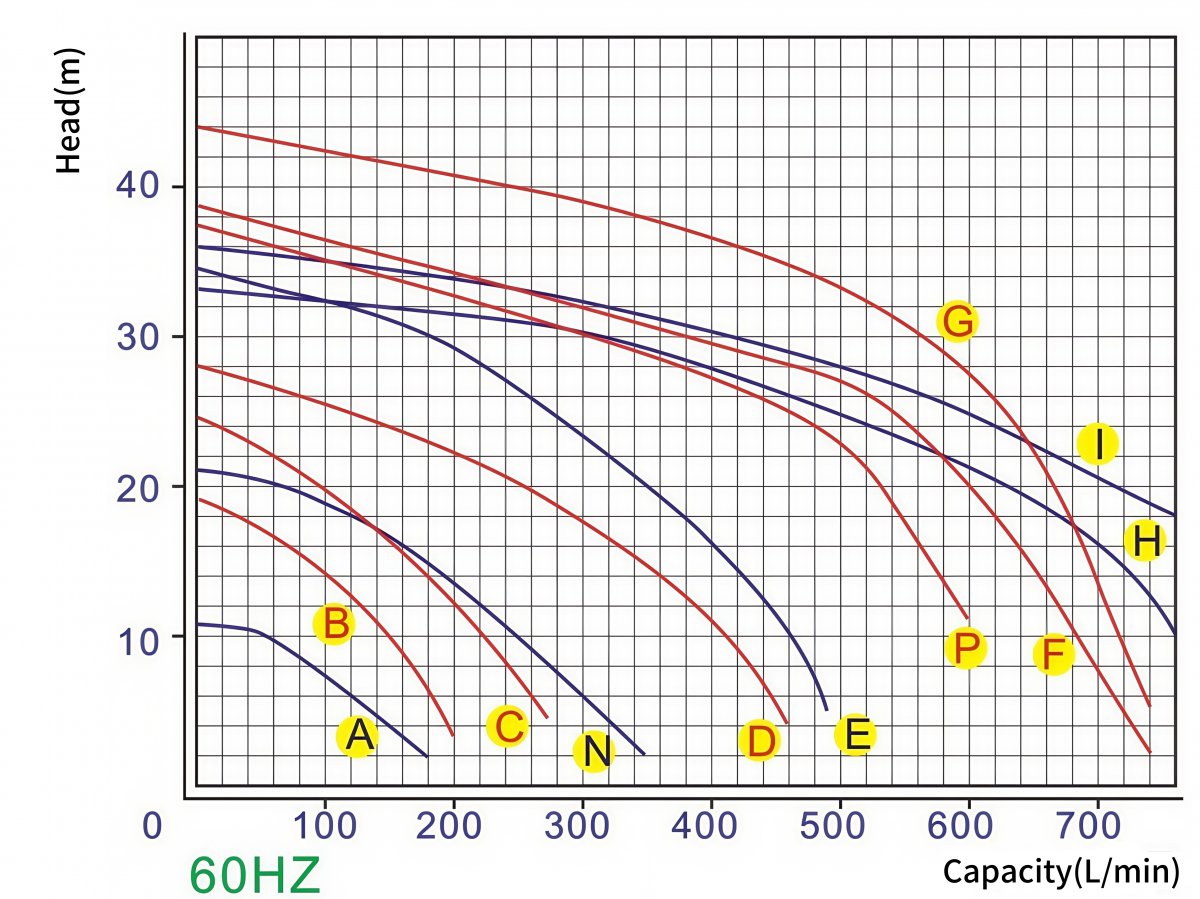

PERFORMANCE CURVES

While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
