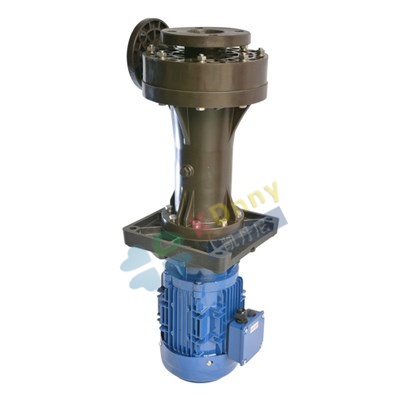

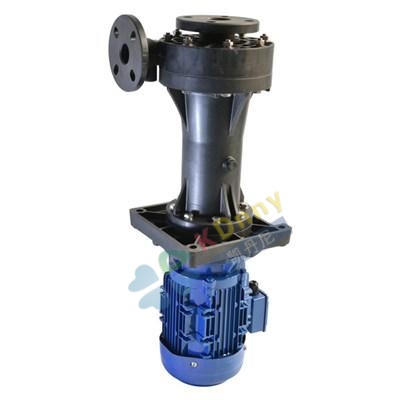

NMA Series - Vertical Pump In-tank/ Out-tank Type

TIME：2025-02-05 Author：admin Views：89

PARAMETERS

● Max. Capacity:50Hz-280~2250 L/min 60Hz-250~1900 L/min
● Max. Head: 50Hz-14~35 m 60Hz-13~39 m
● Power: 0.75~15 kW

● Pump Casing: FRPP, CFRPP, PVDF

PRODUCT FEATURES

● CPVC,CFRPP,PVDF, FRPP construction.

● Non-metallic solution contact (outside of the tank).

● Max. fluid temperature:FRPP/CPVC/CFRPP167F(75℃) PVDF 185F(85C).

● High efficiency-low operating cost, leakfreeoperation and easy maintenance.

● Excellent chemical resistance.

● No seals or bearings in pump head to wear out.

● Continuous chemical duty TEFC motors with oversized bearings in motor casing.

● Vertical pumps can run-dry without damage to vapor seal.

● Single vapor seal of KTD series or double seals of KSTD series prevents corrosive vapors from entering the motor base.

● Thick reinforced ribbing in all molded parts.

● Simplicity of design makes these pumps easy to service and operate.

● Vented pump base.

● The pump can be mounted outside of tank or process module. For mounted inside the tank, the bolts should be changed depending on the solution.

TYPICAL APPLICATIONS

● Chemical or water recirculation
● Fume scrubbers/ waste treatment
● Various plating solutions recirculation

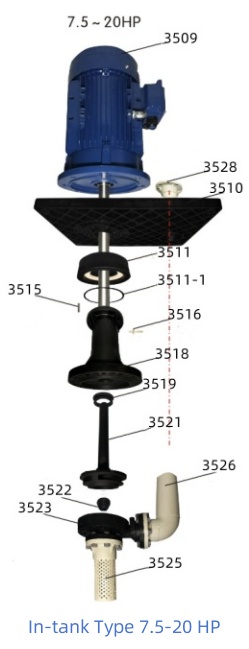

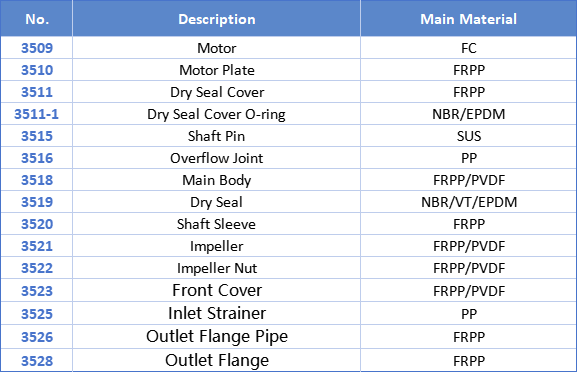

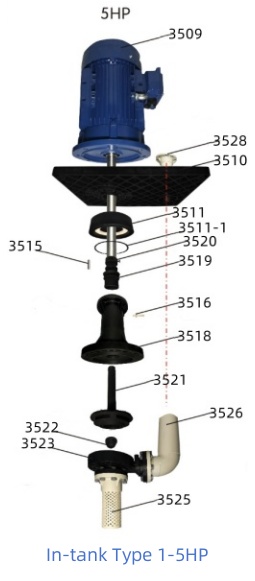

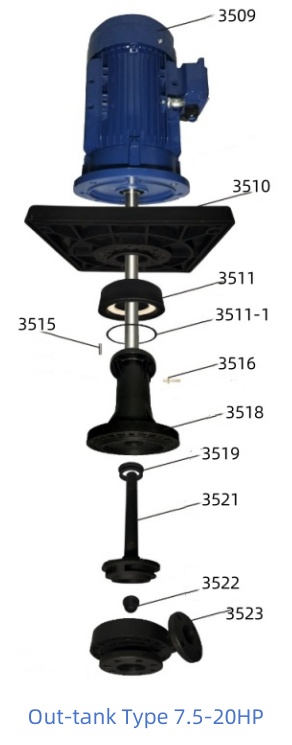

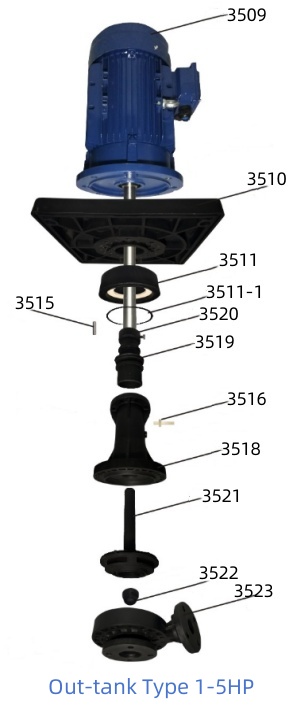

PARTS LIST

MODEL EXPLANATION

1、 Model: NMA-- Out-tank Installed

NMA-I -- In-tank installed

2、 Material: 1-FRPP 2-CFRPP 3-PVDF

3、 In-Outlet: G-50*40 I-65*50 K-80*65

J-80*80 L-100*100 M125*125

4、 Specific Gravity: K-Specfic Gravity 1.1 P-Specfic Gravity 1.4
A-Large Flow L-4P Low Speed

5、 Power: 10-0.75kW 16-1.5kW 18-2.2kW 20-3.75kW

25-5.5kW 30-7.5kW 35-11kW 38-15kW

6、 Rubber: N-NBR E-EPDM V-VITON T- Titanium

7、 Frequency: 5-50Hz 6-60Hz

8、 Motor Type: N-Standard Type B-Explosion

9、 Shaft Material: No Show-Standard Type T-Titanium

These are Vertical Pump In-tank type / Out-tank type of NMA Series, we have the models number as below:

NMA-GK-10

NMA-GK-16

NMA-GK-18

NMA-IK-18

NMA-IK-20

NMA-KK-20

NMA-KK-25

NMA-KK-30

NMA-JA-20

NMA-JA-25

NMA-JA-30

NMA-LA-30

NMA-LA-35

NMA-MA-35

NMA-MA-38

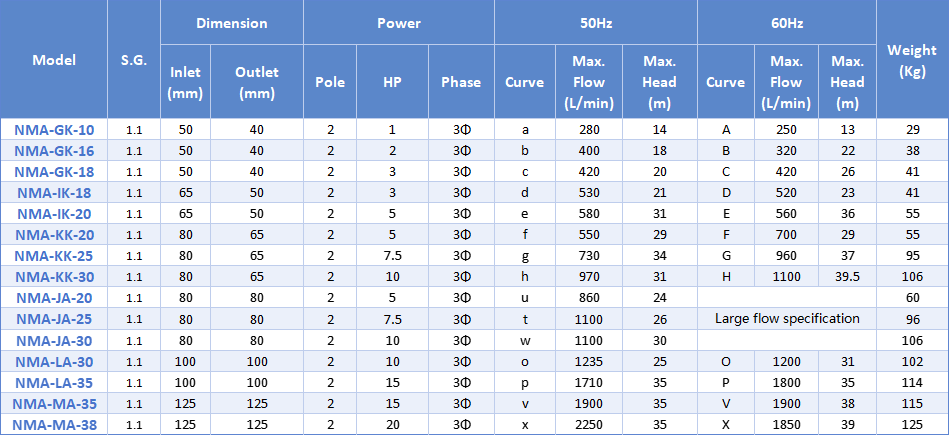

SPECIFICATION

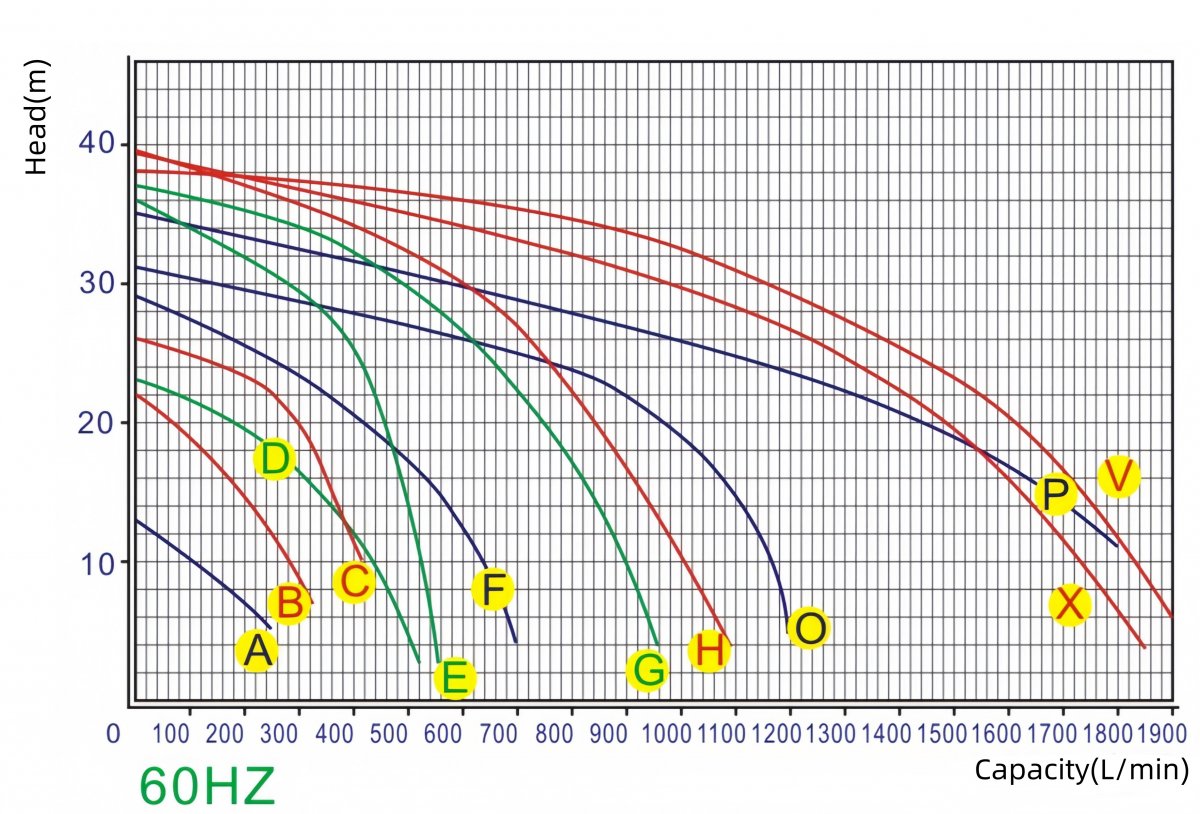

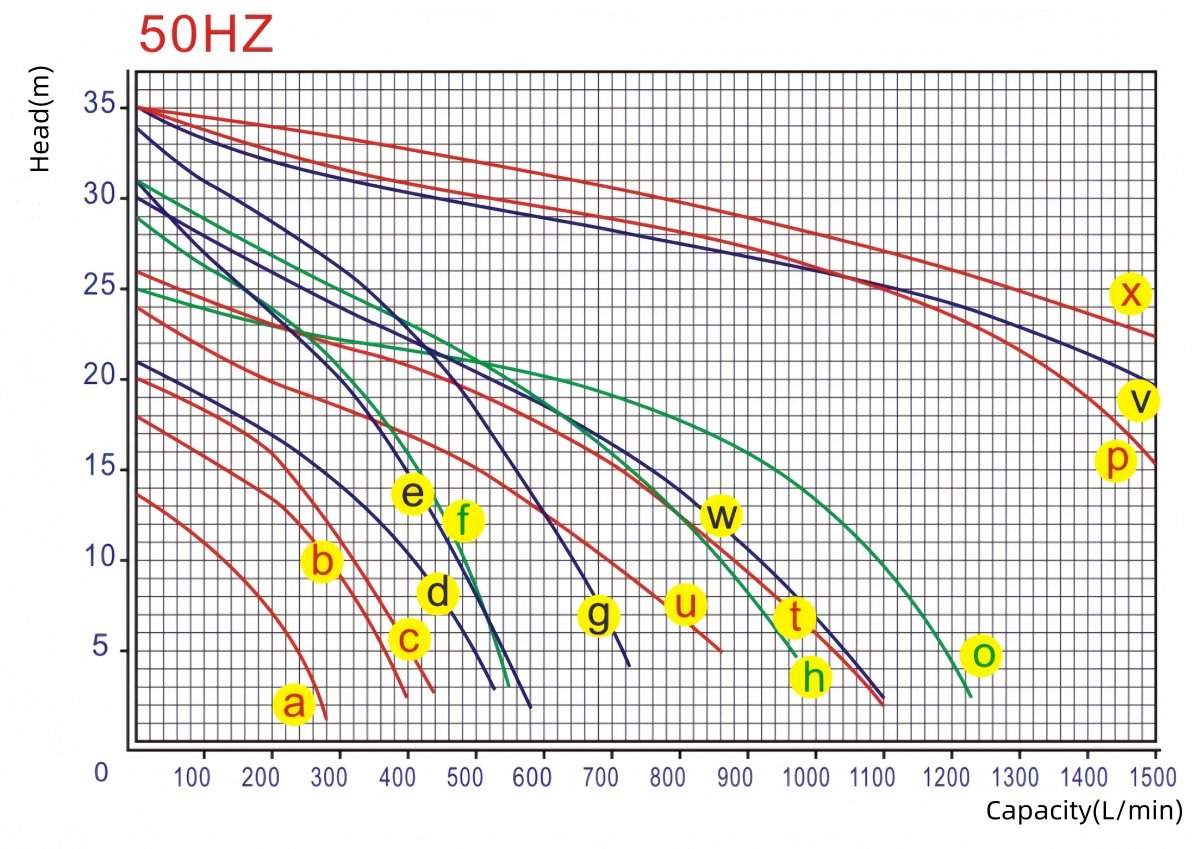

PERFORMANCE CURVES

While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
