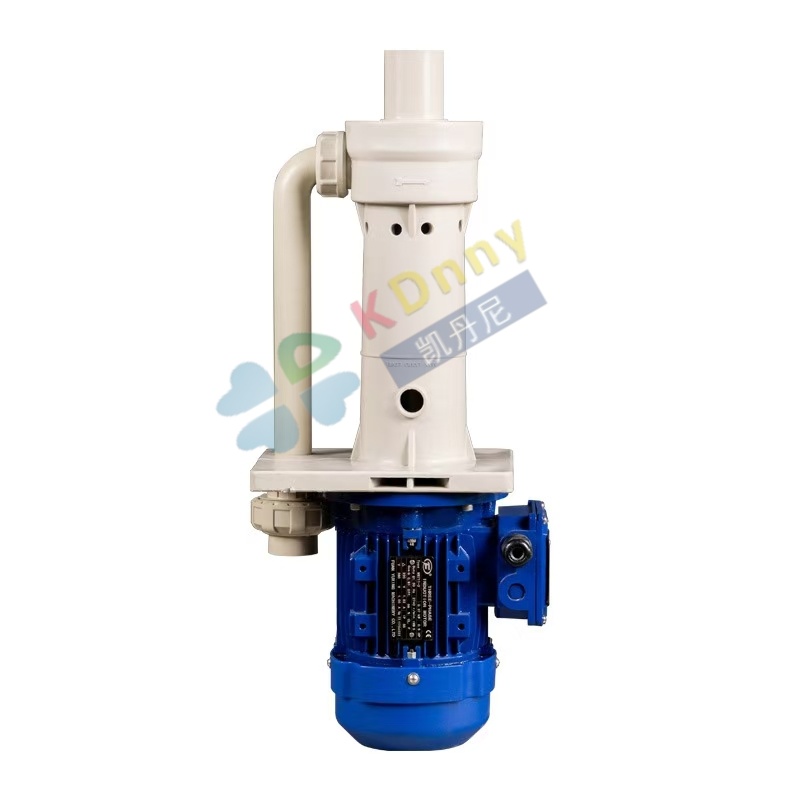

NMG Series - Vertical Pump In-tank Type
TIME：2025-02-05 Author：admin Views：
PARAMETERS
● Max.Capacity: 50Hz-50~410 L/min 60Hz-750~450 L/min
● Max.Head: 50Hz-3~21 m 60Hz-4~23 m
● Power: 0.05~2.2kW
● Pump Casing: GFRPP, CPVC, PVDF
● Double layer dry liguid seal design, can prevent the erosion of motor bearing by chemical gas.
● Seal-less is designed, not damaged by dry-running.
● Suitable for etching spray cleaning equipment.
● Waste gas scrubber. Cooling loop and match filter to use.
● Cooling loop
● Spray cleaning equipment
● Etching machines
● Wastewater treatment
● Waste gas scrubber
PRODUCT FEATURES
● Pump body adopts GFRPP, PVDF material ability of high temperature and corrosion resistance.● Double layer dry liguid seal design, can prevent the erosion of motor bearing by chemical gas.
● Seal-less is designed, not damaged by dry-running.
● Suitable for etching spray cleaning equipment.
● Waste gas scrubber. Cooling loop and match filter to use.
TYPICAL APPLICATIONS
● Various acid and alkali liquid circulation● Cooling loop
● Spray cleaning equipment
● Etching machines
● Wastewater treatment
● Waste gas scrubber
MODEL EXPLANATION
1、Model: NMG
2、Pump Material: 1-GFRPP 3-PVDF
3、In-Outlet: O-15*15 P-20*20 B-25*25 F-50*32 G-50*40
4、Specific Gravity: K-Specific Gravity 1.1
P-Specific Gravity 1.4
A-Large Flow
L-4P Low Speed
5、 Power: 0-50W 1-90W 2-120W 3-180W 5-250W
8-370W 10-0.75kW 16-1.5kW 18-2.2kW
6、 Rubber: N-NBR E-EPDM V-VITON T-TEFLON
7、 Frequency: 5-50Hz 6-60Hz
8、 Motor Type: N-Standard Type B-Explosion Type
9、 Shaft Material: No Show-Standard Type T-Titanium
These are Vertical Pump In-tank type of NMB Series, we have the models number as below:
NMG-O-0
NMG-O-1
NMG-O-2
NMG-P-3
NMG-P-5
NMG-B-8
NMG-F-10
NMG-G-16
NMG-G-18

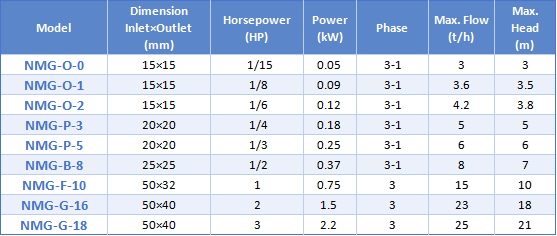

SPECIFICATION

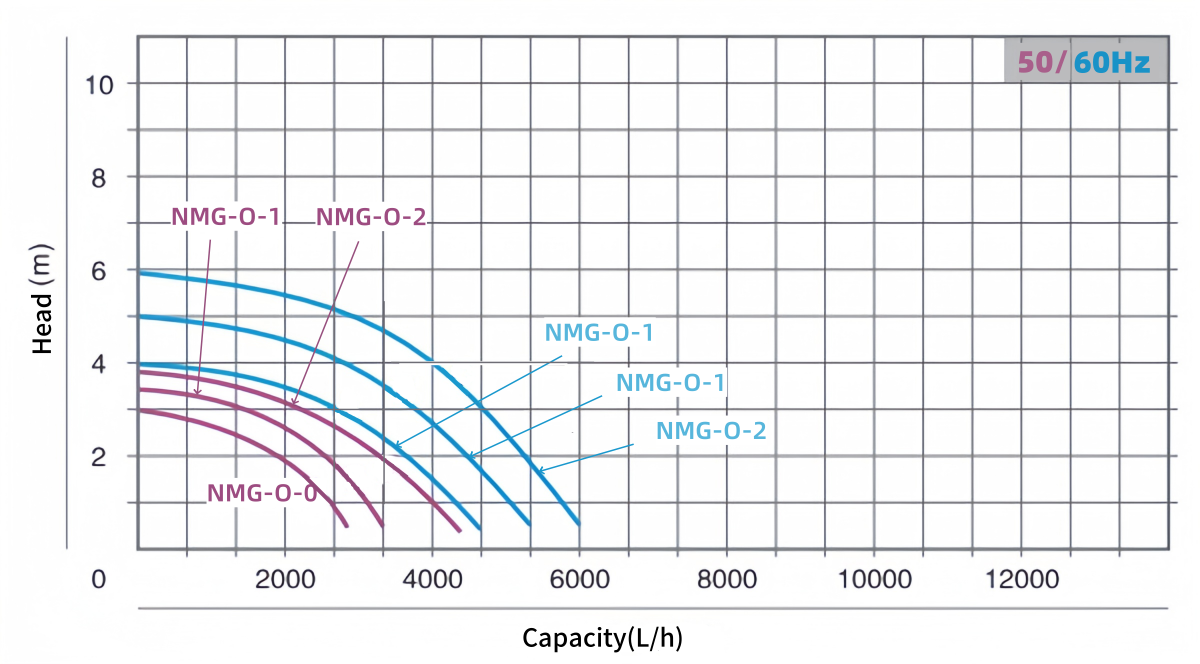

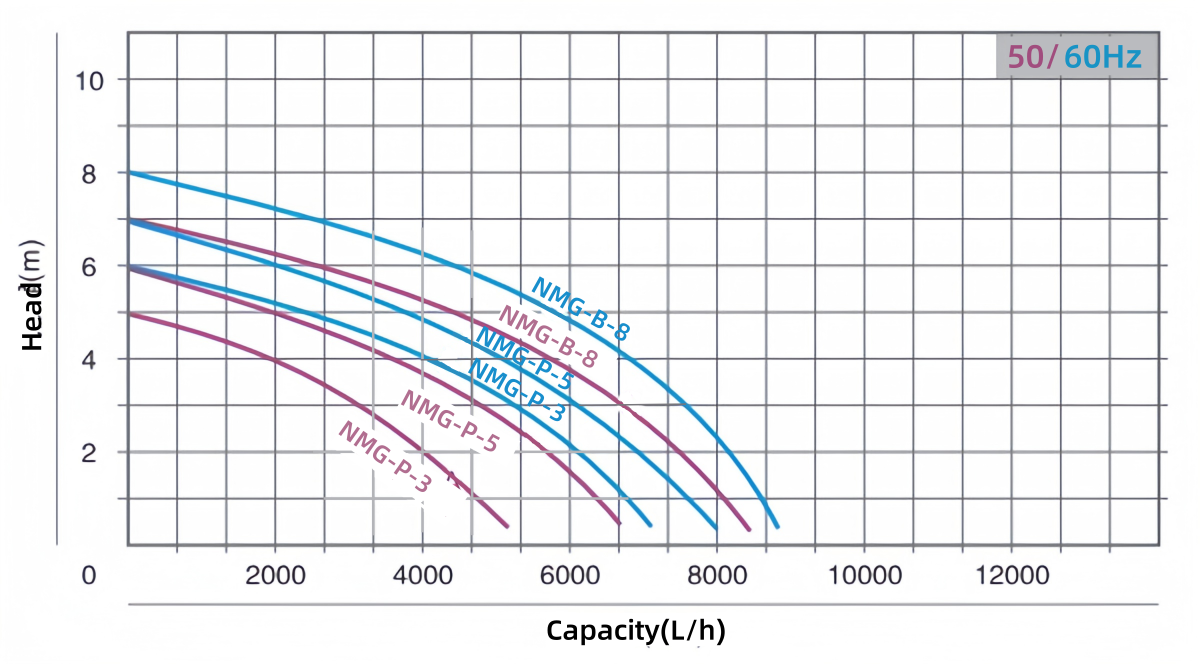

PERFORMANCE CURVE
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
