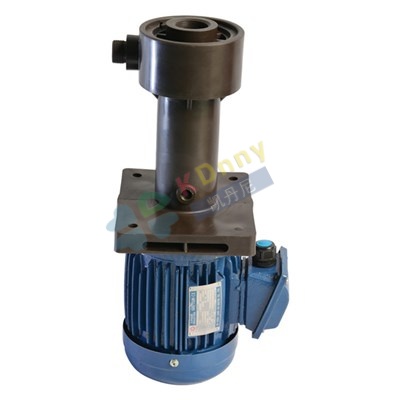

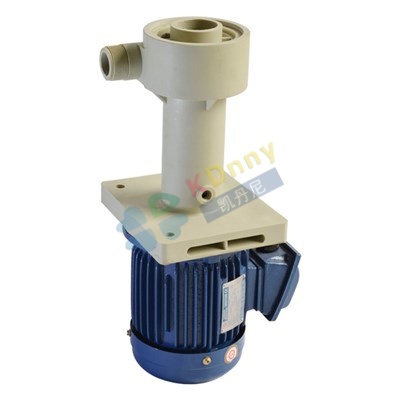

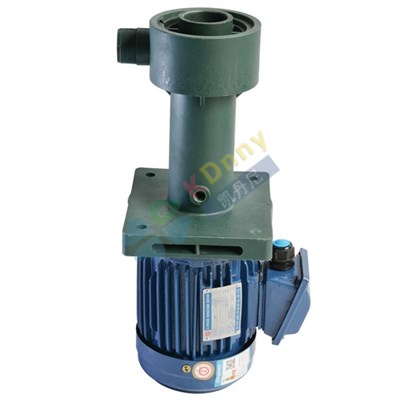

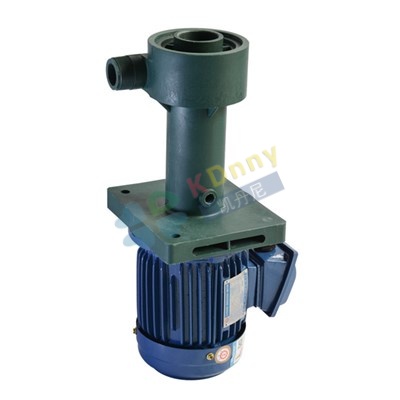

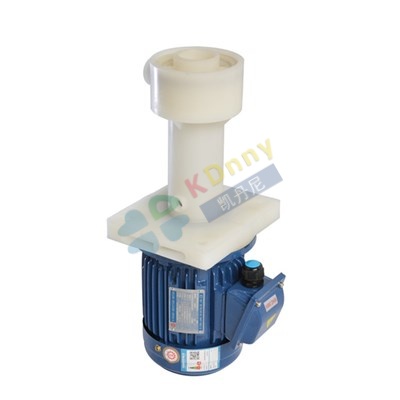

NMC Series - Vertical Pump In-tank Type
TIME：2025-02-05 Author：admin Views：209
PARAMETERS
● Max. Capacity:50Hz-28~270 L/min 60Hz-38~320 L/min● Power: 0.094~1.5 kW
● Pump Casing: FRPP, CFRPP, PVDF
1、Model: NMC--Out-tank Installed
PRODUCT FEATURES
● Molded parts are out of FRPP, CPVC, CFRPP, PVDF applicable for various chemicals.
● Suitable for chemical circulation, cooling, spraying, PCB etching, waste water and scrubber applications.
● Can run-dry without damage.
● Single vapor seal prevents corrosive vapor from entering the bearing.
● Ideal for use in electroless nickel or copper plating and various solutioncirculation applications..
● Ideal for use in combination with filter.
● Both flanges of motor have oil seals to prevent acid vapor from entering the motor.
TYPICAL APPLICATIONS
● Chemical or water recirculation
● Fume scrubbers/waste treatment
● PCB Plating solutions
● Wet processing
● Cleaning solutions
● Deliver acids
● Fume scrubbers/waste treatment
● PCB Plating solutions
● Wet processing
● Cleaning solutions
● Deliver acids

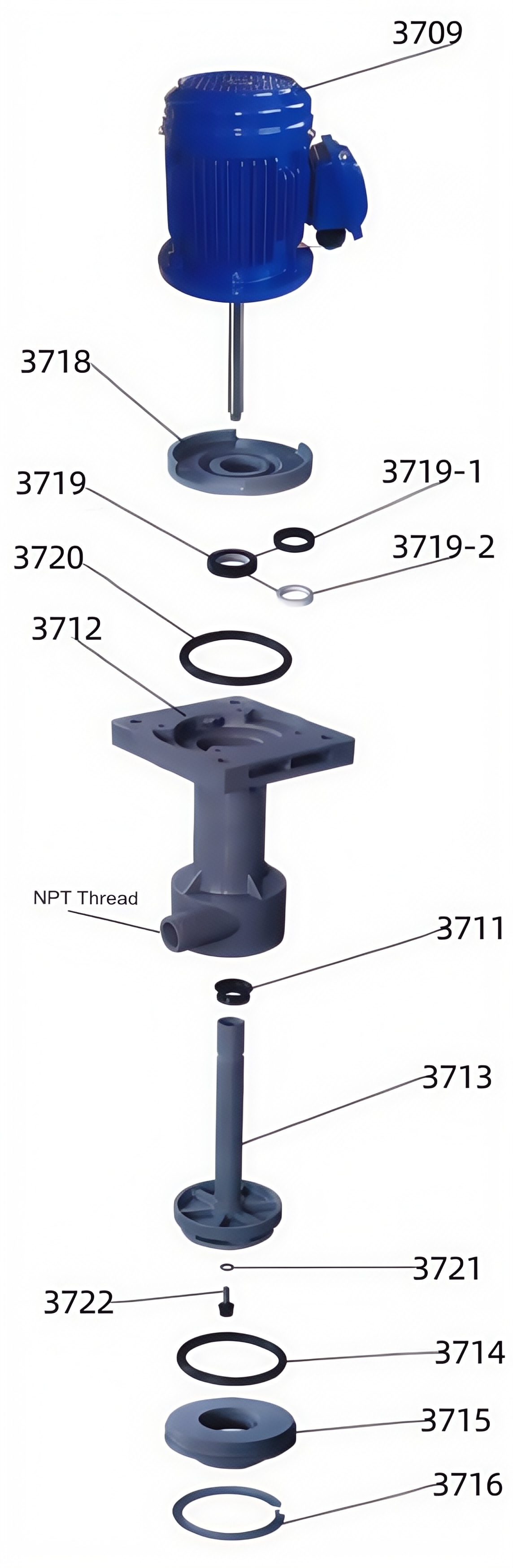

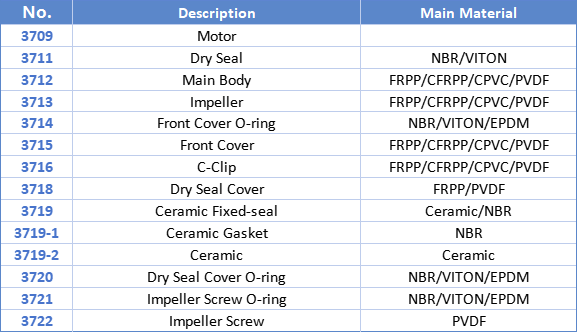

PARTS LIST
MODEL EXPLANATION
1、Model: NMC--Out-tank Installed
NMC-I-- In-tank Installed
2、Pump Material: 1-FRPP 2-CFRPP 3-PVDF
3、In-Outlet: A-25*20 B-25*25 C-40*25 G-50*40
4、Specific Gravity: K-Specific Gravity 1.1
P-Specific Gravity 1.4
A-Large Flow
L- 4P Low Speed
5、Power: 1-90W 2-120W 3-180W 5-250W
8-370W 10-0.75kW 16-1.5kW
6、Rubber: N-NBR E-EPDM V-VITON
7、Frequency: 5-50Hz 6-60Hz
8、Motor Type: N-Standard Type B-Explosion Type
9、Shaft Material: No Show-Standard Type T-Titanium
2、Pump Material: 1-FRPP 2-CFRPP 3-PVDF
3、In-Outlet: A-25*20 B-25*25 C-40*25 G-50*40
4、Specific Gravity: K-Specific Gravity 1.1
P-Specific Gravity 1.4
A-Large Flow
L- 4P Low Speed
5、Power: 1-90W 2-120W 3-180W 5-250W
8-370W 10-0.75kW 16-1.5kW
6、Rubber: N-NBR E-EPDM V-VITON
7、Frequency: 5-50Hz 6-60Hz
8、Motor Type: N-Standard Type B-Explosion Type
9、Shaft Material: No Show-Standard Type T-Titanium
These are Vertical Pump In-tank type of NMC Series, we have the models number as below:
NMC-AK-1
NMC-AK-2
NMC-AK-3
NMC-BK-5
NMC-CK-8
NMC-GK-10
NMC-GK-16
NMC-AP-2
NMC-BP-5
NMC-CP-10
NMC-GP-10
NMC-GP-16
NMC-GL-8
NMC-AK-2
NMC-AK-3
NMC-BK-5
NMC-CK-8
NMC-GK-10
NMC-GK-16
NMC-AP-2
NMC-BP-5
NMC-CP-10
NMC-GP-10
NMC-GP-16
NMC-GL-8

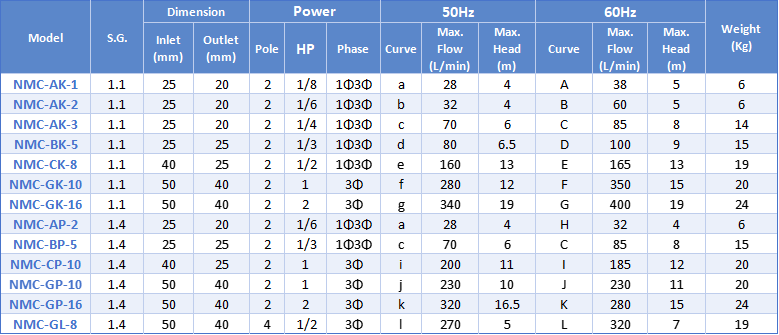

SPECIFICATION

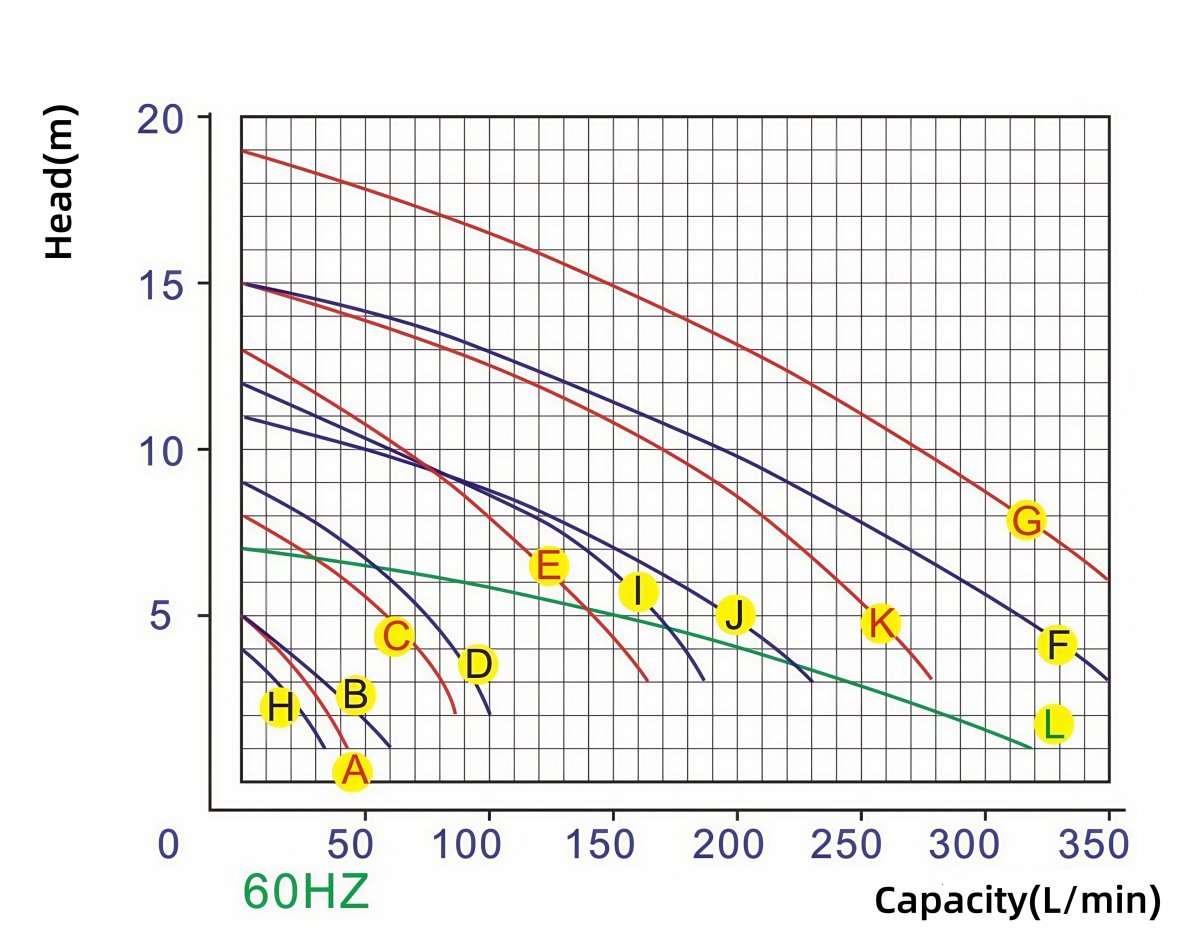

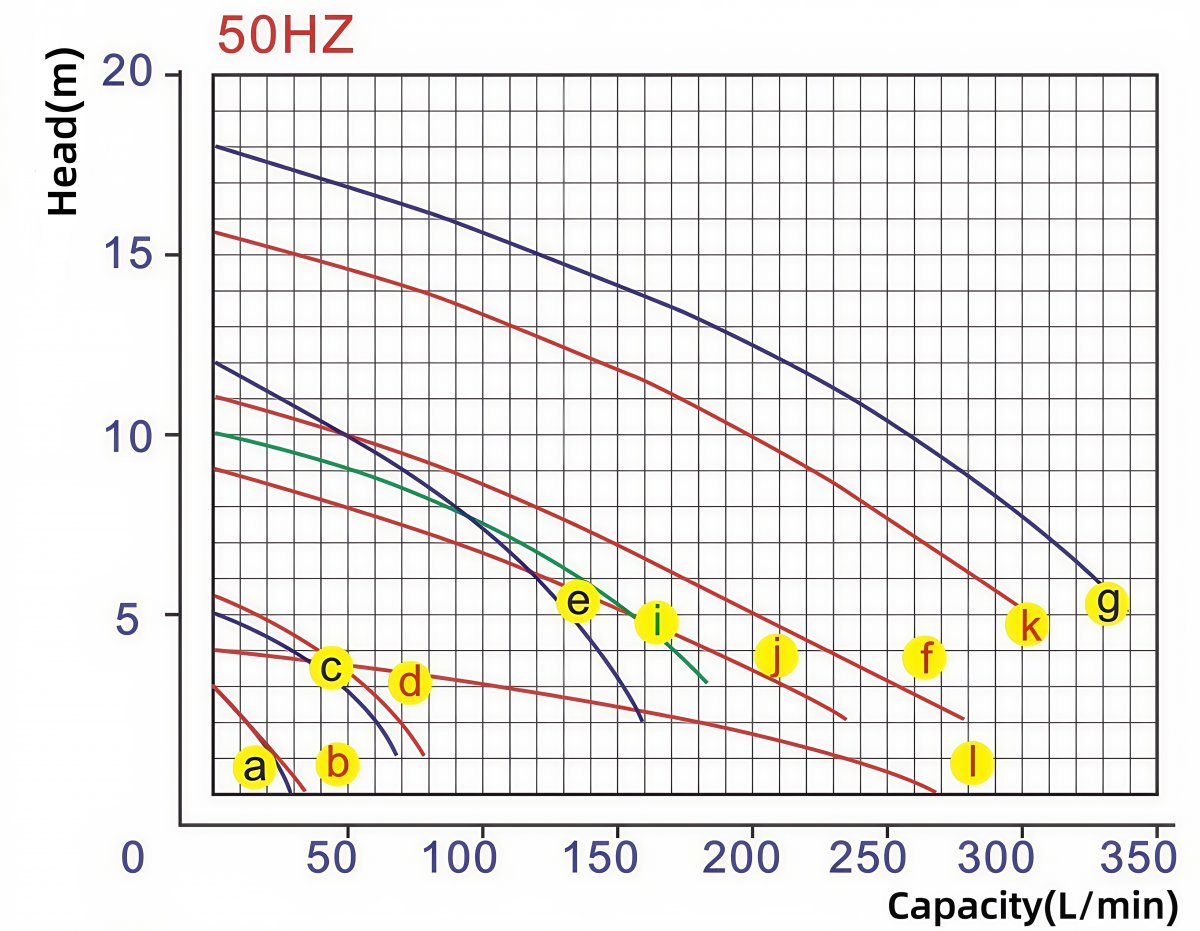

PERFORMANCE CURVES
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
