Vertical Pumps

Current Location:HOME > Produts > Vertical Pumps >

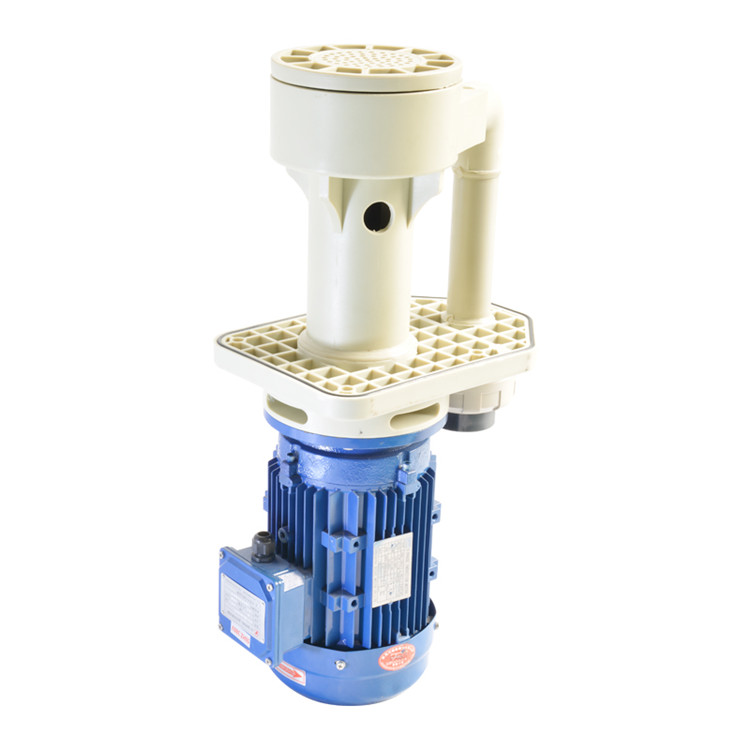

Vertical Pump In-tank Use - KSWP Series

TIME:2024-07-01 Author:admin Views:



TYPICAL APPLICATIONS:

● Chemical or water recirculation
● Fume scrubbers/waste treatment
● PCB Plating solutions
● Wet processing
● Cleaning solutions
● Deliver acids


PRODUCT FEATURES:

● 1 year warranty.
● PP construotion.
● Max. fluid temperature:PP/167F(75℃).
● ln-tank use only.
● High efficiency-low operating cost, leakfree operation and easy maintenance.
● Excellent chemical resistance.
● No seals or bearings in pump head to wear out.
● Continuous chemical duty TEFC motors with over sized bearings in motor casing.
● Vertical pumps can run-dry without damage to vapor seal.
● Keyed impeller prevent damage if pumps run in reverse on all three phase motors.
● Airless vertical pump.
● Discharge plumbing, easy mounting.
● Both flanges of motor have oil seals to prevent acid vapor from entering the motor.
● Besides, extra vapor seal can also stop the acid vapor to reach the bearing.
● Break-through double impellers.

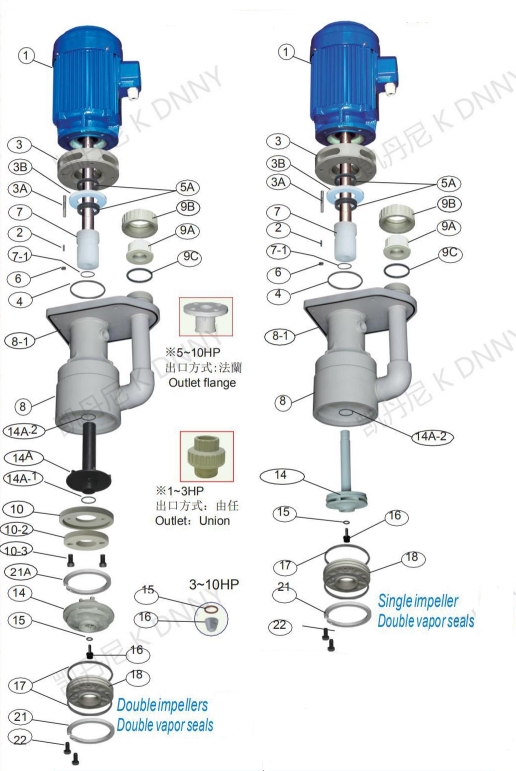

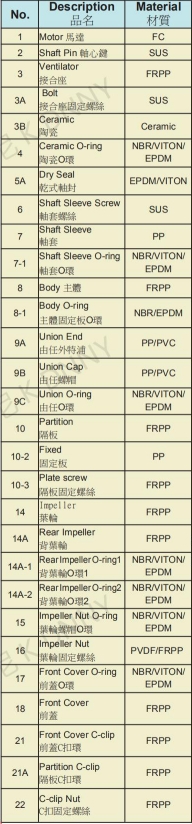

CONSTRUCTION
● Max. Capacity: 50Hz- 150~800 L/min    60Hz- 180~800L/min
● Max. Head: 50Hz- 6.5~41m     60Hz- 10.5~45m
● Power Range: 0.37~7.5 kW(%- 10 hp)
● Casing Material: FRPP
● Type: Vertical, Double vapor seals





(1)TYPE: KSWP - Single impeller double vapor seal                        KSWT - Double impeller double vapor seal
(2)  Outlet code: 32 - 1'' external diameter of pipe(DIN)          40 - 1-1/4''external diameter of pipe(DIN)
                         50 - 1-1/2'' external diameter of pipe(DIN)         63 - 2'' external diameter of pipe(DIN)
(3)Specific gravity: SK-1.1         SP-1.4        SL- Low speed 4P
(4)Power: 1/2 - 1/2HP  1 - 1HP  2 - 2HP  3 - 3HP  5 - 5HP  7 - 7.5HP   10 - 10HP
(5)Frequency: 5 - 50HZ   6 - 60HZ
(6)O-ring : V - VITON  N - NBR  E - EPDM
(7)Pump material: F-FRPP
(8)F-flange form  U-Union form
(9)S-Special model   N-Normal model



Currently, we have below model of KSWP series Vertical pump:

KSWP-32SK-1/2 , KSWP-32SK-1 , KSWP-32SK-2 , KSWP-40SK-2 , KSWP-50SK-3 , KSWP-50SK-5 , KSWP-50SK-7.5 , KSWP-63SK-7.5 , KSWP-63SK-10 ,  KSWP-75SK-7.5 , KSWP-75SK-10

KSWP-50SL-1, KSWP-63SL-2, KSWP-50SP-1, KSWP-50SP-2, KSWP-63SP-3, KSWP-63SP-5 , KSWP-63SP-7.5 , KSWP-63SP-10

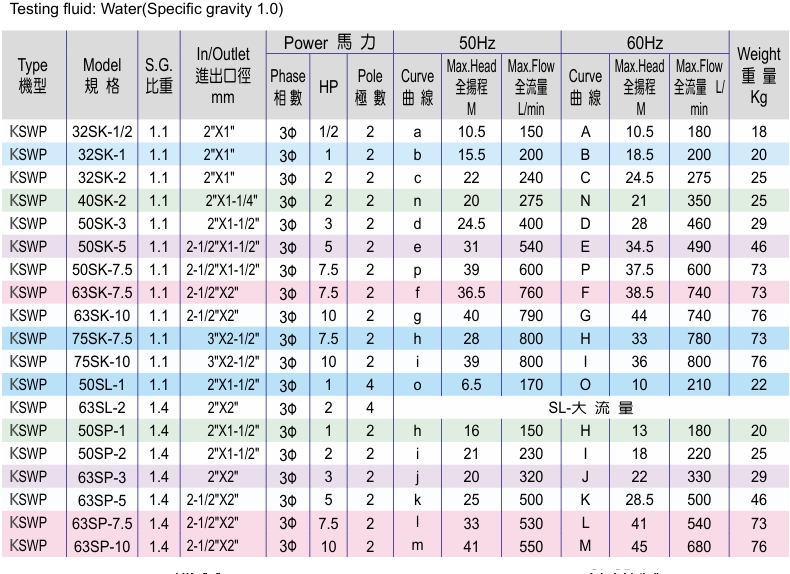

SPECIFICATION

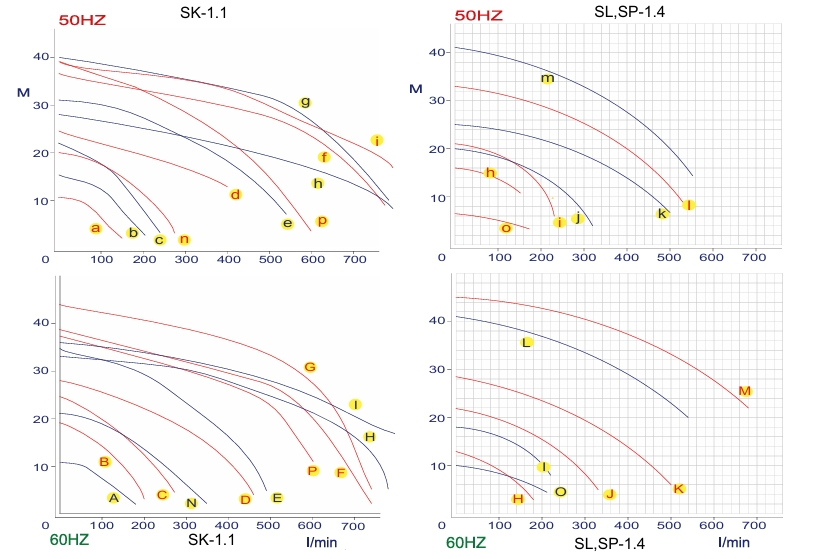

PERFORMANCE CURVE

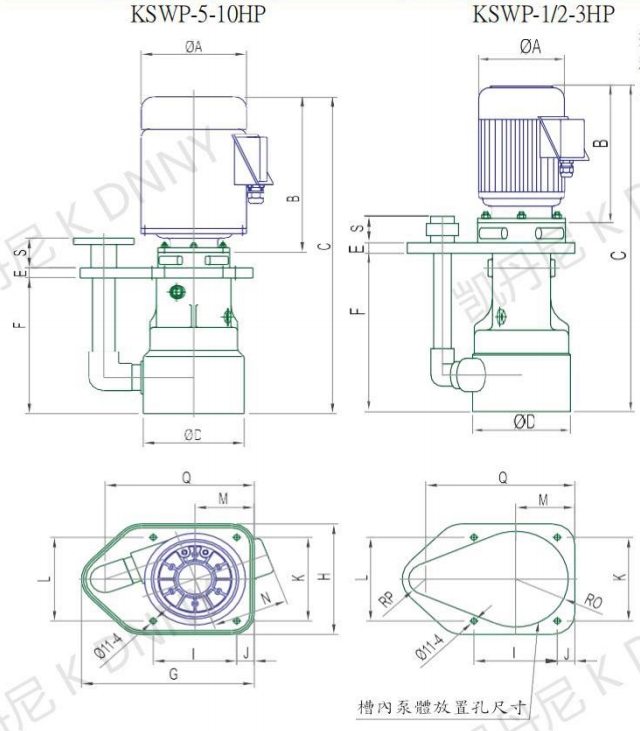

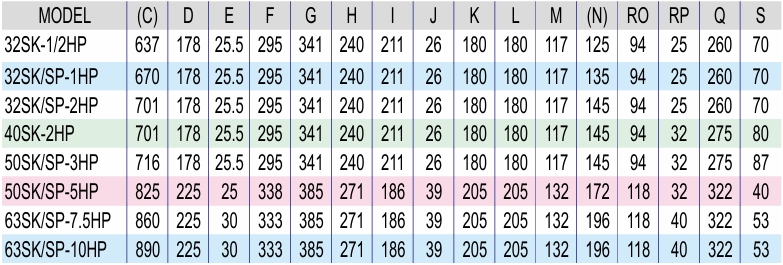

DIMENSION                                                                                                                                     UNIT:MM




While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
