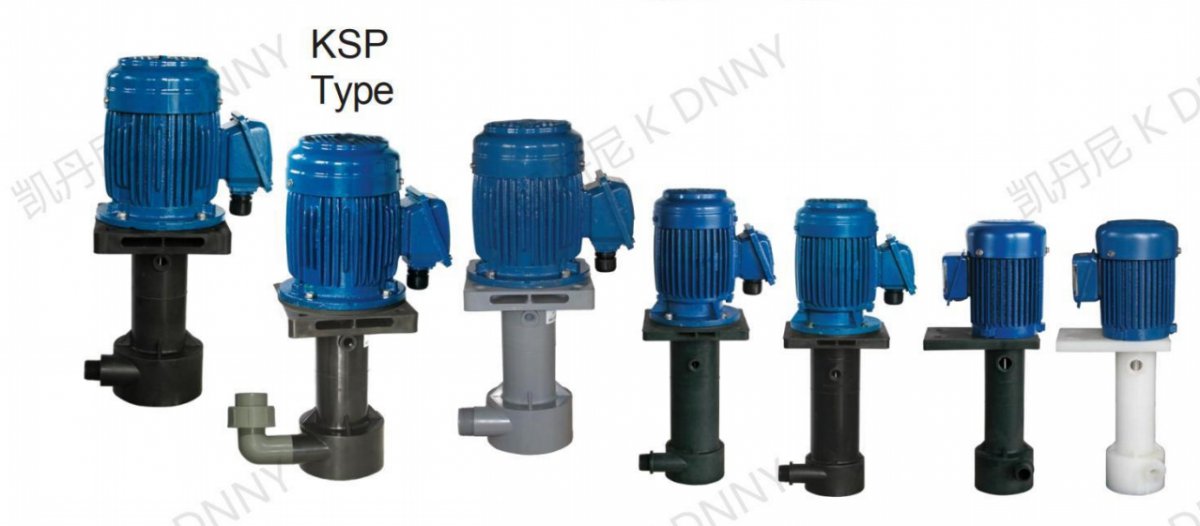

Vertical Pump In-tank Use- KSP Series
TIME：2024-07-01 Author：admin Views：
TYPICAL APPLICATIONS:
● Chemical or water recirculation
● Fume scrubbers/waste treatment
● PCB Plating solutions
● Wet processing
● Cleaning solutions
● Deliver acids
PRODUCT FEATURES:● 1 year warranty.
● CPVC,CFRPP,PVDF or polypropylene construction.
● Max. fluid temperature: polypropylene/CPVC/CFRPP167F(75℃) PVDF 185F (85℃).
● In-tank use only.
● High efficiency-low operating cost, leakfree operation and easy maintenance.
● Excellent chemical resistance.
● No seals or bearings in pump head to wear out.
● Continuous chemical dutyTEFC motors with oversized bearings in motor casing.
● Vertical pumps can run dry without damage to vapor seal.
● Thick reinforced ribbing in all molded parts.
● Simplicity of design makes these pumps easy to service and operate.
● Keyed impeller prevent damage if pumps run in reverse on all three phase motors.
● KSP--Non-metallic solution contact.
● KSP--Motor vapor seal.
● KSP--120V cord with ground.
● KSP--Vented pump base on 1/4 to 2 HP.

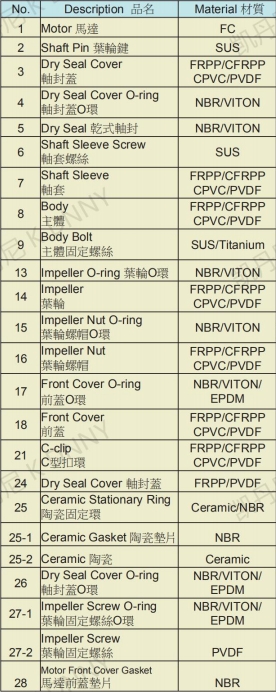

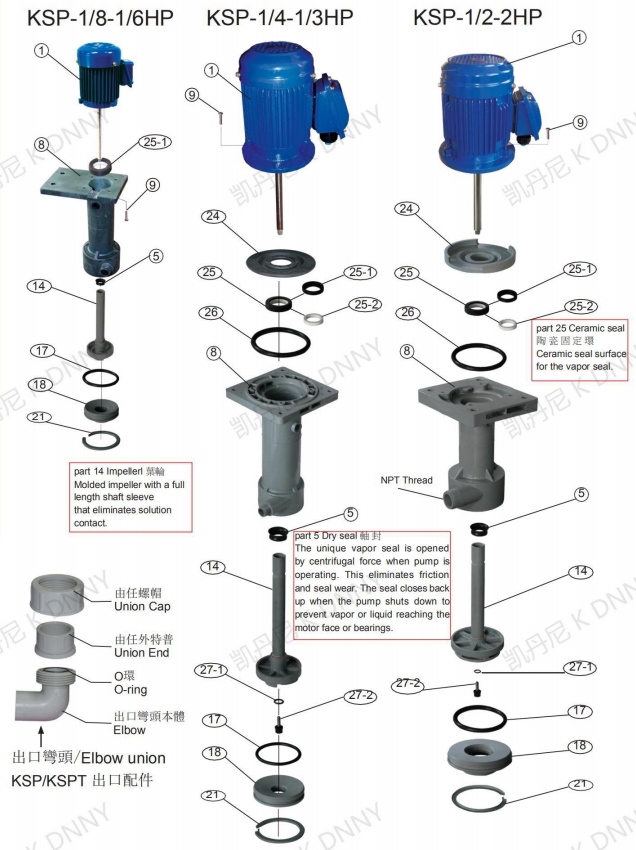

CONSTRUCTION
● Max. Capacity: 50Hz- 28~340 L/min 60Hz- 32~400L/min
● Max. Head: 50Hz- 4~19m 60Hz- 6~24m
● Power Range: 93W~15 kW(%- 2 hp)
● Casing Material: FRPP/CFRPP/CPVC/PVDF
● Type: Vertical, In-tank use, Single impeller, Single vapor seal
(1）TYPE: KSP
(2) Outlet code: 20 - 3/4'' 25 - 1''
40 - 1-1/2''
(3)Specific gravity: SK-1.1 SP-1.4 SL- Low speed 4P
(4)Power: 1/8 - 1/8HP 1/4 - 1/4HP 1/3 - 1/3HP 1/2 - 1/2HP 1 - 1HP 2 - 2HP
(5)Frequency: 5 - 50HZ 6 - 60HZ
(6)O-ring : V - VITON N - NBR E - EPDM
(7)Pump material: F-FRPP, P-CFRPP, C-CPVC, K-PVDF
(8)I-Slot in mounting O-Slot out mounting
(9)S-Special model N-Normal model
These are SP Series of Vertical pumps,the model numbers are as below:
KSP-20SK-1/8 , KSP-20SK-1/6 , KSP-20SK-1/4, KSP-25SK-1/3, KSP-25SK-1/2, KSP-40SK-1, KSP-40SK-2
KSP-20SP-1/6 , KSP-25SP-1/3 , KSP-25SP-1 , KSP-40SP-1 , KSP-40SP-2 , KSP-40SL-1/2

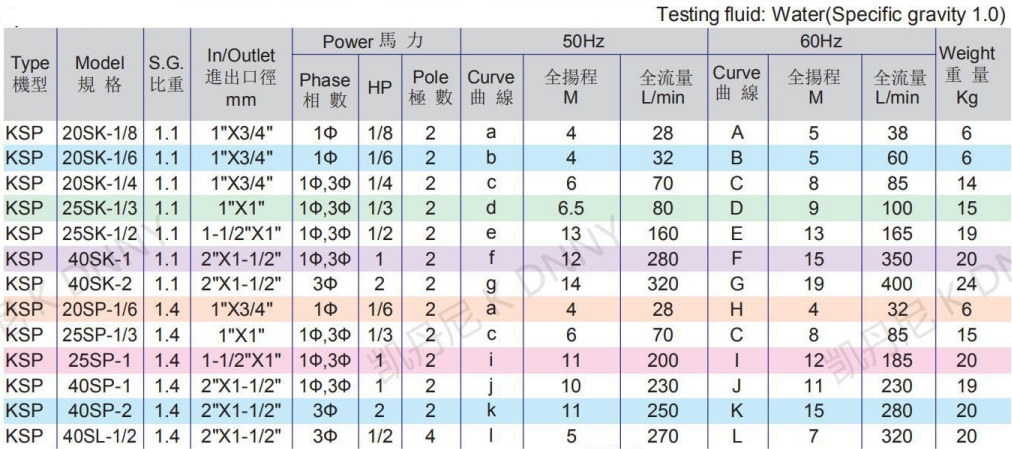

SPECIFICATION

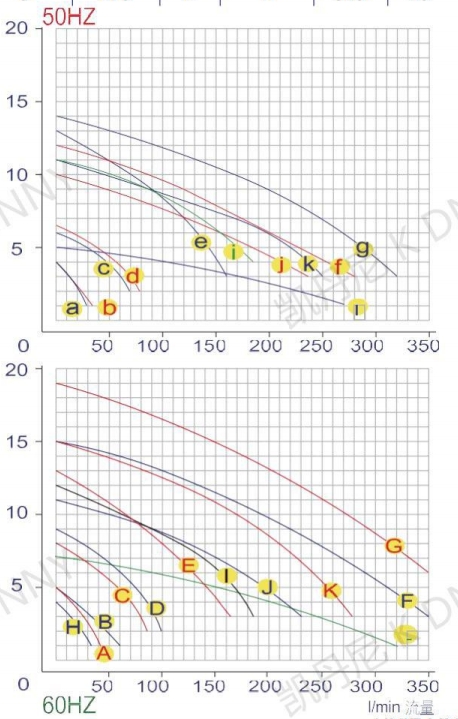

PERFORMANCE CURVE

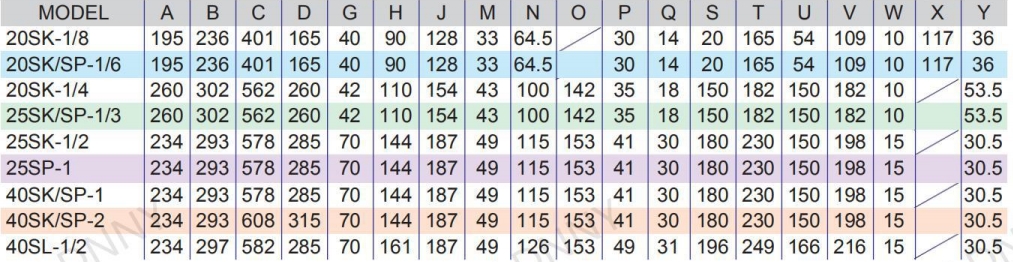

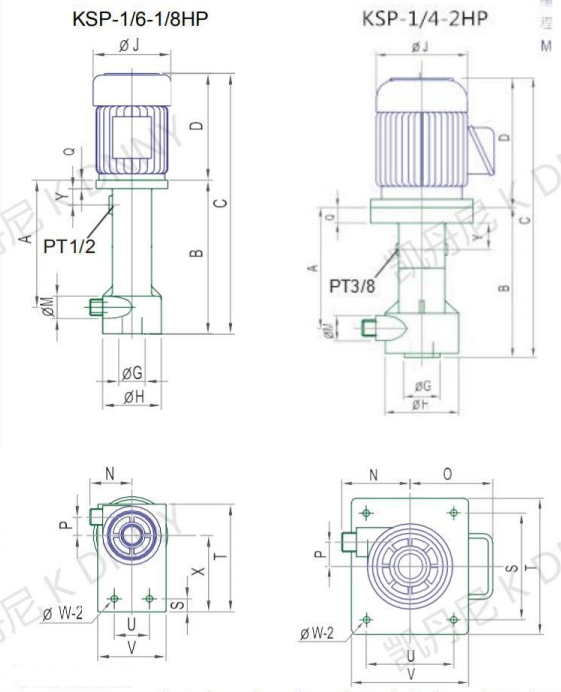

DIMENSION UMIT:MM
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
