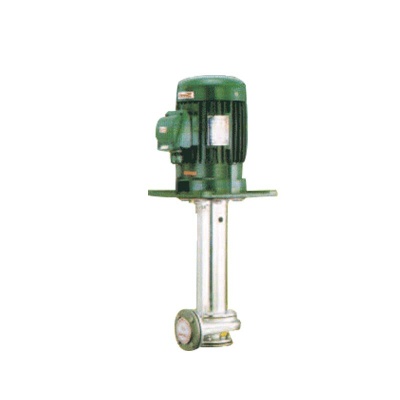

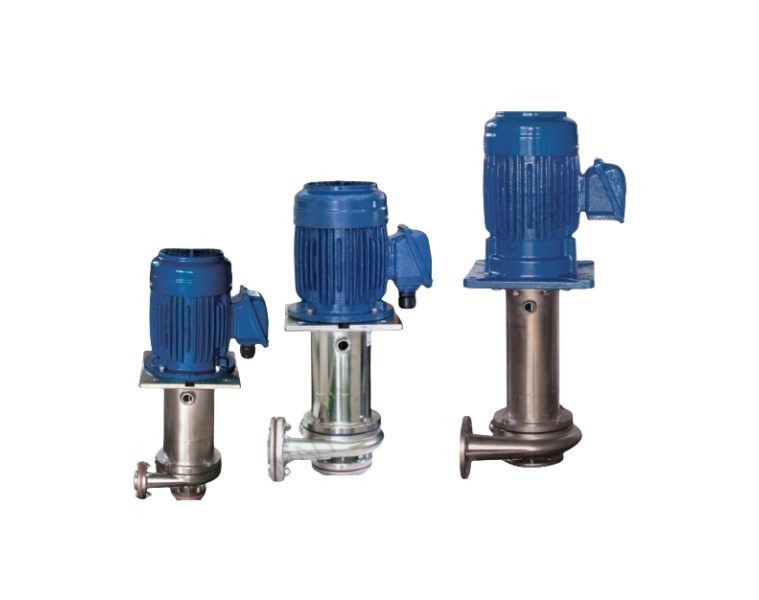

Stainless Steel Vertical Pump - KSV Series
TIME：2024-07-01 Author：admin Views：
The SV / SVT series vertical pumps are dependable, airless and are the-first-of-their-kind in the world. These pumps function without introducing air into the fluid which can sometimes destroy special chemical baths. The pump shaft incorporates a keyed lock to the impeller so that if the pumps run in reverse, it will not damage the housing or impeller. There are no seals or bushings that can be damage if the pumps run dry. The SV/SVT Series features a slotyted air gap in the pump base, thereby preventing chemicals from penetrating to the motor base or bearings. The full motor horsepower is translated into pumping power via the shaft. These pumps are used in a wide range of applications, from chemical recirculation to process modules. The vertical design has a maximum fluid temperature of 203F(95℃).The SV/SVT series pumps are designed to run inside or outside the tank. However, the installation instructions should be followed.
TYPICAL APPLICATIONS:
● Chemical or water recirculation
● Waste treatment
● Plating solution
● PCB process chemical recirculation
PRODUCT FEATURES:
● 1 Year Warranty.
● KSV - 316 Stainless steel material
● KSVT-Titanium metal material.
● Airless vertical pump.
● Max. fluid temperature:203F(95℃).
● Both in-tank and out-tank use available.
● High efficiency - low operating cost, leak-free operation and easy maintenance.
● Excellent chemical resistance.
● No seals or bearings in pump head to wear out.
● Continuous chemical duty TEFC motors with oversized bearings in motor casing.
● Simplicity of design makes these pumps easy to service and operate.
● 1/2" thickness mounting plate.
● Both flanges of motor have oil seals to prevent acid vapor from entering the motor.
● Besides,extra vapor seal can also stop the acid vapor to reach the bearing.

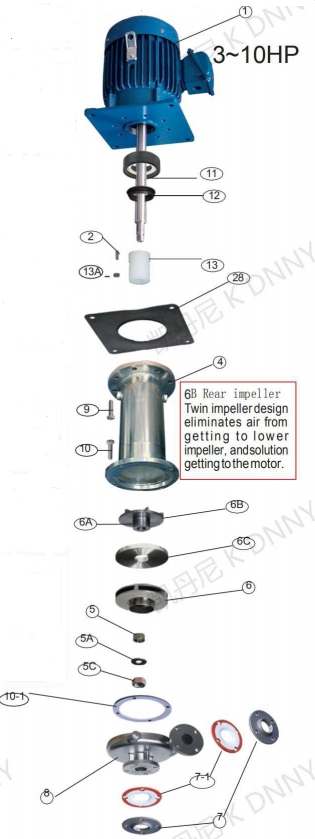

● Break-through double impellers.
● KSVT cast in titanium metal pump, suitable for special chemical liquid.The specification is 1-2HP.
CONSTRUCTION：
● Max. Capacity: 50Hz- 310~1150 L/min 60Hz- 105~1050 L/min
● Max. Head: 50Hz- 9~22m 60Hz- 8~31m
● Power Range: 0.75~7.5 kW(%- 10 hp)
● Casing Material: SUS316
● Type: Vertical, Stainless steel KSV Series
════════════════════════════════════
● Max. Capacity: 50Hz- 180~540 L/min 60Hz- 150~540 L/min
● Max. Head: 50Hz- 9~19.5m 60Hz- 9~20.5m
● Power Range: 0.37~2.2 kW(%- 3 hp)
● Casing Material: Titanium metal
● Type: Vertical, Stainless steel KSVT Series
(1）TYPE: KSV - Stainless steel 316 KSVT -Titanium
(2) Outlet code: 25 - 1'' Female screw 40 - 1-1/2'' Female screw
50 - 2'' Female screw 65 - 2-1/2'' Female screw
80 - 3'' Female Screw
(3)Specific gravity: SK-1.1 SP-1.4 SL- Low speed 4P (5)Frequency: 5 - 50HZ 6 - 60HZ
(6)O-ring : V - VITON N - NBR E - EPDM T-TEFLON
(7)Pump material: S-SUS 316 T-Titnium
(8)I- In Slot mounting O- Outside Slot mounting
(9)S-Special model N-Normal model
Currently, we have below model of KSV and KSVT series for Stainless steel vertical Pump:
KSV-40SK-1 , KSV-40SK-2 , KSV-50SK-3 , KSV-50SK-5 , KSV-65SK-7.5 , KSV-65SK-10 , KSV-40SP-1 , KSV-40SP-2, KSV-50SP-3, KSV-50SP-5, KSV-65SP-7.5, KSV-65SP-10, KSV-80SP-7.5, KSV-80SP-10
══════════════════════════════════════════════════════════════════════════════════════════════════════════════════════════
KSVT-40SK-1/2, KSVT-40SK-1, KSVT-40SK-2, KSVT-50SK-3

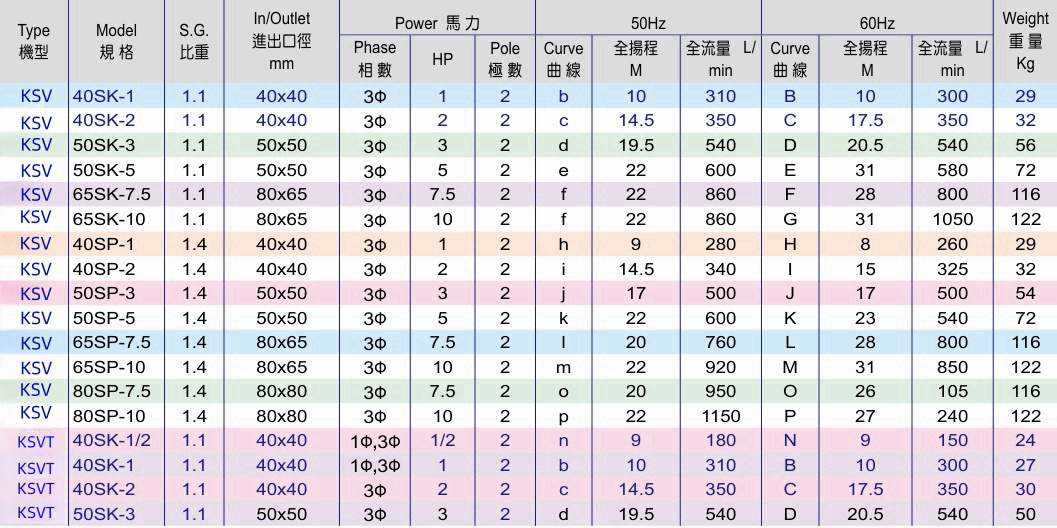

SPECIFICATION

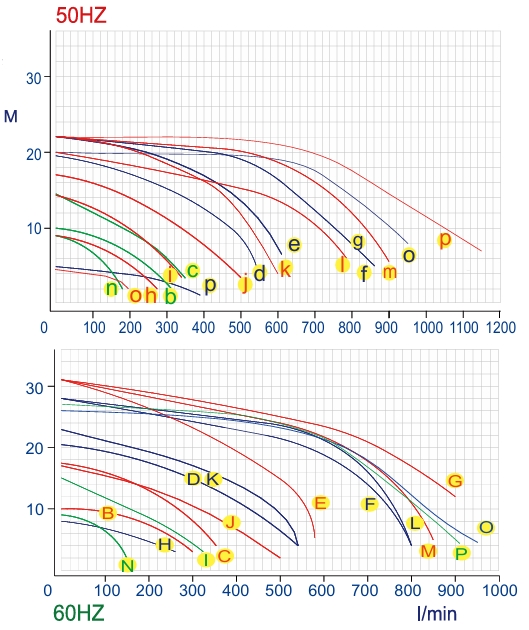

PERFORMANCE CURVE

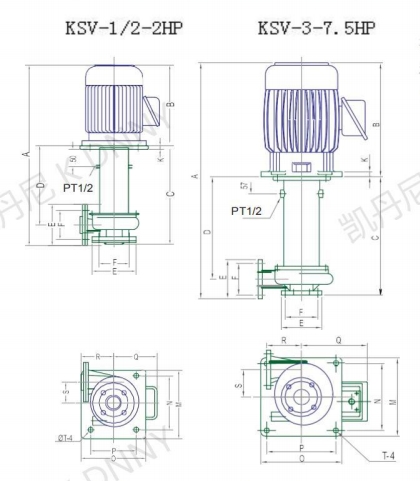

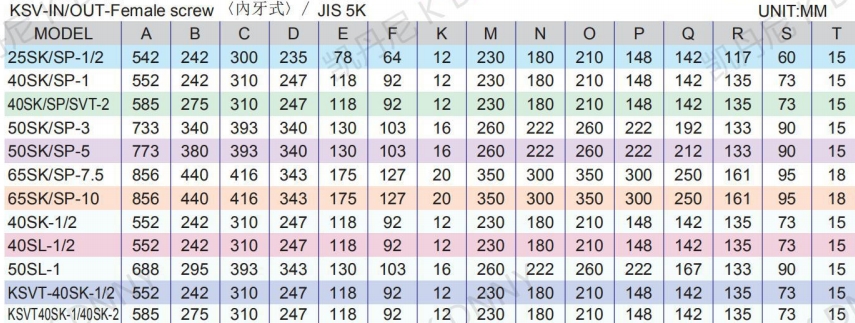

DIMENSION
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
