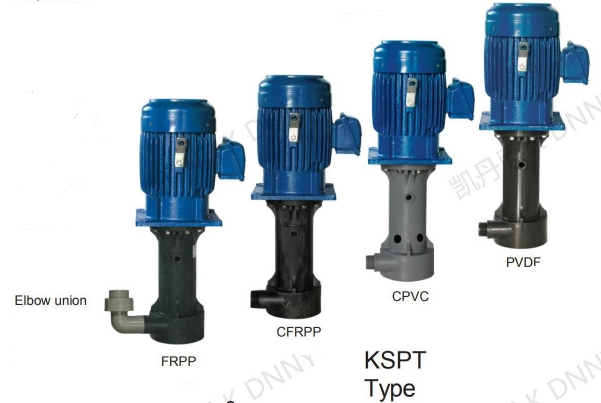

Vertical Pump In-tank Use - KSPT Series
TIME：2024-07-01 Author：admin Views：
The KSPT Series pumps are dependable pumps. The full motor horsepower is translated into pumping power via the shaft. These pumps are used in a wide range of applications from chemical recirculation to process modules. There are no seals or bushings that can be damaged if the pumps run dry. The vertical design has a maximum fluid temperature of 167"F (75℃) to 185F (85℃), depending on the materials of construction, and can handle the most abrasive solutions. The KSP/KSPT series pumps are designed to run inside of the tank or process module. Except SP1/8~1/6HP, all the rest models have a slotted air gap in the pump base and a dry vapor seal, there by preventing chemicals penetrating to the motor bearings.
TYPICAL APPLICATIONS:
● Chemical or water recirculation
● Fume scrubbers/ waste treatment
● PCB Plating solutions
● Wet processing
● Cleaning solutions
● Deliver acids
PRODUCT FEATURES:
● 1 year warranty.
● CPVC,CFRPP, PVDF or polypropylene construction.
● Max. fluid temperature:polypropylene/CPVC/CFRPP 167F (75C) PVDF 185F(85℃).
● In-tank use only.
● High efficiency-low operating cost, leakfree operation and easy maintenance.
● Excellent chemical resistance.
● No seals or bearings in pump head to wear out.
● Continuous chemical duty TEFC motors with oversized bearings in motor casing.
● Vertical pumps can run dry without damage to vapor seal.
● Thick reinforced ribbing in all molded parts.
● Simplicity of design makes these pumps easy to service and operate.
● Keyed impeller prevent damage if pumps runin reverse on all three phase motors.
● Non-metallic solution contact.
● Motor vapor seal.
● Vented pump base.
CONSTRUCTION
● Max. Capacity: 50Hz- 270~900 L/min 60Hz- 280~980L/min
● Max. Head: 50Hz- 6.5~29m 60Hz- 9~36m
● Power Range: 0.75~7.5 kW(%- 10 hp)
● Casing Material: FRPP/CFRPP CPVC/PVDF
● Type: Vertical, In-tank use, Single impeller, Single vapor seal
(1）TYPE: KSPT - Normal In-slot type KSPS - Special TEFLON shaft seal
(2) Outlet code: 20 - 3/4'' 25-1''
40 - 1-1/2'' 50-2''
(3)Specific gravity: SK-1.1 SP-1.4 SL- Low speed 4P (5)Frequency: 5 - 50HZ 6 - 60HZ
(6)O-ring : V - VITON N - NBR E - EPDM
(7)Pump material: F-FRPP, P-CFRPP, C-CPVC, K-PVDF
(8)I-In-slot mounting O-Out-slot mounting
(9)S-Special model N-Normal model
Currently, we have below model of KSPT series Vertical pump:
KSPT-40SK-2 , KSPT-40SK-3 , KSPT-40SK-5 , KSPT-50SK-3 , KSPT-50SK-5 , KSPT-65SK-5 , KSPT-65SK-7.5 , KSPT-65SK-10
KSPT-40SP-2 , KSPT-40SP-3 , KSPT-40SP-5 , KSPT-50SP-3 , KSPT-50SP-5, KSPT-65SP-5 , KSPT-65SP-7.5 , KSPT-65SP-10
KSPT-50SL-1 , KSPT-65SL-2 , KSPT-65SL-3

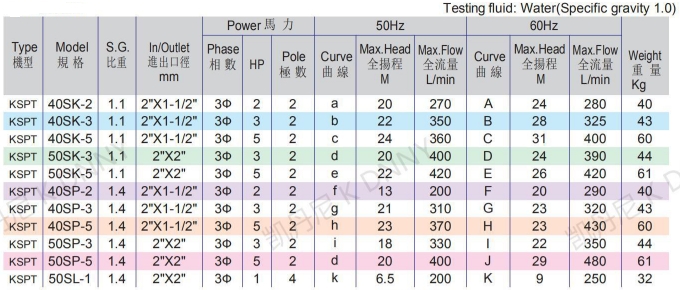

SPECIFICATION

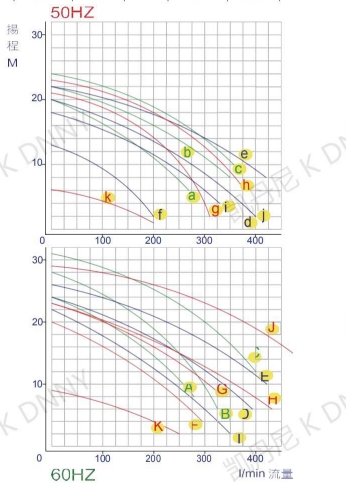

PERFORMANCE CURVE

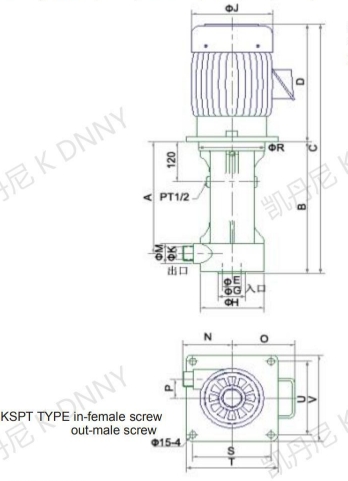

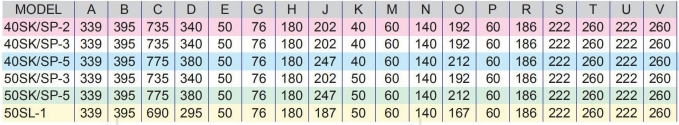

DIMENSION UMIT:MM
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
