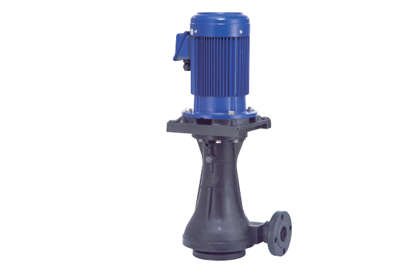

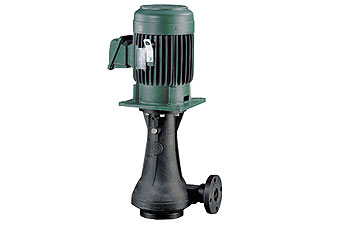

Vertical pump- KDH series

TYPICAL APPLICATIONS:

● Electronics industry,Machinery manufacturing industry
● Automotive industry,Medical device industry
● Petrochemical industry,Fertilizer industry,Oil production industry
● Iron and steel industry

PRODUCT FEATURES:
● Pumps are manufactured from the four materials(FRPP, CFRPP, CPVC, PVDF) to ensure resistance to high heat and corrosion.

● Dry Vapor seal (3~10HP)：ensure to prevent pumps and bearings form being etched by chemical gas and prolong the using life of pump.

● For etching spraying equipments, cooling circulating and be used with filter.

● One piece injected without welding and in-outlet moveable flanges lead us to install and maintain easily.

● Front covers without screws design have unique high head, high pressure and high efficiency and apply to all kinds of environments.

● Pumps are no damaged in drying running.

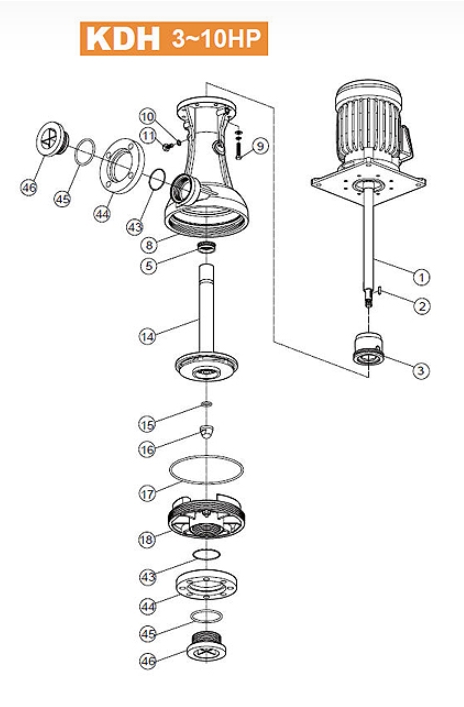

CONSTRUCTION


PARTS LIST



SPECIFICATION

Model	Curveno	IN-OUTLET(mm)		HP	Flow(L/Min)		HEAD		WEIGHT(kg)
		IN	OUT		VK	VP	VK	VP
Frequency:50Hz
KDH-50VK(P)-3	J	65	50	3	350	300	12	12	41
KDH-50VP-5	K	65	50	5	-	400	-	16	55
KDH-65VK-5	L	80	65	5	550	-	15	-	55
KDH-65VK(P)-7.5-H	M	80	65	7.5	400	300	30	28	95
KDH-65VP-10-H	N	80	65	10	-	400	-	30	106
Frequency:60Hz
KDH-50VK(P)-3	j	65	50	3	350	12	12	12	41
KDH-50VK(P)-5	k	65	50	5	550	400	15	16	55
KDH-65VK-7.5	l	65	80	7.5	600	-	20	-	95
KDH-65VK(P)-7.5-H	m	80	65	7.5	400	300	30	28	95
KDH-65VP-10-H	n	80	65	10	-	400	-	30	106

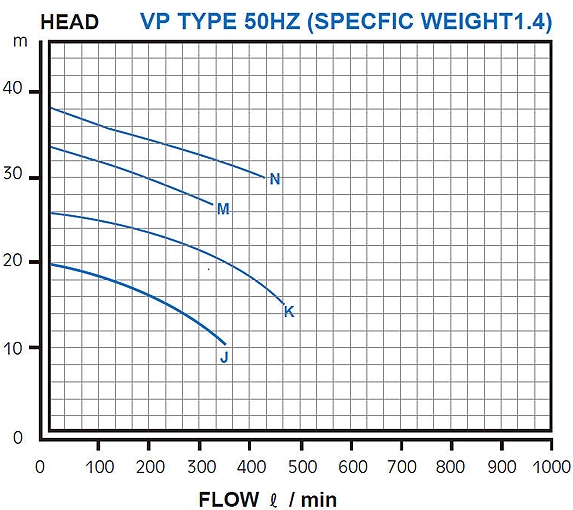

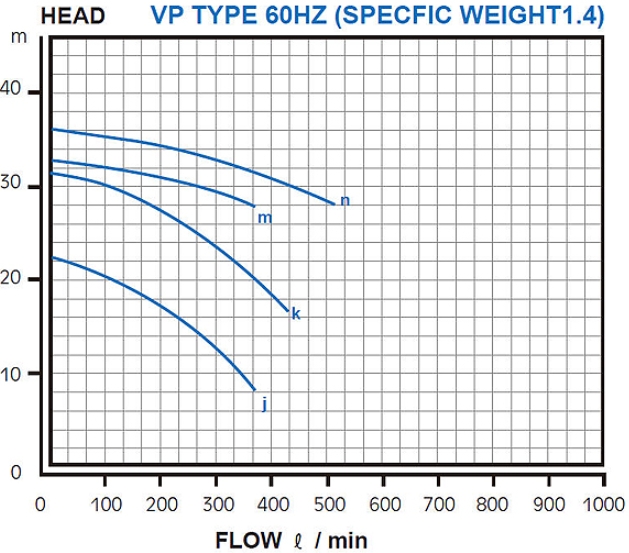

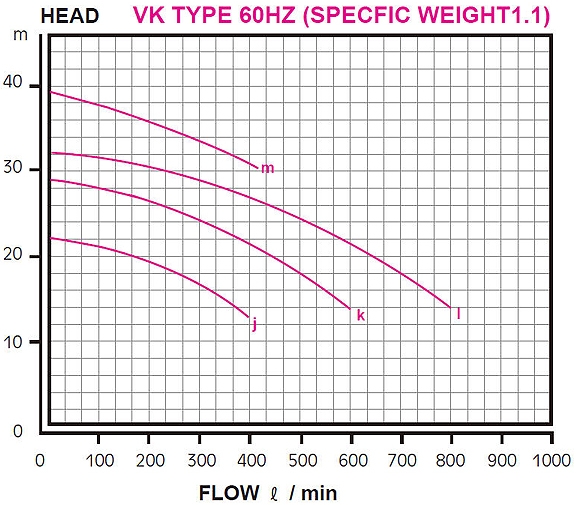

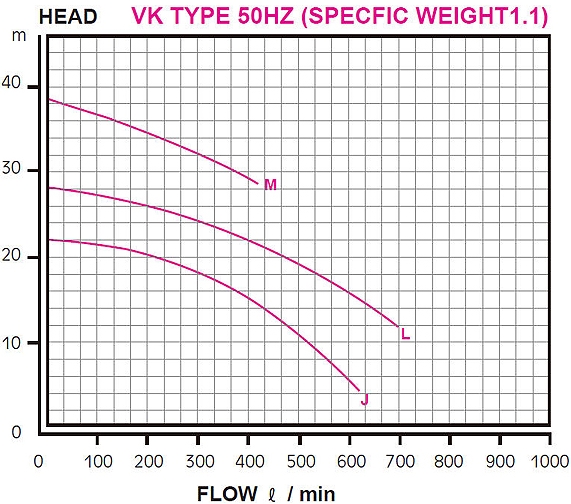

PERFORMANCE CURVE

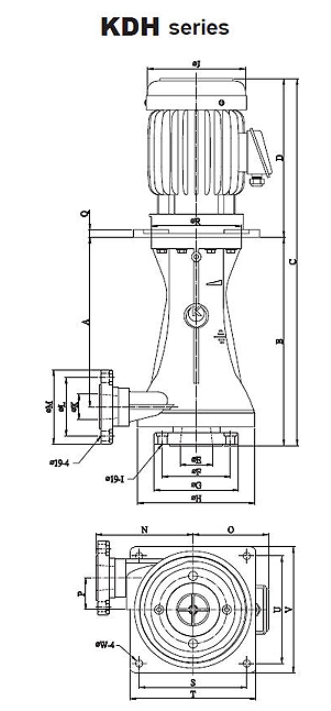

DIMENSION


UMIT:MM

MODEL DIMENSION A B C D E F G H I J K L KDH-50VK(P)-3 350 430 758 328 65 140 174 242 4 202 50 120 M N O P Q R S T U V W   154 200 156 66 16 185 222 260 222 260 15   KDH-50VK(P)-5 A B C D E F G H I J K L 350 430 793 363 65 140 174 242 4 243 50 120 M N O P Q R S T U V W   154 200 177 66 16 185 222 260 222 260 15   KDH-65VK-7.5 A B C D E F G H I J K L 345 429 864 435 80 149 189 263 8 285 65 139 M N O P Q R S T U V W   174 202 212 65 20 185 300 350 300 350 18   KDH-65VK(P)-7.5-H A B C D E F G H I J K L 345 429 864 435 80 149 189 263 8 285 65 139 M N O P Q R S T U V W   174 202 212 65 20 185 300 350 300 350 18   KDH-65VP-10-H A B C D E F G H I J K L 345 429 864 435 80 149 189 263 8 285 65 139 M N O P Q R S T U V W   174 202 212 65 20 185 300 350 300 350 18

While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
