Vertical Pumps

Current Location:HOME > Produts > Vertical Pumps >

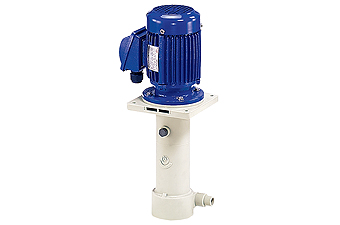

Vertical pump- KP Series

TIME:2024-01-22 Author:admin Views:







TYPICAL APPLICATIONS


● Electronics industry,Machinery manufacturing industry
● Automotive industry,Medical device industry
● Petrochemical industry,Fertilizer industry,Oil production industry
● Iron and steel industry

PRODUCT FEATURES

● Durable high temperature and assistant corrosion

● Pumps are manufactured from the four materials(FRPP, CFRPP, CPVC, PVDF) to ensure resistance to high heat and corrosion.

 Owning to in-outlet screwd design no screws, the pumps apply to be installed inside of tank.

 For etching spraying equipments, cooling circulating and be used with filter.

 Pumps are no damaged in drying running.


CONSTRUCTION

 Pump Capacity: Up to 18-260 L/min
 Pump Head:Up to 0.2- 10m
 Power Range:2.2 - 7.5 kW
 Casing Material: FRPP,CFRPP, CPVC, PVDF
 Type: Vertical
 In-Outlet Range: Inlet - 65~80mm         Outlet - 50~80mm

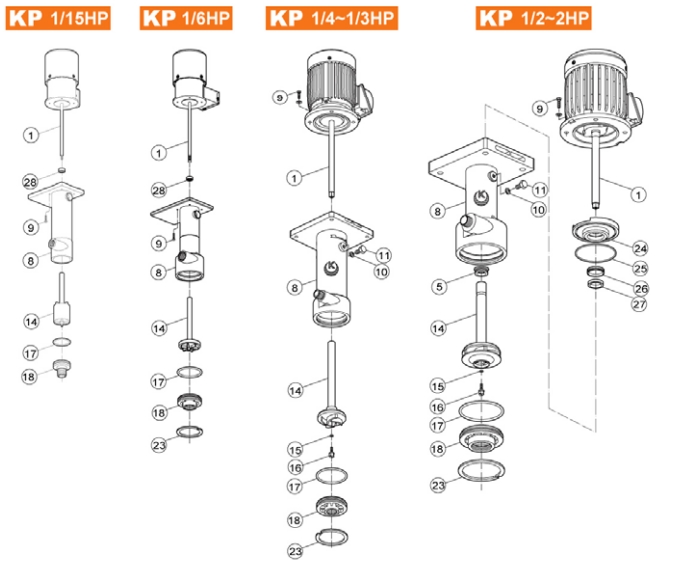

PARTS LIST
No. Decription Material No. Description Material
1 Motor FC/AL 17 Front Cover O-ring NBR/EPDM/VITON
5 Vapor Seal NBR/EPDM/VITON 18 Front Cover FRPP/CFRPP/CPVC
8 Main Body FRPP/CFRPP/CPVC/PVDF/SUS 23 C-Clip FRPP/CFRPP/CPVC/PVDF
9 Main Body Screw SUS 24 Vapor Seal Seat NBR/EPDM/VITON
10 Release Screw Packing EPDM/VITON 25 Vapor Seal Seat O-ring NBR/EPDM/VITON
11 Release Screw  PVC 26 Ceramic Gasket NBR/EPDM/VITON
14 Impeller FRPP/CFRPP/CPVC/PVDF/SUS 27 Ceramic  Ceramic
15 Impeller Nut O-ring NBR/EPDM/VITON 28 Oil Seal NBR/VITON
16 Impeller Nut FRPP/CFRPP/CPVC/PVDF/SUS

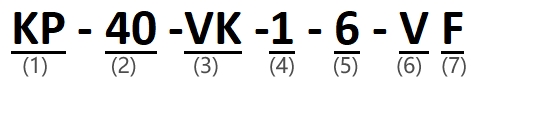

(1)Model:KP
(2)In-outlet:15 -1/2''      20-3/4"        25 - 1’’      40 - 1.5’’         50 - 2’’
(3)Specific Weight: VK - 1.1   VP - 1.4
(4)Power: 1/2 - 1/2HP  1 - 1HP  2 - 2HP
(5)Frequency: 5 - 50Hz  6 - 60Hz
(6)Rubber: N -NBR  E - EPDM  V - VITON
(7)Pump Material: F - FRPP  C - CFRPP  A- CPVC    P - PVDF



Vertical pump - KP Series,we have the model number as below:

KP-15VK-1/15 , KP-20VK(VP)-1/6 , KP-20VK-1/4 , KP-25VK-1/2 ,
KP-25VP-1 , KP-40VK(VP)-1 , KP-40VK(VP)-2



SPECIFICATION
Model Curveno In-outlet(mm) HP FlowL/min Head Weight
kg)
IN OUT VK VP VK VP
Frequency:50Hz
KP-15VK-1/15 a 20 15 1/15 20 - 0.2 - 3
KP-20VKVP-1/6 b 25 20 1/6 20 18 2 2 4
KP-20VK-1/4 c 25 20 1/4 50 - 4 - 13
KP-25VK-1/2 e 40 25 1/2 100 - 5 - 20
KP-25VP-15 f 40 25 1 - 160 - 6 20
KP-40VKVP-15 g 50 40 1 130 140 8 6 20
KP-40VKVP-25 h 50 40 2 150 160 10 7 24
Frequency:60Hz
KP-15VK-1/15 A 20 15 1/15 25 - 0.4 - 3
KP-20VK(VP)-1/6 B 25 20 1/6 40 36 2 2 4
KP-20VK-1/4 C 25 20 1/4 60 - 5 - 13
KP-25VK-1/2 E 40 25 1/2 150 - 4 - 20
KP-25VP-16 F 40 25 1 - 110 - 7 20
KP-40VKVP-16 G 50 40 1 180 110 6 6 20
KP-40VKVP-26 H 50 40 2 260 130 10 7 24

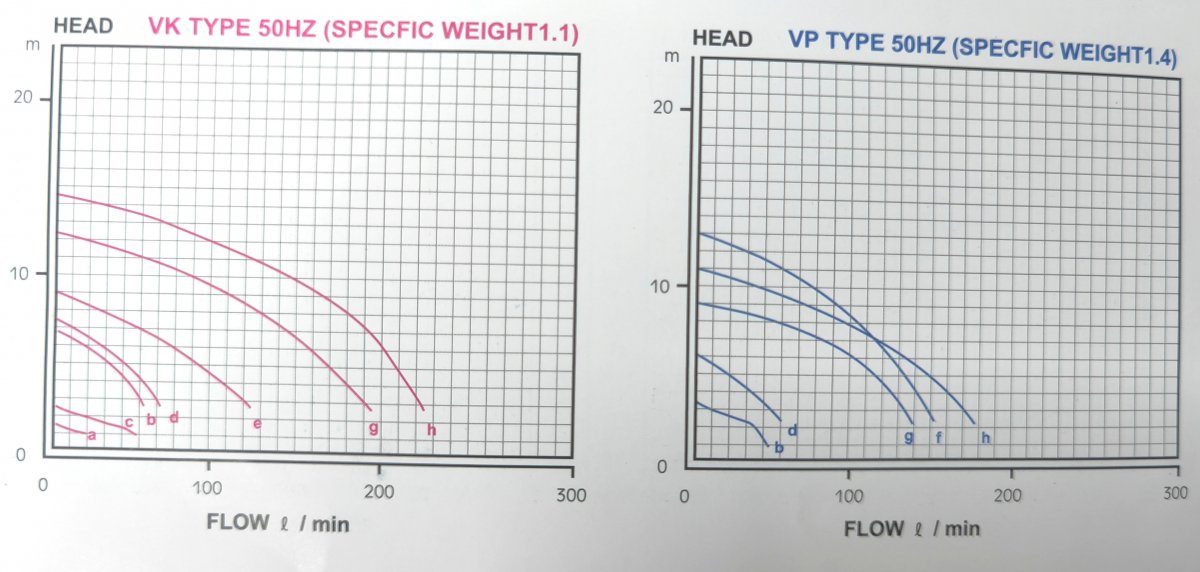

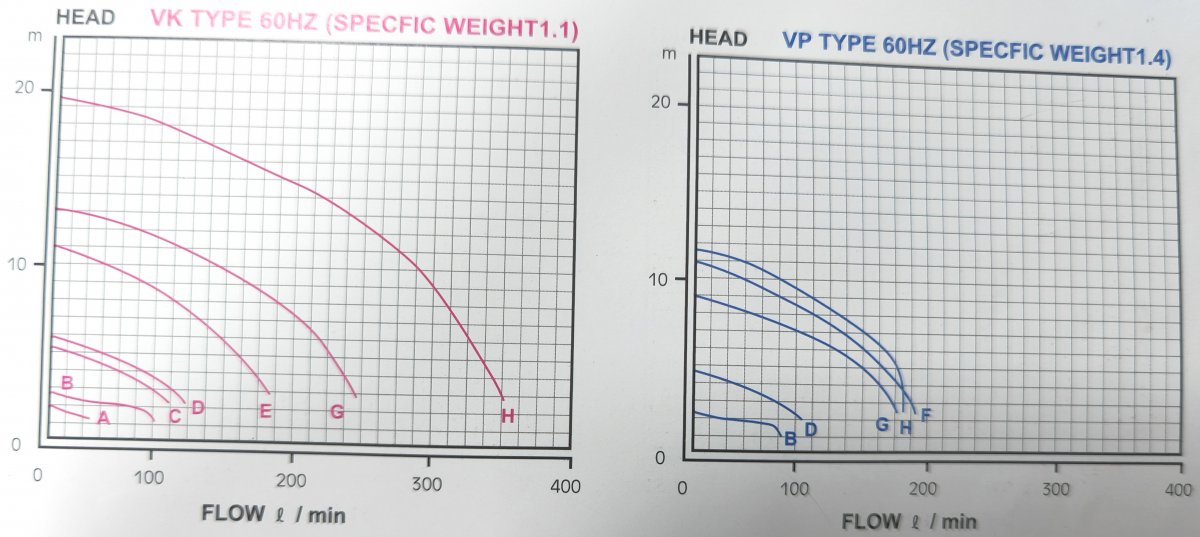

PERFORMANCE CURVE

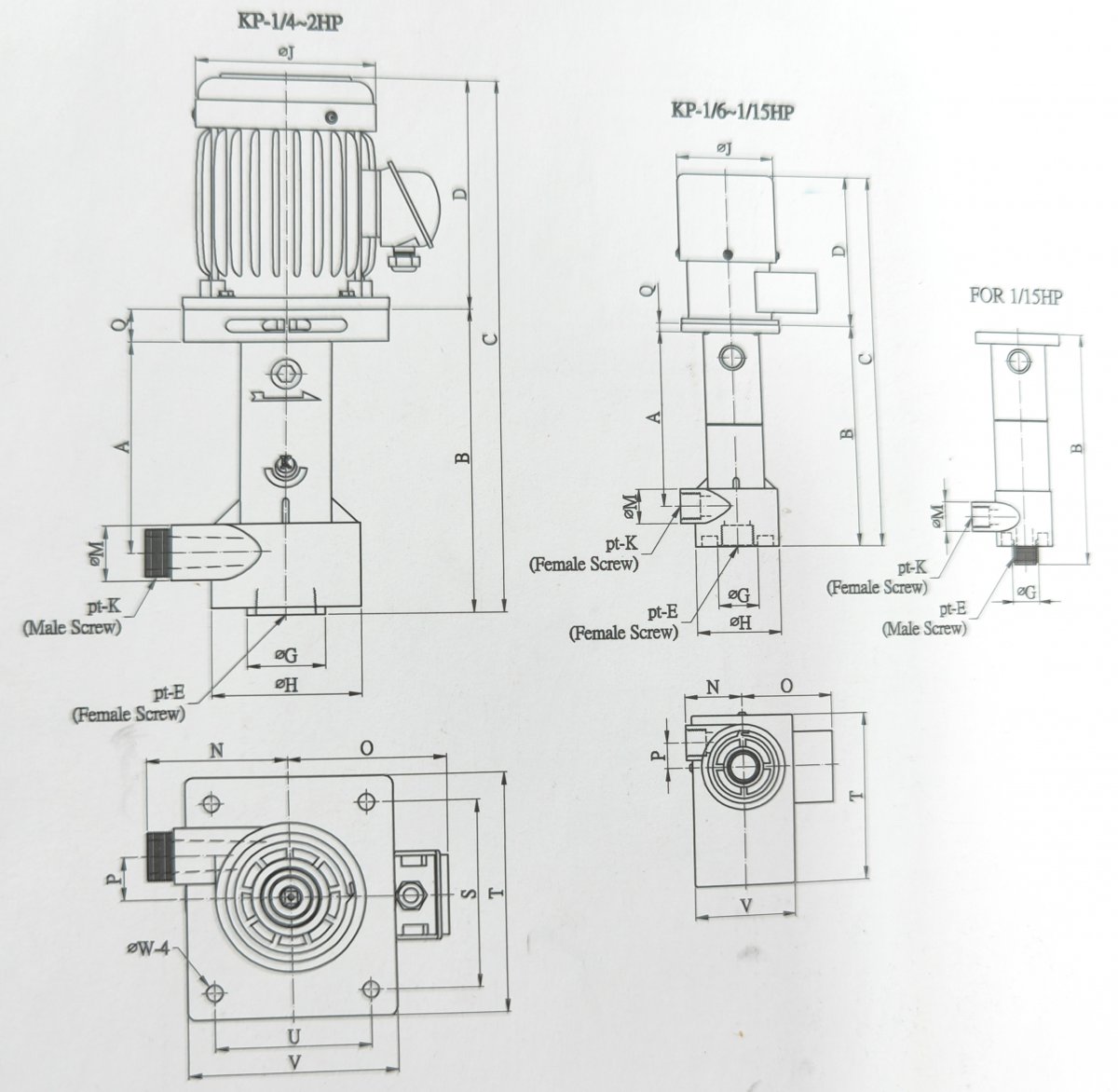

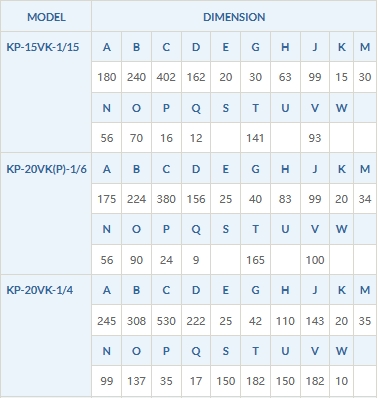

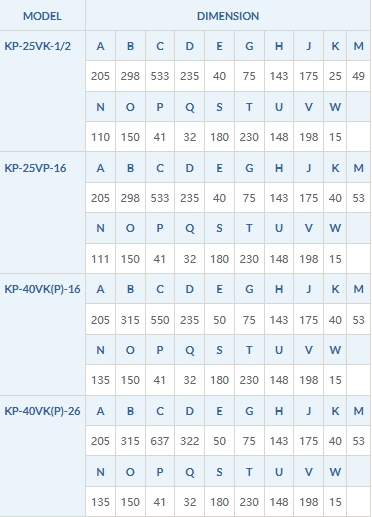

DIMENSION

UMIT:MM



While placing your order...
Please kindly provide us the following information.

1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
