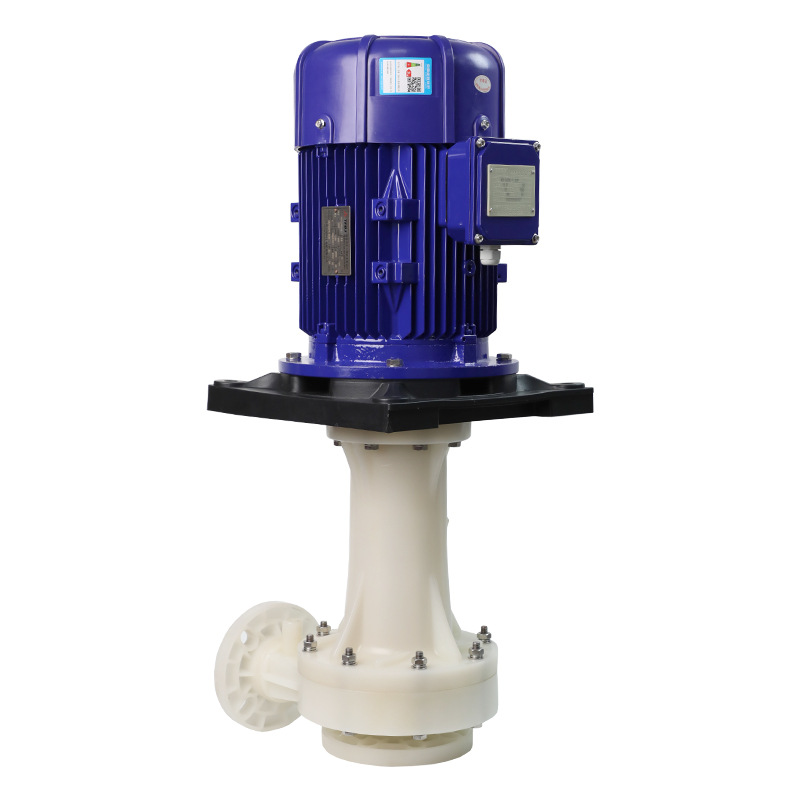

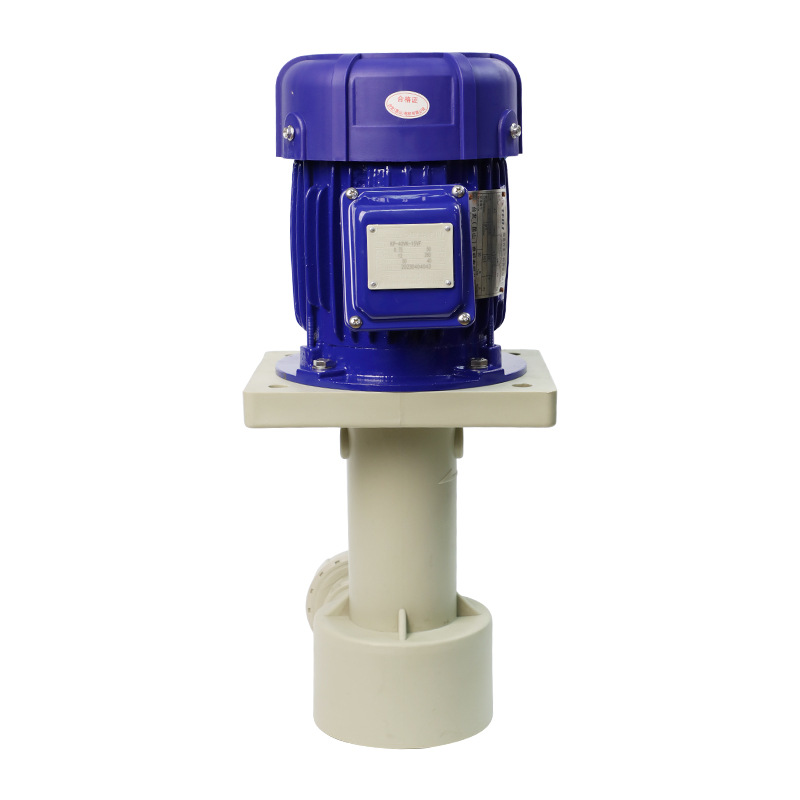

Vertical pump-KPT series
TIME：2024-01-18 Author：admin Views：
High Flow丨Energy Efficient丨Leak-Free丨Acid and Alkali Resistant
TYPICAL APPLICATIONS
● Electroplating industry: Circulation and filtration of various types of electroplating solutions.
● PCB clrcult board
● Semiconductor industry
● Chemical industry
● New energy industry
● Waste gas treatment equipment
PRODUCT FEATURES
The characteristics of pumps are durable high temperature and assistant corrosion.
● Pumps are manufactured from the four materials(FRPP, CFRPP, CPVC, PVDF) to ensure resistance to high heat and corrosion.
● Dry Vapor seal (2~5HP)：ensure to prevent pumps and bearings form being etched by chemical gas and prolong the using life of pump.
● Pumps apply to be installed inside of tank due to the in-outlet screwed design without screws.
● For etching spraying equipments, cooling circulating and be used with filter.
● Pumps are no damaged in drying running.

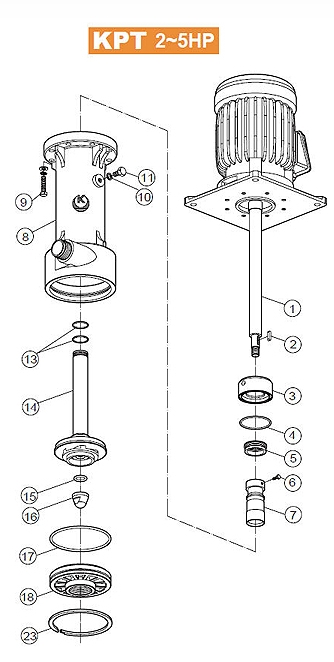

CONSTRUCTION

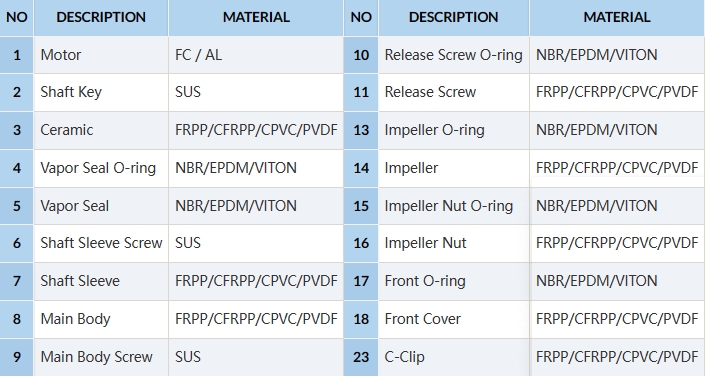

PARTS LIST
(1)Model: KPT
(2)In-outlet: 40 - 1-1/2'' 50 - 2'' 65 - 2-1/2'' 75 - 3''
(3)Specific gravity: VK - 1.1 VP - 1.4
(4)Power: 1 - 1HP 2 - 2HP 3 - 3HP
4 - 4HP 5 - 5HP 7 - 7.5HP
(5)Frequency: 5 - 50Hz 6 - 60Hz
(6)Rubber: N - NBR E - EPDM V - VITON
(7)Pump material : F - FRPP C - CPVC P - CFRPP K - PDVF
These are KPT Series of VERTICAL PUMP ,the model numbers are as below:
KPT-40VK(VP)-25 , KPT-40VK(VP)-35 , KPT-40VK(VP)-55 , KPT-50VK(VP)-55,
KPT-40VK(VP)-26 , KPT-40VK(VP)-36 , KPT-40VK(VP)-56 , KPT-50VP-36 , KPT-50VP-56

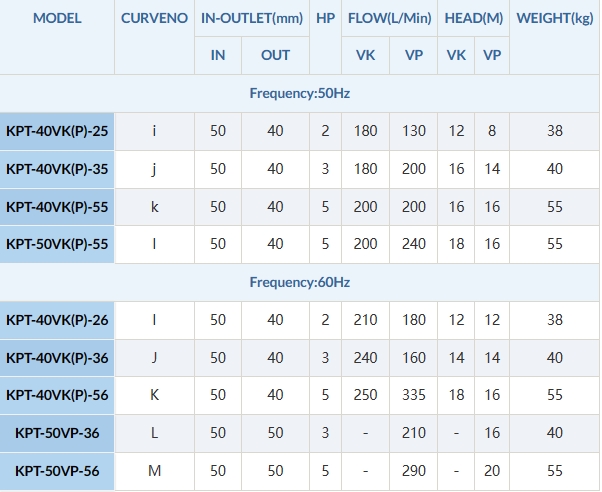

SPECIFICATION

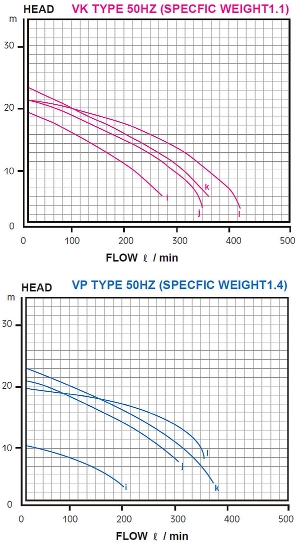

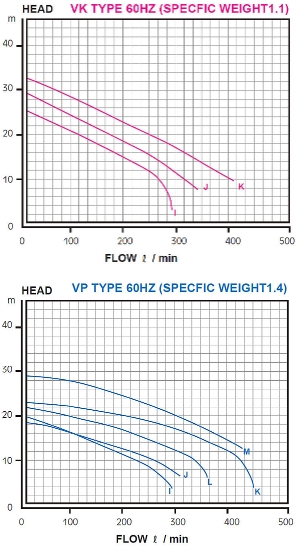

PERFORMANCE CURVE

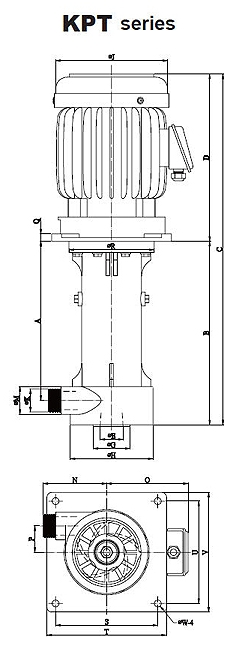

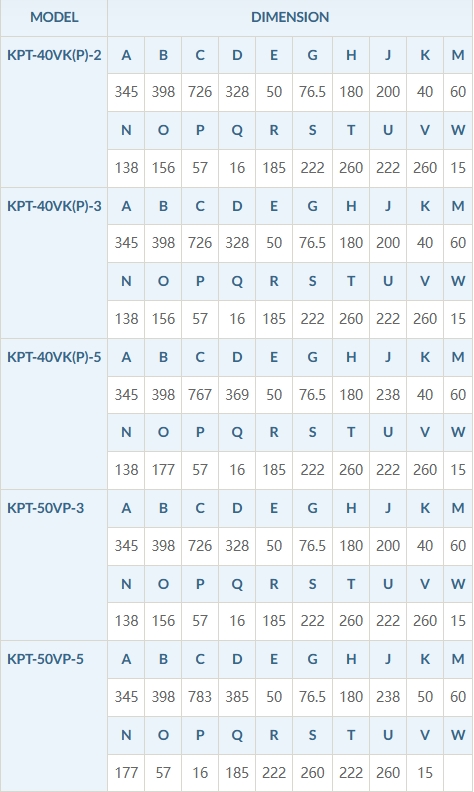

DIMENSION
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
