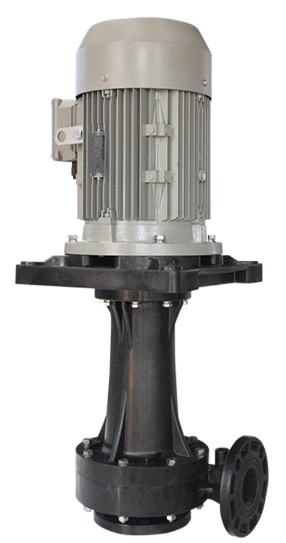

Vertical Pump - MD Series
TIME：2024-07-29 Author：admin Views：
Acid And Alkali Resistance丨High Corrosion Resistance丨High Temperature Resistance
TYPICAL APPLICATIONS
PRODUCT FEATURES
● Reduced air mixing, larger head
● Pump body adopts FRPP , CFRPP，CPVC and PVDF material.
● Dry seal(1 -10HP): can ensure long life of the pump and motor.
● And suitable for etching spraying equipment、exhaust gas scrubbers、cooling circulatiors and be used with filter．
● The pump can use with no water idling, which is not damage.
● It can be use in highly corrosive liquid environment, we suggest using Ti screws and painting EPOXY on motors for increasing the corrosion insistence and life of usage in the strong etching chemical solution environment.

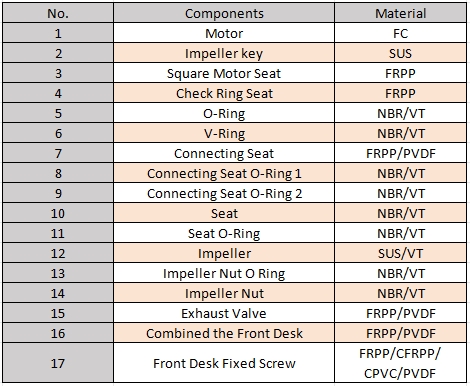

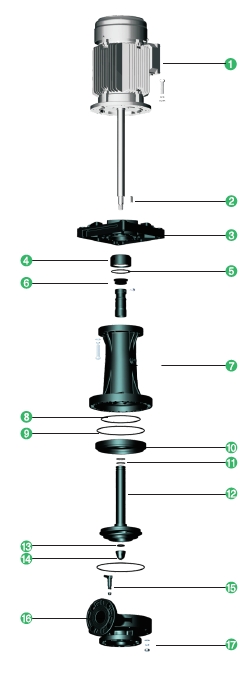

CONSTRUCTION
(1)Model：MD
(2)In-outlet: 40 - 1-1/2’’ 50 - 2’’ 65 - 2-1/2’’ 80 - 3’’ 100 - 4’’
(3)Specific Gravcity：VK - 1.1 VP - 1.4
(4)Power: 1 - 1HP 2 - 2HP 3 - 3HP
5-5HP 7.5 - 7.5HP 10 - 10HP
15 - 15HP 20 - 20HP
(5)Frequency: 5 - 50Hz 6 - 60Hz
(6)Rubber: V - VITON E - EPDM N - NBR
(7)Pump Material：F - GFRPP C- CFRPP A - CPVC P - PVDF
(8)Motor explosion-proof level：CT4 - ExdllCT4 BT4 - ExdllBT4
These are MD Series of Vertical Pumps,the model number are as below:
MD-40VK-1 , MD-40VK-2 , MD-40VK-3 , MD-50VK-3 , MD-50VK-5 , MD-65VK-5 , MD-65VK-7.5 ,
MD-65VK-10 , MD-100VK-15 , MD-50VP-3 , MD-50VP-5 , MD-65VP-7.5 , MD-65VP-10 , MD-100VP-15．

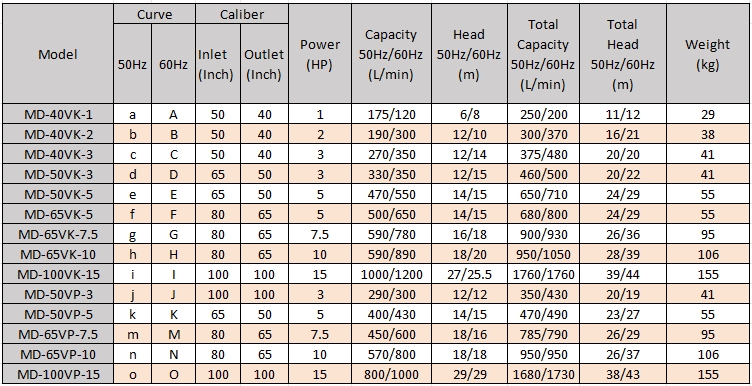

SPECIFICATION

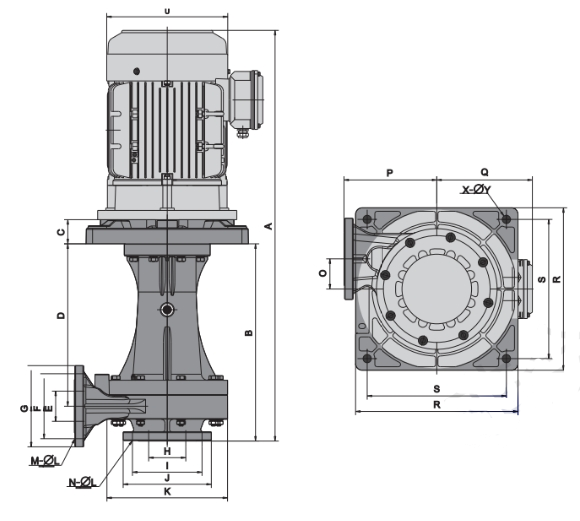

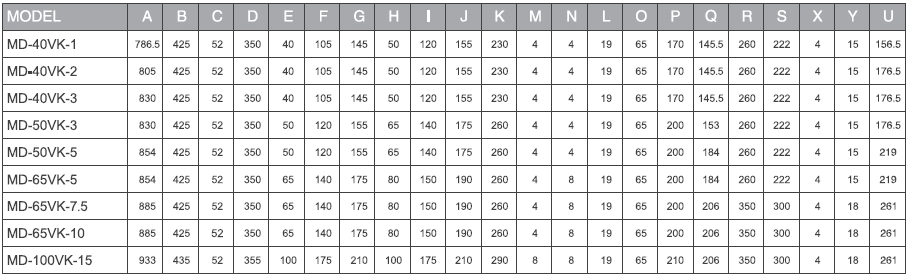

DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
TYPICAL APPLICATIONS
● Electroplating industry
● Waste gas and water treatment
● PCB etching industry
● Painting industry
● Surface treatment
● Reduced air mixing, larger head
● Pump body adopts FRPP , CFRPP，CPVC and PVDF material.
● Dry seal(1 -10HP): can ensure long life of the pump and motor.
● And suitable for etching spraying equipment、exhaust gas scrubbers、cooling circulatiors and be used with filter．
● The pump can use with no water idling, which is not damage.
● It can be use in highly corrosive liquid environment, we suggest using Ti screws and painting EPOXY on motors for increasing the corrosion insistence and life of usage in the strong etching chemical solution environment.
CONSTRUCTION
● Head：1-27m
● Flow rate:1 -1750L/min
● Material:PP,FRPP,PVDF
● Voltage:220V/380V
(1)Model：MD
(2)In-outlet: 40 - 1-1/2’’ 50 - 2’’ 65 - 2-1/2’’ 80 - 3’’ 100 - 4’’
(3)Specific Gravcity：VK - 1.1 VP - 1.4
(4)Power: 1 - 1HP 2 - 2HP 3 - 3HP
5-5HP 7.5 - 7.5HP 10 - 10HP
15 - 15HP 20 - 20HP
(5)Frequency: 5 - 50Hz 6 - 60Hz
(6)Rubber: V - VITON E - EPDM N - NBR
(7)Pump Material：F - GFRPP C- CFRPP A - CPVC P - PVDF
(8)Motor explosion-proof level：CT4 - ExdllCT4 BT4 - ExdllBT4
These are MD Series of Vertical Pumps,the model number are as below:
MD-40VK-1 , MD-40VK-2 , MD-40VK-3 , MD-50VK-3 , MD-50VK-5 , MD-65VK-5 , MD-65VK-7.5 ,
MD-65VK-10 , MD-100VK-15 , MD-50VP-3 , MD-50VP-5 , MD-65VP-7.5 , MD-65VP-10 , MD-100VP-15．
SPECIFICATION
DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
