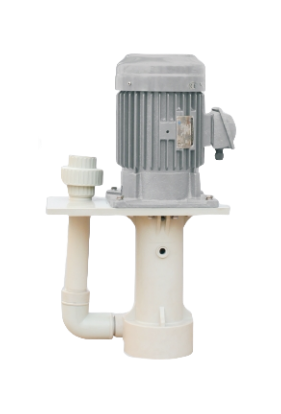

Vertical Pump - MI Series
TIME：2024-01-27 Author：admin Views：
TYPICAL APPLICATIONS
● Collocation filter, conveying all kinds of Liquid of chemical.
● Used in high temperature or in the chemical liquid crystal(such as:chemical copper, gold plating bath and nickel Plating solution)，in accordance with the different kinds of chemical. Select different materials to use.
● Can be used for the cycle of PC plate etching solution.
● Can be used for the cycle of PC plate etching solution.
● Conveying operation of waste water treatment equipment.
● Can be used for washing tower spray operation.
● Can be used as a heat exchange cycle and coordination Filtering operation of a filter.
● All kinds of liquid in the chemical mixing tank orthe filter tank. Body circulation transport operation.
PRODUCT FEATURES
● The use of anti chemical corrosion of the pumpbody material FRPP,CFRPP,CPVC and PVDF. SUS high temperature resistant and erosion resistant chemical liquid.
● Special design of the impeller, to achieve high efficiency, high performance requirements.
● The axis of the structural design, the motor will not produce friction, and can avoid the pump for idling.
● All pump main components, all uses plastic material injection molding, stainless steel models for SUS316# or the chemical liquid produces crystal and cause damage.
● Can be used for washing tower spray operation.
● Can be used as a heat exchange cycle and coordination Filtering operation of a filter.
● All kinds of liquid in the chemical mixing tank orthe filter tank. Body circulation transport operation.
PRODUCT FEATURES
● The use of anti chemical corrosion of the pumpbody material FRPP,CFRPP,CPVC and PVDF. SUS high temperature resistant and erosion resistant chemical liquid.
● Special design of the impeller, to achieve high efficiency, high performance requirements.
● The axis of the structural design, the motor will not produce friction, and can avoid the pump for idling.
● All pump main components, all uses plastic material injection molding, stainless steel models for SUS316# or the chemical liquid produces crystal and cause damage.
● Ml type unique design by the elbow, can be convenient for long-term use of maintenance. Precise assembly size. Motor using special coating,can prevent the erosion of chemical gases.
● Ml and MIT type system using C type ring combination，the main entrance has the advantages of small size，suitable for design of tank.
● Ml and MIT type system using C type ring combination，the main entrance has the advantages of small size，suitable for design of tank.
CONSTRUCTION
● Head:3-7M
● Flow rate:50-145L/MIN
● Material:FRPPC, CFRPP, CPVC, PVDF
● Voltage: 220V/380V
(1)Model:MI
(2)In-outlet: 15 - 1/2’’ 20 - 3/4’’ 25 - 1’’ 40 - 1-1/2’’ 50 - 2’’
(3)Weight: VK - 1.1 VP - 1.4
(4)Power: 1/15 - 1/15HP 1/6 - 1/6HP 1/4 - 1/4HP
1/3 - 1/3HP 1/2 - 1/2HP 1 - 1HP
2 - 2HP 3 - 3HP 5 - 5HP
(5) Frequency: 5 - 50Hz 6 - 60Hz
(6) Rubber material: N - NBR E - EPDM V - VITON
(7) Pump body material: F - FRPP C - CFRPP A - CPVC P - PVDF
These are MI Series of Vertical Pumps,the model number are as below:
MI-15VK-1/15 , MI-20VK-1/6 , MI-20VK-1/4 , MI-20VK-1/3 , MI-20VP-1/6 , MI-20VP-1/3 ,
MI-25VK-1/2 , MI-40VK-1 , MI-40VK-2 , MI-25VP-1 , MI-40VP-1 , MI-40VP-2.

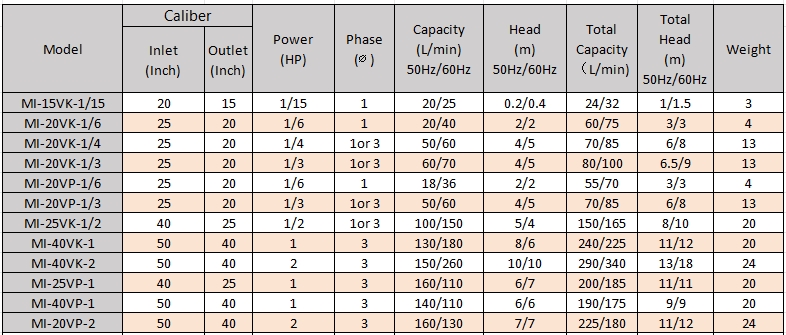

SPECIFICATION

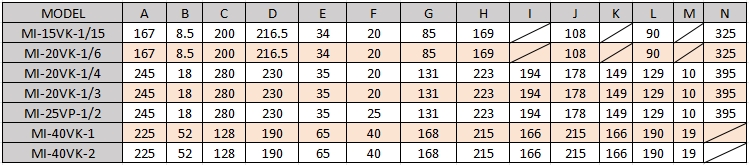

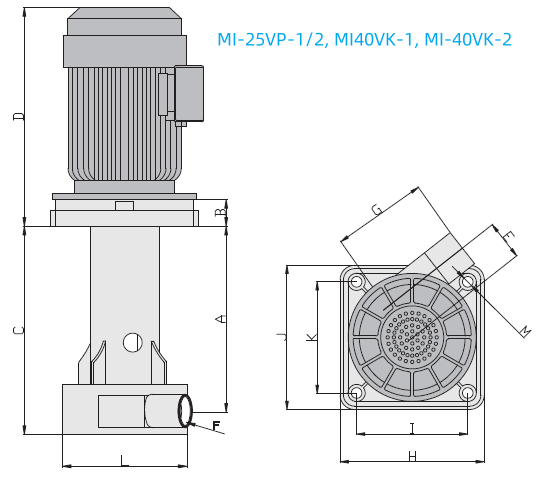

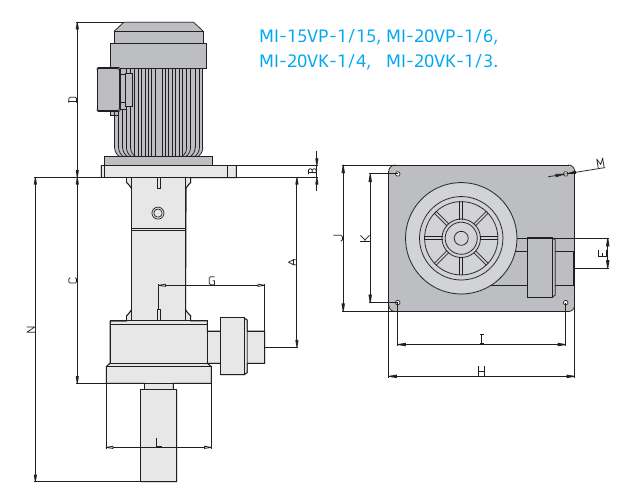

DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
(1)Model:MI
(2)In-outlet: 15 - 1/2’’ 20 - 3/4’’ 25 - 1’’ 40 - 1-1/2’’ 50 - 2’’
(3)Weight: VK - 1.1 VP - 1.4
(4)Power: 1/15 - 1/15HP 1/6 - 1/6HP 1/4 - 1/4HP
1/3 - 1/3HP 1/2 - 1/2HP 1 - 1HP
2 - 2HP 3 - 3HP 5 - 5HP
(5) Frequency: 5 - 50Hz 6 - 60Hz
(6) Rubber material: N - NBR E - EPDM V - VITON
(7) Pump body material: F - FRPP C - CFRPP A - CPVC P - PVDF
These are MI Series of Vertical Pumps,the model number are as below:
MI-15VK-1/15 , MI-20VK-1/6 , MI-20VK-1/4 , MI-20VK-1/3 , MI-20VP-1/6 , MI-20VP-1/3 ,
MI-25VK-1/2 , MI-40VK-1 , MI-40VK-2 , MI-25VP-1 , MI-40VP-1 , MI-40VP-2.
SPECIFICATION
DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
