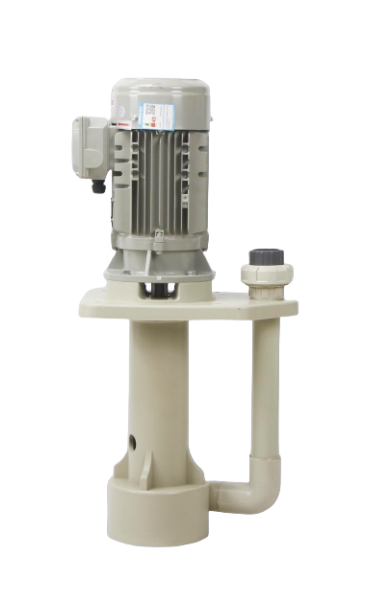

Vertical Pump - MIT Series
TIME：2024-01-27 Author：admin Views：
Low Noise丨No Blockage丨High Efficiency丨Energy Saving and Environmental Protection
TYPICAL APPLICATIONS●
● Watewater and waste gas treatment
● Electroplating industry: Circulation and filtration of various types of electroplating solutions.
● Chemical industry: conveying of strong acids in chemical factories and transport workshops.
● Etching industry
● Painting industry
PRODUCT FEATURES
Small amount of air mixing, larger head.
● Head:3-36M
● Flow rate:50- 1660L/MIN
● Material: GFRPP,PVDF
● Voltage:220V/380V
(1)Model:MIT
(2)In-outlet: 15 - 1/2’’ 20 - 3/4’’ 25 - 1’’ 40 - 1-1/2’’ 50 - 2’’
(3)Weight: VK - 1.1 VP - 1.4
(4)Power: 1/15 - 1/15HP 1/6 - 1/6HP 1/4 - 1/4HP
1/3 - 1/3HP 1/2 - 1/2HP 1 - 1HP
2 - 2HP 3 - 3HP 5 - 5HP
(5) Frequency: 5 - 50Hz 6 - 60Hz
(6) Rubber material: N - NBR E - EPDM V - VITON
(7) Pump body material: F - FRPP C - CFRPP A - CPVC P - PVDF
These are MIT Series of Vertical Pumps,the model number are as below:
MIT-40VK-2 , MIT-40VK-3 , MIT-40VK-5 , MIT - 50VK-5 , MIT-40VP-2 , MIT-40VP-3 , MIT-40VP-5 , MIT-50VP-3 , MIT-50VP-5.

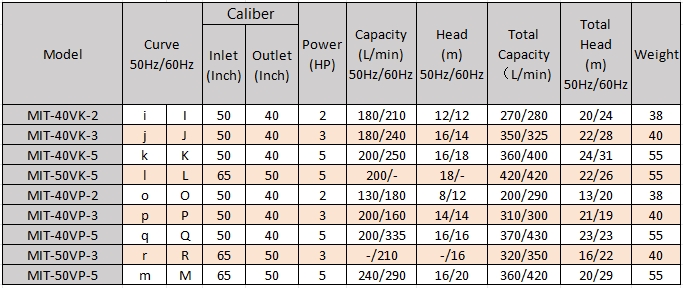

SPECIFICATION

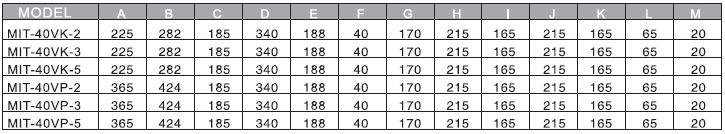

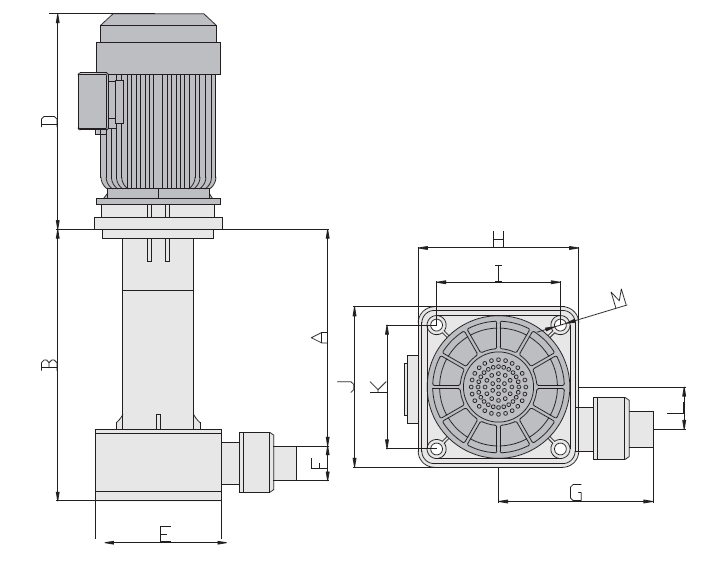

DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
TYPICAL APPLICATIONS●
● Watewater and waste gas treatment
● Electroplating industry: Circulation and filtration of various types of electroplating solutions.
● Chemical industry: conveying of strong acids in chemical factories and transport workshops.
● Etching industry
● Painting industry
PRODUCT FEATURES
Small amount of air mixing, larger head.
● The depth of the tank can be customized to 700-1500mm according to the customer requirement.
● All the liquid receiving parts of the pump are made of FRPP, CFRPP, PVDF, depending on the chemical liquid to be conveyed.
● Double-layer dry shaft seals are designed to prevent chemical gases from damaging the motor bearings.
● Specially designed impellers, so that even if the impellers are reversed occasionally, they will not damage the pump.
● Double-layer dry shaft seals are designed to prevent chemical gases from damaging the motor bearings.
● Specially designed impellers, so that even if the impellers are reversed occasionally, they will not damage the pump.
● Suitable for all kinds of acid and alkali liquid circulation, cooling, spray washing equipment, exhaust gas tower, wastewater treatment, chemical tank liquid transfer.
● Can be used in conjunction with chemical liquid filters, suitable for all kinds of chemical plating liquid circulation and transportation
CONSTRUCTION● Can be used in conjunction with chemical liquid filters, suitable for all kinds of chemical plating liquid circulation and transportation
● Head:3-36M
● Flow rate:50- 1660L/MIN
● Material: GFRPP,PVDF
● Voltage:220V/380V
(1)Model:MIT
(2)In-outlet: 15 - 1/2’’ 20 - 3/4’’ 25 - 1’’ 40 - 1-1/2’’ 50 - 2’’
(3)Weight: VK - 1.1 VP - 1.4
(4)Power: 1/15 - 1/15HP 1/6 - 1/6HP 1/4 - 1/4HP
1/3 - 1/3HP 1/2 - 1/2HP 1 - 1HP
2 - 2HP 3 - 3HP 5 - 5HP
(5) Frequency: 5 - 50Hz 6 - 60Hz
(6) Rubber material: N - NBR E - EPDM V - VITON
(7) Pump body material: F - FRPP C - CFRPP A - CPVC P - PVDF
These are MIT Series of Vertical Pumps,the model number are as below:
MIT-40VK-2 , MIT-40VK-3 , MIT-40VK-5 , MIT - 50VK-5 , MIT-40VP-2 , MIT-40VP-3 , MIT-40VP-5 , MIT-50VP-3 , MIT-50VP-5.
SPECIFICATION
DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
