Stainless Steel Vertical Pump- MDS Series
TIME：2024-01-27 Author：admin Views：
High-temperature Resistance丨High efficiency丨Anti Chemical Corrosion
TYPICAL APPLICATIONS
● Electroplating industry PRODUCT FEATURES
● New impeller,highefficiency, dry liquid seal design,can ensure that the motor and shaft seal are corroded by chemical acid gas, and extend the service life of the motor.
CONSTRUCTION
● Head:11-28M
● Flow rate:90- 1050L/MIN
● Material:SUS316 、SUS304
● Voltage:220V/380V
(1)Model：MDS
(2)In-outlet: 25 - 1’’ 40 - 1-1/2’’ 50 - 2’’
(3)Specific Gravcity：VK - 1.1 VP - 1.4
(4)Power: 1/2 - 1/2HP 1 - 1HP 2 - 2HP
3 - 3HP 5-5HP
(5)Frequency: 5 - 50Hz 6 - 60Hz
(6)O-Ring: V - VITON T - TEFLON
(7)Pump Body Material：4 - SUS304 6- SUS316
These are MDS Series of Stainless Steel Vertical Pumps,the model number are as below:
TYPICAL APPLICATIONS
● Electroplating industry PRODUCT FEATURES
● New impeller,highefficiency, dry liquid seal design,can ensure that the motor and shaft seal are corroded by chemical acid gas, and extend the service life of the motor.
● Secondary energy-efficient motor energy saving, anti-corrosion and dustproof, low noise
● Durable: stainless steel 316 pump Body material, refuse to use secondary recyded materials, no leakage.
● Durable: stainless steel 316 pump Body material, refuse to use secondary recyded materials, no leakage.
CONSTRUCTION
● Head:11-28M
● Flow rate:90- 1050L/MIN
● Material:SUS316 、SUS304
● Voltage:220V/380V
(1)Model：MDS
(2)In-outlet: 25 - 1’’ 40 - 1-1/2’’ 50 - 2’’
(3)Specific Gravcity：VK - 1.1 VP - 1.4
(4)Power: 1/2 - 1/2HP 1 - 1HP 2 - 2HP
3 - 3HP 5-5HP
(5)Frequency: 5 - 50Hz 6 - 60Hz
(6)O-Ring: V - VITON T - TEFLON
(7)Pump Body Material：4 - SUS304 6- SUS316
These are MDS Series of Stainless Steel Vertical Pumps,the model number are as below:
MDS-25VK-1/2 , MDS-40VK-1 , MDS-40VK-2 , MDS-50VK-3 , MDS-50VK-5 , MDS-65VK-7.5 , MDS-65VK-10 , MDS-40VP-1 , MDS-40VP-2 , MDS-50VP-3 , MDS-50VP-5

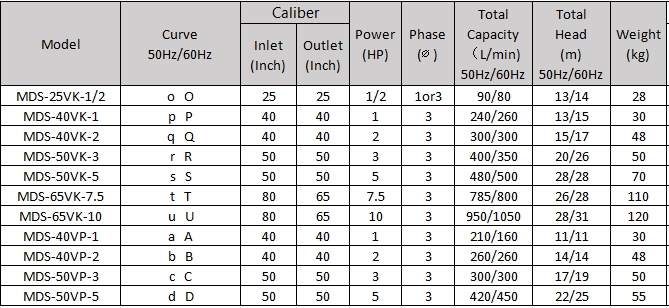

SPECIFICATION

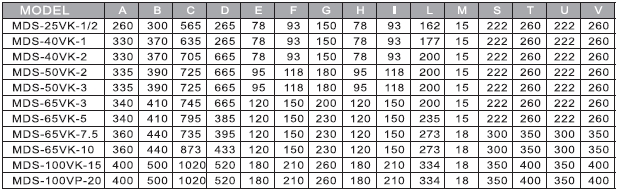

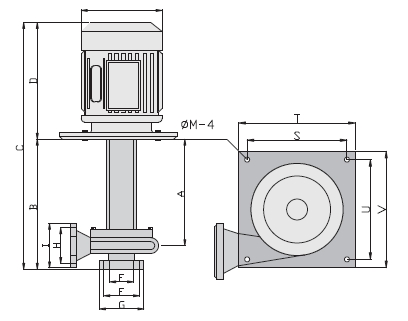

DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
SPECIFICATION
DIMENSION
Unit:mm
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
