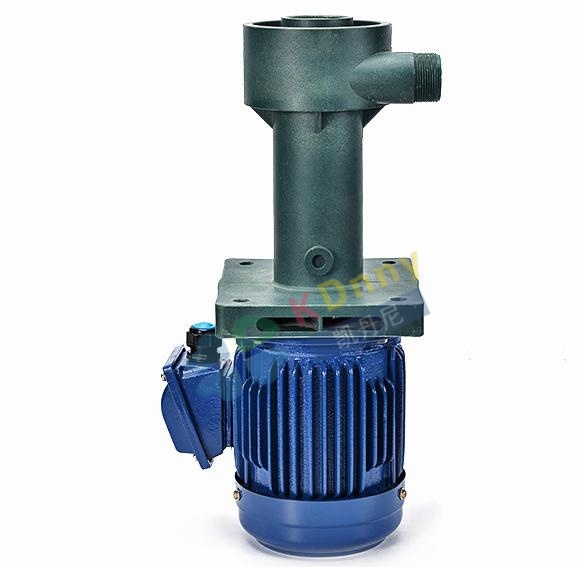

NMD Series - Vertical Pump In-tank Type

PARAMETERS

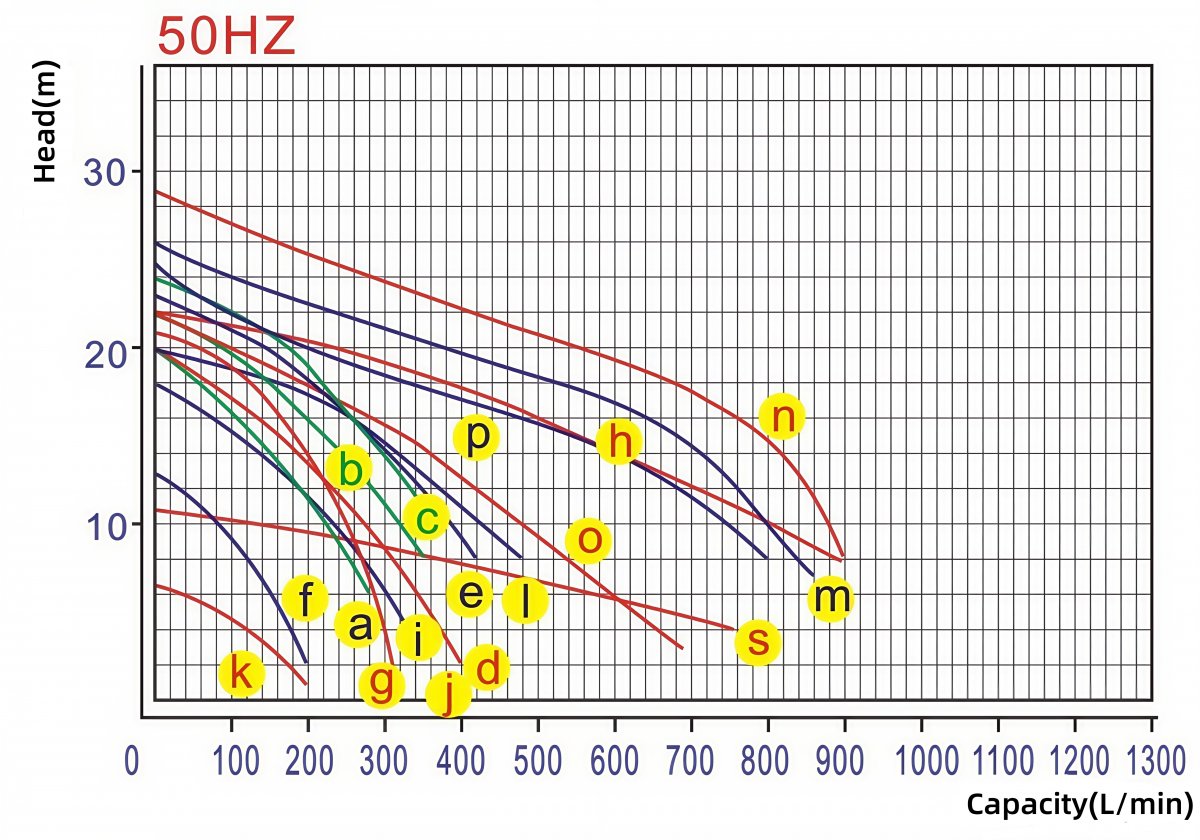

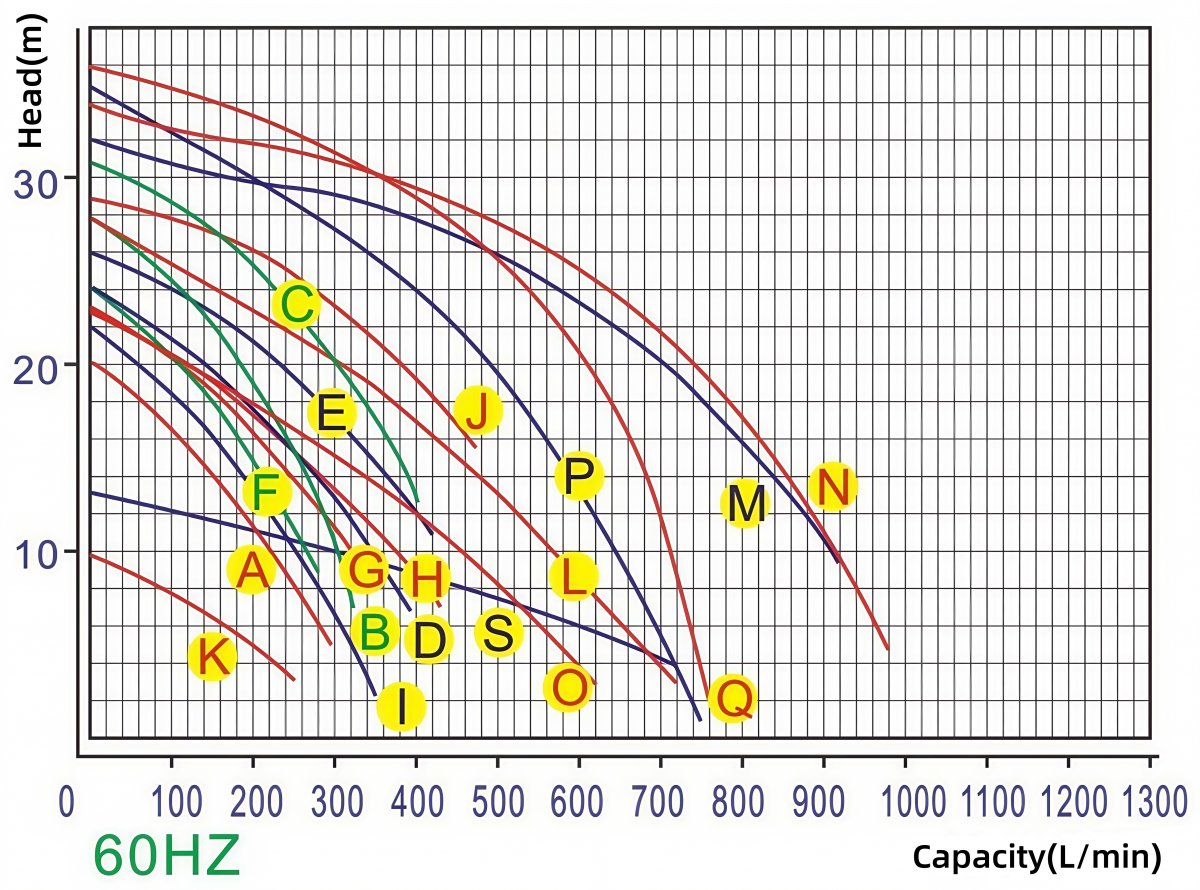

● Max. Capacity: 50Hz-270~900 L/min    60Hz-280~980 L/min
● Max. Head: 50Hz-6.5~29 m   60Hz-9~36 m
● Power: 0.75~7.5 kW

PRODUCT FEATURES

● Max. fluid temperature: polypropylene/CPVC/CFRPP 167℉(75℃) PVDF 185℉ (85℃)
● In-tank use only.
● High efficiency-low operating cost, leakfree operation and easy maintenance.
● Excellent chemical resistance.
● No seals or bearings in pump head to wear out.
● Continuous chemical duty TEFC motors with oversized bearings in motor casing.
● Vertical pumps can run dry without damage to vapor seal.
● Thick reinforced ribbing in all molded parts.
● Simplicity of design makes these pumps easy to service and operate.

TYPICAL APPLICATIONS

● Chemical or water recirculation
● Fume scrubbers/waste treatment
● PCB Plating solutions
● Wet processing
● Cleaning solutions
● Deliver acids

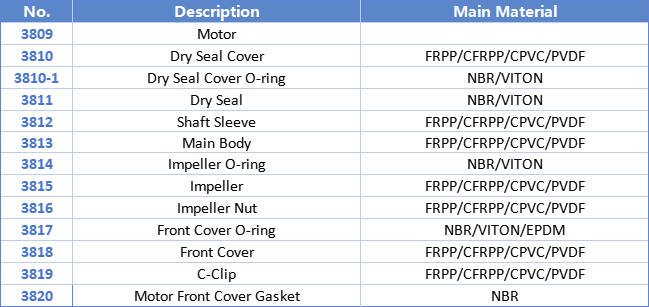

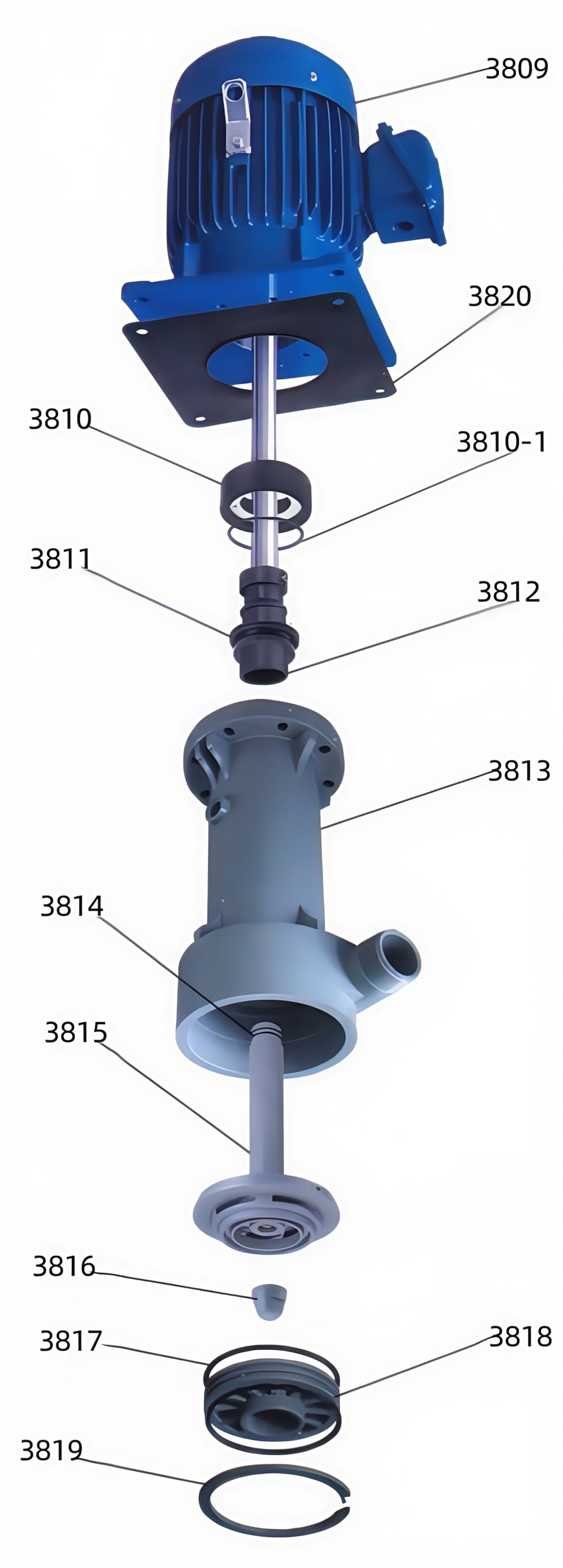

PARTS LIST

MODEL EXPLANATION

1、 Model: NMD--Out-tank Installed

                 NMD-I--In-tank Installed

2、 Pump Material: 1-FRPP  2-CFRPP  3-PVDF

3、 In-Outlet: G-50*40  H-50*50  K-80*65

4、 Specific Gravity: K-Specific Gravity 1.1

                              P-Specific Gravity 1.4

                              A-Large Flow

                              L-4P Low Speed

5、 Power: 16-1.5kW  18-2.2kW

                 20-3.75kW  25-5.5kW  30-7.5kW

6、 Rubber: N-NBR  E-EPDM  V-VITON

7、 Frequency: 5-50Hz  6-60Hz

8、 Motor Type: N-Standard Type B-Explosion Type

9、 Shaft Material: No Show-Standard Type T-Titanium

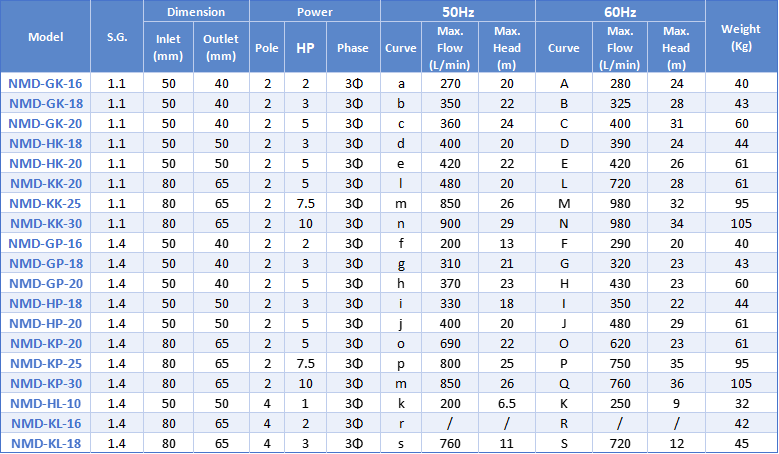

These are Vertical Pump In-tank type of NMD Series, we have the models number as below:
