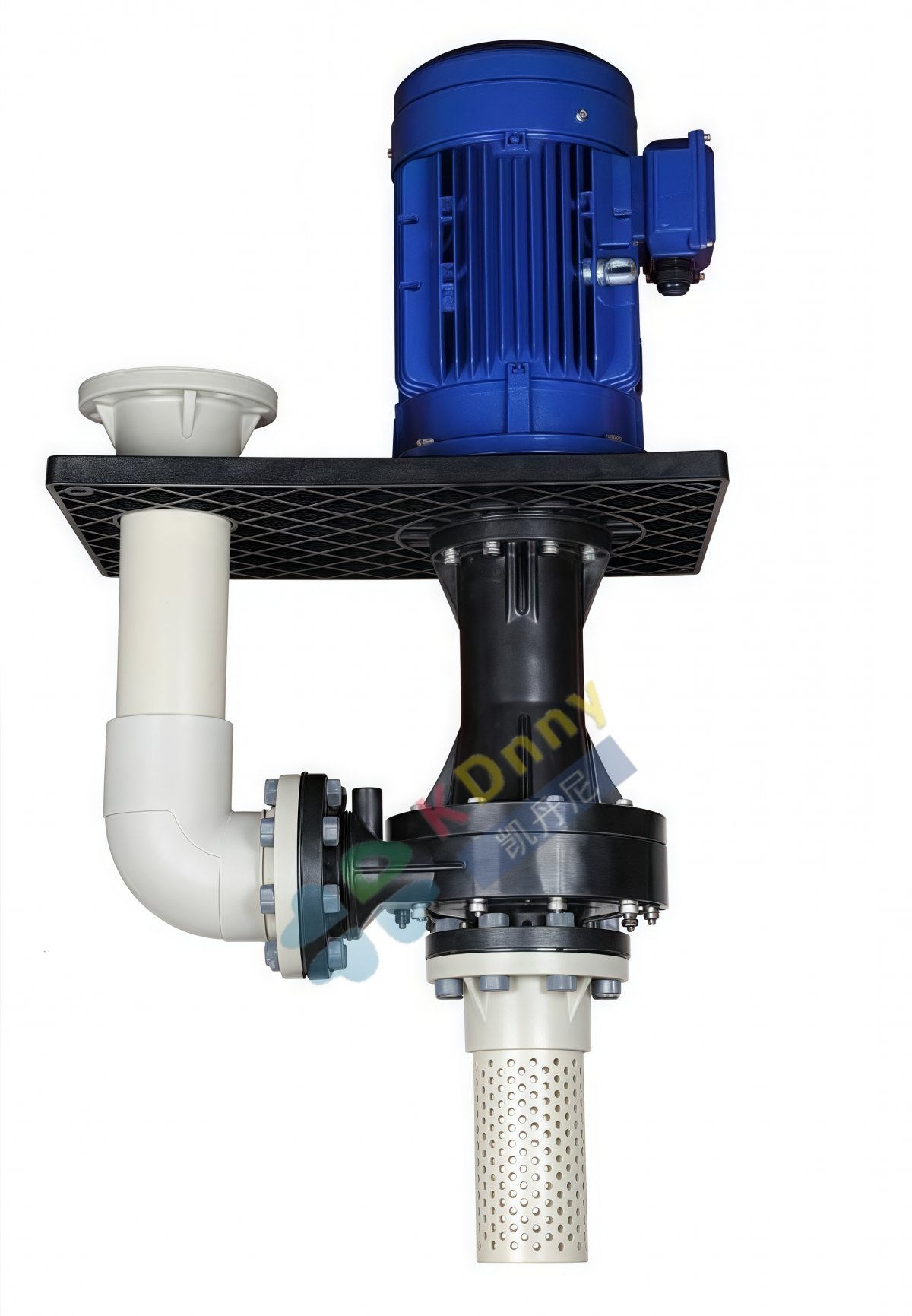

NMA-I Series - Vertical Pump In-tank Type
TIME：2025-02-05 Author：admin Views：
PARAMETERS
● Max. Capacity: 50Hz-550~2250 L/min 60Hz-560~1850 L/min● Max. Head: 50Hz-25~35 m 60Hz-29~39.5 m
● Caliber: Inlet-65mm, 80mm, 100mm, 125mm
Outlet-50mm, 65mm, 80mm, 100mm, 125mm
● Pump Casing: FRPP, CFRPP, PVDF
PRODUCT FEATURES
● The injection molding of various plastic steel materials such as FRPP, CPVC, CFRPP, and PVDF can resist most chemicals, acid and alkali.● Can be used in idling mode and will never be damaged due to idling. There is a dry shaft seal design to protect the motor from acid gas entering and damaging the bearing.
● Suitable for the circulation and transportation of electroless nickel, chemical copper, and various special electroplating solutions. Can be used in conjunction with a filter.
TYPICAL APPLICATIONS
● Various acid and alkali liquid circulation● Cooling
● Spray cleaning equipment
● Exhaust towers
● Etching machines
● Wastewater treatment

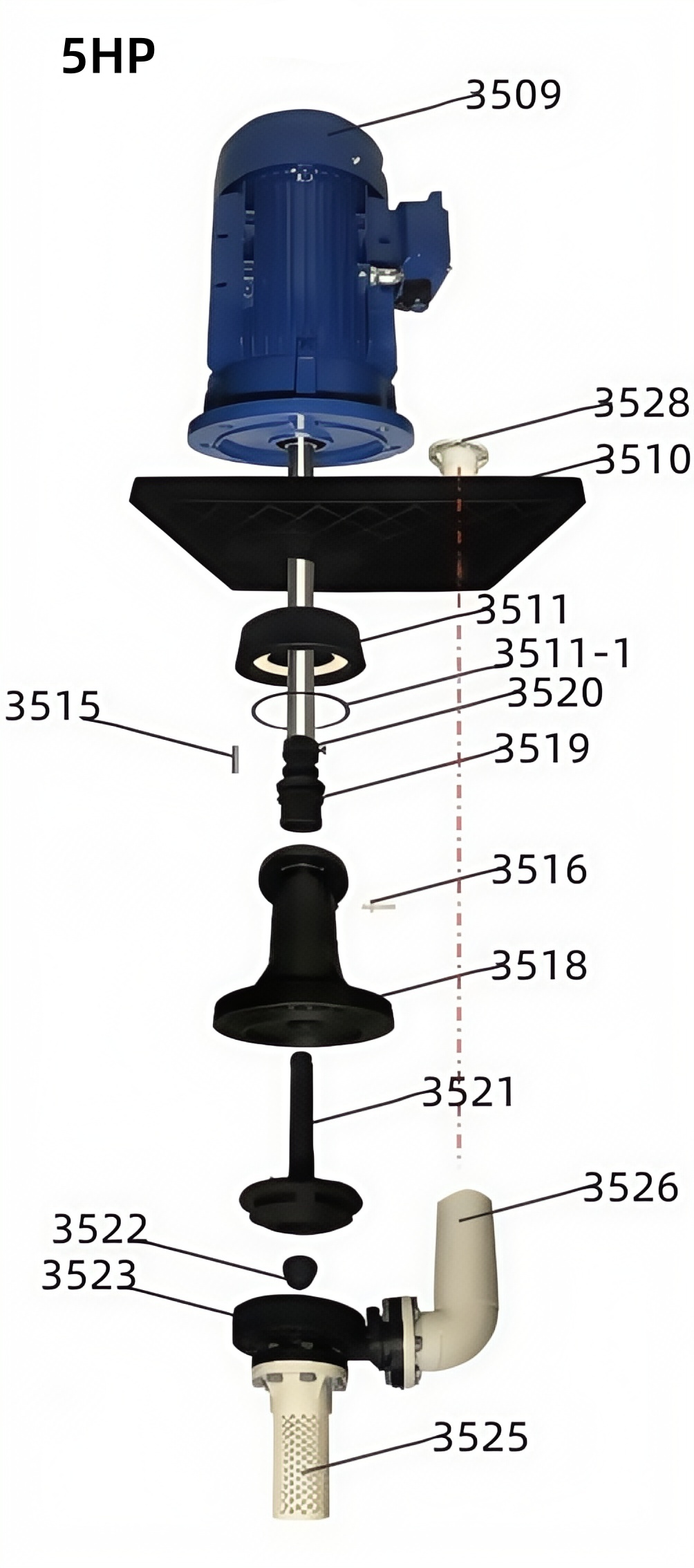

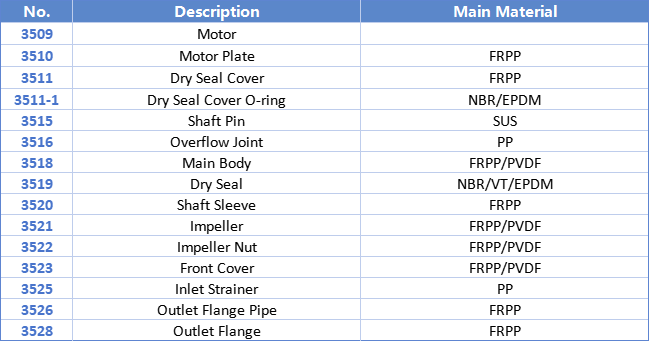

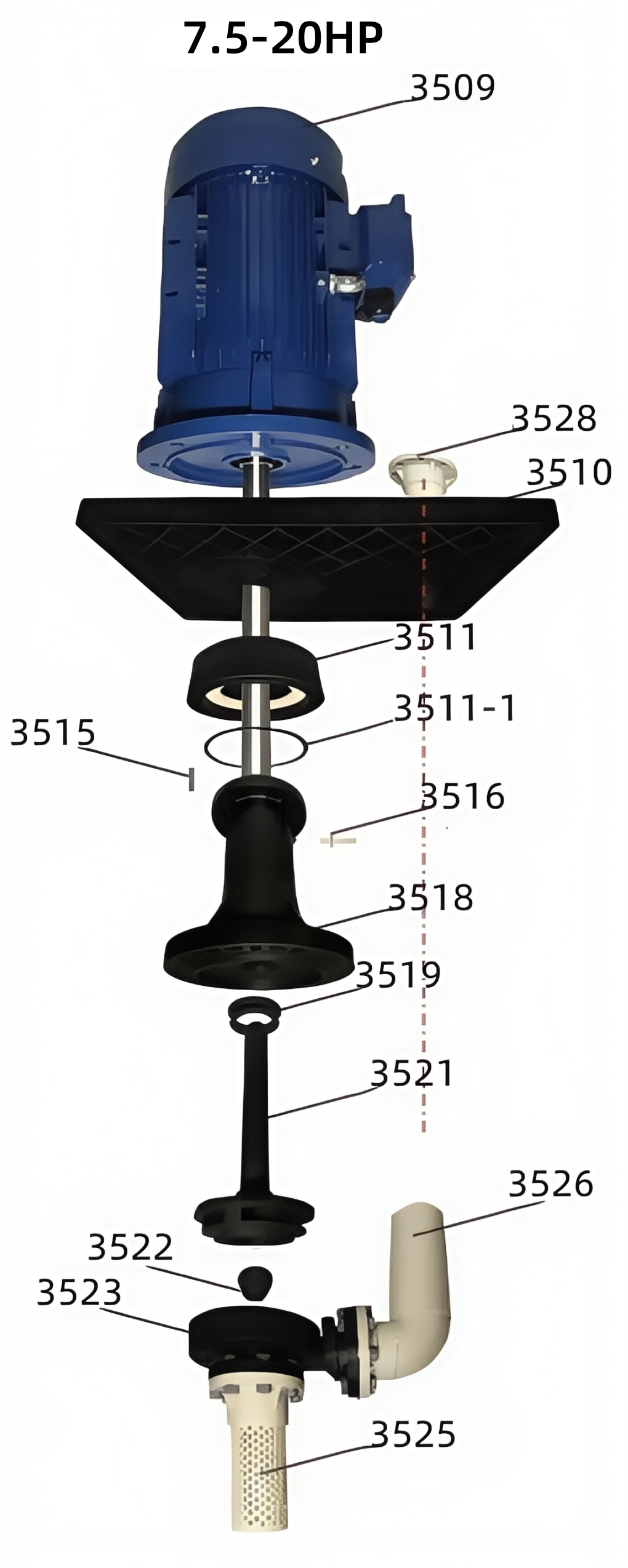

PARTS LIST
MODEL EXPLANATION
1、Model: NMA--Out-tank Installed
NMA-I--In-tank installed
2、Pump Material：1-FRPP 2-CFRPP 3-PVDF
3、In-Outlet：G-50*40 I-65*50 K-80*65
J-80*80 L-100*100 M125*125
4、Specific Gravity: K-1.1 Specific Gravity 1.1 P-1.4 Specific Gravity 1.4
A- Large Flow L- 4P Low Speed
5、 Power: 10-0.75kW 16-1.5kW 18-2.2kW 20-3.75kW
25-5.5kW 30-7.5kW 35-11kW 38-15kW
6、 Rubber: N-NBR E-EPDM V-VITON T-Titanium
7、 Frequency: 5-50Hz 6-60Hz
8、 Motor Type: N-Standard Type B-Explosion Type
9、 Shaft Material: No Show-Standard Type T-Titanium
These are Vertical Pump In-tank Type of NMA-I Series, we have the models number as below:
NMA-I-IK-20
NMA-I-KK-20
NMA-I-KK-25
NMA-I-KK-30
NMA-I-JA-20
NMA-I-JA-25
NMA-I-JA-30
NMA-I-LA-30
NMA-I-LA-35
NMA-I-MA-35
NMA-I-MA-38

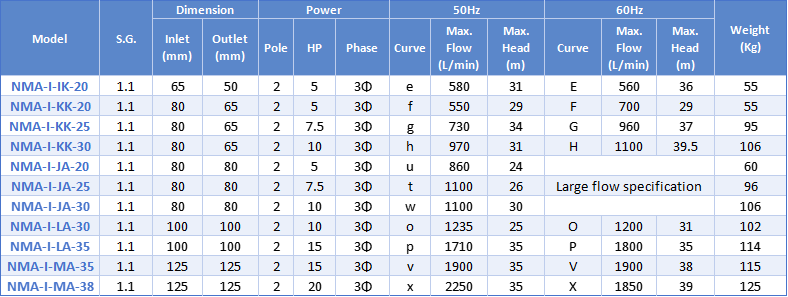

SPECIFICATION

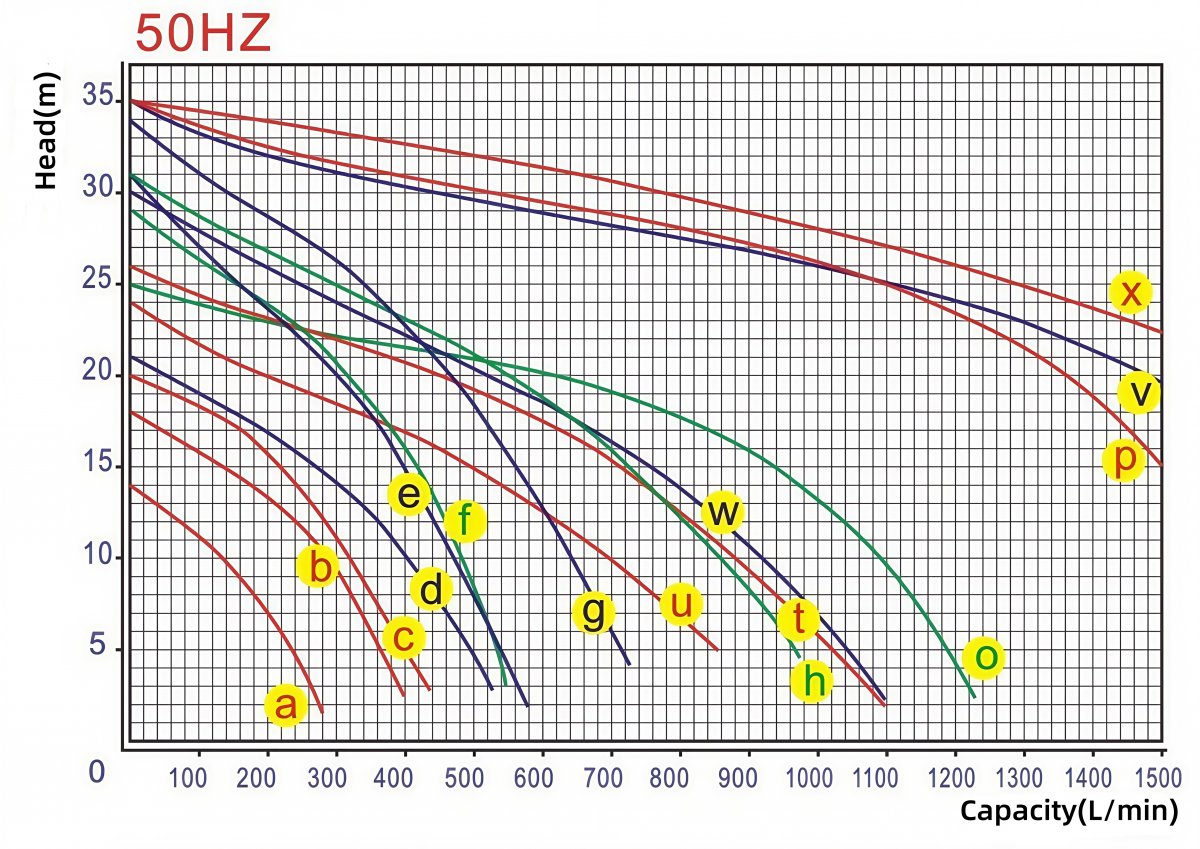

PERFORMANCE CURVE
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
