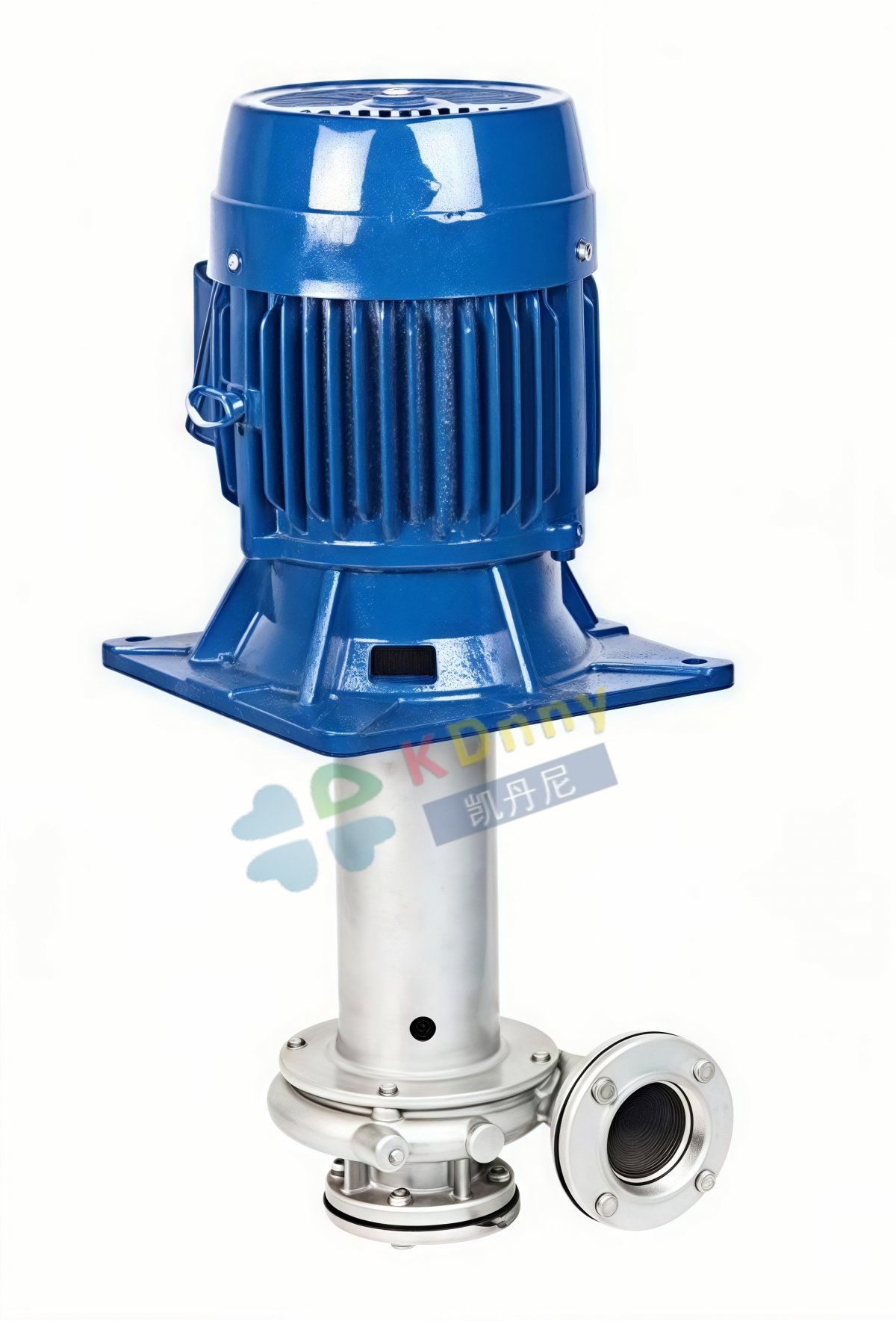

NME Series - Stainless Steel Vertical Pump
TIME：2025-02-05 Author：admin Views：
PARAMETERS
● Max.Capacity: 50Hz-95~1150 L/min 60Hz-105~1050 L/min● Max.Head: 50Hz-9~22 m 60Hz-8~31 m
● Power: 0.37~7.5kW
● Pump Casing: SUS304, SUS316, Titanium
PRODUCT FEATURES
● Cast 316 Titanium stainless steel pump, fine surface, high Performance impeller.
● Suitable for weak acid and alkaline circulation, high temperature applications.
● Sealless, run dry without damage, shaft seal prevents corrsive vapors from entering the bearing.
● Balance calibrated impeller, low noise, low vibration.
● Impact size, ideal for in tank applications.
● Break-through double impellers
● Both flanges of motor have oil seals to prevent acid vapor from entering the motor.
● Waste treatment
● Plating solutions
● PCB process chemical recirculation
MODEL EXPLANATION
1、 Model：NME -- Out-tank Installed
● Suitable for weak acid and alkaline circulation, high temperature applications.
● Sealless, run dry without damage, shaft seal prevents corrsive vapors from entering the bearing.
● Balance calibrated impeller, low noise, low vibration.
● Impact size, ideal for in tank applications.
● Break-through double impellers
● Both flanges of motor have oil seals to prevent acid vapor from entering the motor.
TYPICAL APPLICATIONS
● Chemical or water recirculation● Waste treatment
● Plating solutions
● PCB process chemical recirculation
MODEL EXPLANATION
1、 Model：NME -- Out-tank Installed
NME-I -- In-tank Installed
2、 Pump Material：4-SUS304 6-SUS316
8-Titanium
3、 In-Outlet：B-25*25 D-40*40 H-50*50
K-80*65 J-80*80
4、 Specific Gravity：K- Specific Gravity 1.1
P- Specific Gravity 1.4
A- Large Flow
L- 4P Low Speed
5、 Power：8-370W 10-0.75kW 16-1.5kW 18-2.2kW
20-3.75kW 25-5.5kW 30-7.5kW
6、 Rubber：N-NBR E-EPDM
V-VITON T-TEFLON
7、 Frequency: 5-50Hz 6-60Hz
8、 Motor Type: N- Standard Type B- Explosion Type
9、 Shaft Material: No Show-Standard Type T-Titanium
These are Stainless Steel Vertical Pump of NME Series, we have the models number as below:
NME-BK-8
NME-DK-10
NME-DK-16
NME-HK-18
NME-HK-20
NME-KK-25
NME-KK-30
NME-DP-10
NME-DP-16
NME-HP-18
NME-HP-20
NME-KP-25
NME-KP-30
NME-JP-25
NME-JP-30
NME8-DK-8
NME8-DK-10
NME8-DK-16
NME8-HK-18

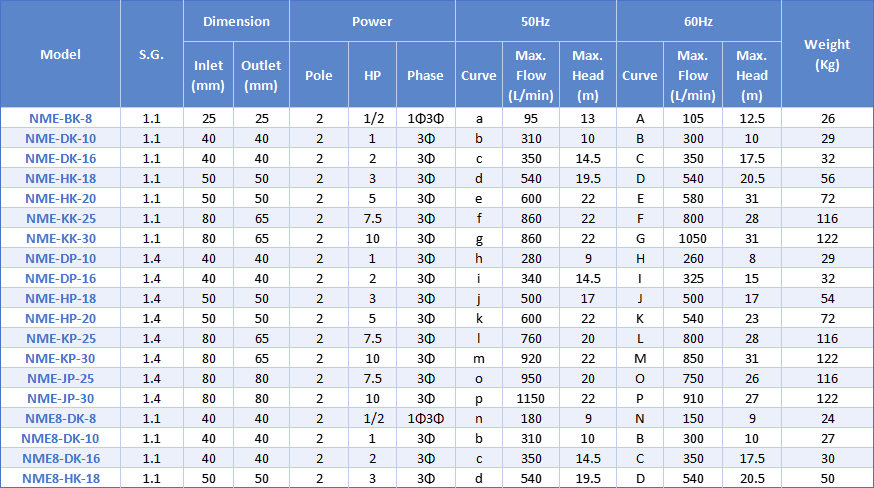

SPECIFICATION

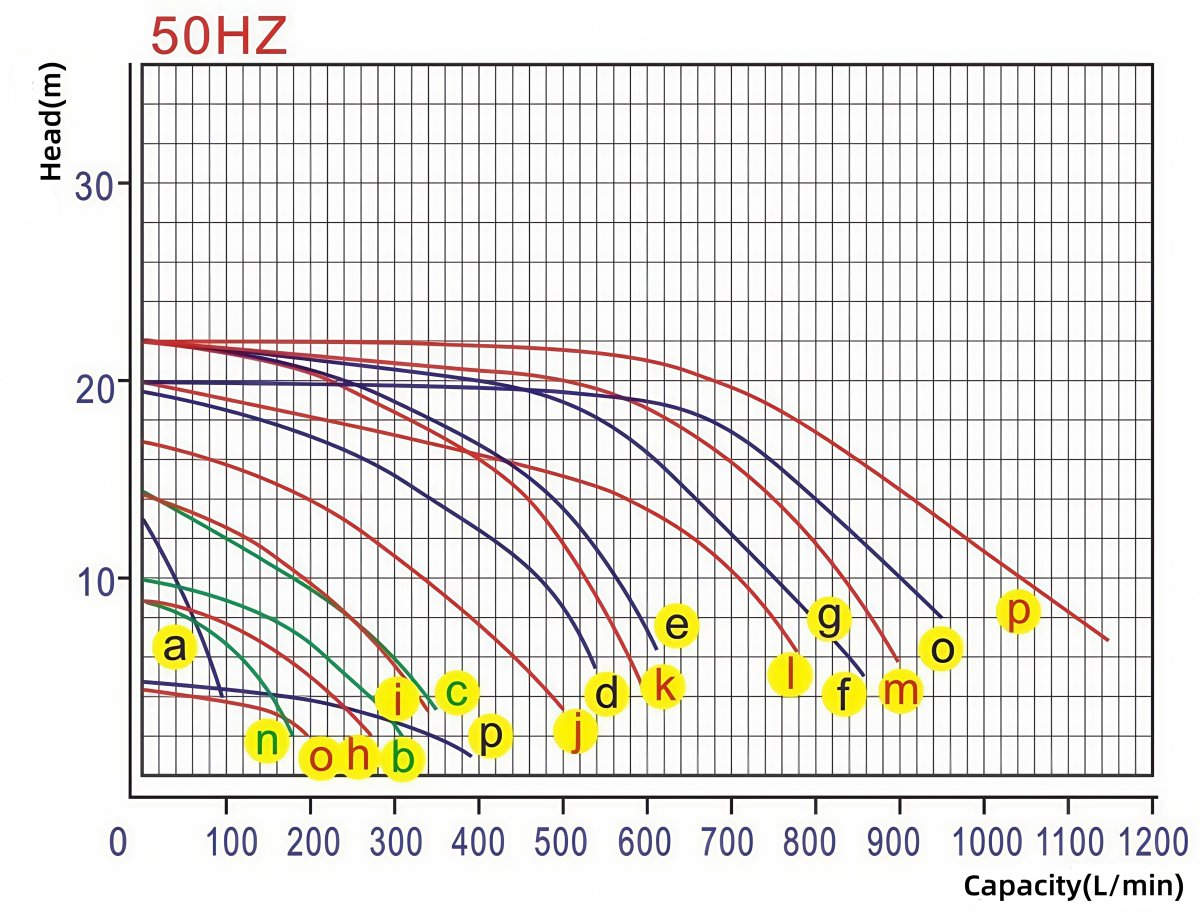

PERFORMANCE CURVE
While placing your order...
Please kindly provide us the following information.
1. Chemical: Name/Concentration/Temperature/Specific gravity/Viscosity.
2. Capacity needed:__________L/min
3. Head needed:__________M
4. Power: Voltage/Frequency
